MP5 decorder board full-format 720P HD MP5 with display decoder board





Description



full-format 720P HD MP5 with display decoder board



specification:

The project is consisted of integrated decoder chip,it makes decoder circuit and audio DA fused together ,Greatly improve the system stability

Built-in MPEG audio and video decoders, HDCD decoder.

Reasonable interface function and pin layout

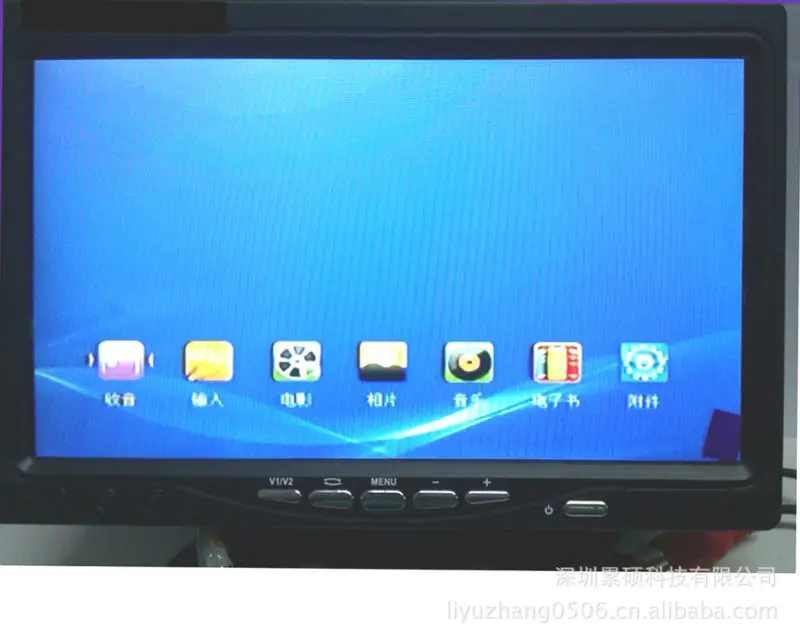

Remark;following picture shows details which is shoot by a 7 inch TV, the pictures is not clear because of camera and TV are low pixels,not means product with problems, the product is HD









FM state

1 Press the PLAY / PAUSE button enter to the FM main menu

2 press the SETUP button for a few seconds enter to FM setting menu

3 There are three kinds of radio channel searching:

a automatic searching

b channel searching

c searching by hand



4 Press PLAY/PAUSE key to searching ,there will tips remind whether clear all previous channels

a Choose YES, it will search by automatic

b Choose NO, it will go back

c, Pls click SETUP to exit FM



AUX IN state



MOVIE State

1 Press the PLAY / PAUSE button enter to the movie main menu

2 press the SETUP button for a few seconds enter to movie details menu

3 Pls click SETUP to exit



PHOTO State

1 Press the PLAY / PAUSE button enter to album main menu

2 press the SETUP button for a few seconds enter to album setting menu

a Enlarge Image press PLAY/PAUSE

b Rotate: according to the clockwise rotating 90 degrees

c Brightness:1-9

d special effects:default,fade-in fade-out,, horizontal Blinds,vertical Blinds

Drag up,Drag down,Drag to the left, Drag to the right, Expand upward ,expand down,expand to left,expand to right, Shrink, expand, mosaic, random, (Note: the remote control is effective)

e Speed: Fast, medium and slow, user-defined (0-59)

f Ratio: Automatic

      original

     Cut out

     Stretch

3 Pls click SETUP to exit



MUSIC State

1 Press the PLAY / PAUSE button enter to the music main menu

2 press the SETUP button for a few seconds enter to music setting menu

circulation

a repeat all

b regular

c cycle by Random

d repeat a song

e play a song

EQ

a Classic

b Jazz

c Popular

d Normal

e Rock



Backlight: 0N ,10 seconds,30 seconds 60 seconds, 90 seconds

3 Pls click SETUP to exit music



EBOOK State

1 Press the PLAY / PAUSE button enter to the Ebook main menu

2 press the SETUP button for a few seconds enter to Ebook setting menu

a background music;switch

b AutoRun:Fast, medium and slow,close

c Text color: black white yellow

d Pages

3 Flip pages up and down

4 Pls click SETUP to exit Ebook



Other State:

1 Language: Chinese English

2 Theme Style: style1 Style2 style3

3 product information:Memory card capacity

4 restore factory settings: yes or No

5 output: NTSC,PAL



characteristic

5V DC power , support U disk SD card USB hard disk interface

Support multiple coding formats: MPEG-1,MPEG-2,MPEG-4 ,H264, XVID

Video decoding up to 1280*720 , Built-in 2-channel outputs

Dynamic setting function, Digital albums play fluently ( with 8*16 SDRAM)

Computer drop-down menu settings ,Operate more convenient and comfortable

compatible with a variety of video formats, and identify the full format of audio file smoothly

Support Ebook ,Easily browse TXT text

Support Chinese ,Endlish language

Video output supports: CVBS

Support audio output : stereo (R/L)

Can configure VFD / LCD / LED displays do all kinds of function testing

Support FAT32 large-capacity hard disk, ,current must up to 1.5 A



infrared remote control operation Conveniently

Support hd video resolution:1280*720

Support image format: JPEG,BMP,GIF,PNG

Video Formats play: MKV(MPEG2/RMVB/WMV9/XVID/H.264);AVI(XVID/H.264);MP4/M4V(XVID/H.264);MOV(XVID/H.264)

audio format play : MP3, WMA, OGG, FLAC, AAC, APE, AC3, ATRA, DTS

Ebook format TXT,LRC,.C

With record audio function

With AUX input

Support software smart upgrade





Application

Support HDCD,CDG,MPEG4 AVI VOB DIVX5.1 digital frame , PMP Advertisement player

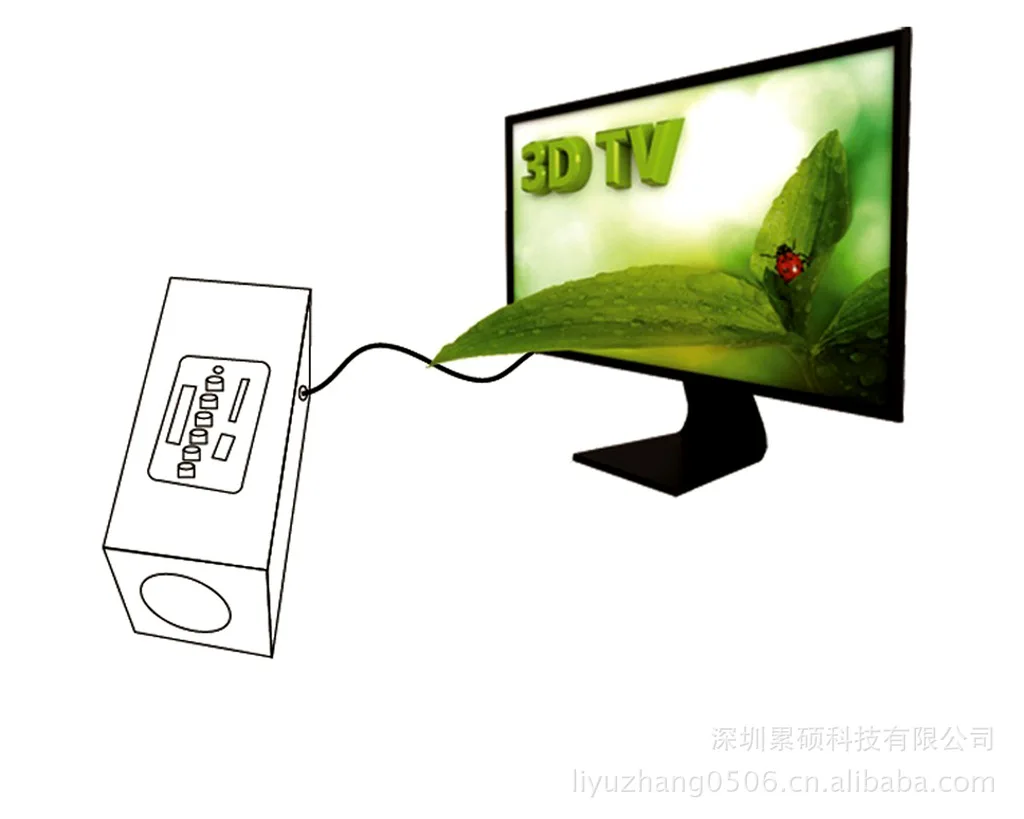

It can do TV BOX products, install it on TV , then can watch movies on the TV, listen to music, view digital photos

service for speakers, HD TV, LCD monitors, set-top boxes, HDMI, projector manufacturers ,embedded applications,

Provide guidance for connection method and connecting interfaces

Can be customized

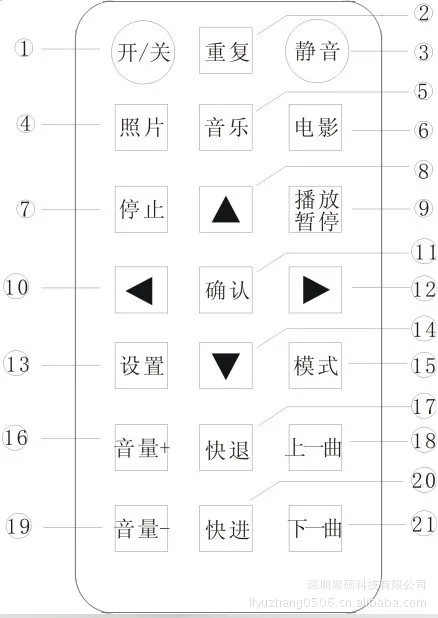

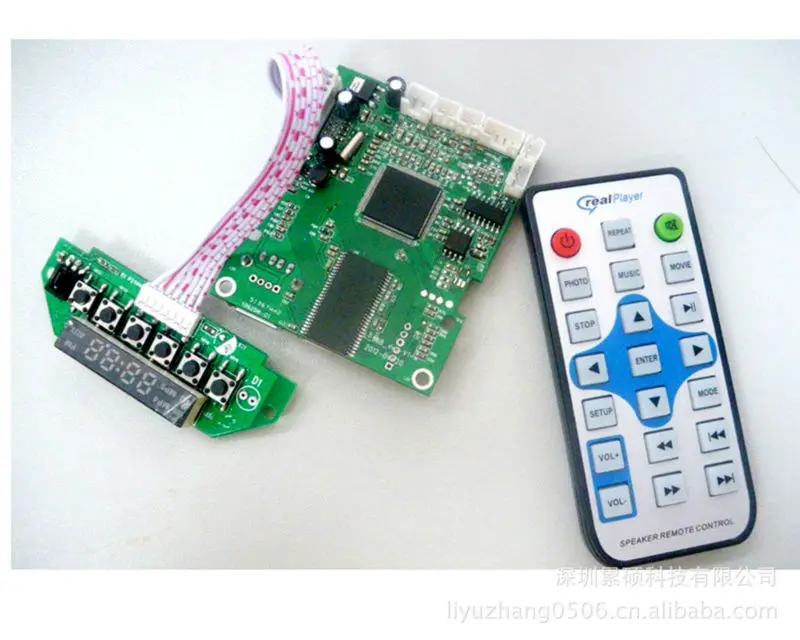

Remote control buttons and functions

1 silence

2 Repeat

3 Standby On/Off

4 Play pictures

5 Play songs

6 Play movie

7 Stop and return key

8 UP key

9 Play /pause

10 Left key

11 Ok Key

12 Right key

13 Setting key

14 Down key

15 Radio mode switch

16 Volume + key

17 Fast go Back button

18 Previous song

19 Volume – key

20 Go ahead button

21 Next song







main panel buttons function











SETUP: Enter the parameter setting menu

PREV:playing previous song to choose left in the submenu

NEXT: playing next song to choose right in the submenu

VOL-:turn volume down in the playing status, and choose up in the submenu

VOL+: turn volume up in the playing status, and choose down in the submenu

PL/PA: play or Pause in the playing status, confirm in the menu
