DN20 (1 inch) SUS316L insulated solar flex pipe

Product Overview

Description

DN20(1")   SUS316L insulated Flexible Solar Hose

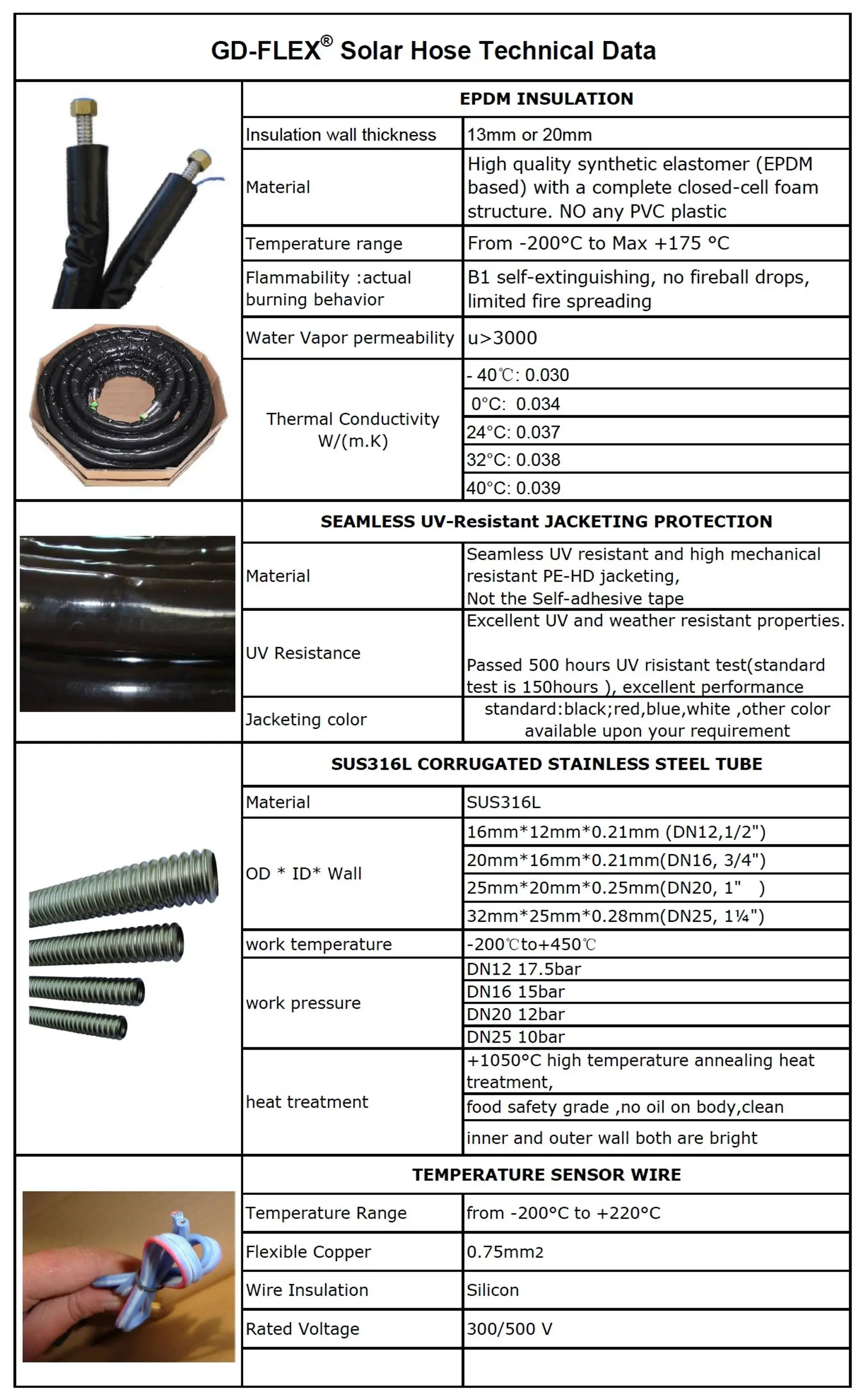

Item Name	DN20(1")   SUS316L insulated Flexible Solar Hose
Part No.	GDTWHTCSST25025.13
Size	DN20(connection fittings size 1",NPT/BSP)
SS pipe Material	AISI/SUS316L
SS pipe OD & ID	25mm*20mm
Insulation Wall thick	13mm
MOQ	500METERS
Brand	GD-FLEX / OEM
Original	China



Introduction



GD-FLEX pre insulated  flexible  solar hose only require 1 step to finish the Solar Water Heater Pipe Installation.



GD-FLEX pre insulated flexible solar hose only require 1 step to finish the Solar Water Heater Pipe Installation. Our pre-insualted flexible stainless steel Solar Hose with high temperature EPDM insulation pipe ,Strong Jacketing protection and 2-core temperature sensor cable pre-assembled , it is an ideal choice for your solar thermal system. It realizes the fast pipe connection among solar collectors, the pump station and the water tank. Non-welding required! The system is light weight and space saving, which is easy to handle, even in confined spaces. Flow and return pipes are marked clearly and can be easily distinguished. Smart Design- Break Point does good to installer separate twin pipes into 2 pipes without any destroy of the jacketing protection, meeting the installation demand very well.





Application

 Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, outdoor or underground piping system.



Structure

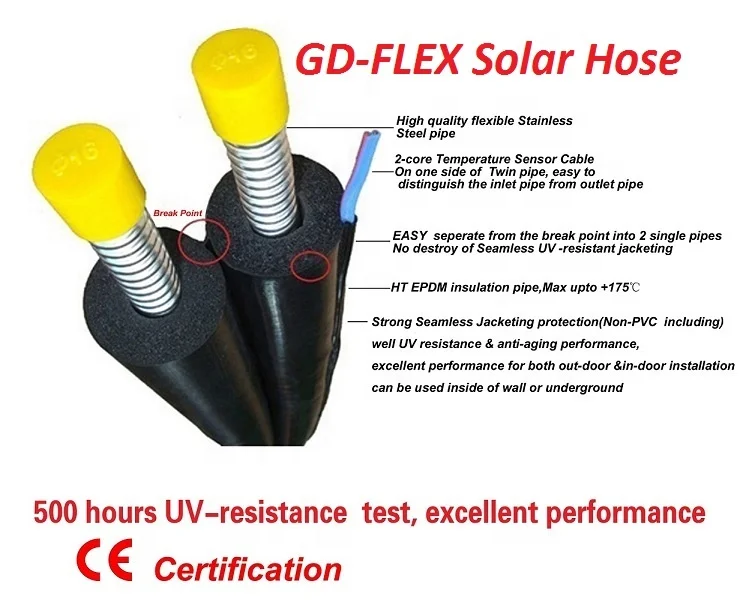

Twin flexible solar hose: It consisting of high temperature resistance EPDM insulation, 2 x flexible corrugated stainless steel tubes (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.



 Single flexible solar hose:It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube, UV-resistant, seamless jacketing protection.



 Single flexible solar hose with  temperature sensor cable It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube  (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.



Twin Flexible Solar Hose Features



Specifically designed for solar thermal panels.:



1. Each coil includes both the feed and return pipes. Easy to distinguish the feed pipe and return pipe. Our Sensor cable is on one side of the twin pipe, which is easy to distinguish the feed pipe and return pipe line
2.  Flexible high-grade stainless steel tube 316L(or 304).Maximum pressure up to 17.5 bar, Rated burst pressure 200 bar.1050°C high temperature annealing heat treatment,food grade,
3. 100% Genuine EPDM insulation pipe. Light, flexible, closed cell, synthetic caoutchouc; free of PVC and non- CFC.Very good ozone resistance, UV-resistant. Work Temperature range from -200°C to 150°C,Max to 175°C
4. Seamless UV resistant Jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer foil. have excellent performance of UV-resistance , of strong tenacity performance, water proof , Machinery destroy-Protective and bird peck-Protective, 500 hours UV risistant test,excellent performance .

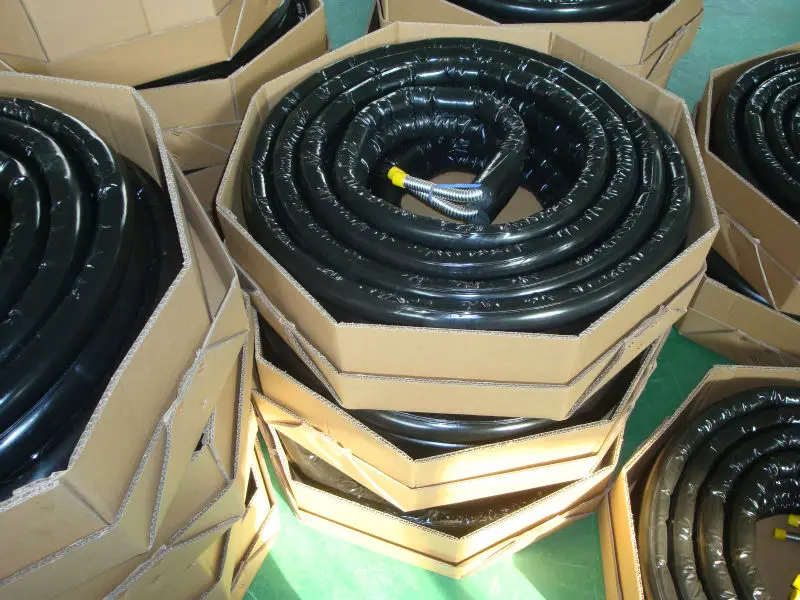

5. Coil length is available in 10, 15,20,30,60 meters. Other length is available upon customer's request
6. Save money. Easy connection, no soldering required, Saves installation time, reduction costs.
7. Each Twin pipe can be separated from the joint point into 2 complete single pipes according to the installation requirements.
8. Save time, Save space ,Save labor cost , realize the fast , easy and reliable solar pipes installation
