Product Overview

Description

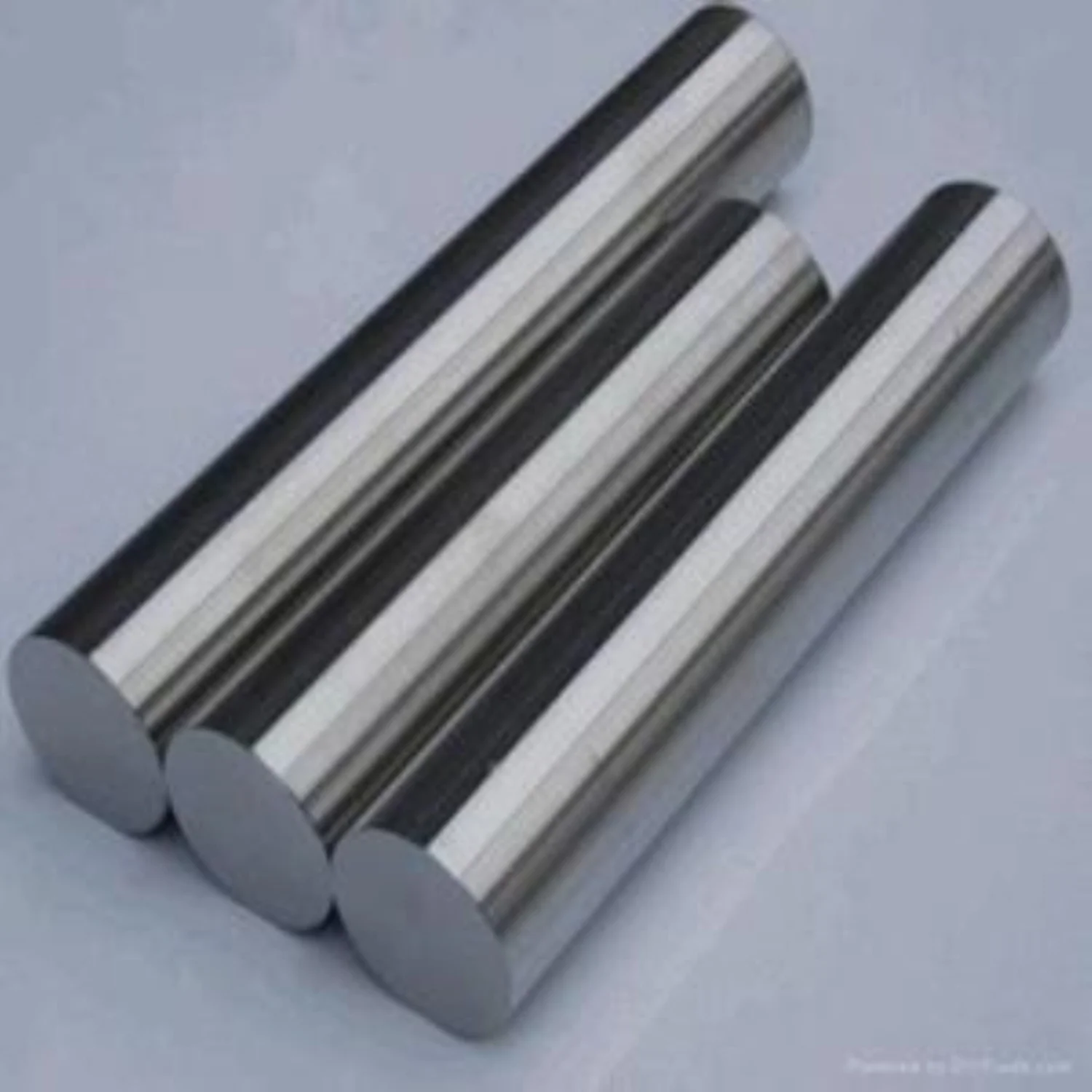

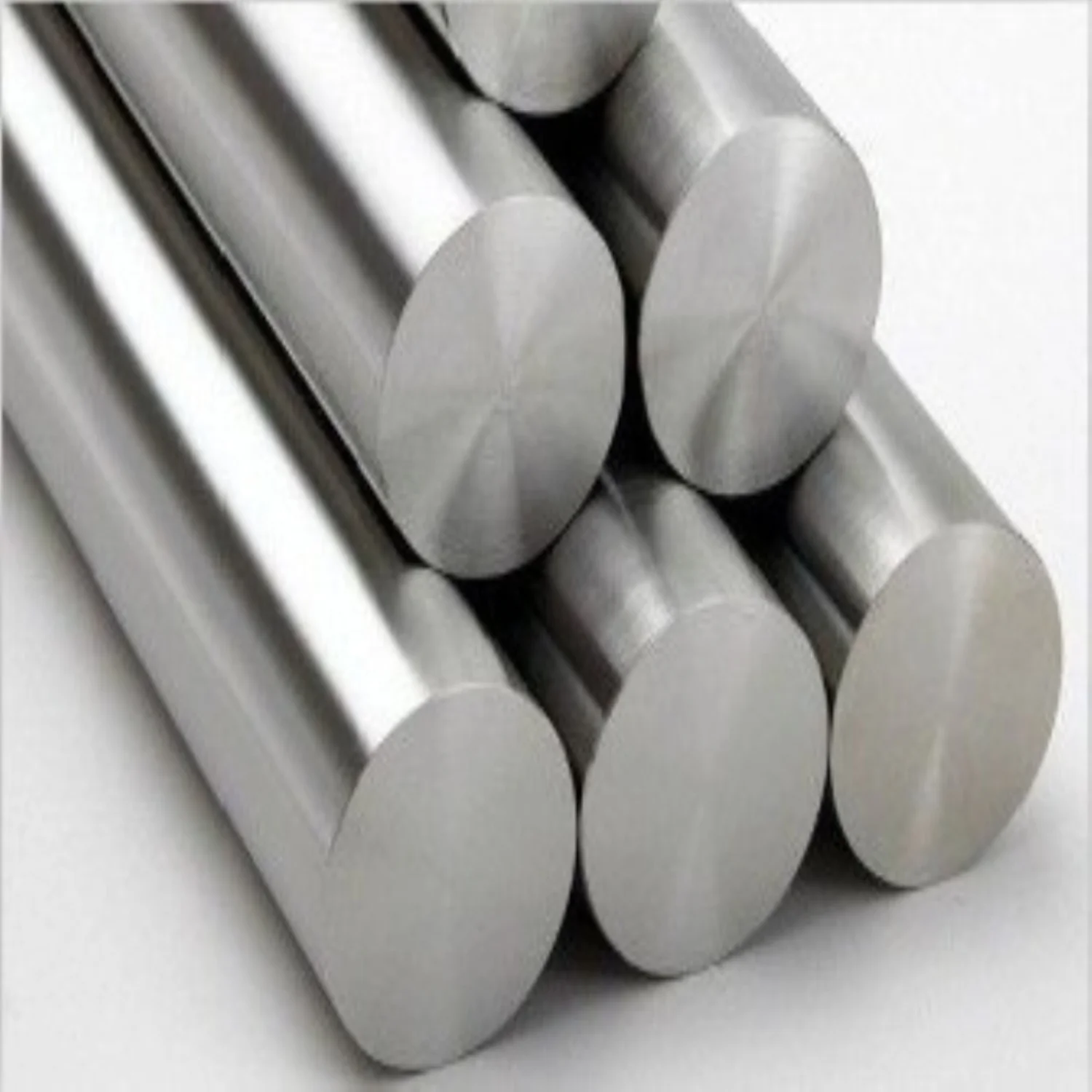

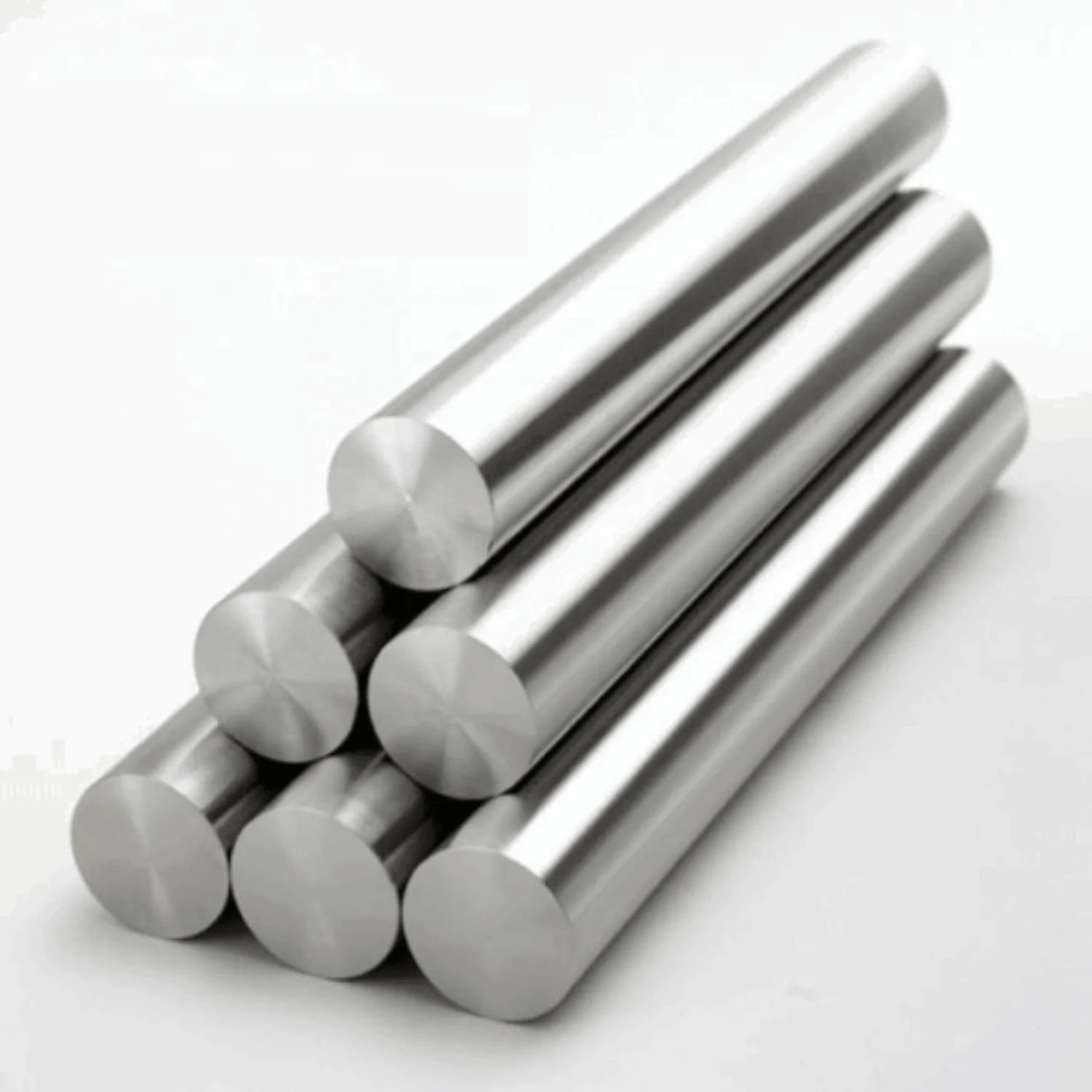

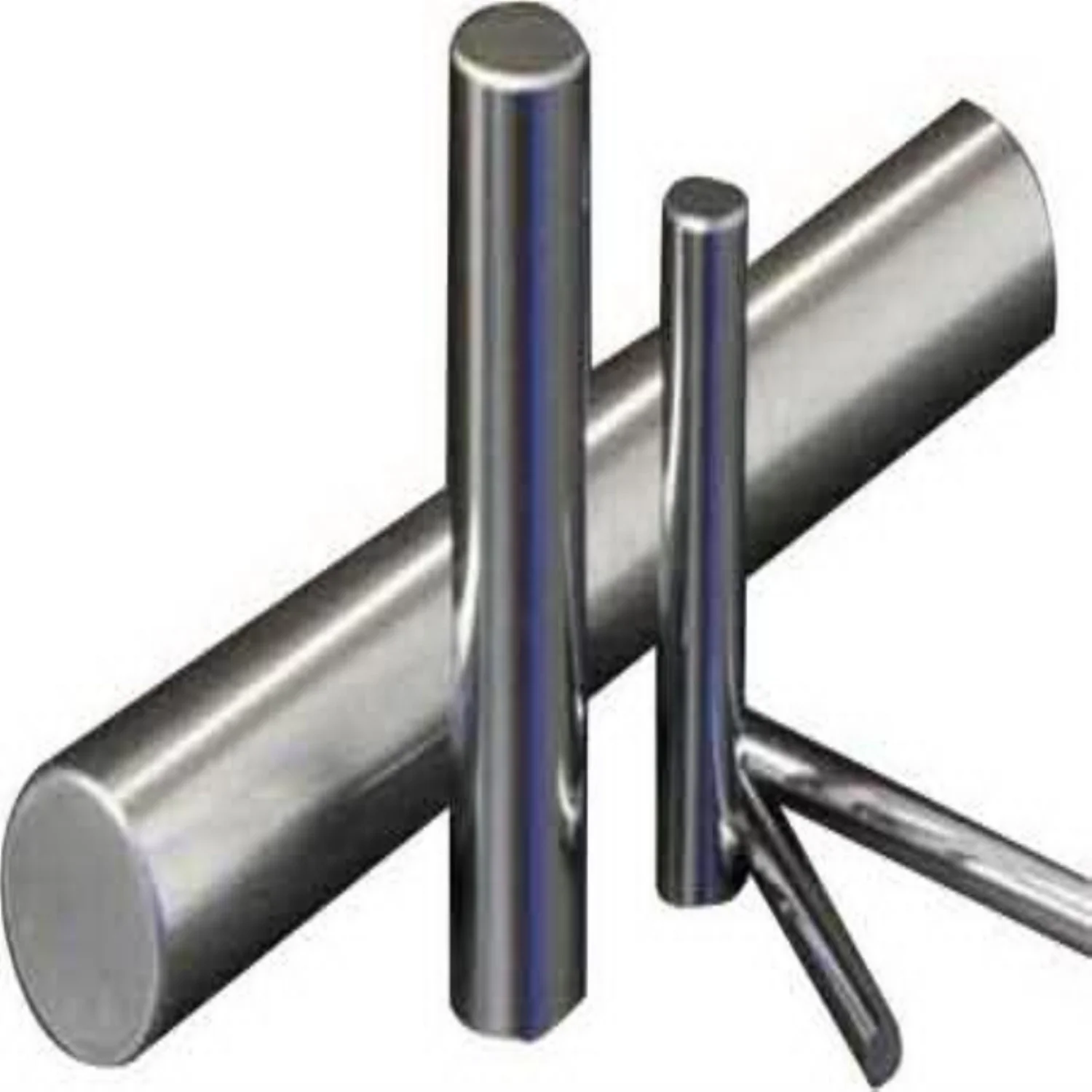

Nitinol rod























































Products



Elastic NiTi Memory alloy wire



Grade



Ni-Ti:   50:50 at%, 45:55%,



Standard



ASTM   F67, ASTM F136, F2063, ISO 5832



Application



Medical   Implant, surgical instrument, cell phone antenna, dental implant, Bone surgery   set , Woman bra, etc.



Size



Dia0.1-20mm



Condition



Annealed, Polished, Picking



Package



Wooden   cases for export



Diameter



0.1~0.2



>0.2~0.5



>0.5~1.0



>1.0~2.0



>2.0~4.0



>4.0~7.0



Tolerance



-0.025



-0.04



-0.06



-0.08



-0.10



-0.14









1.Application: cell phone antenna, children's toys, glasses leg, women bra, experimental materials, Women's Sports Central, arch wires, instruments, and medical equipment, such as surgical stitching wire, birth control loop and other areas of high-quality memory alloy wire.


2.Process: melting-----rolling----heating----welding---annealed-polishing-picki ng.


3.Advantage: the diameter 0.1mm high super elastic and Af point in the world.


4..Available shape: wire, sheet/plate, bar/rod, tube/pipe. roll stock, cut-to-size, slit rolls, discs, circles, heavy woven mesh or custom weaves.





Standard: ASTM—2063—01 ASTM F2063-2000































































Mechanical Properties



Tensile strength (Mpa)



Yield strength (Mpa)



Elongation



Af°C



895



828



10



170



Chemical composition



Ti



Fe



C



O



N



H



Co



Cu



Cr



Nb



Ni



R



0.012



0.04



0.02



0.04



0.001



0.0050



0.005



0.005



0.005



55.57










Transition temperature(SMA)
































    Grade






    TiNi-01






    TiNi-02






   TiNi-03






   TiNi-SS






    TiNi-YY






    TiNiCU






      TiNiNb









Transition Temperature









20°C-40°C









  45°C-90°C









   <5°C









  5°C-15°C









   33°C±3°C









  As-Ms=5°C









   As-Ms<150°C













































Alloy



Chemical composition



AF point



Min elongation (%)



Max Residual elongation after 6% strain



Application



Standard



Body temperature


NiTi Alloy



Ti-Ni-01



55.6-55.8wt%Ni



20-40



15



0.1



Orthotic Arches



Q/HL 1516.1
