Cup Lid Machine of Thermoformer Model DW4 78

Product Overview

Description

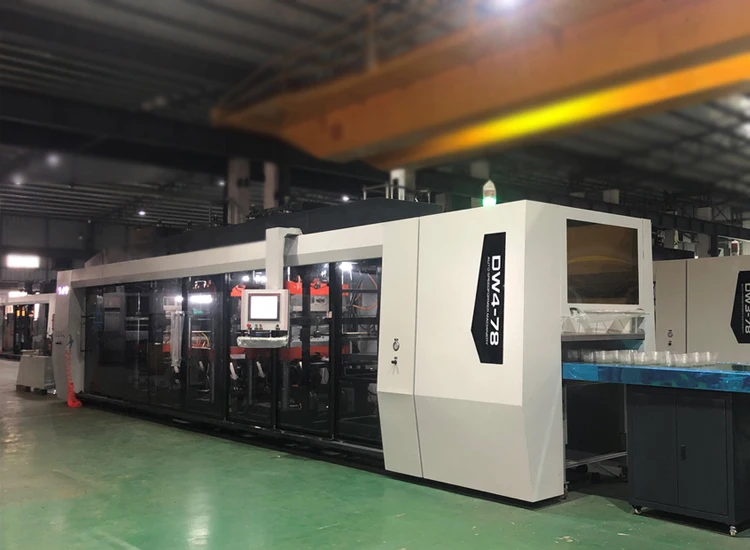

Cup Lid Machine of Thermoformer Model DW4-78



I, Basis Information



Model			DW4-78
Applicable Sheet			PP, PS, PET, PVC, PLA, etc.
Max. Formed Area			760*540mm
Thickness of Sheet			0.1-2.5mm
Height of Formed			≤150mm
Production Efficiency			≤45pcs/min
Air Consumption			5000-6000L/min
Air Pressure			0.6-0.8Mpa
Water Wastage			40-45L/min
Availability punching area(max)			780*560mm
Max punching power			60T
Total Weight			21T





II, Outstanding Feature



1.   Idea designed for plastic cup lid produce.

2.   Upper and lower distributed of Germanic ceramic heater made the sheet  heated evenly .

3.   Servo motor for driving

4.   Steady, highly production

5.   Low noise, low consumption

6.   Flexible adaptation to the forming area.



III, Sample Showcase
