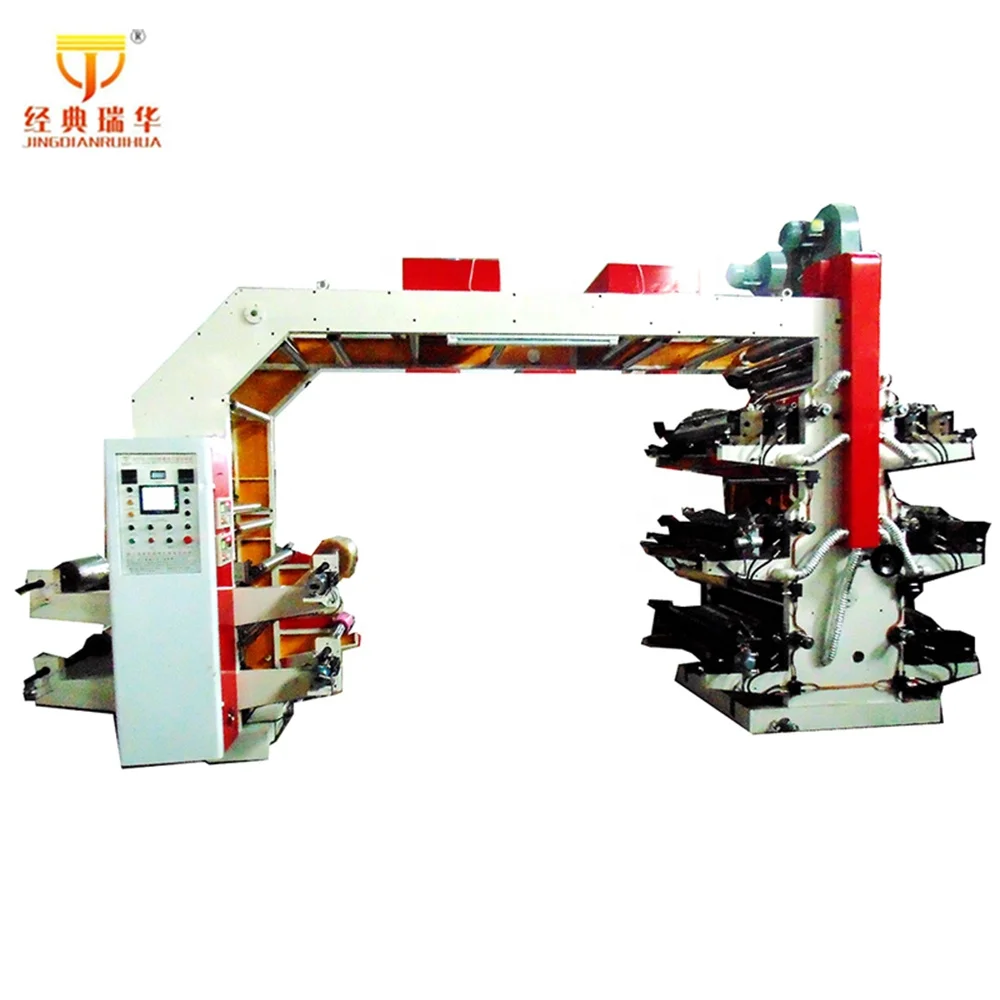

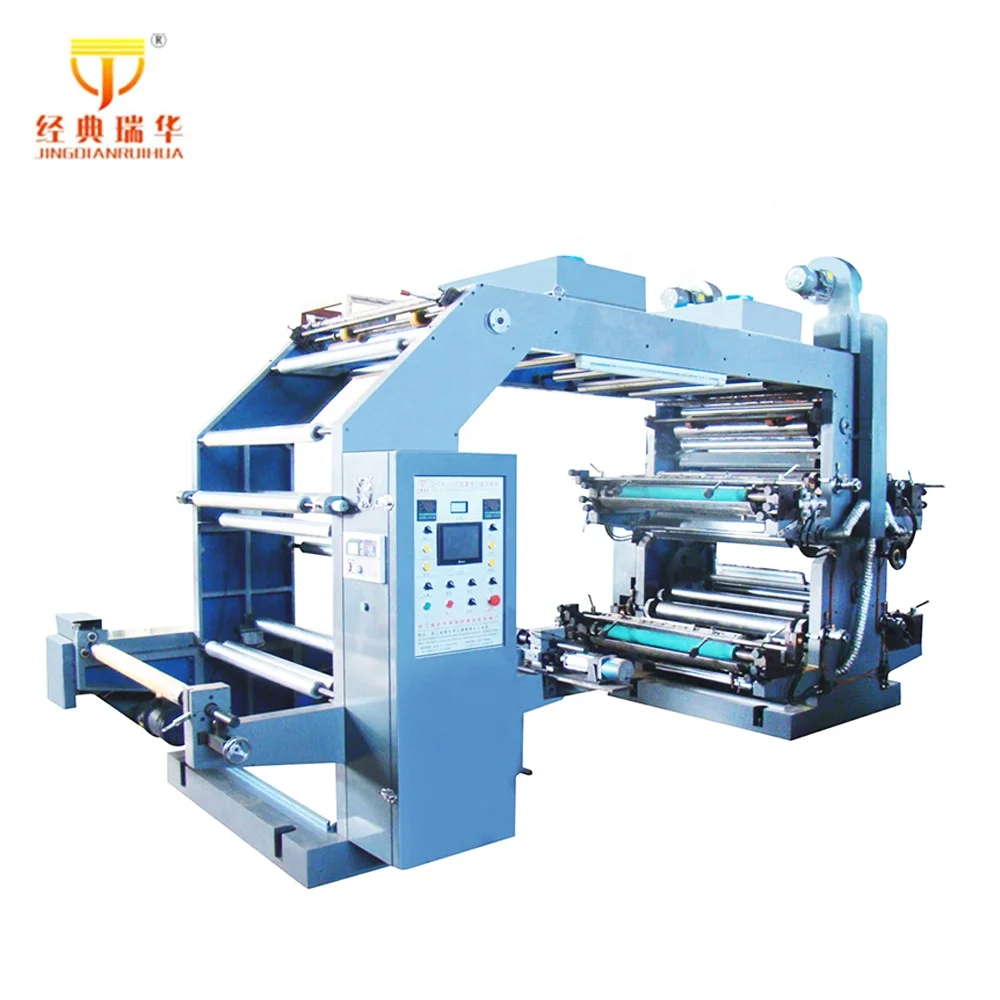

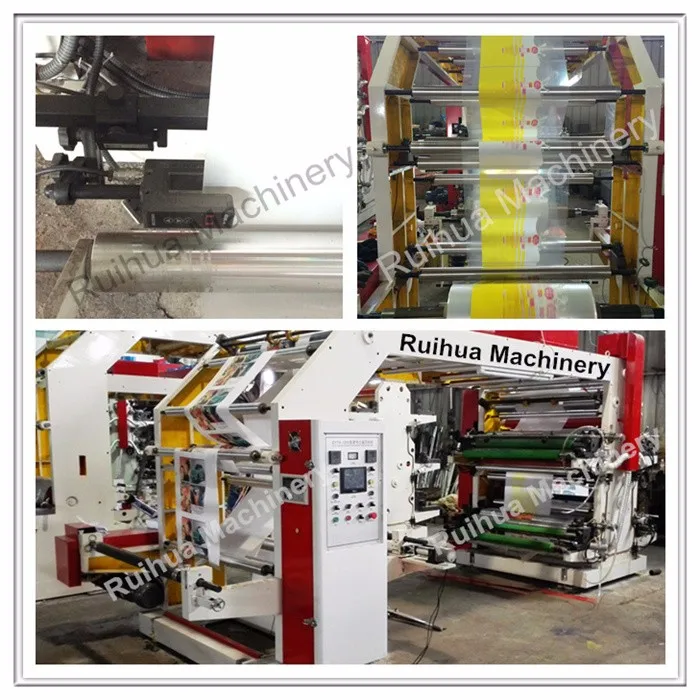

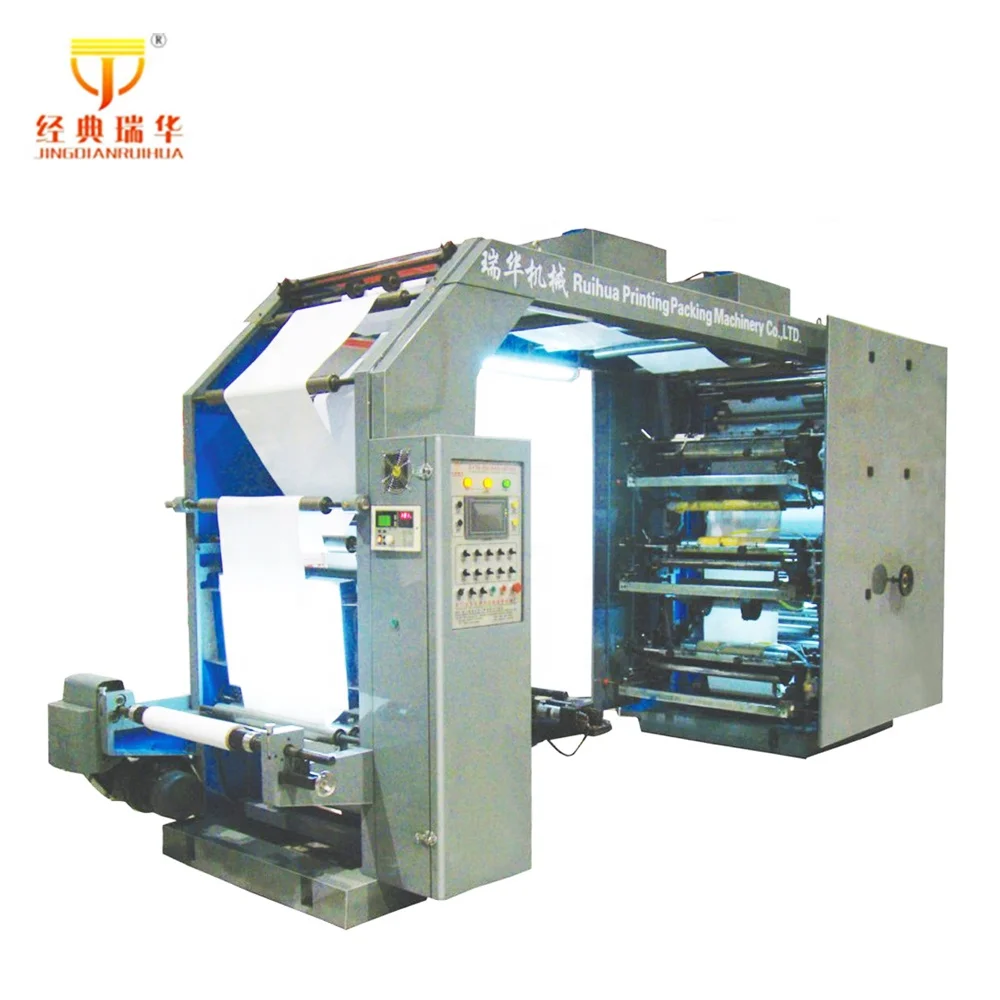

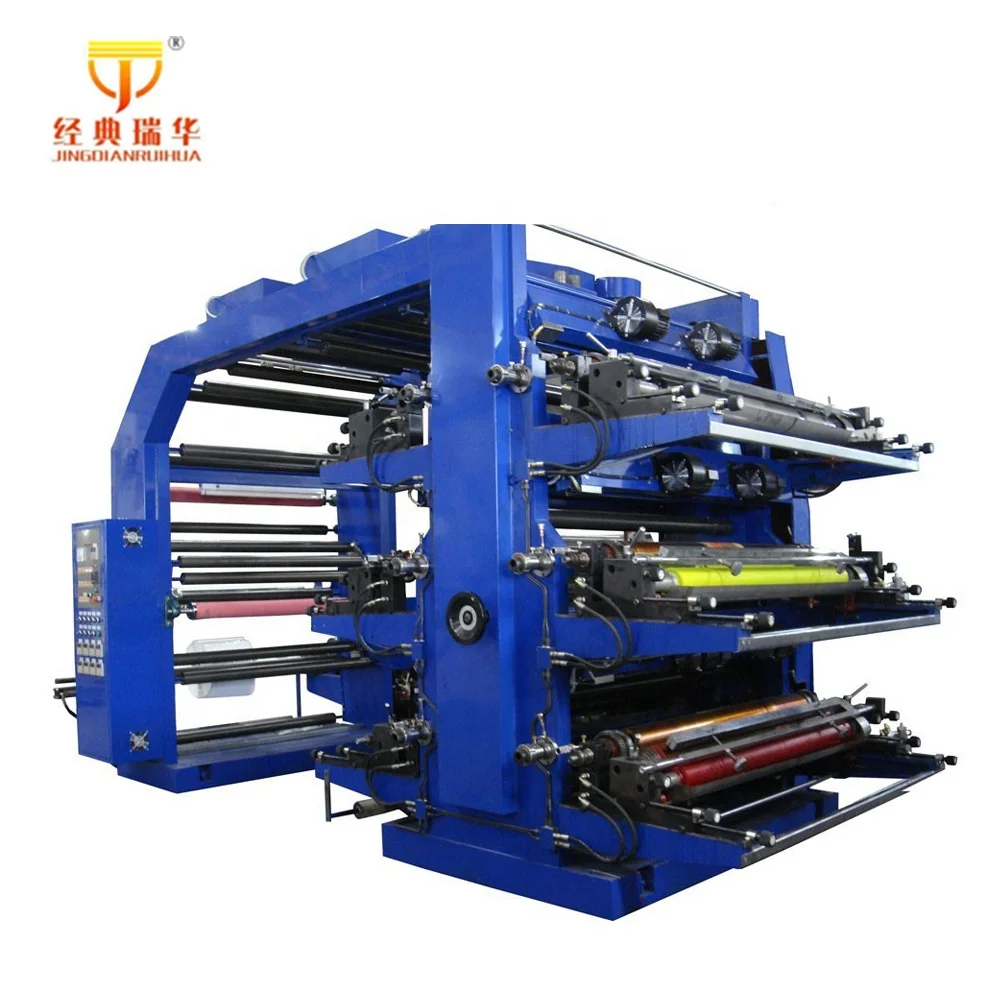

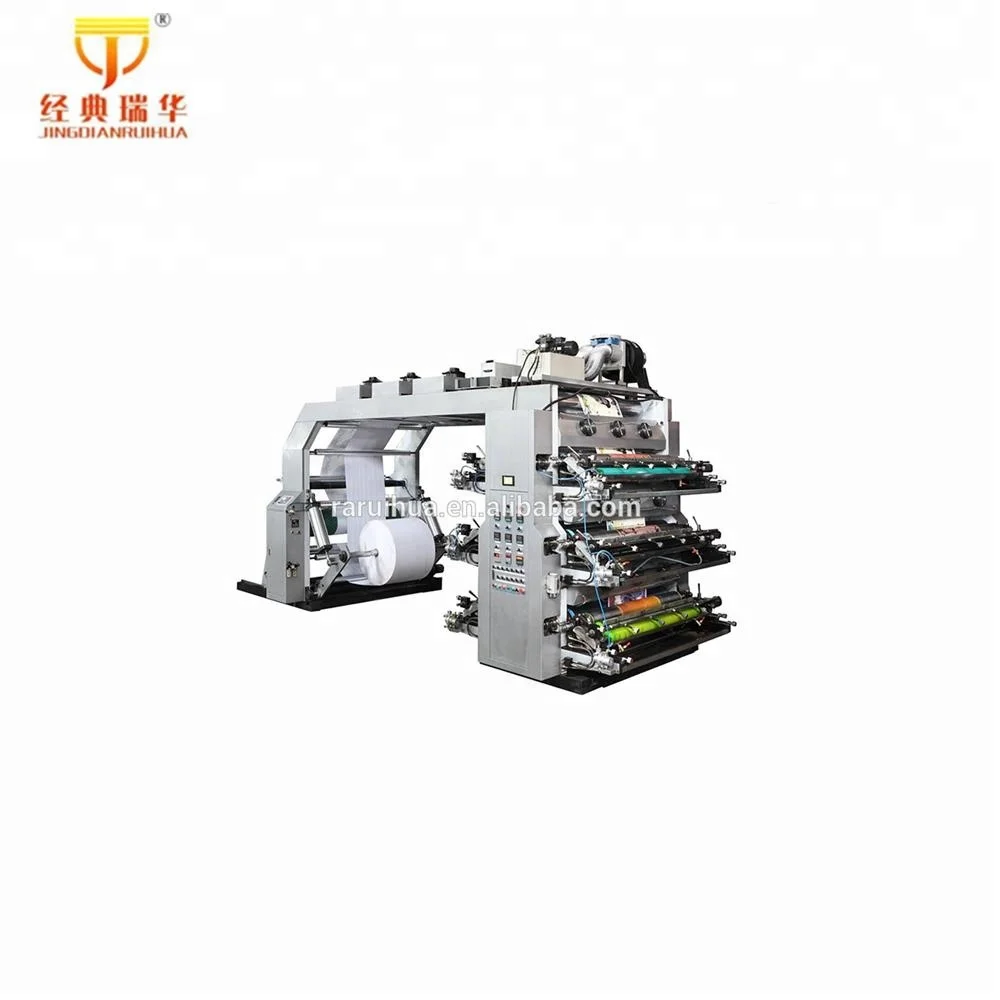

GYT 6 Color Flex Printing Machine Roll PP Woven Sack Flexo Printing Machine

Product Overview

Description

GYT 6 Color Flex Printing Machine Roll PP Woven Sack Flexo Printing Machine





Characteristic:
1.Low speed and full load startup;stable running by tension control when increasing and decreasing speed,noise is decreased
2.High dots presentation rate under high speed;clear and vivid stratification of screen printing;strong stereo effect and accurate registering
3.Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation,static and dynamic balancing treatments are conducted;low resistance and small flop.
4.The special made modulus angular gears adopted printing size and full printing specifications(5mm is spec)
5.With the air exhaust,blowing and heating settings;the heating system adopts the central thermostatic control system and group managment,also with the cold air forming devices
6.Printing rolls should keep moving while machine halted
7.Material holder use air shaft

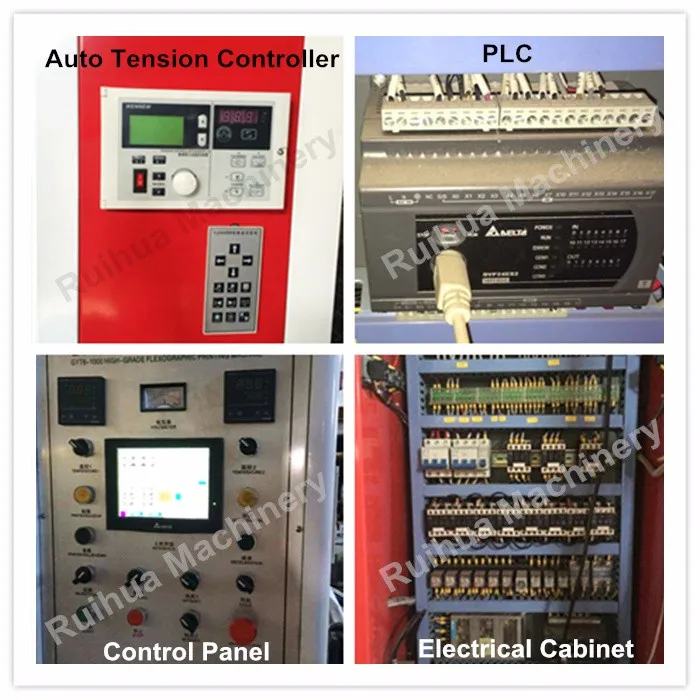

8.Auto tension control
9.Unwind with auto deviation correction system(EPC)
10.EDGE position control
11.Reversible printing 6 color press for 6+0,1+5,2+4,3+3
12.1 set of printing cylinder,size 15 inches

Main Specification:

Printing width	GYT6600mm	GYT6800mm	GYT61000mm	GYT61200mm	GYT61400mm
Printing color	6color(PC:6+0,5+1,4+2,3+3)
Printing length	7'-40'/7'-50' (according to customers' requirement)
Printing plate lifting system	Hydraulic press control
Printing speed	5-80m/min
Anilox roller	Ceramic anilox roller(Japan made)
Register precision	Longitude=±0.1,Transverse=±0.1
Rewinder&unwinder DIA	Ø600(mm)
Master motor	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw
Unwinder motor	1.1kw		1.5kw		2.2kw
Rewinder motor	1.5kw		2.2kw		3.0kw
Heating methord	Centrailized heating methord
Electrical heater	14kw	16kw	20kw	22kw	24kw
Blower of heater	1.5kw*2	1.1kw*3	1.1kw*3	1.1kw*3	1.5kw*3
Blower of nature wind	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw
Inking motor	750w	750w	750w	750w	750w
Weight	4500kg	4750kg	5000kg	5250kg	5500kg
Master power	25kw	27kw	34kw	37kw	43kw
Dimension	4.8*1.8*3.0m	4.8*2.0*3.0m	4.8*2.2*3.0m	4.8*2.4*3.0m	4.8*2.6*3.0m
