Steel structure geodesic dome kit tents for outdoor events
- Category: >>>
- Supplier: All Events Tent Service (Shanghai) Co. Ltd.
Share on (1607850897):
Product Overview
Description
Product Description
Domes are nature's perfect structure and provide a unique enviorment for any use.
The dome shape is the strongest structure to cope with high velocity winds and the strength is from all directions.
The dome shape is the strongest structure to cope with high velocity winds and the strength is from all directions.
Feature
• Available size: Diameter from 3m to 50m, bigger sizes can also be customized;
• Frame material: hot-dip galvanized steel tubes Q235, powder coated white;
• Cover material: Double coated PVC fabric (850gsm), waterproof, flame retardant, UV resistant, self-cleaning and etc.
• Base plate: Hot-dip galvanized steel, adjustable
• Temperature resistance: -30 ~ +70 degree Celsius
• Anti-wind capacity: 120km/h (can be reinforced)
• Snow load capacity: 75kg/sqm
• Life span: 10 years for frame; 5-6 years for canvas
• Easy to be assembled and dismantled, movable.
• No pole inside, 100% available interior space
• Frame material: hot-dip galvanized steel tubes Q235, powder coated white;
• Cover material: Double coated PVC fabric (850gsm), waterproof, flame retardant, UV resistant, self-cleaning and etc.
• Base plate: Hot-dip galvanized steel, adjustable
• Temperature resistance: -30 ~ +70 degree Celsius
• Anti-wind capacity: 120km/h (can be reinforced)
• Snow load capacity: 75kg/sqm
• Life span: 10 years for frame; 5-6 years for canvas
• Easy to be assembled and dismantled, movable.
• No pole inside, 100% available interior space
Detailed Images
Size Information
Wedding tent
*Diameter: 4m to 50m
Size Chart of This Design
Model no | Diameter | Area | Height | Capacity | ||||
DT0400 | 4m | 12sqm | 2.4m | 6~15 | ||||
DT0500 | 5m | 19sqm | 2.9m | 10~25 | ||||
DT0600 | 6m | 28sqm | 3.6m | 20~45 | ||||
DT0800 | 8m | 50sqm | 4.8m | 40~80 | ||||
DT1000 | 10m | 78sqm | 5.9m | 65~130 | ||||
DT1500 | 15m | 176sqm | 7.5m | 150~300 | ||||
DT2000 | 20m | 314sqm | 10m | 250~560 | ||||
DT2500 | 25m | 490sqm | 12.5m | 450~900 | ||||
DT3000 | 30m | 706sqm | 15m | 500~1000 | ||||
Customized sizes are also available | ||||||||
Optional accessories
1) Skylight window, panoramic window
2) Tempered glass door
3) Triangle glass windows
4) Insulation lining
5) Curtains
6) Solar fan
7) Air-vent
3) Triangle glass windows
4) Insulation lining
5) Curtains
6) Solar fan
7) Air-vent
Panoramic window
Glass door
Chimney protection
Insulation
Curtains
Glass window
Solar fan
Air-vent
Screen window
Product Usage
Camping / Glamping / Parties / Weddings / Festivals / Fashion shows / Launch events/ Corporation ceremony / 360° projection and other commercial events
Camping & Glamping
Garden tent
Fashion shows
Launch events

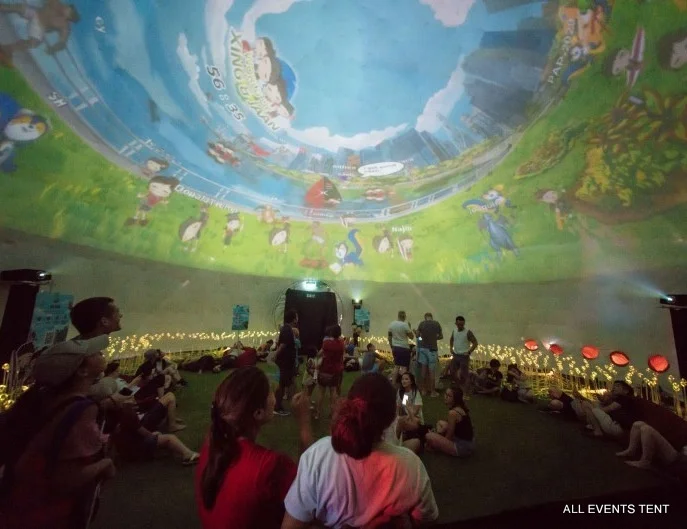

360° projection
Festivals
Best Selling
Recommending Styles
We also have other shape of tents for your options
Company Introduction
All Events Tent Service(Shanghai) Co., Ltd is one of the specialists in design, manufacture, rent and sale of aluminum tents, we own more than 10,000sqm of specialized workstations, modernized production lines and skilled technicians. Our main tents are available in clear-span width from 3m to 50m with all structures based on modular design system at the extension of 3m or 5m; Over the years, our tents have been exported to more than 30 countries, and it is growing.
Our Services & Strength
@ Establised in 2008
@ Passed GB/T 19001-2016 / ISO 9001:2015
@ Supply OEM/ODM manufacturing
@ Supply customized design
@ within 1 hours' drive from Hongqiao airport
All Events main products:
@ Party tent
@ Event tent
@ Wedding tent / marquee
@ Passed GB/T 19001-2016 / ISO 9001:2015
@ Supply OEM/ODM manufacturing
@ Supply customized design
@ within 1 hours' drive from Hongqiao airport
All Events main products:
@ Party tent
@ Event tent
@ Wedding tent / marquee
FAQ
Q: What kind of tents you provide?
We are leading tent manufacturer in China, we produce clear span tents width from 3m to 50m and geodesic dome tents diameter from 3m to 50m.
Q: Is it factory price?
Yes, we assure you that all prices are factory price.
Q: Is it easy to assemble and dismantle?
Yes, our tents can be easily assembled and disassembled, and could repeated use for more than 15 years for the aluminum framework, 5-8 years for PVC fabric.
Q: Can you print our logo on the tent?
Yes, logo can be printed on the tent fabric according to your request.
Q: How long is the warranty period?
Guarantee one year, during the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
Q: What documents are available?
A full range of shipping documents including structural drawings, packing list, erection manual and relative certificates can be provided.
Q: Where is your factory located, how can I visit you?
Our factory is in Qingpu District of Shanghai, 1.5 hours from Pudong air port.
We are leading tent manufacturer in China, we produce clear span tents width from 3m to 50m and geodesic dome tents diameter from 3m to 50m.
Q: Is it factory price?
Yes, we assure you that all prices are factory price.
Q: Is it easy to assemble and dismantle?
Yes, our tents can be easily assembled and disassembled, and could repeated use for more than 15 years for the aluminum framework, 5-8 years for PVC fabric.
Q: Can you print our logo on the tent?
Yes, logo can be printed on the tent fabric according to your request.
Q: How long is the warranty period?
Guarantee one year, during the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
Q: What documents are available?
A full range of shipping documents including structural drawings, packing list, erection manual and relative certificates can be provided.
Q: Where is your factory located, how can I visit you?
Our factory is in Qingpu District of Shanghai, 1.5 hours from Pudong air port.
