(DFX-23C.V) Plastic Mobile Medical Vacuum Pump Suction Devices



(DFX-23C.V) Plastic Mobile Medical Vacuum Pump Suction Devices

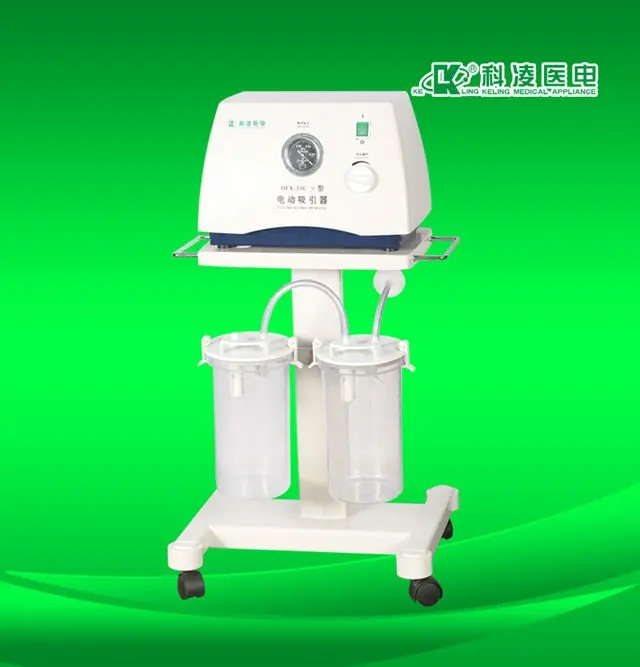

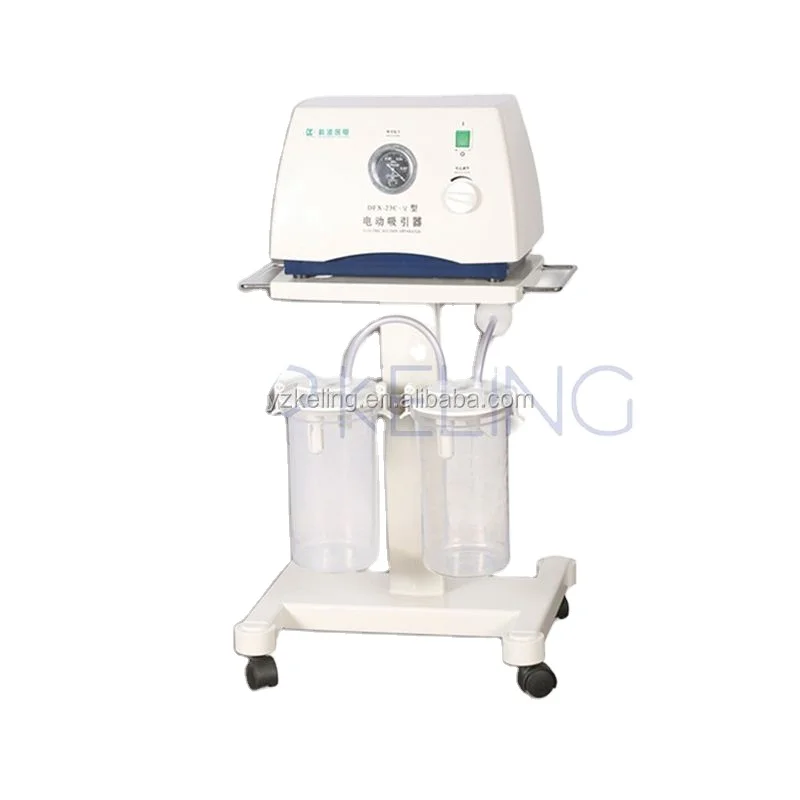

     (DFX-23C.V) Plastic Mobile Medical Vacuum Pump Suction Devices is a new style suction device for medical use. It can meet most of the negative pressure requirements in operating rooms, wards and other departments in hospitals. It is used for taking out pus, blood, sputum and other thick liquid in human body. the machine adopts imported diaphragm pump, and the pump requires no daily maintenance and servicing. The liquid vessel placed directly on the mobile setup makes it easy to observe the liquid level in the vessel. Overflow protection device can prevent the liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works reliably, produces low level of noise. It is long in service life and reliable and safe in use(All-plastic cases are adopted for 23C.V).

    Features:

    This device is of vehicle frame design, allowing for easy movement.

    (DFX-23C.V) Plastic Mobile Medical Vacuum Pump Suction Devices All-plastic ABS enclosure that is formed in one piece is adopted.

    Macromolecule drainage bottle that is formed in one piece is adopted, allowing for cleaning and disinfection.

    The device is equipped with a imported membrane pump available with long service life.

    This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.

    This device has low noise and is maintenance-free.





TECHNICAL SPECIFICATION:



Power voltage:          AC220V±10% 50Hz

Negative pressure:     ≥0.09MPa(680mmHg)

Suction rate:            ≥25L/min

Range of negative pressure:  0.013MPa~0.09Mpa (680mmHg)

Suction bottle:          2500ml x 2

Noise:              ≤55dB

Input power:    150VA

Pump structure: Diaphragm type

Working type:    intermittent loading,continuous operation



PRODUCT ADVANTAGE:



vehicle frame design,easy movement

imported diaphragm pump

all ABS plastic shell

long service life time

plastic bottle for cleaning & disinfection

oil-free pump is maintenance-free

low noise

with an overflow protection



.
