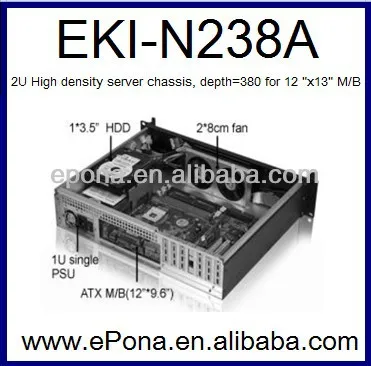

2U compact rackmount chassis / PC case for server EKI-N238A

Dimension (W*H*D)

19" x 5.25" x 15"/ 482 x 133.3 x 380 (mm)

Material Construction

Heavy-duty & Rugged steel 1.2mm / High-end industrial Aluminum Panel

Expansion

32 bit or 64 bit 3slot riser card (option)

M/B Size

EEB (12"X13")

Control & Indicator

1 x Powerswitch+1 x Reset switch

1x LED (Power)+1 x LED (HDD)

Cooling Fans

2 x 8cm Fan

Drive Bay

4 x 3.5" ( For 12"x9.6" ATX M/B) as Original

2 x 3.5" ( For 12"x13" EEB M/B) Need to remove 2 HDD bracket

Power Supply

1U single power supply 250w~500w (option)

Sliding rail

20" ball bearing sliding rail (option)

Color

Black or Beige

Operation Temperature

Up to 50C (122°F)

Operation Humidity (Non-condensing)

Up to 90%

Packing Measurement CBF / CBM

1.8 / 0.05

Packing N.W / G.W

5.5KGS / 7KGS
