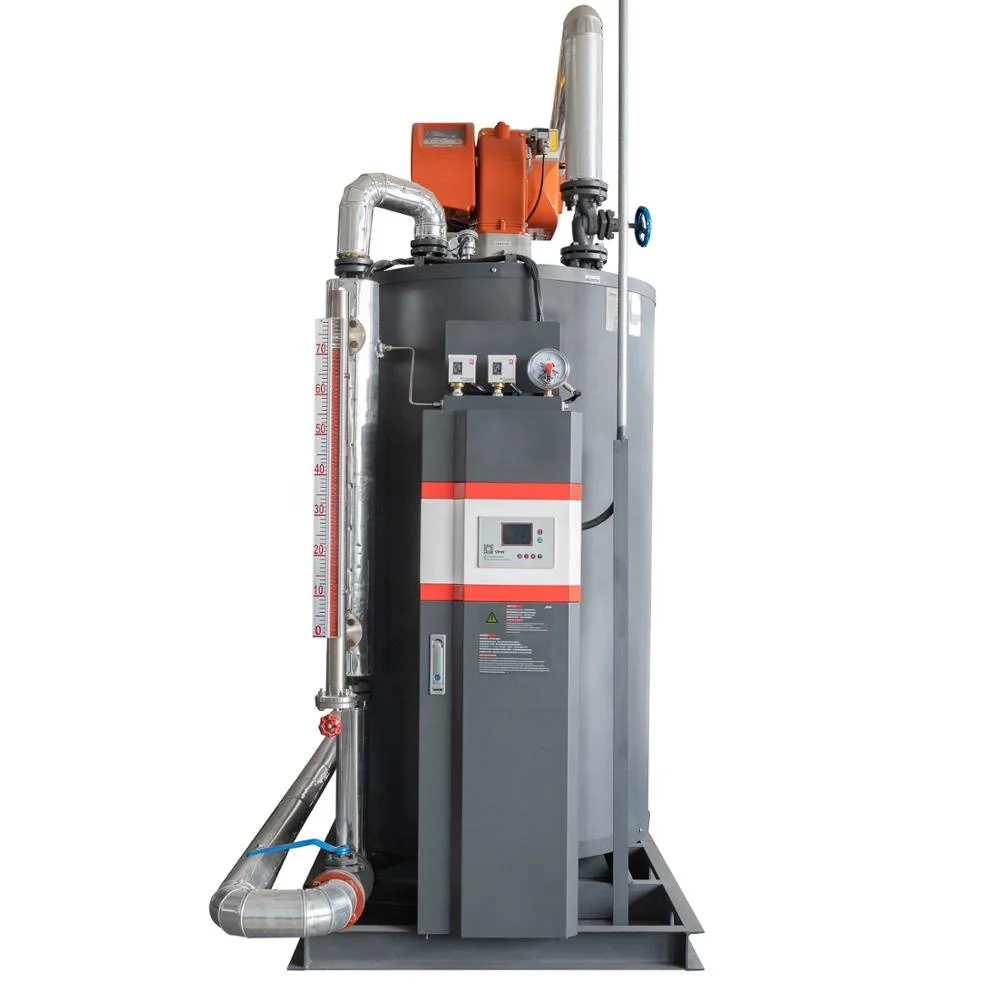

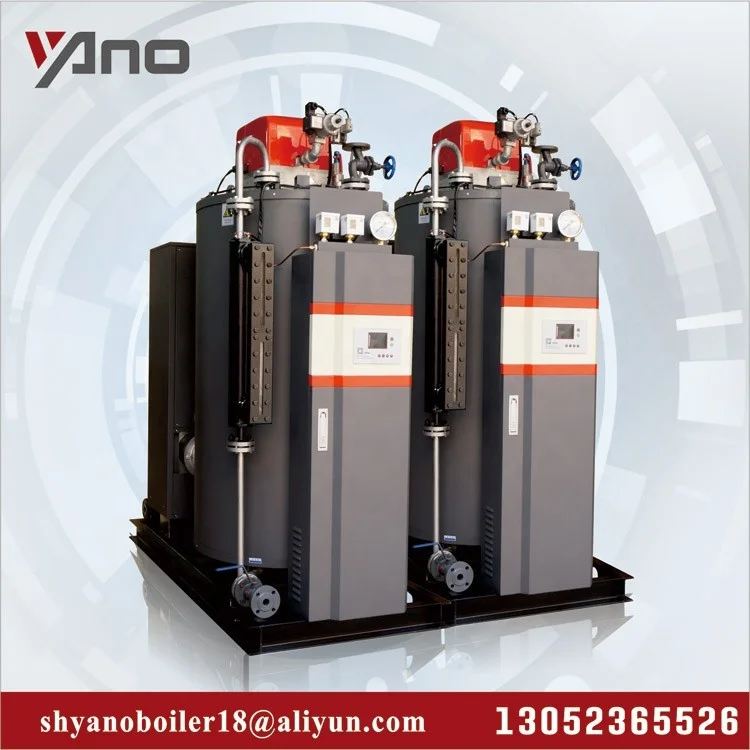

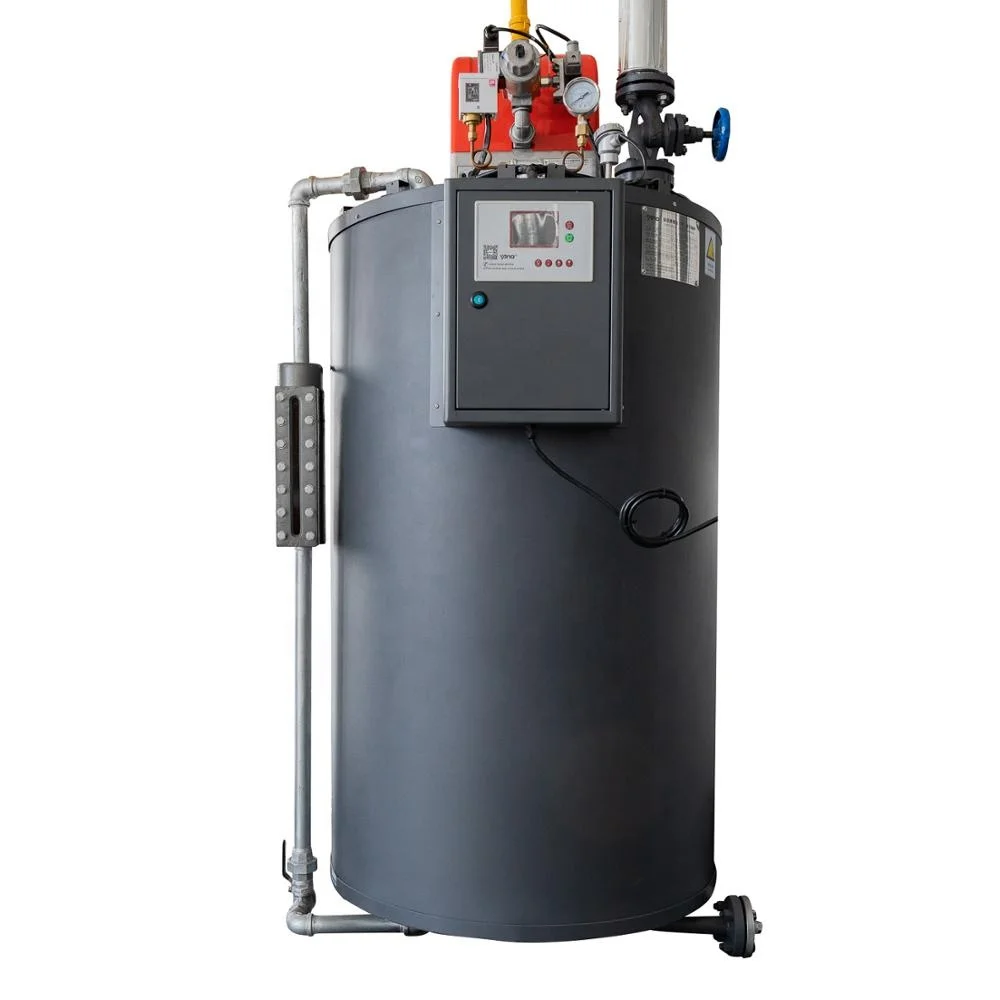

Паровой котел на нефтяном/угольном газе

Product Overview

Description

        oil /coal gas fired steam boiler







Design structure

1,Boiler liner uses internationally advanced three-pass vertical water pipe tubular structure

2,The steam boiler and burner as a whole to design,.

3,Internal  built-in steam separator



Advantage

Automatic LCD intelligent control system

1.,Safety and Science :with a safety valve, pressure controller, water level control protector,

2,multiple chain protection device, safe and reliable.

3,Choose imported Italian burner, burning more fully, more stable operation and lower noise.

4,High quality parts adopt domestic famous brand Delixi electric appliance

5,High Quality Steam Rapidly

6,Easy to install and  operate

7,the boiler thermal efficiency  above 93%

8,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .



How to use?

1,Build a boiler house

2,Connection pipes

3,Connection power

4,Operating boiler



Application



Building heat ,chemical processing, health care , laundry industrial ,paper processing ,textiles



product parameter



Spec                          Type	LSS0.3-0.8-Y/Q	LSS0.5-0.8-YQ	LSS1.0-0.8-Y/Q
Rated evaporation(kg/h)	300	500	1000
Thermal effiency	≥93	≥93	≥93
Rated pressure(MPa)	0.8	0.8	0.8
Steam temperature(°c)	175	175	175
Fuel   0#Diesel (kg/h)	18.3	30.5	61
Coal gas (Nm3/h)	51.0	85.0	170
Natural gas(Nm3/h)	22.8	38.0	76
Liquefied gas(kg/h)	17.1	28.5	57
Dimension(mm)	1150*1150*2400	1350*1350*2650	1480*1480*3100
Steam caliber	DN40	DN40	DN50
Drain outlet caliber	DN25	DN25	DN40
Water inlet caliber	DN25	DN25	DN25
