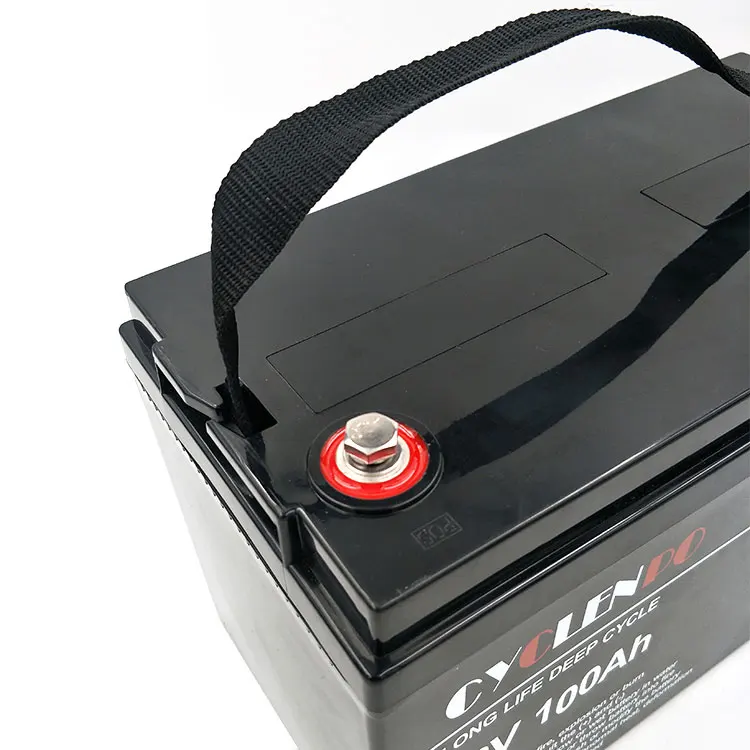

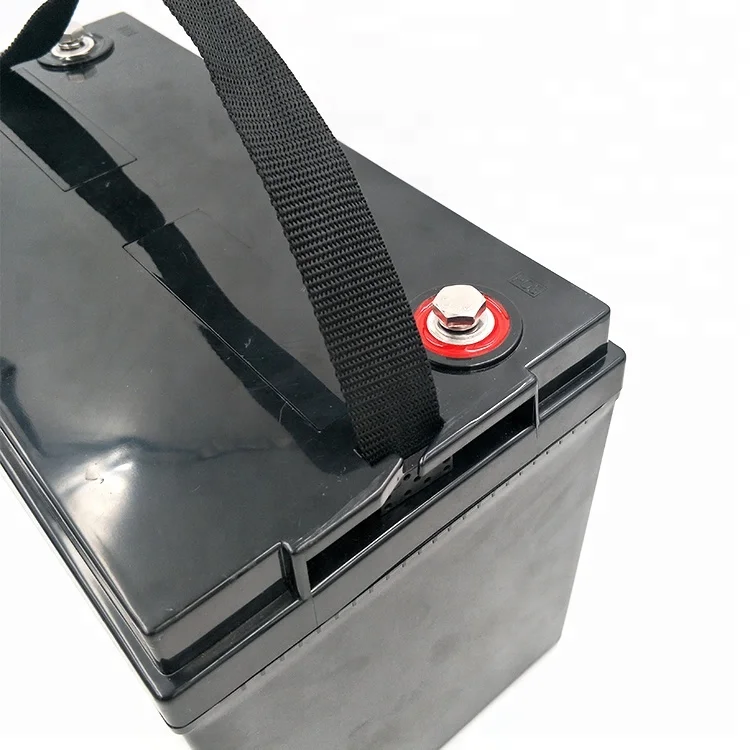

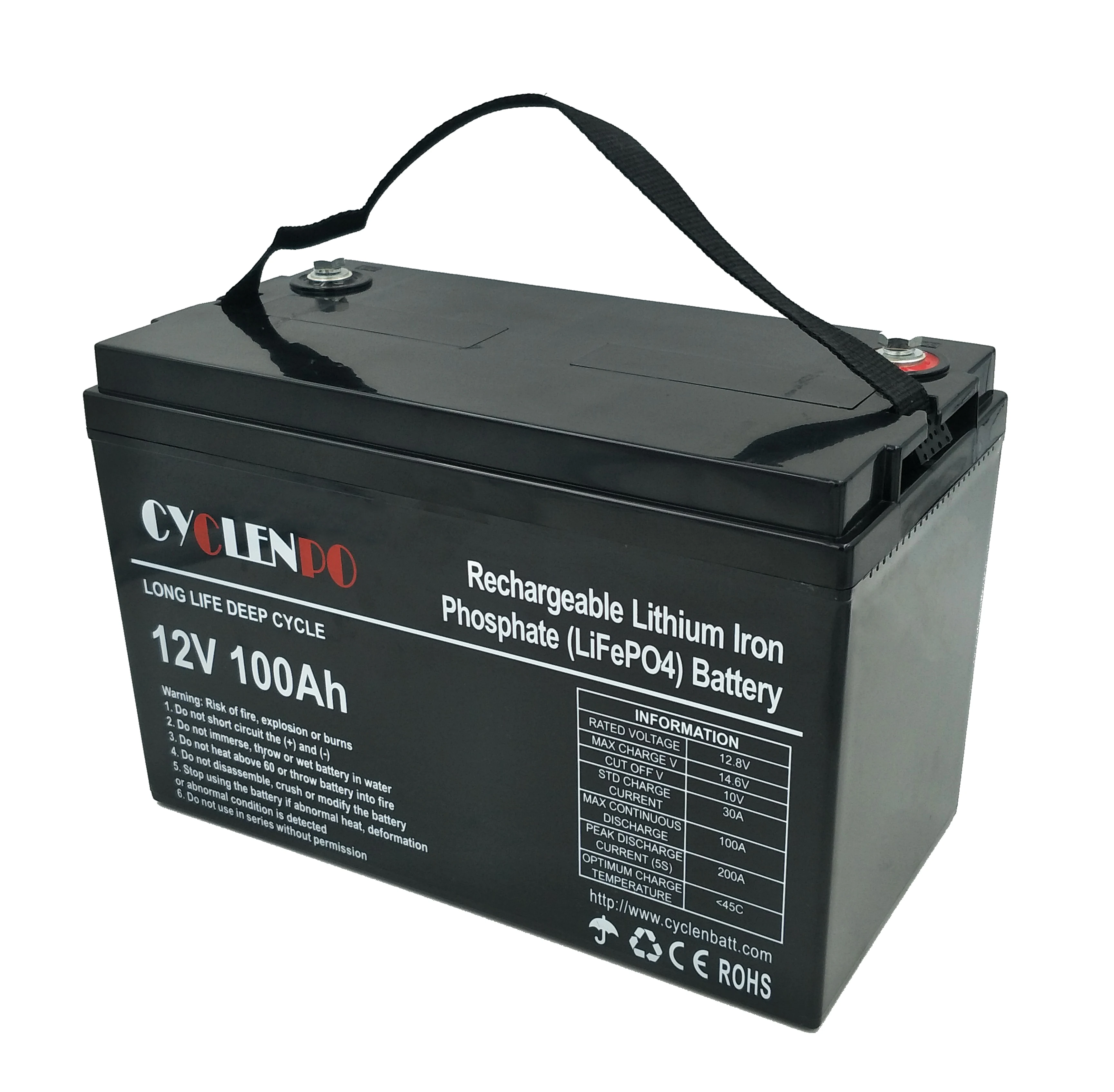

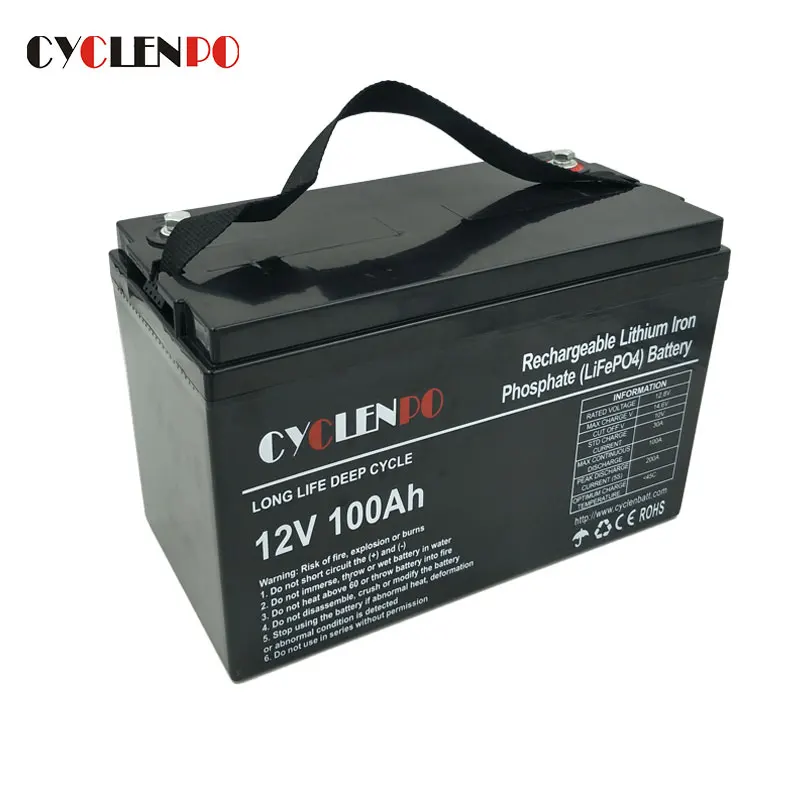

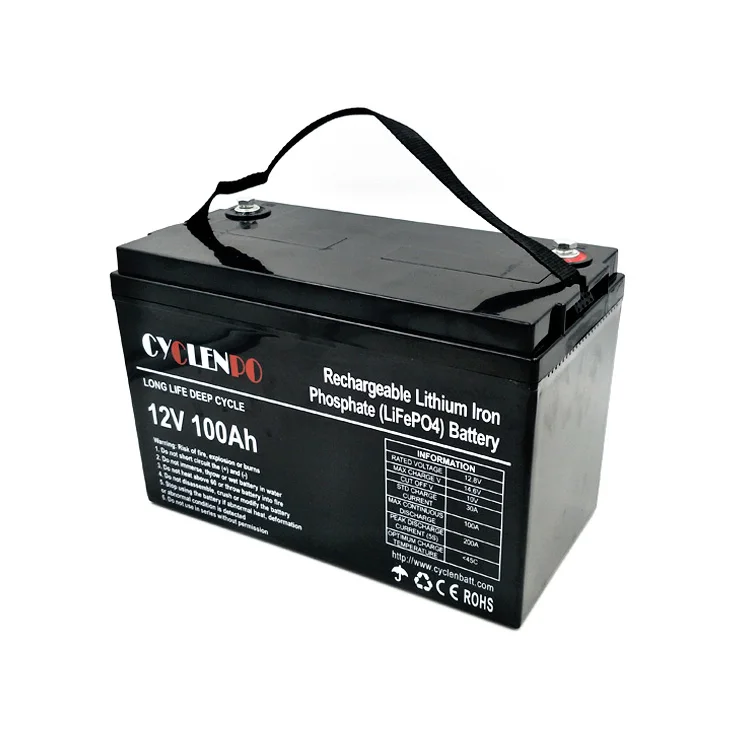

Deep cycle 12volt lithium iron phosphate battery 12v 100ah battery for ev and solar
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (1611045276):
Product Overview
Description
You may like
12v 60ah 12v 100ah 12v 100ah 12v 120ah
.
12v 150ah 12v 200ah 12v 240ah 12v 300ah

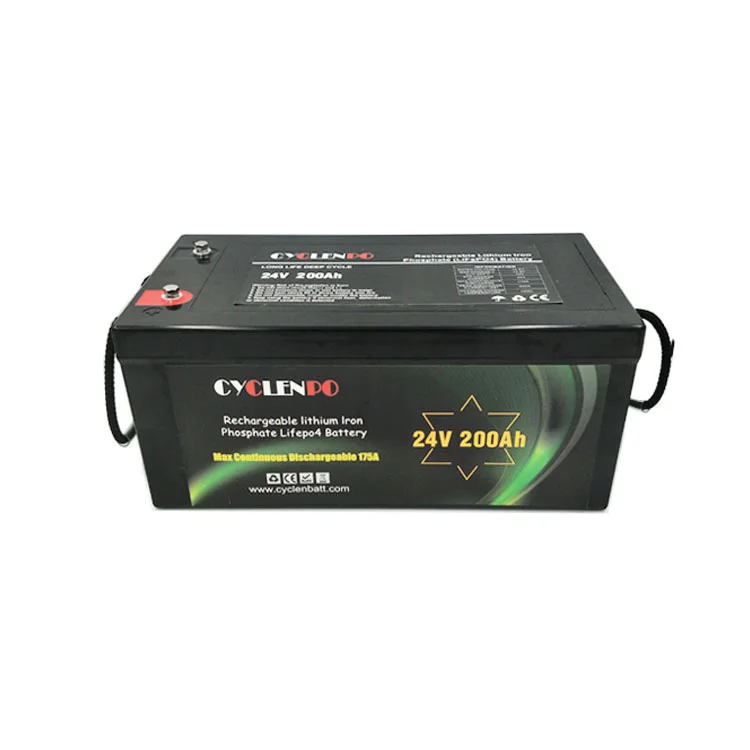

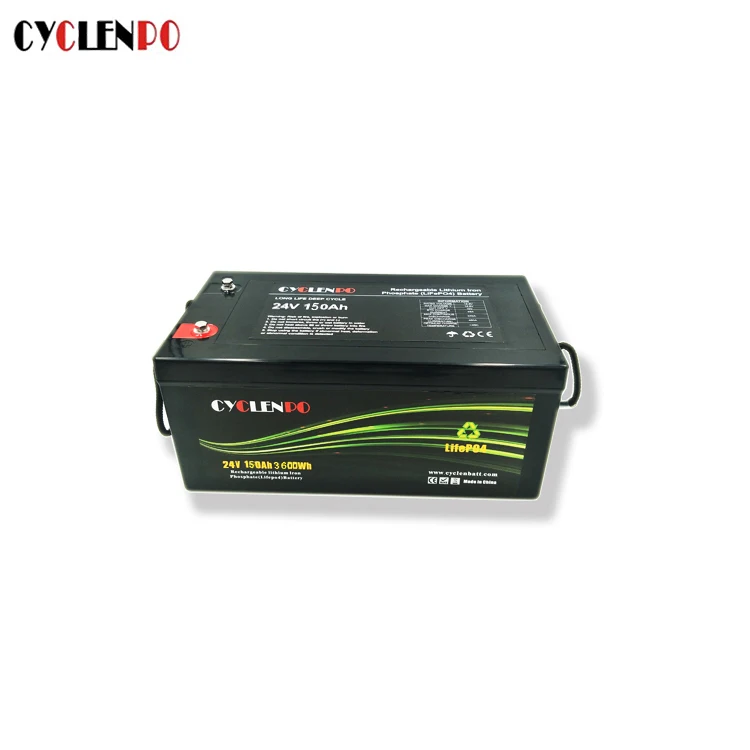

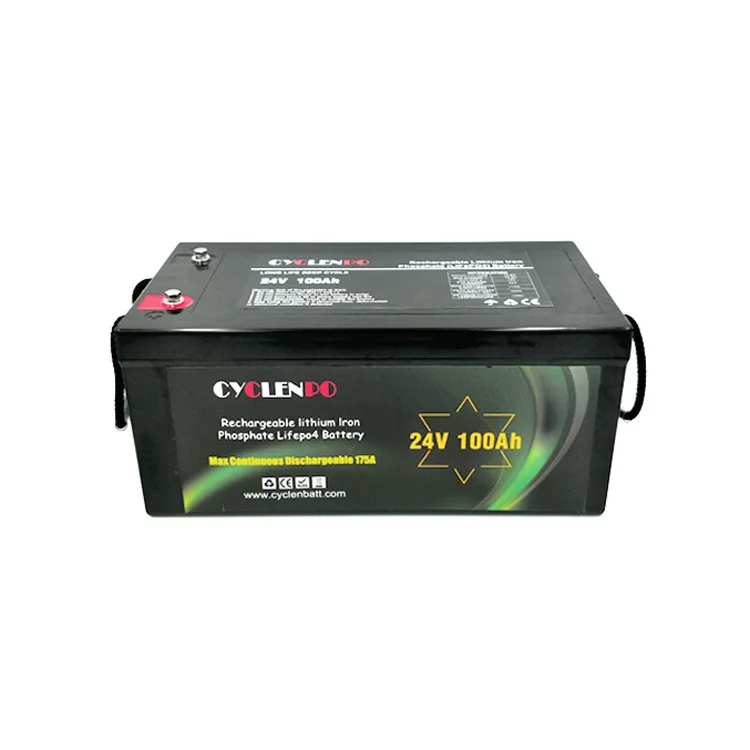

24v 100ah 24v 150ah 12v 100ah with bluetooth 24v200ah
Product Description
Normal parameters | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | IFR 3.2V 100AH module battery lifepo4 | Single | |||
2 | Casing material for single cell | Nickel plated steel | ||||
3 | Standard capacity(0.2C5A) | 100Ah | ||||
4 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) | |||
5 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) | |||
6 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) | |||
8 | Standard charge current | 30A | 0.5C | |||
9 | charging Time | About 3.2h | ||||
10 | Max Continuous discharge current | 100A | 1C | |||
11 | Peak discharge current | 200A | 2C (5s) seconds | |||
12 | Battery dimension | 328 * 171 * 215 mm | ||||
13 | (Approx.)Total weight(Approx.) | About 12kg | ||||
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 45mΩ | ||||
15 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~65℃ | |||
discharge | -20℃~65℃ | |||||
storage | -20℃~45℃ | |||||
Main Features
1. Lighter in weight, heavier on power
2. More than 3000 cycle times
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free5. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
Application
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup, and other deep cycle applications etc.
1. Lighter in weight, heavier on power
2. More than 3000 cycle times
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free5. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
Application
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup, and other deep cycle applications etc.

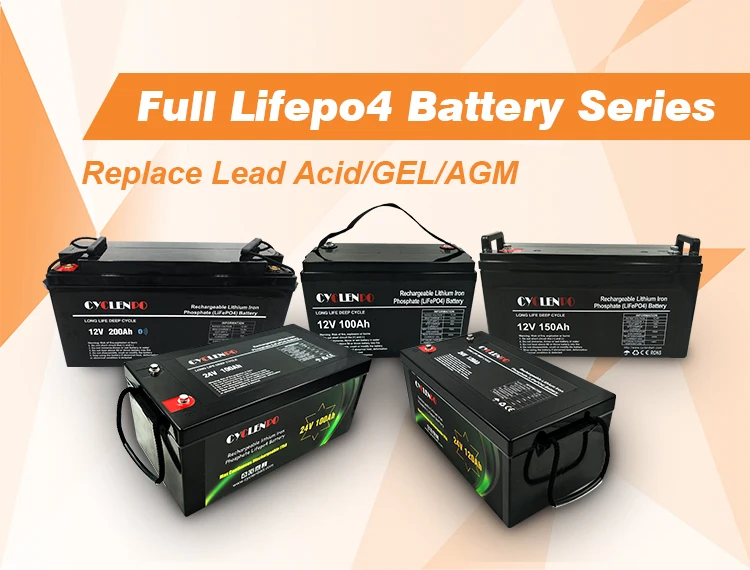

New Battery Series

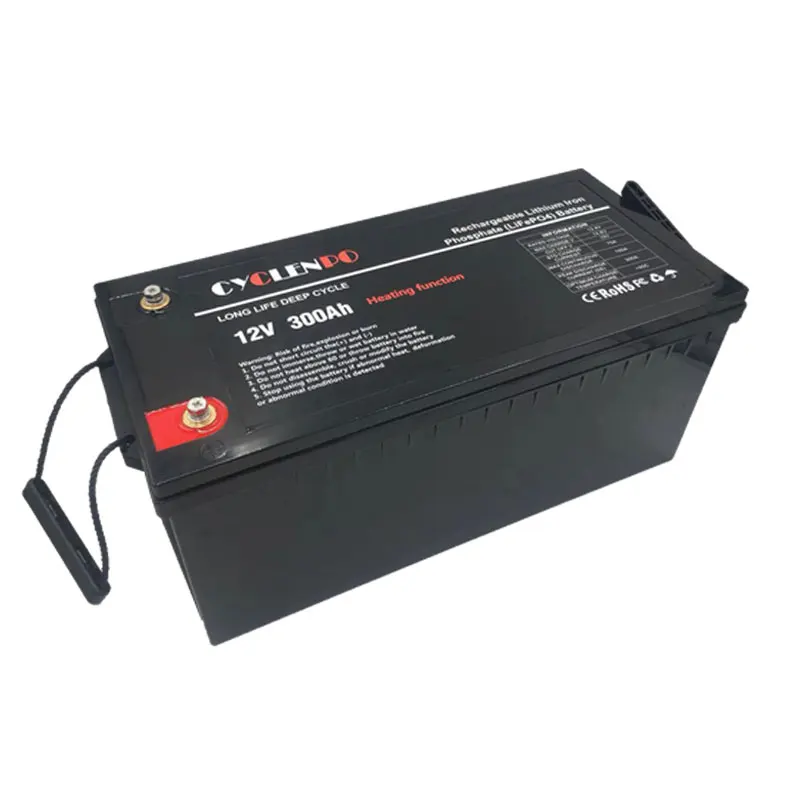

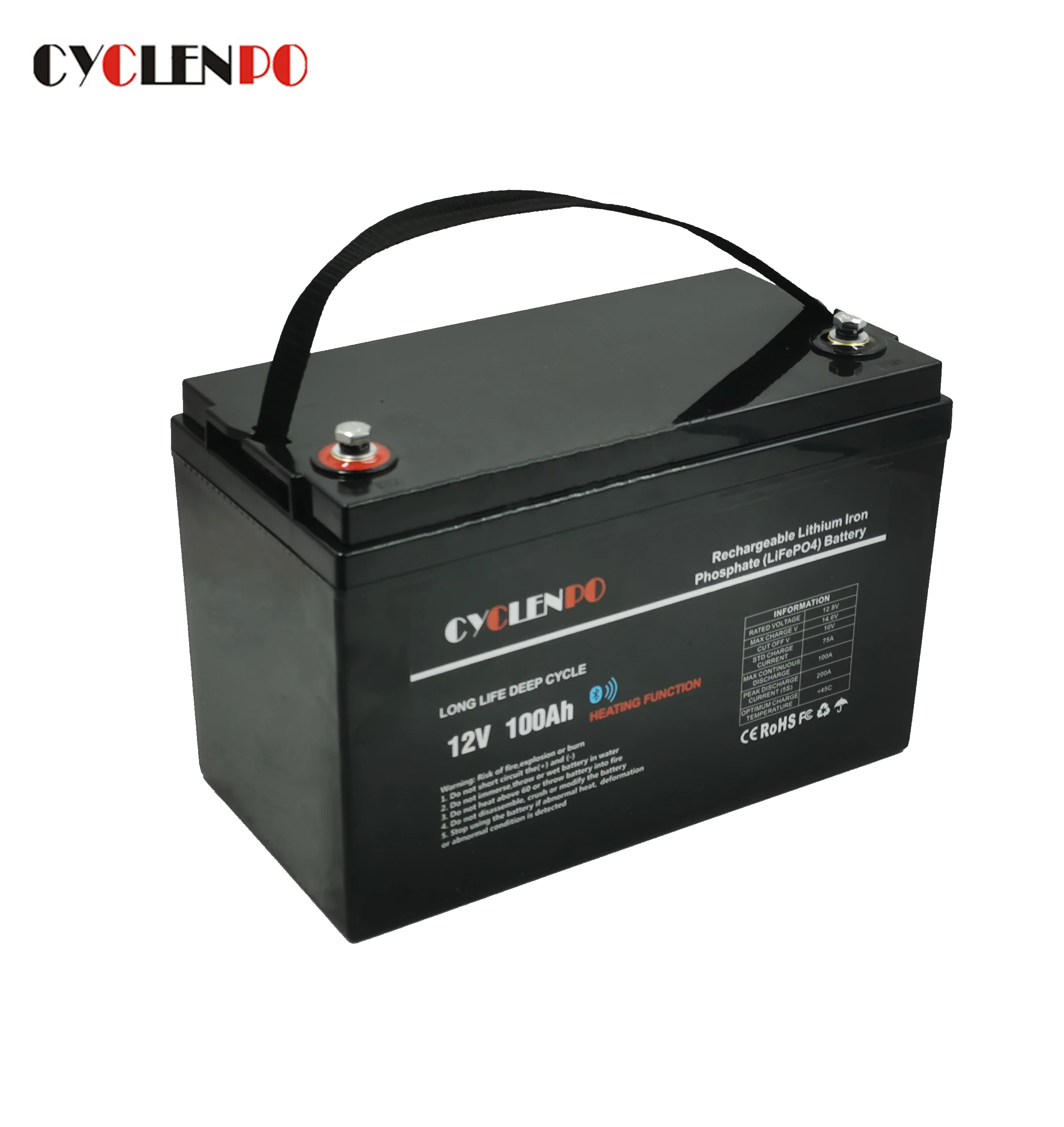

WIth Bluetooth&Heated Function Series With Bluetooth Series
