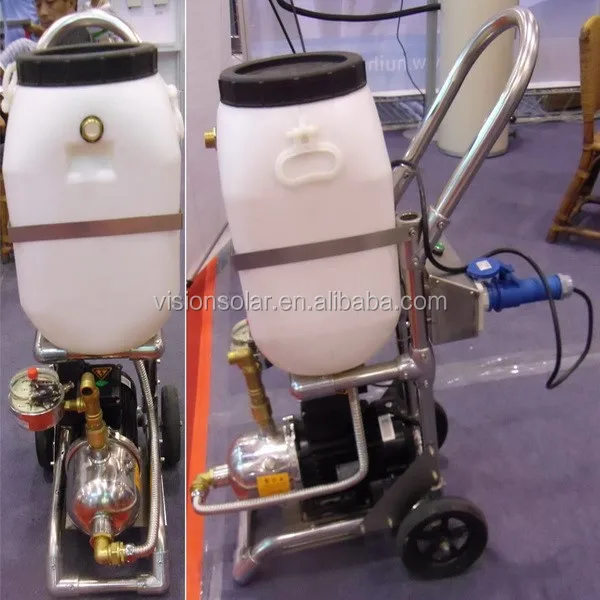

VISION Multifunctional Solar System Filling Station
Product Description
Professional station for filling, flushing and venting of closed-circuit solar systems, heat pumps, underfloor and wall heating. Solar station for fast and reliable filling of thermal solar systems and other closed water systems for hot and cold.
Parts Description:
1. Light multistate centrifugal pump selection
Designed with a centrifugal pump for various flow rate and raising height
2. Electric contact pressure gauge
The max. Pressure of this station is 0.54 MPa, we suggest it works below 0.5 MPa, the range of pressure gauge is 0 - 1 MPa

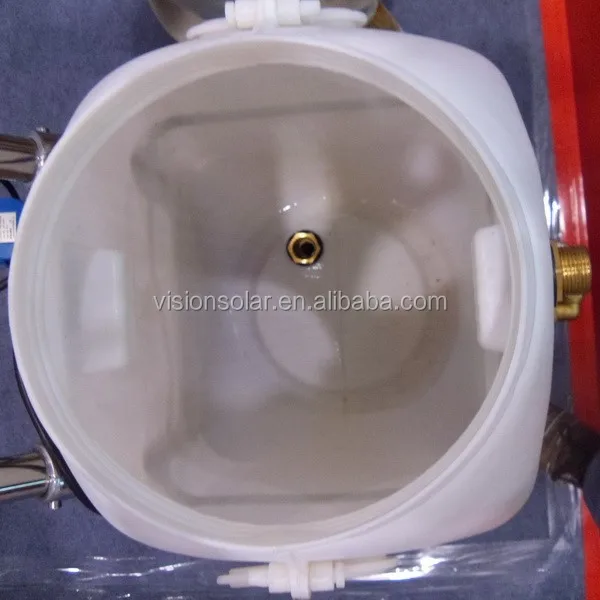

3. Tank reservoir
The capacity of tank is 25L, in the bottom of the tank there is an outlet with pipeline connecting pump, one-way valve and electric contact pressure gauge, on the top of tank is an inlet to be connecting with solar circulation loop.
4. One-way valve
To make a one-way filling, the caliber of valve is 3/4 inch.
5. Switch box
The switch is safe and convenient with Start button, Emergency Stop button, relays and connectors conforms to European standards, stable, reliable, secure and waterproof.
Features of VISION Mobile Solar filling station:
1.The VISION solar filling station is commonly used for solar and heat pump system debugging and maintenance, filling, flushing and venting of closed loop.
2. Filling station eliminates air bubbles and flushes out impurities in the system.
3. The electric contact pressure gauge controls the working pressure accurately, making it with safe operation.
4. Fast fluid flow with fast and efficient filling pump.
5. The convenient filling with tank placed above the pump.
6. Solid construction equipped with ball bearing wheels for easy movement.
7. The tank can be easily removed for cleaning.
8. Safe and humanized design with Start and Emergency Stop button.
Technical Data:
Dimensions
1000*430*470 mm
Weight (empty)
20 KGS
Tank capacity
25 Liter
Flow rate
5 - 50 Liter/Min
Max. raising height
57 M
Power of pump
1000W, 230V
Pressure meter
0 - 1 MPa
One-way valve
3/4"
Return valve
3/4"
Medium
Water or glycol mixture
Max. medium temperature
60°C
Max. working pressure
0.54 MPa
Warranty:
3 years international responsibility for original quality problems.
