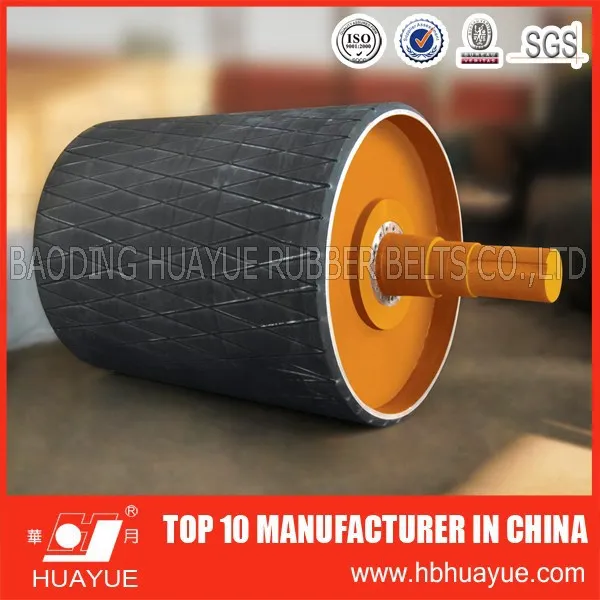

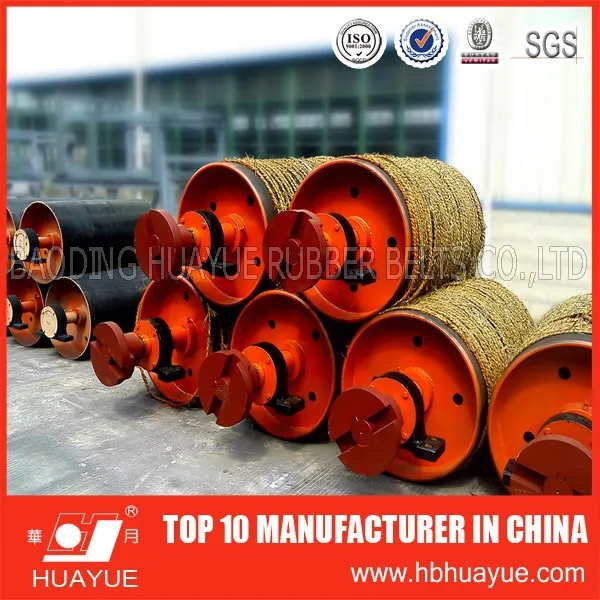

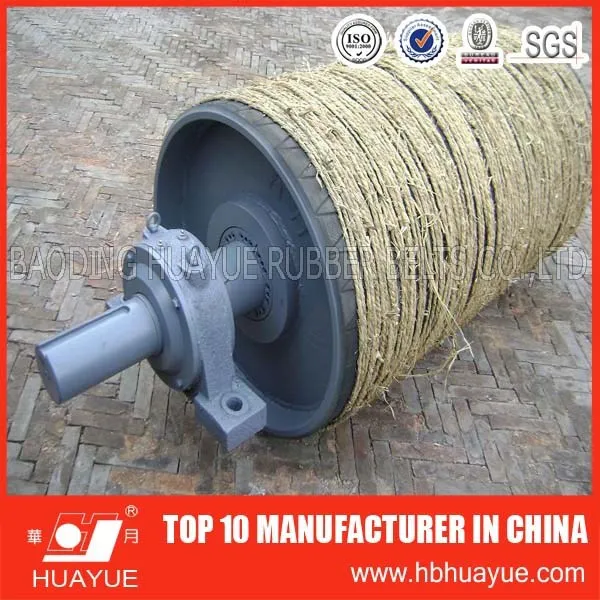

Factory price belt conveyor drum pulley for flat conveyor belt

Product Overview

Description

Factory price belt conveyor drum pulley for flat conveyor belt

Product Introduction of belt conveyor drum pulley

pulley,conveyor pulley, drum pulley, drive pulley, turn pulley, bend pulley, head pulley, tail pulley

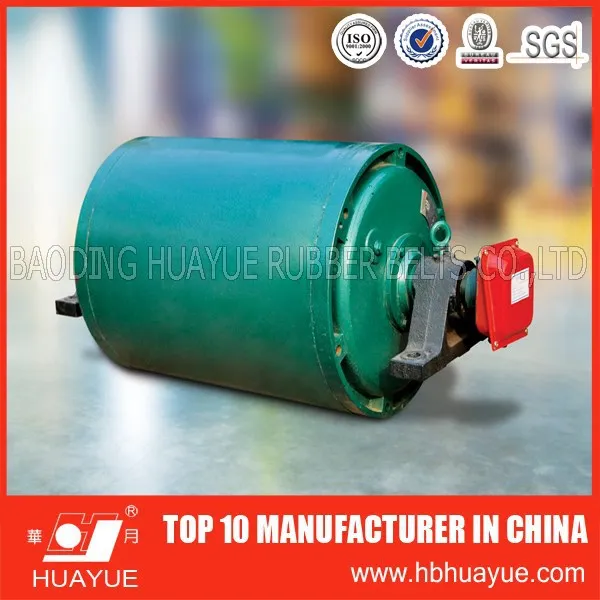

Driving pulleys,  it is an important part of belt conveyer.

1.    Steady running, reliable quality and reduce maintenance;

2.    Less movement longitudinally, rotating smoothly, extends the life span;

3.    Various bearing housing and sealing structure are available for the customers choice;

4.    Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

5.    Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.



This type of Din Standard Conveyor Pulley/Frame are the head pulley/ driving pulley used on the belt conveyor system, which have been exported to more than 30 countries all over the world in past 34 years and we have professional engineers and all of them have rich experience in this field, we can design the goods independently.Din Standard Conveyor Pulley/Frame is good



Standard:

GB, ISO, CEMA, DIN, JIS, ETC

capacity:

as usual 100 pieces/ week, but urgent order is acceptable

Certificate:

CE, ISO, BV, SGS, IKA, ETC

Advantage:

The life time: more than 30000 hours

Samples for testing are available.

The more relaxed payment terms

Detailed conveyor pulley feature:

1.Steel pulley's size depends on the detailed belt width, the structure can be according to our design or the customers' requirements, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc

2.Tube: Q235

3.Shaft: 45# STEEL

5.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

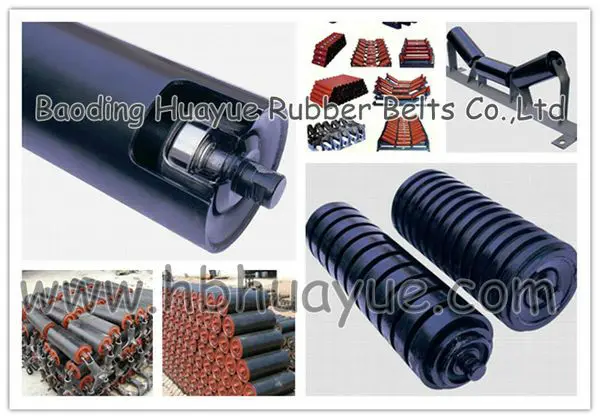

Besides we can manufacture the rollers and idlers according to the buyers' requirements



Description	ISO standard welding steel bend tail conveyor steel pulley for mining
Type	bend tail
Pipe / tube/shell	1) Material : welded steel 2) Diameter : 250 mm 3) Length: 600mm ~ 1600 mm 4) Thickness: 8mm. 10mm
Type conveyor	DTII DTII(A) TD75
Shaft / axis	Material : cold drag steel
Bearing	big roving crack, deep groove ball with double sealing
Welding	pipe and bearing housing with automatic welding
Surface	smooth steel surface, smooth rubber face
Color	Red, yellow, blue or as require
Standard	ISO9001:2008 CEMA DIN
Application	Used in coal mine, steel industry, cement industry and so on
Service life	More than 30,000 hours









We can offer different types of pulley.

For more details,please inquiry us!
