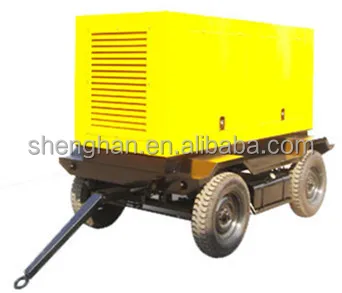

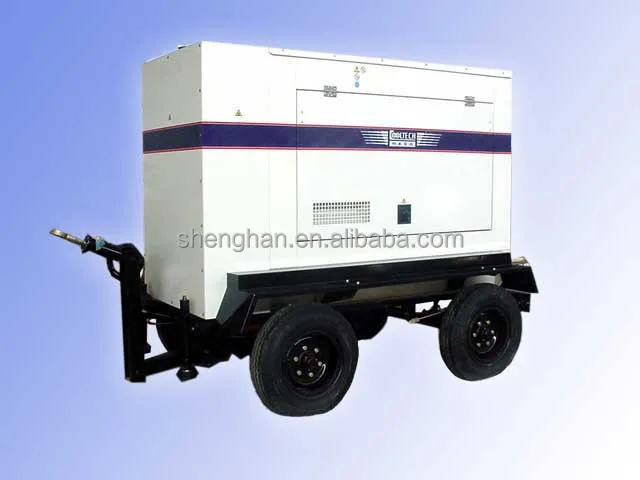

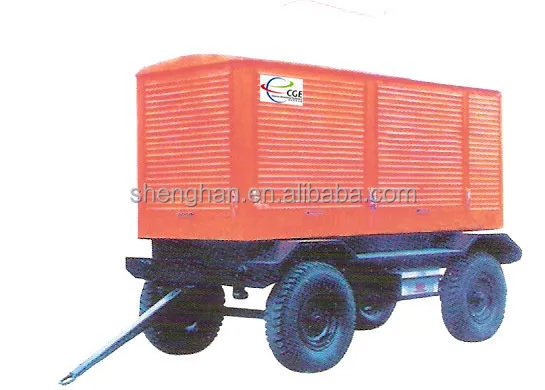

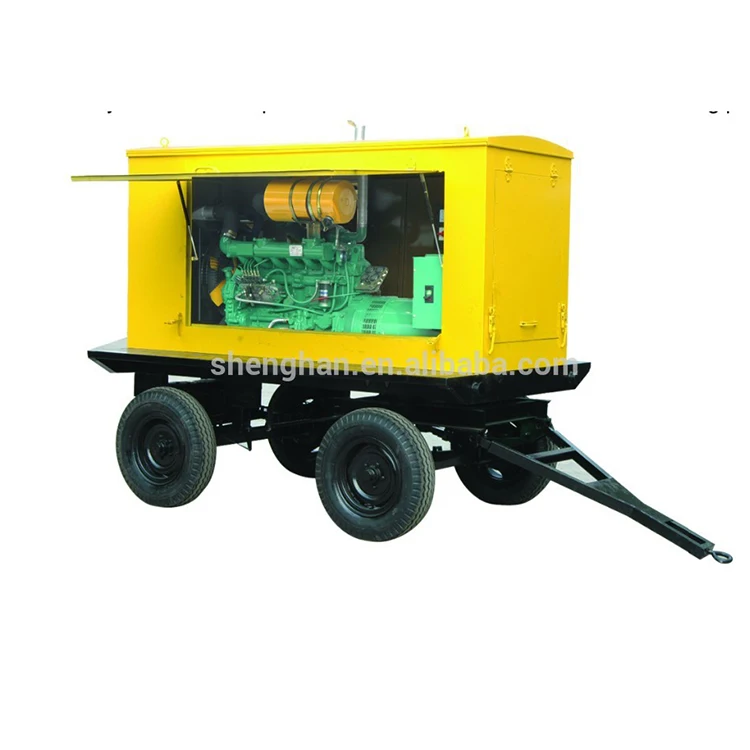

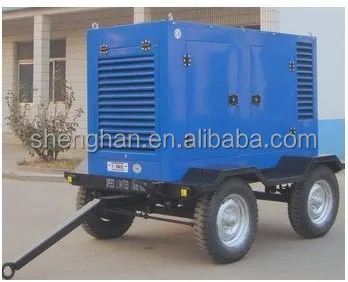

Made in China ! Mobile 10kw diesel portable generator with trailer

Product Overview

Description

SH10GF
Engine Model	Ricardo:K485D
Consumption	Oil (g/KW.h)	≤1.3
	Fuel (g/KW.h)	≤198
Output power	14Kw/17.5kva
cylinder quantity	4
Rated Frequency	50/60HZ
Rated Speed	1500/1800(rpm)
Start method	Electrical
Governing method	Mechanical
Cooling method	Water Cooled
Alternator Model	Stamford:HJI10.8
Rated Output	10KW/12.5kva
Rated Current	18A
Rated Voltage	230/400V
Connection Type	Three Phase
Exciting Way	pure copper brushless
Power Factor	0.8 (Lag)
Protection Class	IP22
Insulation Class	H
Genset Dimention (mm)	1400X830X1100
N.W (kg)	690



Ricardo diesel genset
Output power (kw)	Engine model	alternator of Stamford	Diesel Technical parameters					Frequency.:50HZ                                                                                      speed: 1500rpm                                                                                        power factor: 0.8(Lag)                       Voltage:400/230                                                                                     Phase arrangement:3p4w                                                      excitation: brushless with AVR                                                         start method: electrical                                                               governor method: electrical                                                          cooling method: water cooled
			Prime power (kw)	fuel cinsumption (g/kw.h)	cylinders	Broe (mm)	Stroke (mm)	Current (A)	open type Dimensions (mm)	open type Weight (kg)
30	K4100ZD	HJI30	40	6	4	100	115	54	1800*860*1300	750
40	K4105D	HJI40	45	8	4	105	120	72	1900*86081500	950
50	R4105ZD	HJI48	56	10	4	105	120	90	1900*86081500	970
60	R6105ZD	HJI80	84	15	6	105	120	108	2280*900*1600	1100
100	R6105AZLD	HJI96	110	20	6	105	120	180	2400*900*1650	1500
120	R6105IZLD	HJI125	132	24	6	105	120	216	2400*900*1650	1560
150	6113ZLD	HJI144	155	30	6	113	120	270	2400*600*1800	1600
200	6126ZLD	HJI200	225	40	6	126	120	360	2600*650*1600	2050
