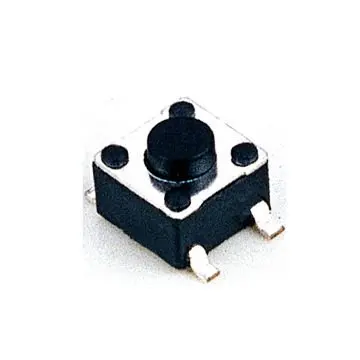

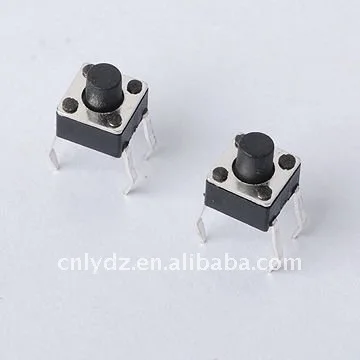

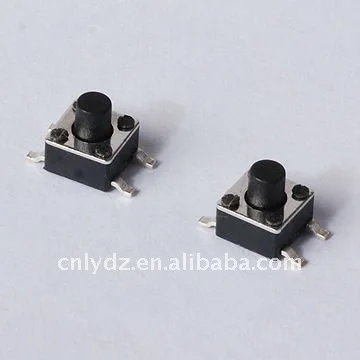

4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch
4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch
4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch
4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch
4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch
4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch

4.5*4.5mm 4 pin SMD high quality tact switch 6*6mm micro tactile switch push botton switch

Share on (1615090191):


Price:

Quantity:


Product Overview

Description





Rated Current
50mA
Rated Voltage
12V
Contact Resistance
≤100mΩ Max
Insulation Resistance
≥100mΩ  100V DC
Compressive Strength
AC250V  50Hz/1min
Mechanical Life
100000 cycles min
Operating Stroke
0.2±0.1mm
Operating Force
160gf/260gf±50gf
Temperature Range
-25℃~+70℃
