Dimmable under cabinet led lighting kitchen, display cabinet lights cabinet/wardrobe LED profile light
- Category: >>>
- Supplier: Ningbo Homer Electronics Lighting Co. Ltd.
Share on (1616774066):
Product Overview
Description
Product Description
IR sensor function,two modes in one(touch mode and door mode)
Normal function,12V: only use equivalent to voltage driver for working
Touch switch function,touch the point to switch
WAVE ON, WAVE OFF: One wave is all it takes to activate or deactivate these Homer under-cabinet LED lights. No need to wipe your hands and turn a knob on a shelf light remote; simply hold your hand under the sensor to gradually dim. This all-inclusive, expandable kit comes with everything you’ll need for a quick install with adhesives or screws.
Project case
LED Lighting with Hand Wave Activation and Touchless Dimming Control
Homer under cabinet led lighting kitchen garage book closet rv boat cabinet sink laundry desk
Light, Your Way
Are you searching for a kitchen lighting solution that allows for full control without you having to touch a thing?
Are there areas in your home or office where you need light, but you don’t want to spend a fortune and a day on bulky lighting systems? Do you need under-cabinet lighting that anyone can install regardless of their technical aptitude?
Discover Touch-Free LED Lighting with This 3-Bar 12 inch Under-Cabinet LED Lighting Kit!
Homer under cabinet led lighting kitchen garage book closet rv boat cabinet sink laundry desk
Light, Your Way
Are you searching for a kitchen lighting solution that allows for full control without you having to touch a thing?
Are there areas in your home or office where you need light, but you don’t want to spend a fortune and a day on bulky lighting systems? Do you need under-cabinet lighting that anyone can install regardless of their technical aptitude?
Discover Touch-Free LED Lighting with This 3-Bar 12 inch Under-Cabinet LED Lighting Kit!

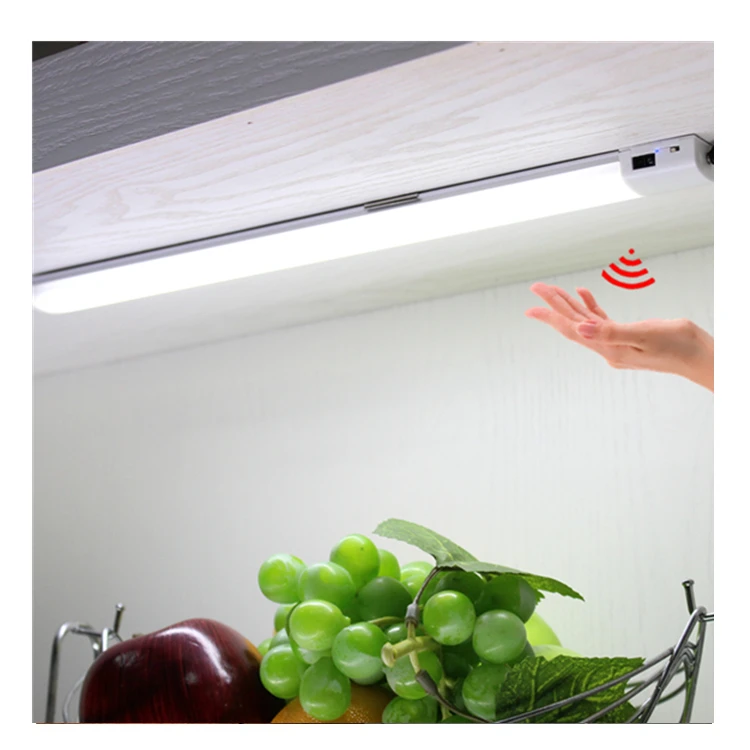

Hand wave activation.
Complete with a sensitive sensor specifically designed to respond to hand waves, you’re able to turn these cabinet lights on and off with a simple wave – it’s as easy as that!
Better still, you can also adjust the brightness of these lights by holding your hand over the sensor, allowing you to create the perfect atmosphere in your kitchen with ease.
Detailed Images
Introduction of product advantages or application effect or application mode

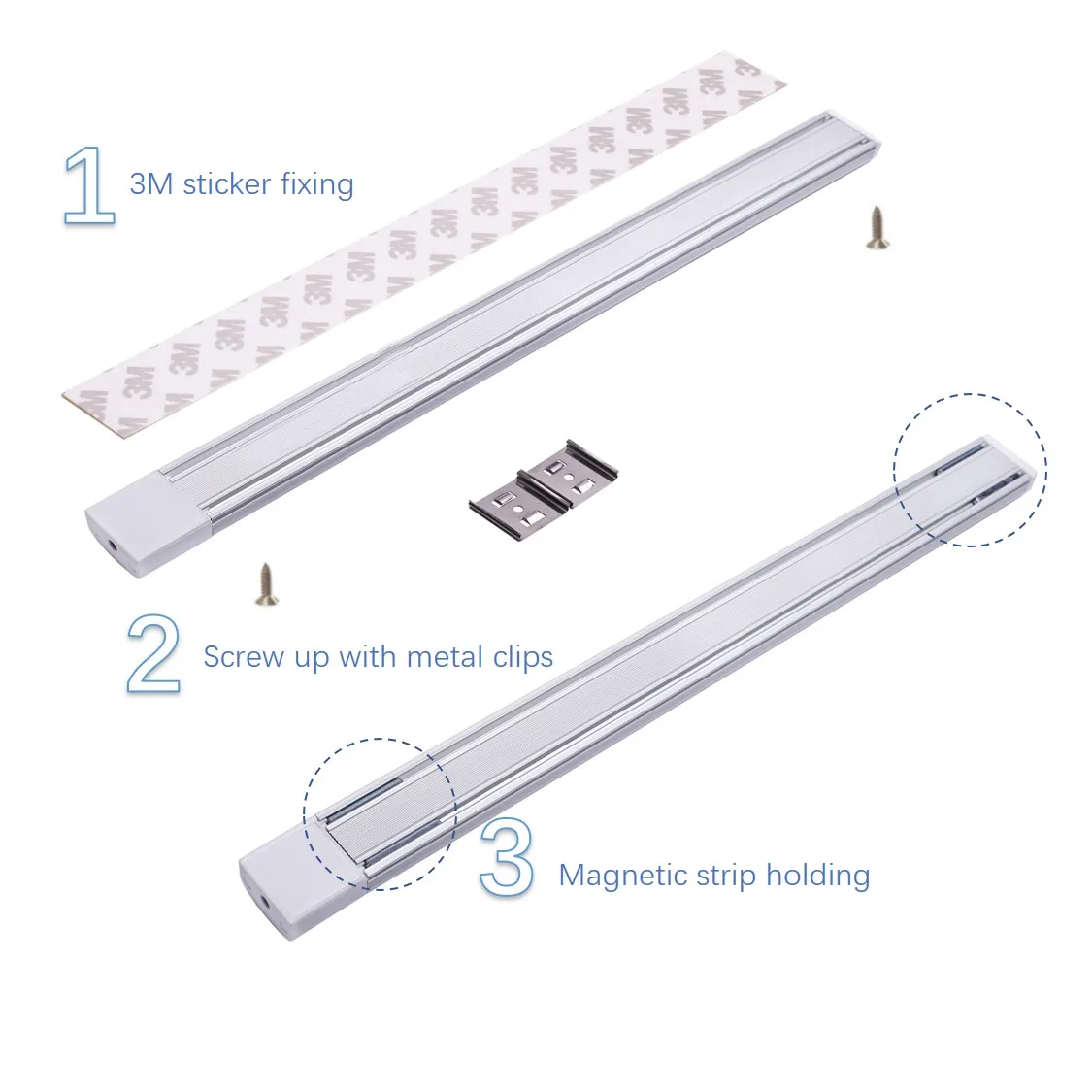

3-way to install it：
It can be installed by yourself in seconds. All installation accessories included, three flexible mounting ways:
1st， 3M sticker fixing;2nd, Screw up with metal clips;
3rd, Magnetic strip holding;
The tiny space between end caps and diffuser is caused by Physical feature (Expand
when hearted and contract when cooled), Viz:
the space will ≤0.5mm if the total length of fixture is less than 500mm;
the space will ≤1.0mm if the total length of fixture is over 500mm.
when hearted and contract when cooled), Viz:
the space will ≤0.5mm if the total length of fixture is less than 500mm;
the space will ≤1.0mm if the total length of fixture is over 500mm.
Durable & Safe LED Strip:
This under counter lighting is suited for an array of applications – cabinet,sink, display, bookcase, hutch, workbench, pantry, under
closet, etc.
closet, etc.
12V: only use equivalent to voltage driver for working, when connected in series, the first the wattage of the driver is suited
,the total length should be no longer than 2M; (it is suitable for common and intelligent function),The data listed above is based
on CCT of 3000K.
,the total length should be no longer than 2M; (it is suitable for common and intelligent function),The data listed above is based
on CCT of 3000K.

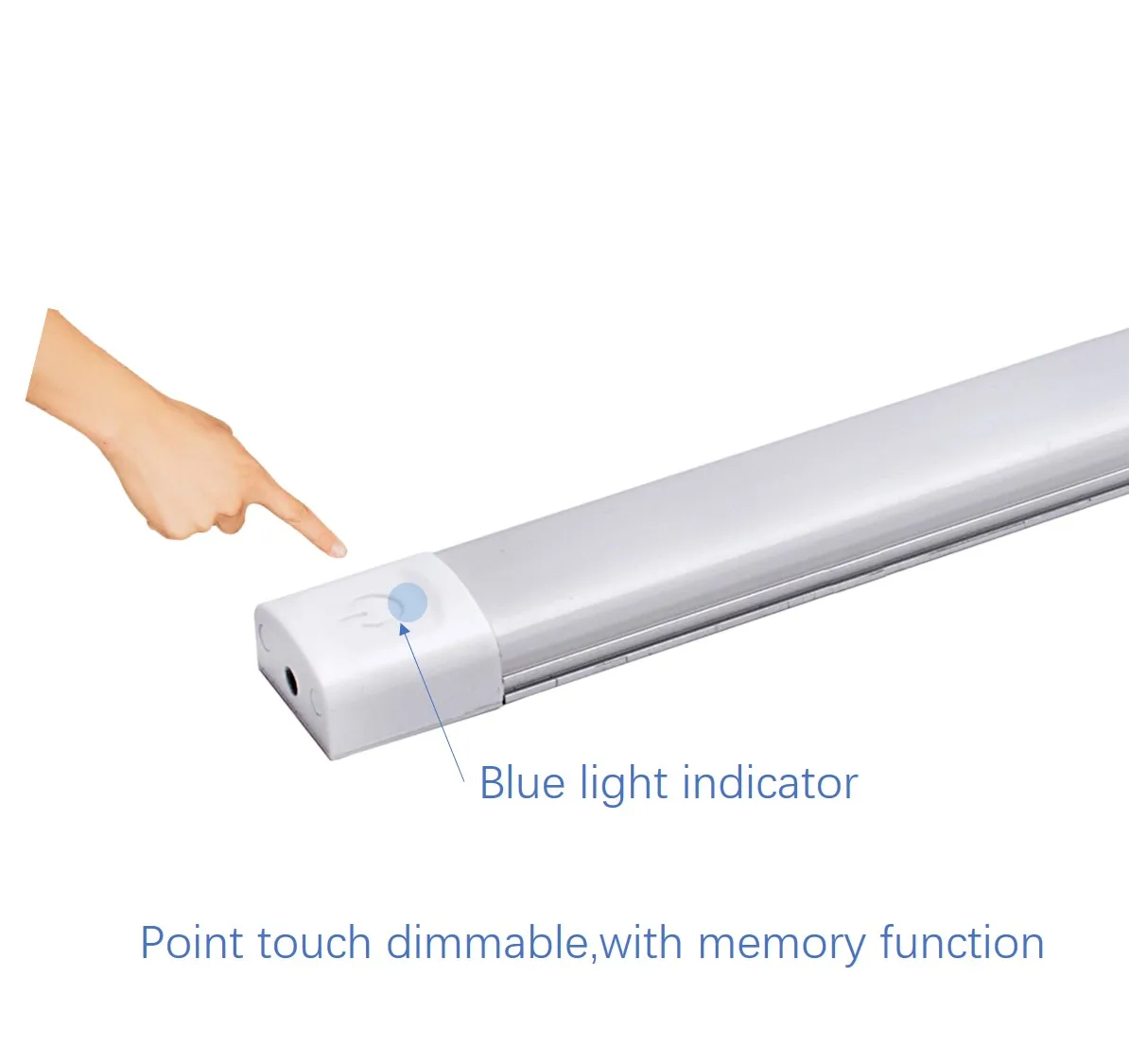

Single Point Touch function (LS26PD):
Touch a point of the light right side body to control light DIM.
(1)If you press the point and without moving for a long time, this light has the function of stepless light-adjustment.
(2)This light also has the switch function in instantaneous touch.
This light has the indicator light function.
(1)If you press the point and without moving for a long time, this light has the function of stepless light-adjustment.
(2)This light also has the switch function in instantaneous touch.
This light has the indicator light function.

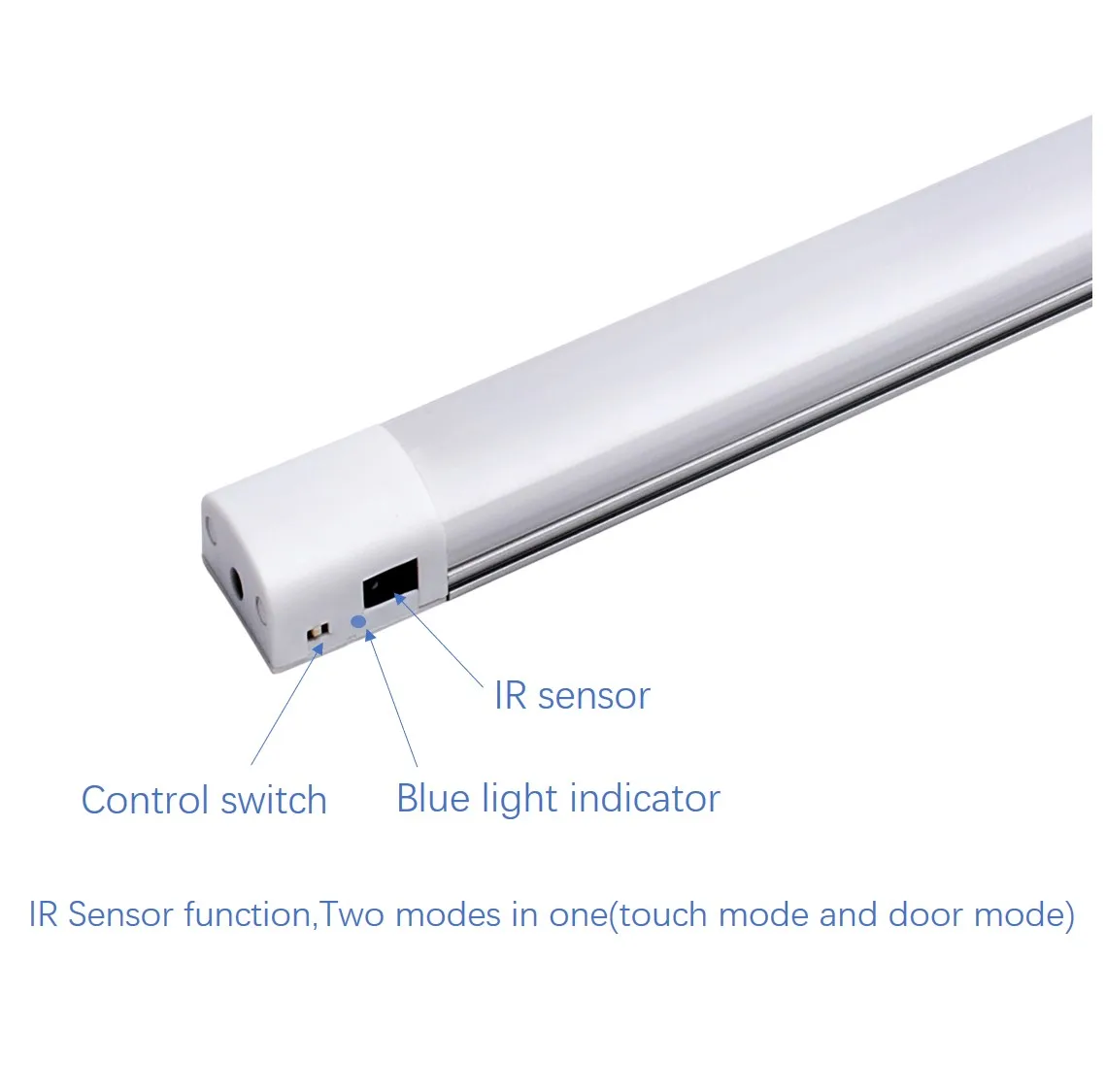

IR Sensor function(LS2601S):
Mode switch
Two modes can be chosen:
a.“shift”button in right of light, it is door mode
if there is a static object in the range of 5cm in front of sensor, the light will turn off, when the object is removed, the
light will turn on.
b.“shift”button in left of light, it is touch mode.
When finger/hand nearby the sensor, light will be on/off .
Two modes can be chosen:
a.“shift”button in right of light, it is door mode
if there is a static object in the range of 5cm in front of sensor, the light will turn off, when the object is removed, the
light will turn on.
b.“shift”button in left of light, it is touch mode.
When finger/hand nearby the sensor, light will be on/off .
Product Presentation
Size introduction and size picture
Product Specifications | |
Material | Aluminum + PC |
Parts | Mounting hardware, Screws |
Dimensions | 25mm (W) x 13.5mm (H) x 300/458/500/610/915/1200mm(L) |
Light Source: | High brightness SMD2835 LED |
Operating Temperature: | -20°C to 45°C - Indoors |
Warranty: | 1 years with proper installation |
Installation: | 2pcs M2.5 screws allows easy installation |
Ingress Protection Grade: | IP20 |
Technical - Electrical Data | L300S26 | L458S26 | L500S26 | L610S26 | L915S26 | L1200S26 |
Rated wattage | 3W | 4W | 5.5W | 6.5W | 9.5W | 12.5W |
Led Current | 0.35A | 0.45A | 0.55A | 0.65A | 0.9A | 1.15A |
Rated voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
Led quantity | 12pcs | 18pcs | 24pcs | 30pcs | 42pcs | 60pcs |
Luminous Flux | 209lm | 290lm | 399lm | 471lm | 682lm | 875lm |
Color Temp | 2700-6500k | 2700-6500k | 2700-6500k | 2700-6500k | 2700-6500k | 2700-6500k |
Angle | 120° | 120° | 120° | 120° | 120° | 120° |
Lifespan | 30000H | 30000H | 30000H | 30000H | 30000H | 30000H |
Lifespan | 30000H | 30000H | 30000H | 30000H |
Related Products
Certificate
Our factory is approved by BSCI,The light has CE,ROHS and GS certificate by TUV and SGS
Company Introduction
NINGBO HOMER ELECTRONICS LIGHTING CO.,LTD is located in Ningbo city and established in year of 2010,We specialized in manufacturing cabinet lights and LED IP44 bathroom mirror light and LED mirror ,our R&D can meet various customized requirements from different market like EU,North America and South-east Asia,etc.,and the products ae certified and in compliance with target market's regulation like UL,CE,ROHS,GS and ERP etc.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
Packing&Shipping
Exhibition
Guangzhou International Lighting Exhibition
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
30 days for order quantity lower than 200pc; For more quantity, usually 40 days.
4. Can I get a discount?
Yes, for the order quantity more than 500 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
30 days for order quantity lower than 200pc; For more quantity, usually 40 days.
4. Can I get a discount?
Yes, for the order quantity more than 500 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
