Most Efficient Blue TiNOX Solar Collector Panel in China
- Category: >>>
- Supplier: Haining Vision Solar Water Heater Co. Ltd.
Share on (1617407572):
Product Overview
Description
Blue TiNOX Solar Collector
Product Description

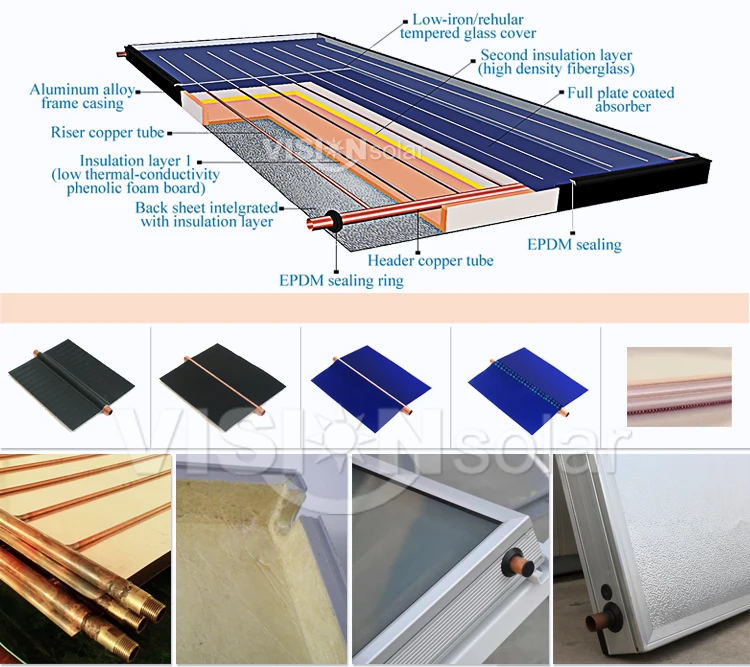

Collector Description
VISION VFC series high pressure flat panel is one of the most popular solar collectors around the world, heating hot water directly or indirectly, with connection in series and parallel for domestic and commercial solar water heating applications.
Main Features
1. Most popular for solar water heating applications;
2. Works without over-heating problem to injure system;
3. Super anti-freezing performance to work below -40°C;
4. High pressure working with safe and stable performance;

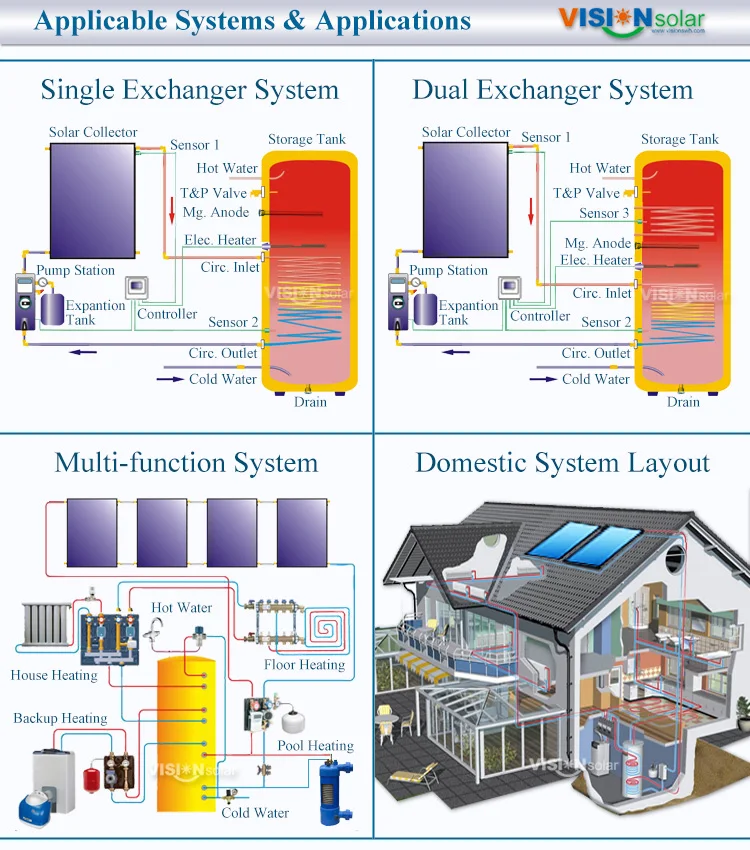

5. Wide applications for solar water, room and floor heating;
6. Strong adaptability to various roof structure installations;
Specifications
MAIN SPECIFICATION | Model | VFC-T |
Dimension | 2000*1060*80 MM | |
Net weight | 35 KGS | |
Loading Qty | 120 PCS/20GP; 290 PCS/40HQ | |
Gross area | 2.0 M2 | |
Absorber area | 1.85 M2 | |
Fluid capacity | 1.2 L | |
Recommend flow rate | 0.023 KG/s* m2 | |
Testing pressure | 1.2 MPa for 5 minutes | |
Working pressure | 0.6 MPa | |
Working Life | ≥25 years | |
GLAZING | Material | Low iron tempered glass |
Thickness | 3.2 MM | |
Transmittance | > 91.7% | |
ABSORBER | Material | Blue Tinox |
Sheet | Aluminum 0.4MM | |
Absorptivity | ≥96±2 % | |
Emissivity | ≤7±2 % | |
Header tube | TP2 copper Φ22*0.8 MM | |
Riser tube | TP2 copper Φ8*0.6 MM | |
Welding tech | Laser/ Ultrasonic welding | |
INSULATION | Material | Fiber glass back and sides |
Thermal conductivity | 0.025 W/m°K | |
CASING | Frame material | Aluminum alloy 1.2 MM |
Back plate | Galvanized/ Aluminum plate 0.4 MM | |
Frame color | Brown / Silver / Black |
Remarks:
Customized order is available for collector size and connections, frame color, back plate material, etc.;
VISION stuffs will suggest the most appropriate collector according to your solar heating requirements;

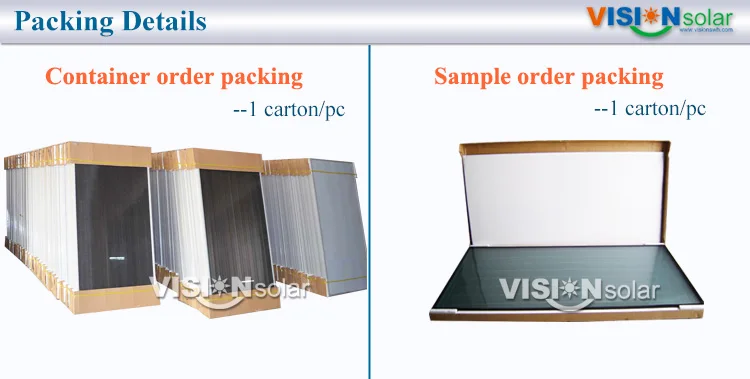

Packaging & Shipping
Company Information
FAQ
| Q: How to use in cloudy or rainy days? |
A: We could connect electric heater, gas heater or other boilers for bakup heating; |
| Q: Freezing problem in solar water heater? |
| A: Never, when snow more than 5 days electric heating will start to protect system; |
Q: Lead time for production? |
| A: Within 7 days for full container orders; |
| Q: Minimum order quantity? |
| A: 1 set for each model of VISION solar water heaters and solar collectors; |
Q: Payment term and methods? |
A: 30% deposit & 70% balance at sight of B/L copy. Via T/T transfer, sight L/C, Western Union, MoneyGram, Paypal, etc; |
| Q: Warranty period? |
| A: 10 years for VISION solar water heaters and solar collectors upon bill of lading date; |
| Q: Accept Alibaba trade assurance order? |
| A: Yes, in this way Alibaba will guarantee your payment, product quality and delivery; |
| Q: Accept OEM production? |
| A: Yes, offer to make customized logo on solar products and packing cartons. |
| Q: Working as a VISION dealer? |
| A: We welcome abroad customers to work with us as a VISION dealer for agreed countries and areas. |
