2004A Character LCD Display

Product Overview

Description

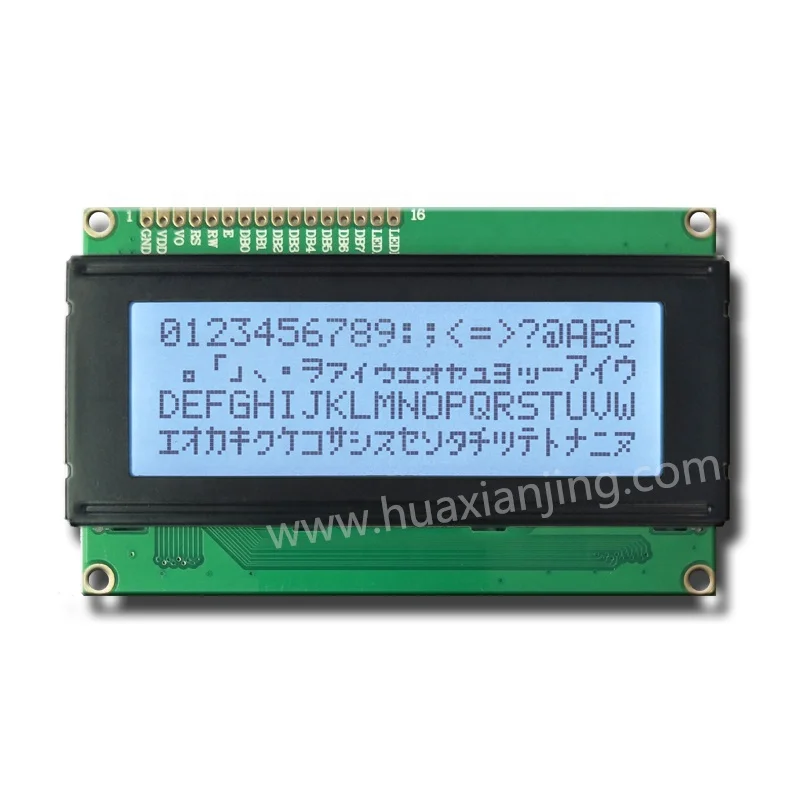

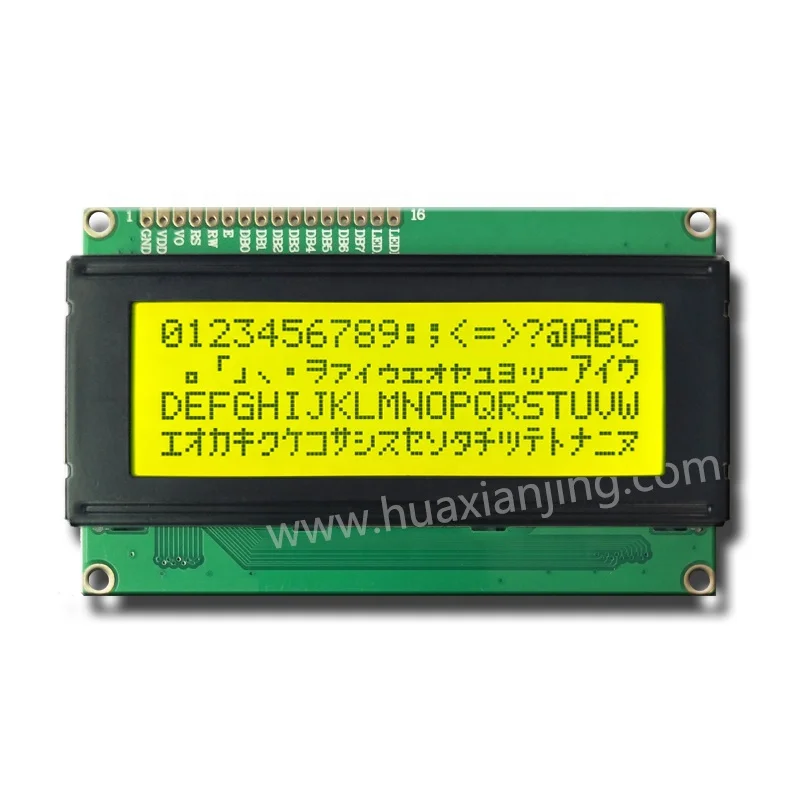

2004A Character LCD Display

SPECIFICATIONS

Features

Item	Standard Value
Display Type	20characters ´ 4 lines
LCD Type	STN,NEGATIVE(BLUE),TRANSMISSIVE
Driver Condition	LCD Module : 1/16Duty , 1/5Bias
Viewing Direction	6 O’clock
Backlight Type	SIDE WHITE
Interface	8-bit MPU interface
Driver IC	SPLC780D

     Mechanical Specifications

Item	Standard Value	Unit
Outline Dimension	98(L) * 60(W) * Max 13.2(T)	mm
Viewing Area	77(L) * 25.2( W)	mm
Dot size	0.56(W) ´ 0.56(H)	mm
Dot pitch	0.6(W) ´ 0.6 (H)	mm
Character size	4.76(W) ´ 2.96(H)	mm

     Absolute Maximum Ratings

Item	Symbol	Condition	Min.	Max.	Unit
System Power Supply Voltage	VDD	-	-0.3	5.5	V
LCD Driver Supply Voltage	VLCD	-	VDD-12	VDD-0.3	V
Input Voltage	VIN	-	-0.3	VDD + 0.3	V
Operating Temperature	TOP	-	-20	70	°C
Storage Temperature	TST	-	-30	80	°C
Storage Humidity	HD	Ta < 40 °C	20	90	%RH

FIND MORE FOR THE 2004 MODEL

Serial	Model	Out. Dimensions (mm)	V.A. (mm)	Driver IC
2004	HSM2004A/B	98.0*60.0*13.2	77.0*25.2	SPLC780C
	HSM2004C	118*43*13.2	77.0*25.2	SPLC780C
