Bus door mechanism

Product Overview

Description

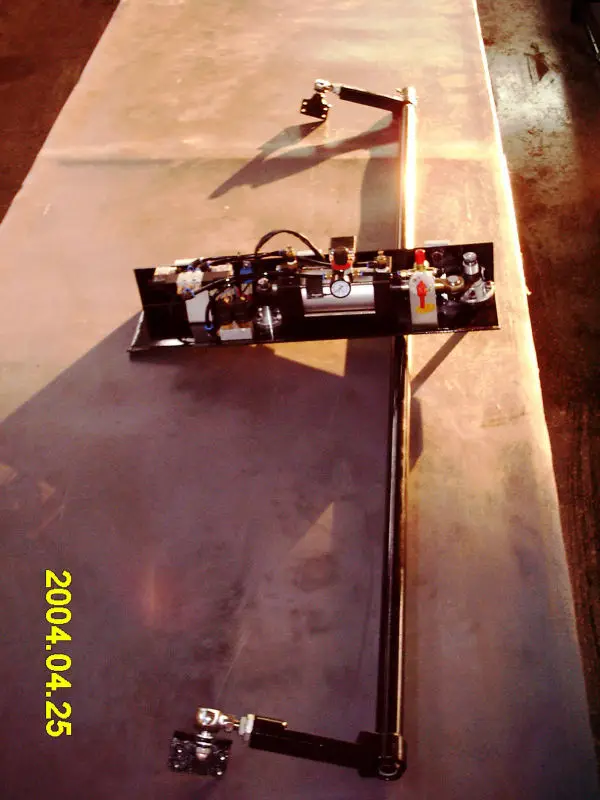

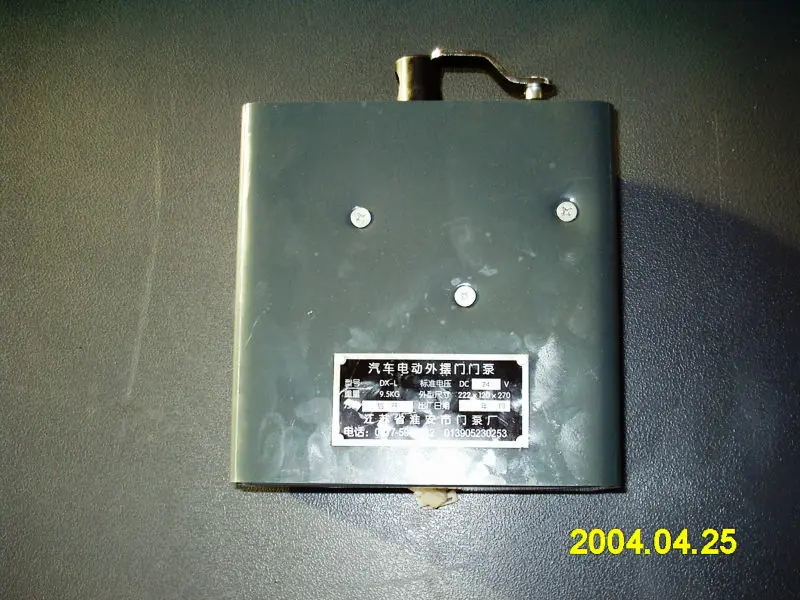

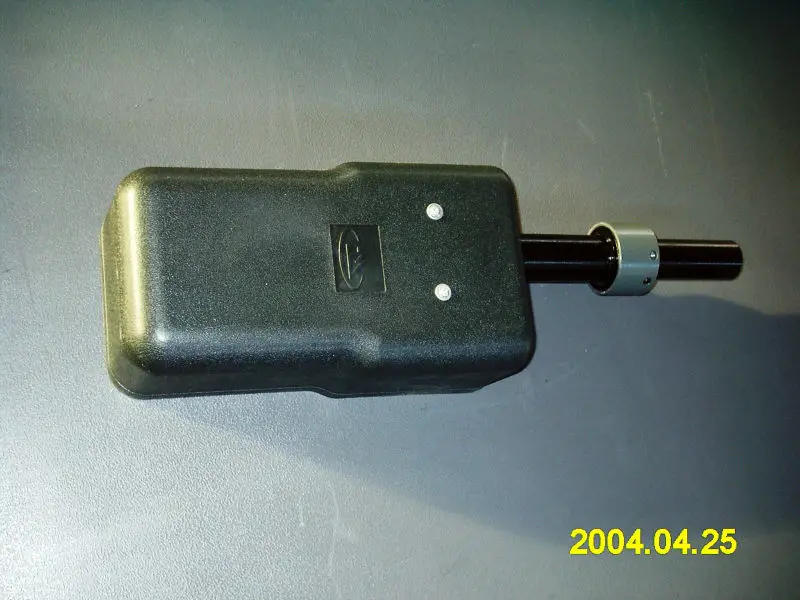

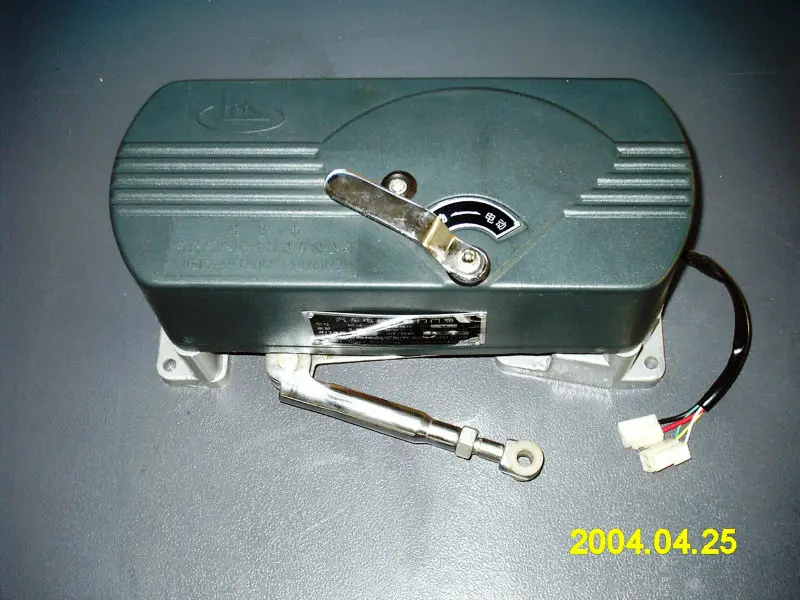

Bus door mechanism:
1. Electrical, Pneumatic
2. Squeeze-proof
3. In-swing, out-swing.
4. Backward, frontward.



Specifications:

Ambient temperature	-40°C~+80°C
Air pressure	0.4Mpa~0.8Mpa
Working voltage	DV24V(12V)
Driving force	2000N(0.7Mpa)
Endurance	1000000 times
Control voltage	12V,24V
Working air pressure	0.4—0.8Mpa
Swing direction	Left/Right
Max. swing angle	140°
Max. lift height	20mm(at swing angle 140°)
Load capacity	No less than 1000N(at min. load door weight)
Endurance	1000000 times
Controlling Voltage	DC 12V \\ DC24V
Motor Power	80W
Openning Direction	Forward \\ Backward
Swing Direction	Left \\ Right
Max. Swing Angle	140°
Open/Close Time of Door	3.5s ~ 4.5s
Max. Lifting Height	20mm (at 140°swing angle)
Loading Capacity	No less than 1000N
Ambient Temp.	-40°C ~ +55°C
Max. Gradient	Normally 5°
