Product Overview

Description


Product Description

Product Application

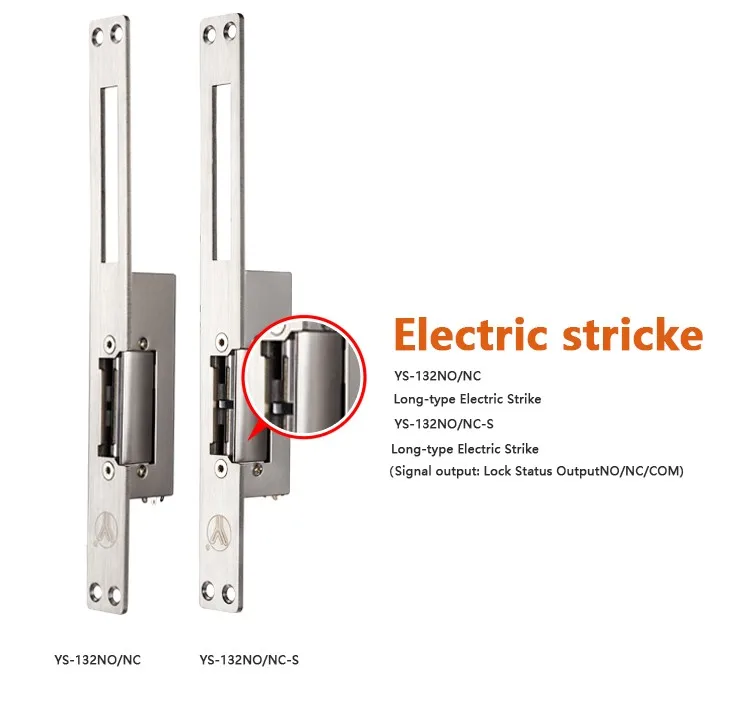

Electric strikes come in many varieties.YS-132NO/NC-S is the electric strike with long faceplate and signal output. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power.

\t
Lock Size
\t
250Lx25Wx31H(mm)
\t
Strike Structure
\t
Stainless Steel
\t

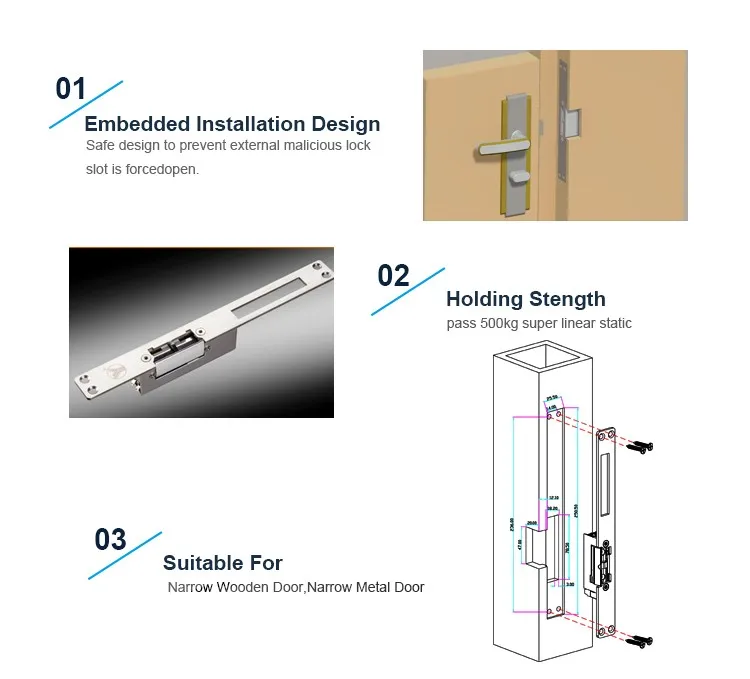

Holding Force
\t
500kg
\t

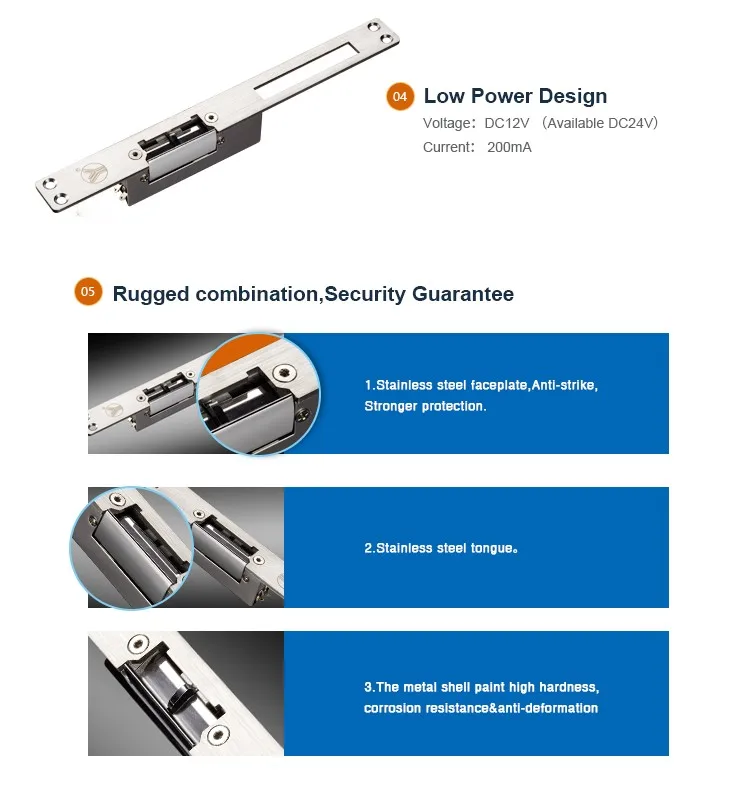

Voltage
\t
DC12V (Need Order DC24V)
\t
Current
\t
200mA(YS-132NO-S);200mA(YS-132NC-S)
\t
Feature
\t
Fail Secure(YS-132NO-S); Fail Safe(YS-132NC-S)
\t
Signal Output
\t
Lock Status OutputNO/NC/COM
\t
Suitable For:
\t
Wooden Door,Metal Door,PVC Door
\t
Surface Temperature
\t
Within +20℃
\t
Suitable Temperature
\t
-10~+55℃(14-131F)
\t
Operating Humidity
\t
0~90%(non-condensing)
\t
Face plate Housing
\t
Painted Steel
\t
Function
\t
Built-out MOV
\t
Optional Accessories
\t
YS-308
\t
Weight
\t
0.4kg
