Gdstime GDA5020 DC 50mm 50x50x20mm 5v 12v 24V Brushless Small Axial Exhaust Cooling Cooler Fan 5020

Share on:

Price:$0.66 - $0.96
Price in USD:Details


Product Overview

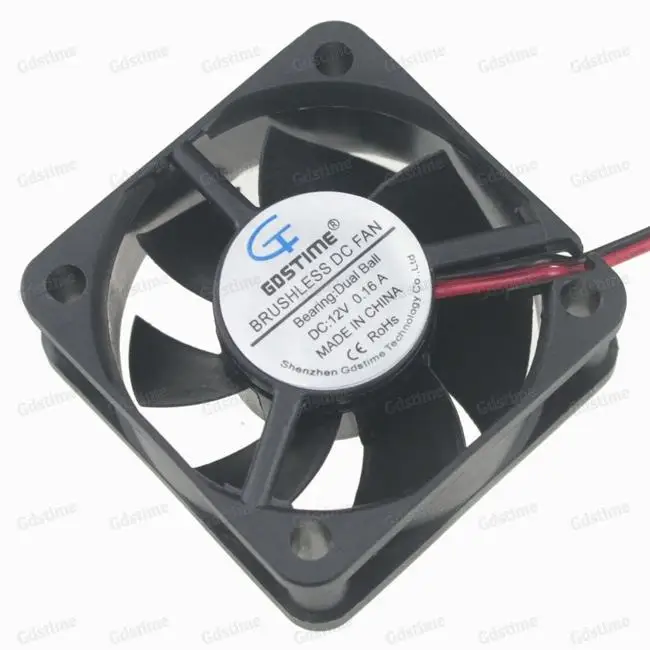

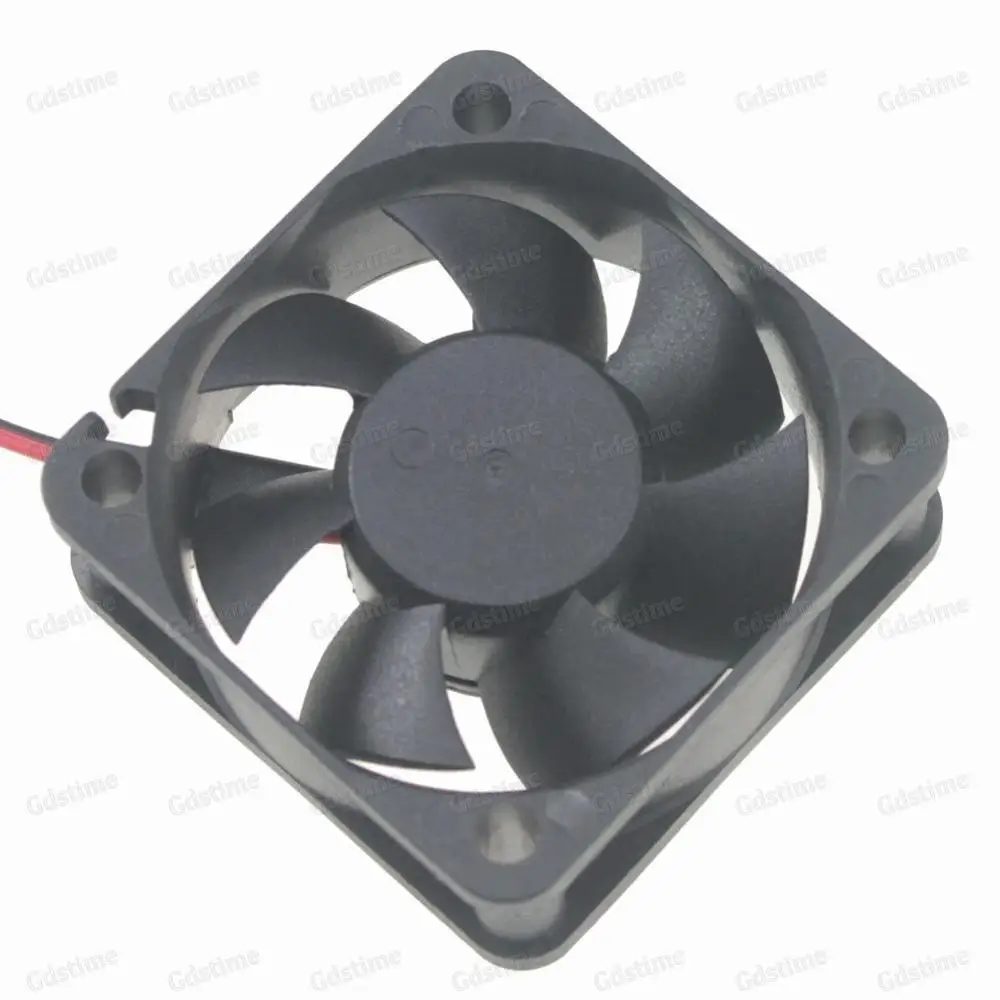

Gdstime 50x50x20MM Brushless DC Cooling Fan

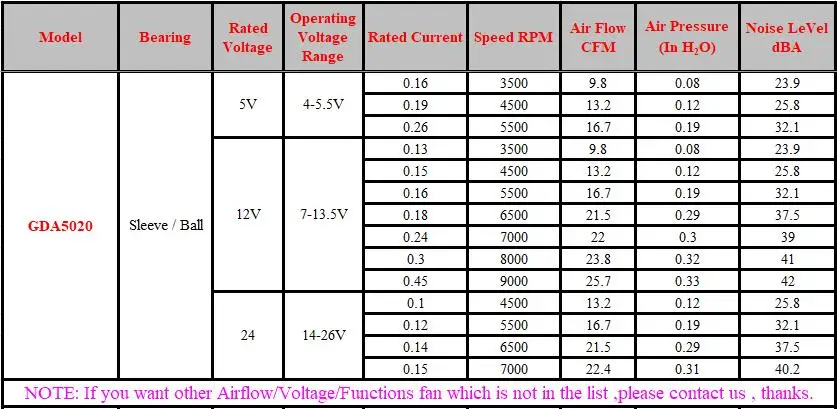

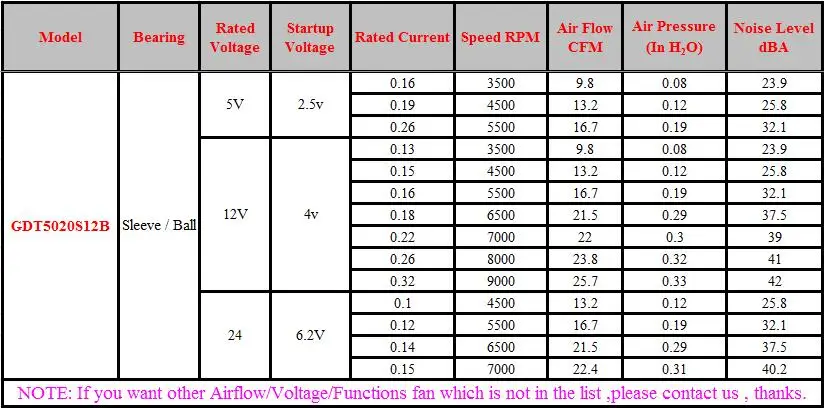

Product Description



Waterpoof: IP45-68
Rated Voltage: 5-36V
Rated Current:0.06-0.66A
Bearing: Sleeve / Hydraulic / Ball Bearing
Fan Speed:3500-9000 RPM±10%
Noise Level: <25dBA±10%
Air Flow: 9.8-26CFM

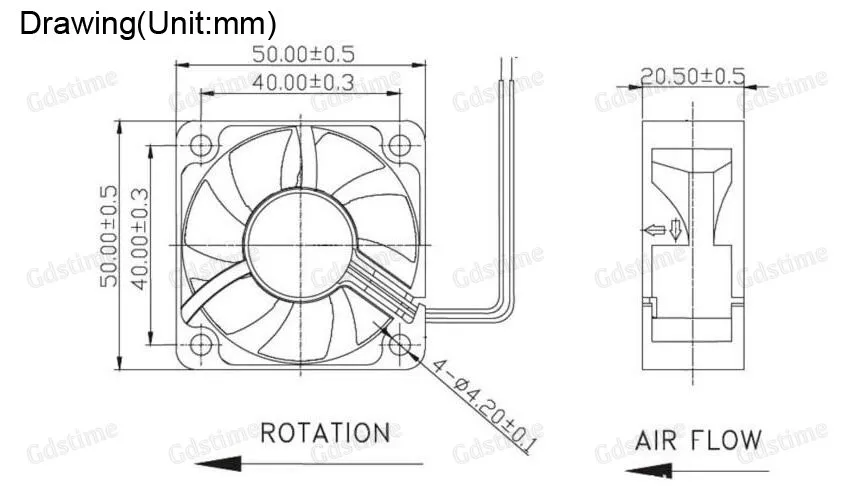

Fan size:50 x 50 x 20mm


A,Motor Protection

1,RP: Reverse Protection

2,SS: Soft Start

3,AS: Auto Restart

4,CL: Current Limit

B,Singal output

 1,FG: Frequency Generator

 2,RHD(RD): Rotation Detection(High)

 3,RDL: Rotation Detection(Low)

 4,LD: Low Detection

C,Speed control mode

 1,PWM: Pulse Wide Modulation

 2,TC: Temperature Control

 3,VC: Voltage Control

 4,RC: Resistor Control

 5,SC: Const Speed






Company Information


Gdstime is a professional manufacturer and supplier in Guangdong, China.

We Have Years’ experience in Industrial Cooler.

We devote ourselves to offer high quality products to our clients in a competitive price, we also provide top quality service to clients.

Our company produce Cooling products: AC Fan, DC Fan, Thermal pad, Cooling Heat sink, and other refrigeration products. All of our products have passed the CE & ROHS certificate. We also accept customized products. Please contact us if you have any needs anytime. We will reply within 24H.



Packaging & Shipping





FAQ-4 -


Our Services

Tips: We can Supply free samples.


*Every Product will be test carefully before shippment.

*This commitment to quality problems have any free replacement, but does not include installation, the buyer will not fail, buy error, install artificial damage, etc. (In a Full Year)
