PVC Insulated and Sheathed Solid Copper Flat Cable non flexible flat cable

Product Overview

Description

PVC Insulated and Sheathed Solid Copper Flat Cable



1.Specification:

(1).Uo/U:300/500v,450/750V

(2).Certificate: CE, SGS, RoHS

(3).Condutor: Solid or Stranded copper

(4).Color: Red,Green,Black,Grey,white as per request

(5).Insulation: PVC/V-90PVC; Sheath:PVC/3V-90PVC

(6).Package: 100cs/Roll or Wooden Drum,or as per request.

(7).Max workng Temperatur: 70oC or as per90oC,105 if request

(8).Standard: IEC60227,BS6004,GB/T5023,JB/T8734,AS/NZS5000.2

(9).Flame retardant,fire resistance or low smoke hologen free or other request



2. Application:

    These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit ad for fixed, protected installation.



3.Specification Size and Technical Data:

Code Name	No.of core and Nominal conductor area	NO. of wires	Nominal Diameter of wire	Thickness of insulation	Thickness of outer sheath	Approx.Overall Diameter	Max.Conductor DC Resistance at 20oC
	No. x mm2	No.	mm	mm	mm	mm	Ω/km
H03VV-F	2 x 0.5	16	0.20	0.5	0.60	5.0	39
	2 x 0.75	24	0.20	0.5	0.60	5.5	26
	3 x 0.75	24	0.20	0.5	0.60	5.8	26
	4 x 0.5	16	0.20	0.5	0.60	5.8	39
	4 x 0.75	24	0.20	0.5	0.60	6.3	26
H05VV-F	2 x 0.75	24	0.20	0.6	0.80	6.3	26
	2 x 1.5	30	0.25	0.7	0.80	7.5	13.3
	2 x 2.5	50	0.25	0.8	1.00	9.3	7.98
	2 x 4	81	0.25	0.8	1.10	10.6	4.95
	3 x 1.5	30	0.25	0.7	0.90	8.2	13.3
	3 x 2.5	50	0.25	0.8	1.10	10.0	7.98
	3 x 4	81	0.25	0.8	1.20	11.4	4.95
	4 x 1.5	30	0.25	0.7	1.00	9.2	13.3
	4 x 2.5	50	0.25	0.8	1.10	11.0	7.98
	4 x 4	81	0.25	0.8	1.20	12.5	4.95
	5 x 1.5	30	0.25	0.7	1.10	10.2	13.3
	5 x 2.5	50	0.25	0.8	1.20	12.2	7.98

Flat Cable, pvc insulated cable, Solid Copper Cable

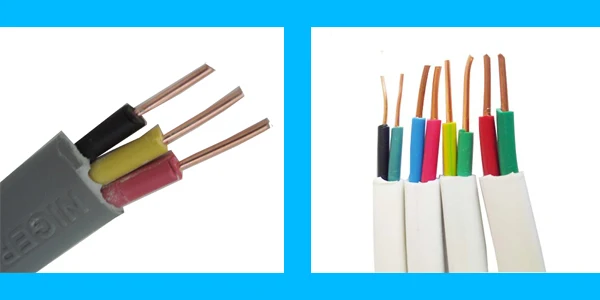

4.Product Pictures:

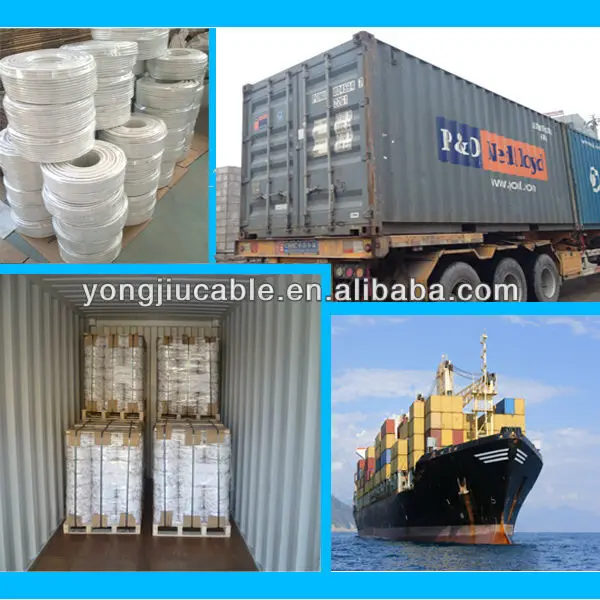

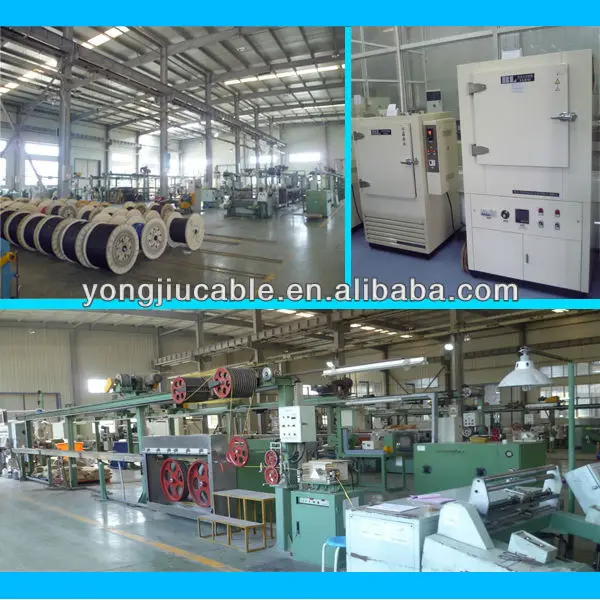

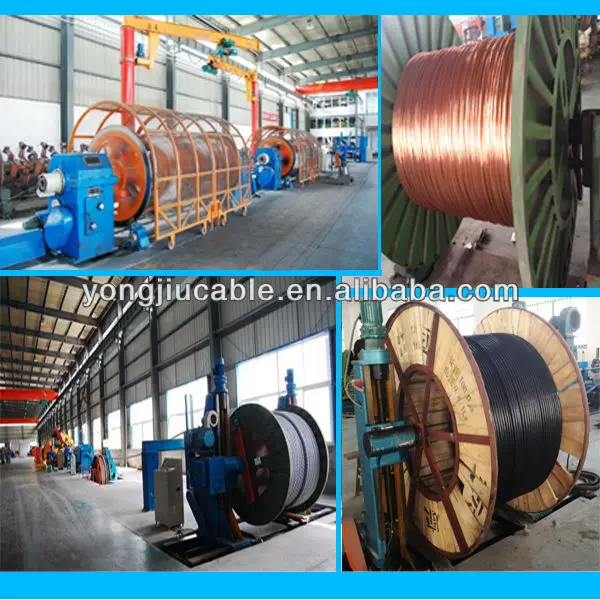

5.Workshop, Testing Instruments, Pacage and Transportation:

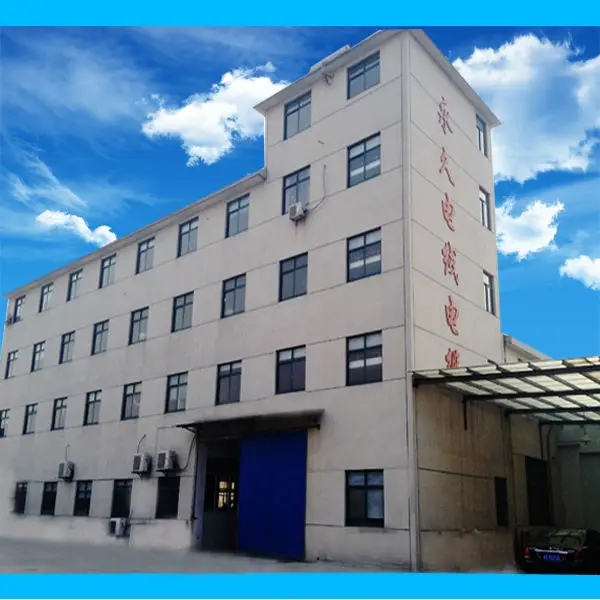

6.Factory and Certificates:
