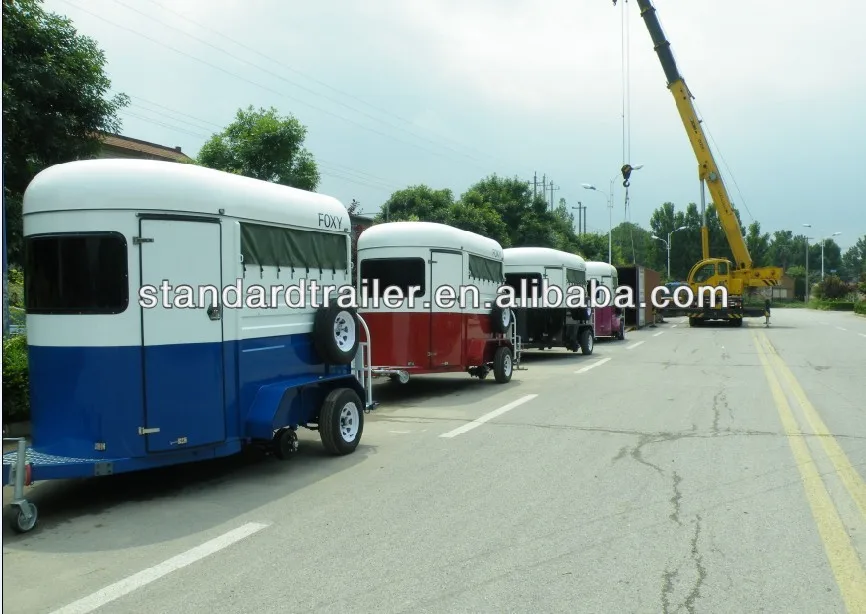

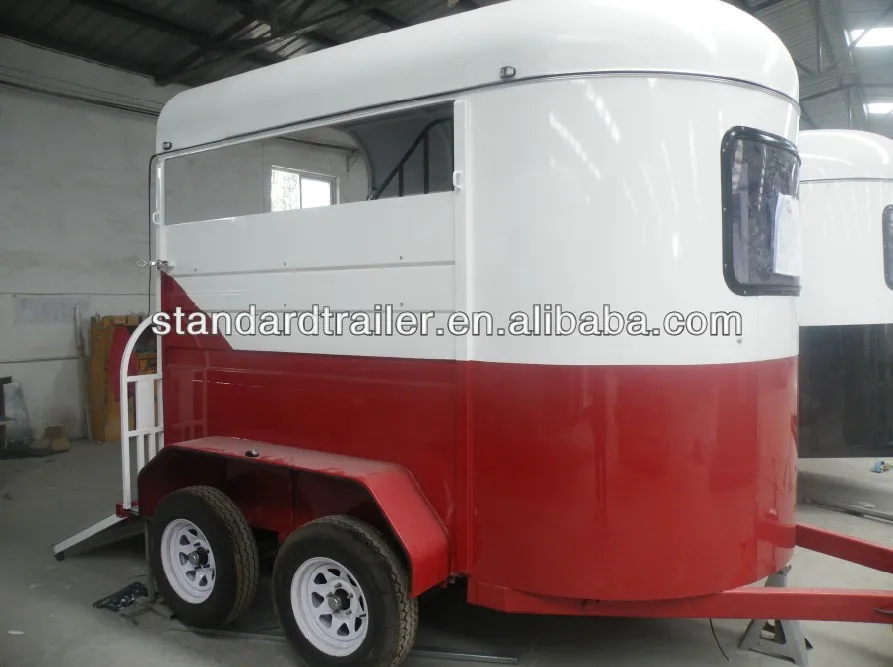

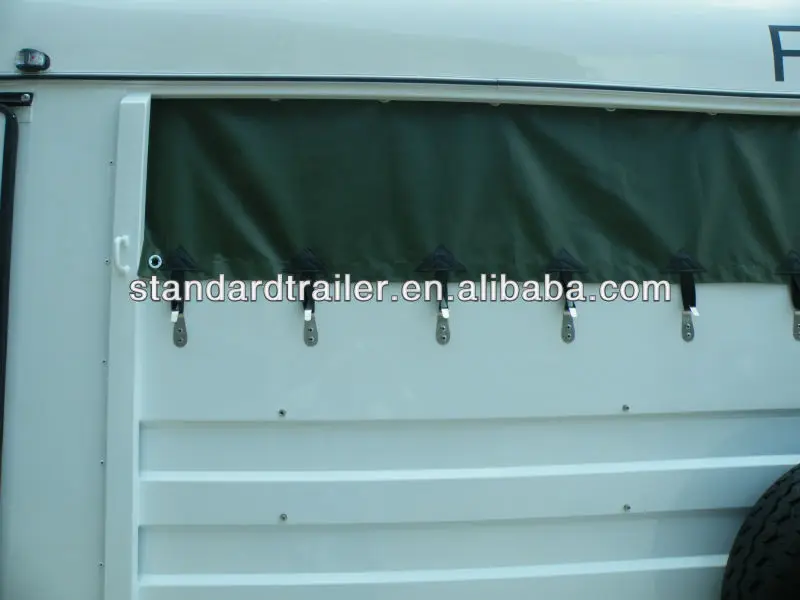

Two horse straight load economic horse float

Product Overview

Description

Specifications:



Model	STD-2HSL-E
Materials	Chassis Material: double hot dip galvanized RHS 3.5*4.0mm
	Frame Material: double hot dip galvanized RHS 2.5mm
	Body Panel: galvanized sheet 1.0-1.5mm
	Roof: Special molded FRP 3mm
Brake	Perfect Security Structure Design,single axle electric brake
Draw bar	Drawbar Checker Plate    none
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	general spring 5 plate
Axles	Two special trailer axles 50*50mm
Wheels & Tires	White steel rims 5 hole without spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel            6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door      17.5mm anti-slip rubber sheet
Windows & Doors	Front Window  (mm) 1220*610
	Side Windows     None
	Vents                   None
	Rear Upper Door (mm)   None
	Ramp Door (mm)   1800*1210
	Side Door (mm)     1730*615
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights&Retro Reflectors	Trailer Plug        Seven-prongs Plug
	Rear Lights brackets iron
	LED interior lights, two small LED sidelights, two LED combination
Auxiliary Fittings	Bed
	Cupboard         None

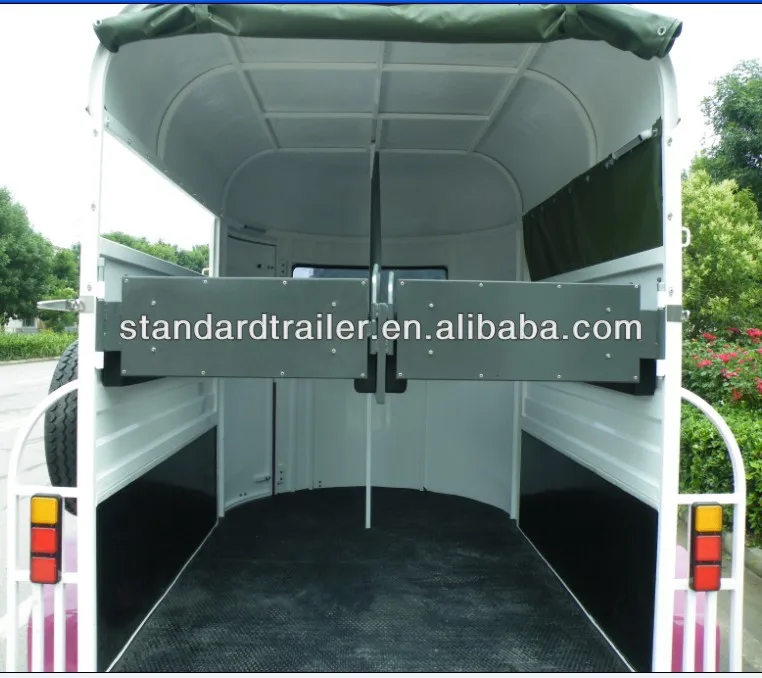

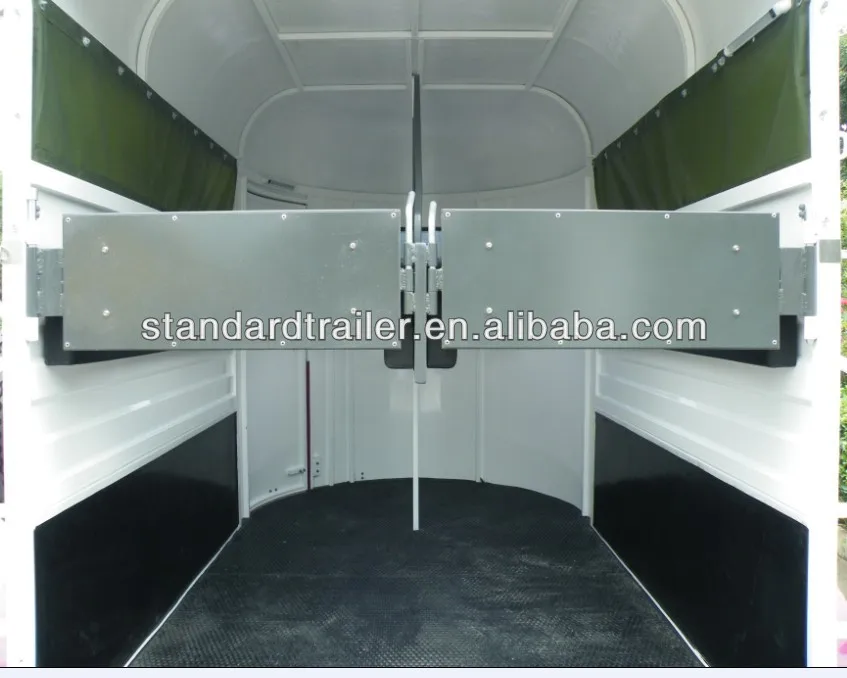

	Horse Protection Frame     fully padded
	Horse Ring      6
	Saddle Rack     None
	Rug Rack          None
	Saddle Box      None
Dimensions	Body Dimension (L x W x H: mm): 3075 x 1750 x 2230
	Inner Dimension (L x W x H: mm): 3025x 1700 x 2155
	Overall Dimension(L x W x H: mm):  3925 x 2290 x 2600
	Length of Tone (mm):     850
Empty Weight	1200 KGs
Max Payload	1500 KGs
