Automatic High Speed Energy Saving HDPE PVC PP PC Small Plastic Bottle Blowing Making Extrusion Blow Molding Machine Price
- Category: >>>
- Supplier: Zhangjiagang Yijiu Machinery Co. Ltd.
Share on (1620664121):
Product Overview
Description
Automatic High Speed Energy Saving HDPE PVC PP PC Small Plastic Bottle Blowing Making Extrusion Blow Molding Machine Price
Product Description

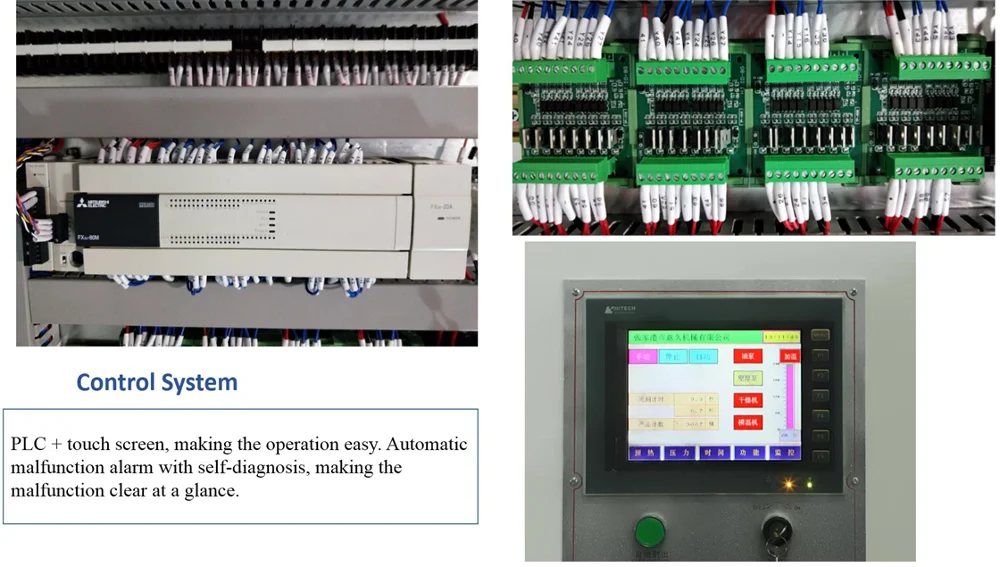

*PLC+touch screen: making the operation easy.
*Automatic malfunction alarm: with self-diagnosis,
making the malfunction clear at a glance.
*Center input die head: eliminating the knit line completely and making it easy to change the material and color.

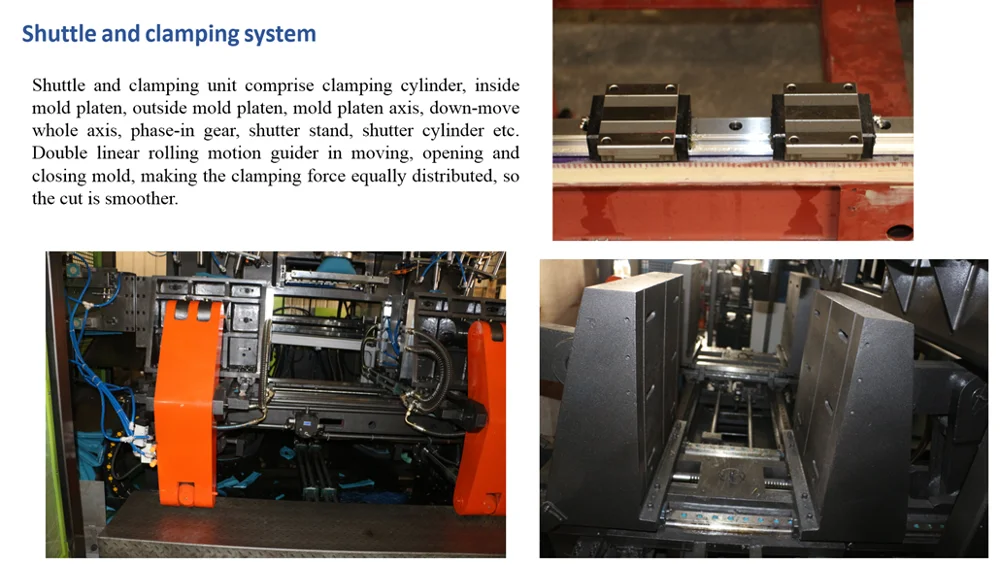

*Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.
*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.
*High speed and efficient plasticizing: mixing well and ensuring the produce purity.
Product Details
Main Parameters | ||
Available material | PE,PP,etc. | |
Max. Product Volume | 5 | (L) |
Dry Cycle | 700x2 | (pcs/h) |
Machine Size | 3.2x2.2x2.5 | (LxWxH)(m) |
Machine Weight | 7.8 | (Ton) |
Installed capacity | 46.5 | KW |
Plasticizing System | ||
Screw Diameter | 70 | (mm) |
Screw L/D Ratio | 24 | L/D |
Plasticizing capacity | 90 | (kg/h) |
Screw Heating Zone | 3 | (Zone) |
Screw Drive Power | 22 | (KW) |
Extrusion Die Head | ||
Type | Continuous Die Head | |
NO. of Heating Zone | 3 | (Zone) |
Die Heating Power | 2.5 | (KW) |
Max. Die Diameter | 140 | (mm) |
Opening And Clamping System | ||
Clamping Force | 65 | (KN) |
Mold Stroke | 164-524 | (mm) |
Max. Mold Size | 380x390 | (WxH)(mm) |
Hydraulic System | ||

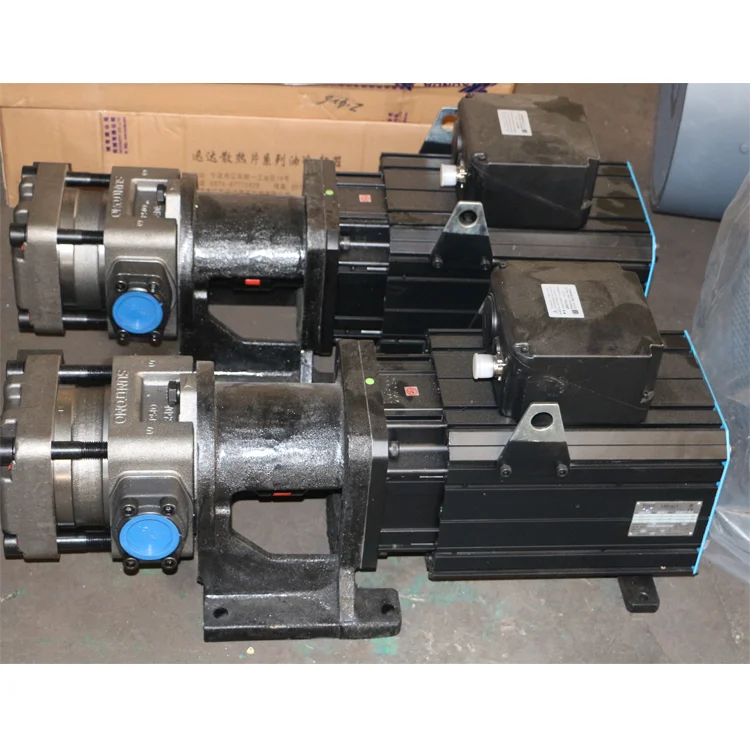

Oil Pump Power | 7.5 | (KW) |
System pressure | 10 | (MPa) |
Certificate
Packaging & Shipping
Company Information
FAQ
FAQ For Extrusion Blow Molding Machine |
Q1: Are you a trading company or a manufacturer? |
A1: We own a factory ourselves, and we can assure the quality we manufactured. |
Q2: What’s your guarantee or the warranty of the quality if we buy your machines? |
A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge. |
Q3: How can I install my machine when it arrives? |
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines. |
Q4: How about the spare parts? |
A4: After we deal down all the things, we will offer you a spare parts list for your reference. |
Q5: What after-sales service your company offers? |
1, Your inquiry related to our product & price will be replied within 72 hours. 2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese. 3, Working time: 8:00am ~6:30pm, Monday to Saturday. 4, Your business relationship with us will be confidential to any third party. 5, Good after-sales service offered, please get back to us if you got any questions. |
Q6:Can I visit your factory and send team for learning and inspect? |
A6: Yes, sure. We will do our best to teaching you how to use the machine.welcome to visit our factory! |
Q7: What is our advantages? |
A7: 1.Competitive price |
Q8: Where is your factory located? How can we visit there? |
A8: Our factory is located in Zhang Jia Gang City, Jiang Su Province, China, about 2 hour to Pu Dong airport, from SHANG HAI by air. We offer transportation service from Pu Dong airport to our factory. |
