DUAL AXIS BLUETEETH 500M reflectorless STONEX R2 PLUS new total station

Product Overview

Description



DUAL AXIS BLUETEETH 500M reflectorless STONEX R2 PLUS new total station



Key Features for Stonex R2 PLUS series total station surveying instruments:

1. Long Range 300m or 500m on 2” and 5” accuracy instrument and a measurement range up to 5000m with single prism


2. Easy Data Communication with the mini USB port to load/download data


3. Powerful Laser technology (class 3 laser with a wavelength between 650 and 690nm) for distance measurement


4. Easy reader Alphanumeric keyboard on both sides with high resolution LCD display and backlight and 8 lines of 24 characters.


5. Capacity Large storage capacity with 128MB internal memory and up to 2GB SD card for external memory

Stonex R2 plus total station avaliable models:



R2 Plus Models
Plus 350	R2 -2”	R2 -5”
Plus 500	R2 -2”	R2 -5”



R2 Plus Total Station Powerful performances at affordable prices The STONEX R2 plus is an upgraded version of STONEX R2 Total Station range. The significant specification is the high-precision EDM measuring with millimeter accuracies while performing angu-lar measurements in order of seconds of a degree. The STONEX R2 Plus encompasses laser technology (class 3 laser with a wavelength between 650 and 690nm) for distance measurement and coding technology for optical angular measurements. The instrument design is characterized by its robust mechanical chassis, certified dustproof and waterproof (IP55) standards. The STONEX R2 Plus is built with high performance optics with a 30X mag-nification factor and illuminated reticle featuring superior sighting quality in any lighting condition.

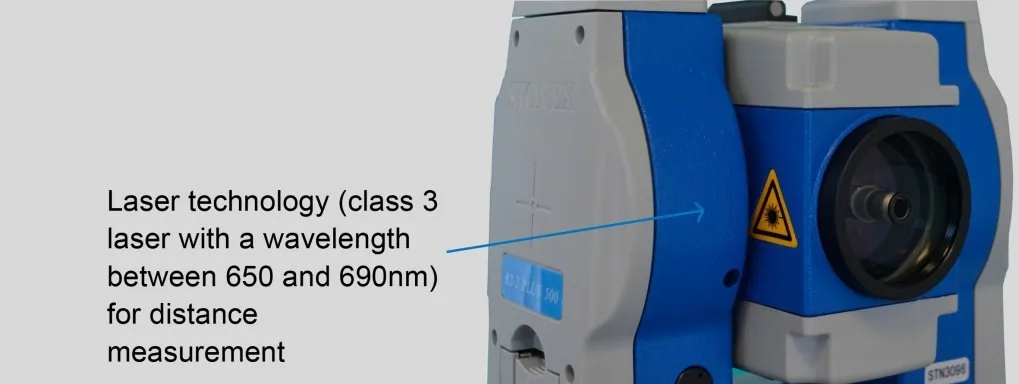

STONEX LASER TECHNOLOGY ( CLASS 3 LASER with a wavelength between 650 and 690nm for distance measurement)

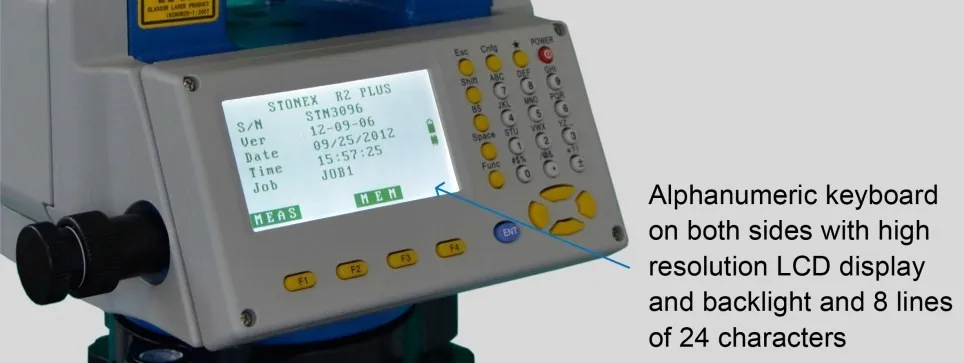

STONEX R2 PLUS total station with Alphanumetric Keyboard on both sides with high resolution LCD display and backlight and 8 lines of 24 characters



The STONEX R2 Plus offers angular accuracies of 2"or 5", and 2mm + 2ppm accuracy on distance measurements. The instrument EDM features DR distance measurement range of 300 meters on 5” accuracy instrument, 500 meters on 2” accuracy instrument and a measurement range up to 5000 meters with single prism. The removable storage option of SD card allows greater flexibility to increase the storage capacity and downloading of data. The instrument is facilita-ted with a mini USB connector for upload and do-wnloads of data to the computer and other exter-nal devices. The instrument can be supplied with an inbuilt laser plummet or an optical plummet.



STONEX R2 PLUS DETAIL TECHNICAL SPECIFICATIONS AS BELOW:



Angle measurement
Reading system	Absolute encoder
Display resolution	1” / 0.0002gon/0.005mil
Angle Unit	360°(dms/d)-400gon/6400mil
Accuracy	2” or 5”
Telescope
Magnification	30 x
Field of view	1°30’
Minimum focus	1.0 m
Reticle	10 brightness levels adjustable
Objective aperture	45 mm
Compensation
System	Dual-axis-compensation
Working range	± 3.0'
Distance Measurement Range
Without Prism	1.0 ~3501 m - 1.0 ~5001 m
With Prism	2.0 ~30002 20003 15004
With reflective sheet (60mm x 60mm)	1.0 ~800 m
With Mini Prism	2.0 ~800 m
Distance Measurement Accuracy
Without Prism	± (3+2×10-6D)mm/(2~150) m ± (5+3×10-6D)mm/(150~300) m ± (10+5×10-6D)mm/(300~500) m
With Prism	± (2+2x10-6D) m
With reflective sheet (60mm x 60mm)	± (3+2x10-6D) m
Distance Measurement
Measuring time5 (Tracking/Fast/Fine)	0.5 sec / 1.5 sec / 2.0 sec
Distance Unit	m/ft/US ft
Display Resolution	0.0001m/0.001ft/0.001ft
Laser plummet
Laser type	635-650nm semiconductor laser
Accuracy	1.5 mm at 1.5 m instrument height
Laser spot	2.5/1.5
Level vial sensitivity
Plate level	30 (“2mm)
Circular level	8 (‘/2mm)
Environmental conditions
Operating / Storage Temperature	-20° C ; +50° C / -30° C ; +70° C
Protection to dust and water	IP55
Weight
Weight including battery and tribrach	5.5 Kg
Battery
Voltage/Capacity	7.4V / 3400mAh Li-ion battery
Operating period with continuous angle measurement	36 hours
Operating period with measurement every 30 seconds	9 hours (>1.000 measurements)
Other specifications
Display	Two sides, LCD, 240x128 dots
Internal Memory	128 MB
External Memory	2 GB SD card
Interface	RS-232C / USB/ SD card
Charger	110/220V, Charging time: about 4h
Bluetooth	Available on R2 Plus 500 - 2”



Payment terms: T/T IN ADVANCE, WESTER UNION, OR ECROW

Delivery time: 3-9 working days

Packing info: dim:55cm*36cm*46cm,net weight:10kg,  with two batteries

WARRANTY: ONE YEAR
