8140.43 Sofim Engine
- Category: >>>
- Supplier: Jiangsu Sunlord Electronics & Machinery Co. Ltd.
Share on (1620940874):
Product Overview
Description

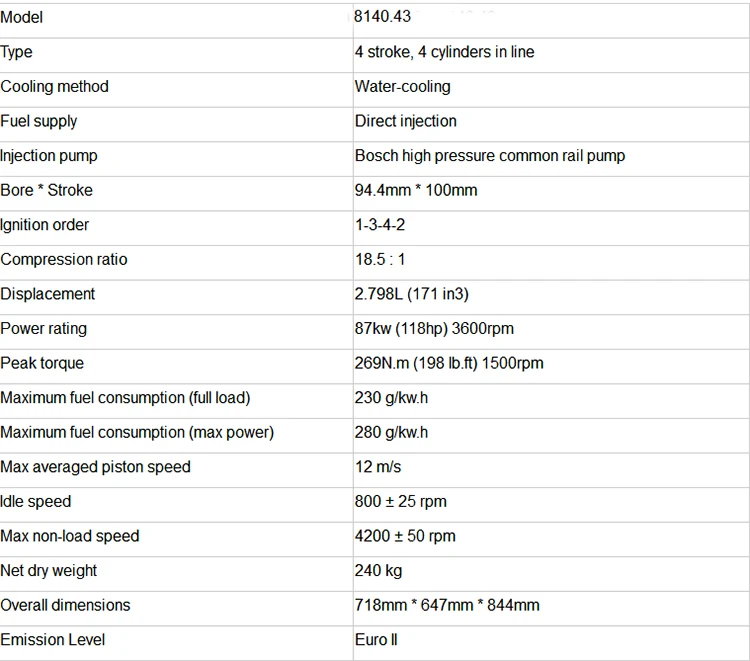

Product Information
Engine Model | Rating Power/Speed (kW/r/min) | Max. Torque/Speed (N.m/r/min) | Displacement (L) | Aspiration | Emission level |
8140.43 | 87/3600 | 269/1900 | 2.798 | Turbocharged & inter-cooling | Euro 2 |
8140.43S | 92/3600 | 285/1800 | 2.798 | Turbocharged & Aftercooled | Euro 3 |
F1C | 107/3500 | 327/1500~2800 | 2.998 | Turbocharged & Aftercooled | Euro 4 |
Advantages of Diesel Engines For IVECO Vehicle:
1. First-class design: Classic design of Sofim engine introduced completely from fiat Italy and granted for several international patents, design of cylinder head with overhead cast aluminum camshaft, structure of framework of upper & lower cylinder block, and unique design of accessory case with integration of VE pump, vacuum booster pump, power steering pump, which make Sofim engine have advantages of low fuel consumption, low emission, small size, and low weight, in four of the vehicle arrangement.
2. Modern process: Introducing the modern process and technology of manufacturing from Italy, more than 900 equipment and inspection instruments are fit out to construct the automated production lines of 6 important parts, such as, cylinder block, cylinder head, crankshaft, connecting rod, camshaft and accessory case. The quality of engine and components reach the level called for by the original design of IVECO Italy, and they are successfully exported to the countries in European and Africa.
3. Optimal configuration: All critical parts of SOFIM engines are supplied by the world famous suppliers of components. The core part of engine-injection pump adopts the VE distributor pump and high-pressure common rail injection pump designed by Bosch German. The turbo-charger is the quality products of Honewell (Shanghai) and Ishikawajima Turbo-charger Co. Ltd., which ensure the emission of SOFIM engine at level Euro II and Euro III with reasonable application.
4. Strong power: The powers of 2.8 TCA engine and high-pressure common rail engine with electronically-controlled injection are increased to 87KW 118HP and 107KW 146HP respectively and the torques can reach 269 Nm and 320 Nm. They have high performance of acceleration being of the strongest power among the local diesel engines of the same displacement.
5. High reliability: The localized SOFIM engines have passed the intensive test and reliable test of 2000 hours in the testing
center of IVECO Italy, and have no overhaul for 800,000 km and 1 million km usually.
6. Environment-friendly: With low noise and emission, and being certificated by the State Car Quality Surveillance & Inspection Center, and the Jinan Auto Inspection Center, SOFIM engine can comply with the emission standards of level Euro II, and pass the qualification of conformity. The diesel engine of high power and meeting the emission level Euro III was launched successfully at the end of 2003, and certificated by the authority organization.
7. Good fuel economy: With the technology of direct-injection and electronically-controlled injection, high reliability and low
failure rate, the engine has the remarkable advantages of good fuel economy and low service cost.
8. Wide application: The engine is suitable for different regions, climates, air pressures and road conditions, and can be applied in the luxury light (medium) bus, the middle and high class commercial vehicle, the off-road vehicle, light truck and special vehicle with high requirements for engine.
9. Strong vitality: SOFIM engine has two main ranges of normal version and off-road version with many varieties. Based on the follow-up of the updated technology of IVECO Italy, the new model of diesel engine of high power and small size and meeting the emission level Euro III has been launched successfully, and realized the production in mass. So that SOFIM engines continue to hold a leading position in performance and environment protection, being a pilot of the section.
10. Perfect service: There are about 300 special service centers of IVECO locating all over the country, which can provide timely service and authentic spare parts of IVECO, and professional training of engine technology as well, to give customers peace of mind.
1. First-class design: Classic design of Sofim engine introduced completely from fiat Italy and granted for several international patents, design of cylinder head with overhead cast aluminum camshaft, structure of framework of upper & lower cylinder block, and unique design of accessory case with integration of VE pump, vacuum booster pump, power steering pump, which make Sofim engine have advantages of low fuel consumption, low emission, small size, and low weight, in four of the vehicle arrangement.
2. Modern process: Introducing the modern process and technology of manufacturing from Italy, more than 900 equipment and inspection instruments are fit out to construct the automated production lines of 6 important parts, such as, cylinder block, cylinder head, crankshaft, connecting rod, camshaft and accessory case. The quality of engine and components reach the level called for by the original design of IVECO Italy, and they are successfully exported to the countries in European and Africa.
3. Optimal configuration: All critical parts of SOFIM engines are supplied by the world famous suppliers of components. The core part of engine-injection pump adopts the VE distributor pump and high-pressure common rail injection pump designed by Bosch German. The turbo-charger is the quality products of Honewell (Shanghai) and Ishikawajima Turbo-charger Co. Ltd., which ensure the emission of SOFIM engine at level Euro II and Euro III with reasonable application.
4. Strong power: The powers of 2.8 TCA engine and high-pressure common rail engine with electronically-controlled injection are increased to 87KW 118HP and 107KW 146HP respectively and the torques can reach 269 Nm and 320 Nm. They have high performance of acceleration being of the strongest power among the local diesel engines of the same displacement.
5. High reliability: The localized SOFIM engines have passed the intensive test and reliable test of 2000 hours in the testing
center of IVECO Italy, and have no overhaul for 800,000 km and 1 million km usually.
6. Environment-friendly: With low noise and emission, and being certificated by the State Car Quality Surveillance & Inspection Center, and the Jinan Auto Inspection Center, SOFIM engine can comply with the emission standards of level Euro II, and pass the qualification of conformity. The diesel engine of high power and meeting the emission level Euro III was launched successfully at the end of 2003, and certificated by the authority organization.
7. Good fuel economy: With the technology of direct-injection and electronically-controlled injection, high reliability and low
failure rate, the engine has the remarkable advantages of good fuel economy and low service cost.
8. Wide application: The engine is suitable for different regions, climates, air pressures and road conditions, and can be applied in the luxury light (medium) bus, the middle and high class commercial vehicle, the off-road vehicle, light truck and special vehicle with high requirements for engine.
9. Strong vitality: SOFIM engine has two main ranges of normal version and off-road version with many varieties. Based on the follow-up of the updated technology of IVECO Italy, the new model of diesel engine of high power and small size and meeting the emission level Euro III has been launched successfully, and realized the production in mass. So that SOFIM engines continue to hold a leading position in performance and environment protection, being a pilot of the section.
10. Perfect service: There are about 300 special service centers of IVECO locating all over the country, which can provide timely service and authentic spare parts of IVECO, and professional training of engine technology as well, to give customers peace of mind.
Product Display

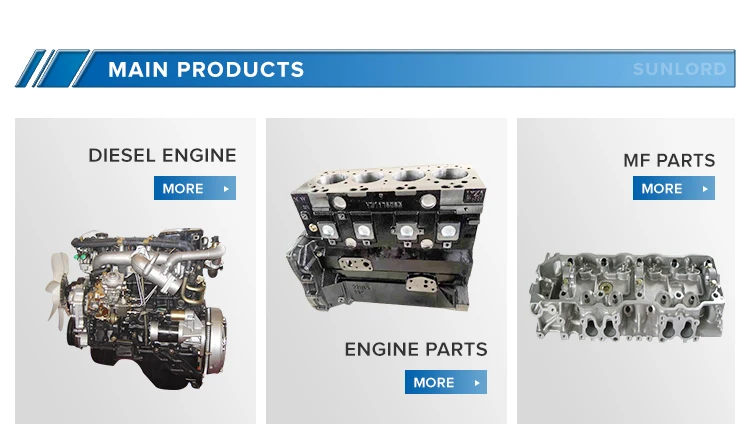

Main Products
Company Profile
FAQ
1. Why Should You Buy From Us Not From Other Suppliers?
Sunlord has established strong relationship with many famous complete diesel engine factories and OEM parts factories in China. They mainly consist of: Naveco (Sofim 4 cylinder diesel engine and parts); DCEC (B/C/L/M/N/K/IsDe/IsLe/IsMe/IsFe series engines.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What Can You Buy From Us?
Complete diesel engines, diesel engine parts, MF parts, etc.
4. If I only had the engine NO., Can you find the matching parts quickly for me?
Sunlord has established strong relationship with many famous complete diesel engine factories and OEM parts factories in China. They mainly consist of: Naveco (Sofim 4 cylinder diesel engine and parts); DCEC (B/C/L/M/N/K/IsDe/IsLe/IsMe/IsFe series engines.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What Can You Buy From Us?
Complete diesel engines, diesel engine parts, MF parts, etc.
4. If I only had the engine NO., Can you find the matching parts quickly for me?
Yes, we are equipped with Quick Service Online System that enables us to provide information of engine assembly and parts quickly and accurately.
