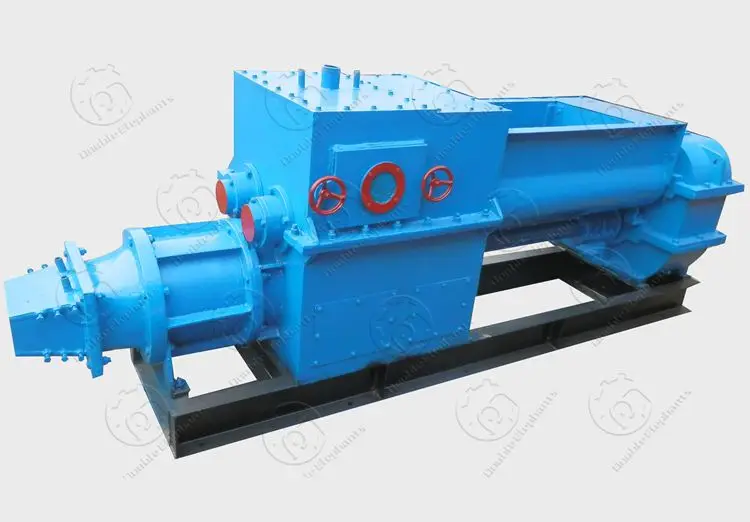

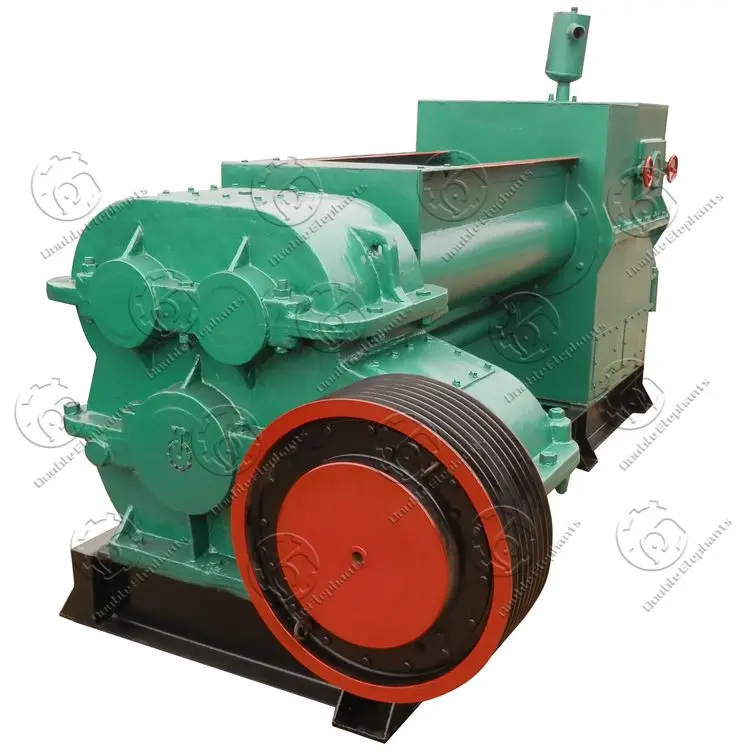

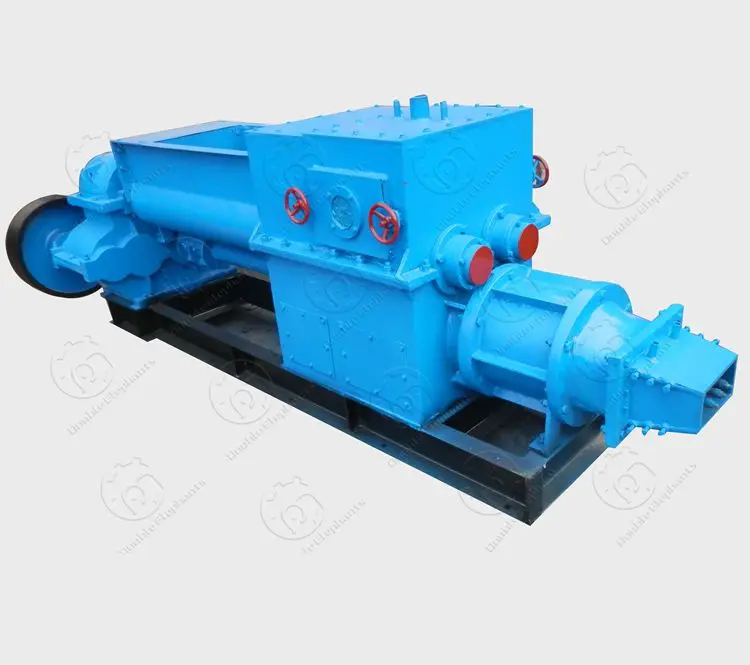

JK350 Fully Automatic clay brick making machine Vacuum clay brick extruder

Product Overview

Description

JK350 Fully Automatic clay brick making machine Vacuum clay brick extruder





1 Introduction of vacuum brick extruder machine

The vacuum brick extruder is double-stage vacuum extruders, full-automatic brick setting machines, hydraulic ferry traction pushers, hydraulic stepper, full-automatic slitting cutters, crushers, mixers and more series of sandstone production line.

We have won the "National Famous Quality Products", "Quality Trust and Service Satisfaction Enterprise", and other honorary titles. In addition, The vacuum extruder has a good market both at home and abroad because of excellent quality and competitive price of vacuum extruder, and vacuum extruder are exported to Kazakhstan, Vietnam, Iraq, Mongolia, Korea, and other countries and regions successfully. The vacuum extruders are highly trusted and applauded by customers.





2. Main Use of vacuum brick extruder

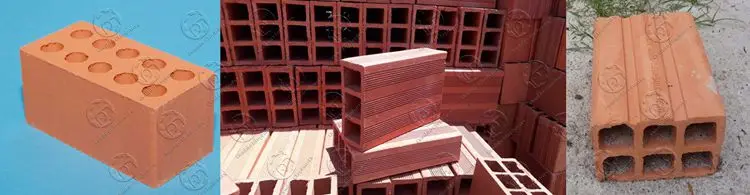

The vacuum brick extruder machine applies to clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. as raw materials to carry out a strong mixing, vacuum processing, and then the screw auger extrusion system to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.



3.Technical Features of vacuum extruder:

The trowel of this vacuum brick extruder machine uses wear-resistant metallization technology; mixer shaft in above stage, main shaft of trowel and the body of  vacuum extruder machine are worked over by the aging, quenching and tempering; gears of reducer are hard tooth surfaces; clutch adopts screw press patented technology, which improves the service life of our equipments. At the same time, with reasonable design, compact structure, this vacuum extruder machine can operate stably without having to install anchor bolt and greatly reduce  the power consumption in the operating process due to shave. Utilizing the equipment and technologies can make the waste profitable as well as saving energy with obvious economic and social benefits.



4. Main data for vacuum brick extruder machine



Model	JK-300	JK-350	JK-400	JK-450	JK-500
Production capacity  (pieces/hour)	6000-7000 (china standard size: 240x115x23mm)	8000-10000	10000-12000	12000-14000	14000-16000
Moisture	18-22%	18-22%	18-22%	18-22%	18-22%
Spindle speed	53r/m	53r/m	53r/m	53r/m	57r/m
motor	55KW	75KW	90KW	110KW	132KW

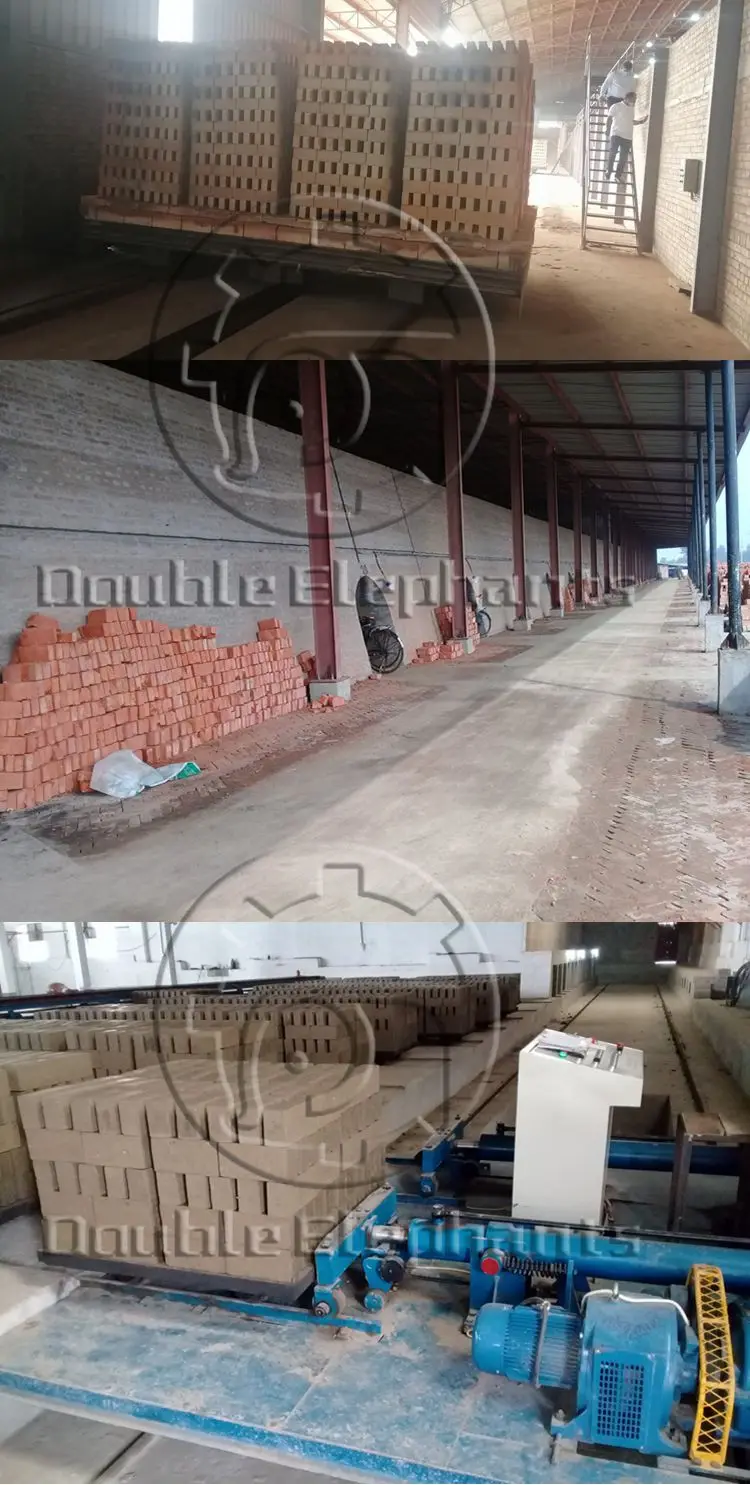

 Firing brick kiln workshop



Company details:

Henan Double Elephants Machinery I/E CO.,Ltd

Factory address: Shanan Industrial Zone,Zhengzhou,Henan,China

Mob/Wechat/whatsapp:+86 15038222403

Contact Person:Jenny ding
