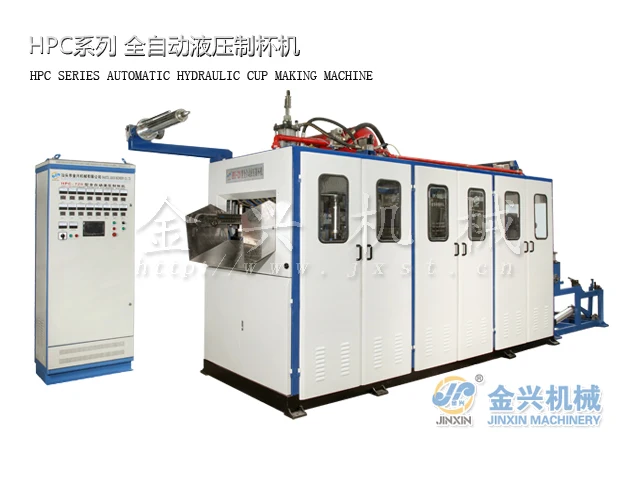

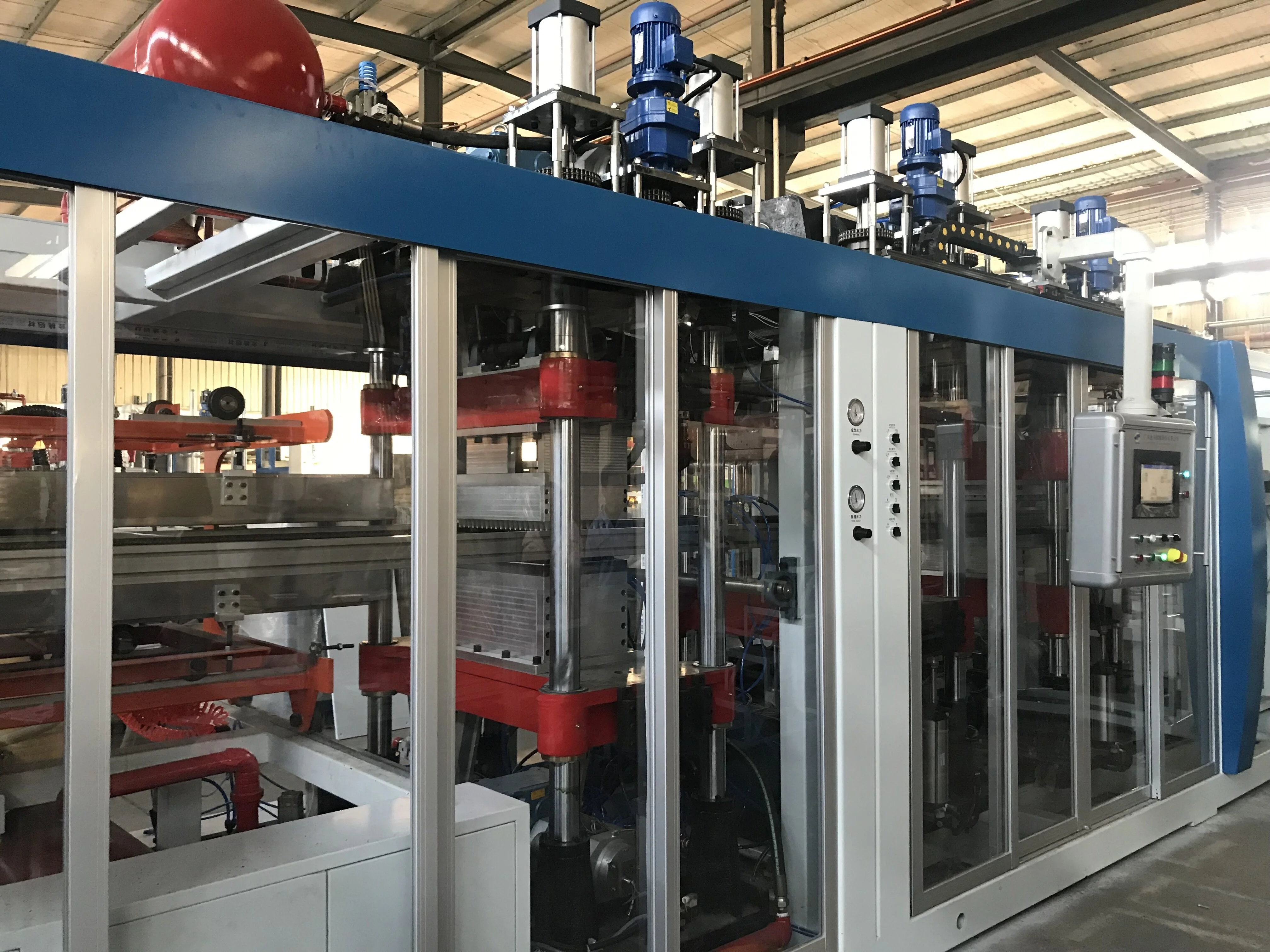

one time cup thermoforming making machine production line of plastic cups
Product Description
Parameters
Mode/Parameter
HPC-750
Available material
PP,PE,PET,HIPS,GPPS
Formed Area(mm)
750x500
Formed Depth(mm)
120/180
Formed Speed(cycles/min)
10-35
Max.width(mm)
750
Thickness(mm)
0.3-2.0
Power of the whole machine(kw)
≤65
Air wastage (Mpa)
0.6-0.8
Water wastage (m3/h)
≤0.6
Dimension(mm)
7200x2800x2600
Function
1. The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
2. Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
3. Completely automatic and fast production speed. By installing different molds to produce different products.
4. Adopt imported famous brands of electric and pneumatic fittings, stable running, reliable quality and long life.
5. The whole machine is compact, one mould has all functions, such as pressing giving, forming, cutting, cooling and finished product blowing. Short process, high quality of finished products and meet the national sanitary standard.
6. The machine is fit for producing PP, PE, PET, HIPS, GPPS and other plastic products, such as cup, box, bowl and so on. For example, milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box, food box and so on.
Main Fittings 1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;
4.Hydraulic System:Guangye hydraulic the pump and Taiwan Lianton hydraulic the electromagnetism valve.

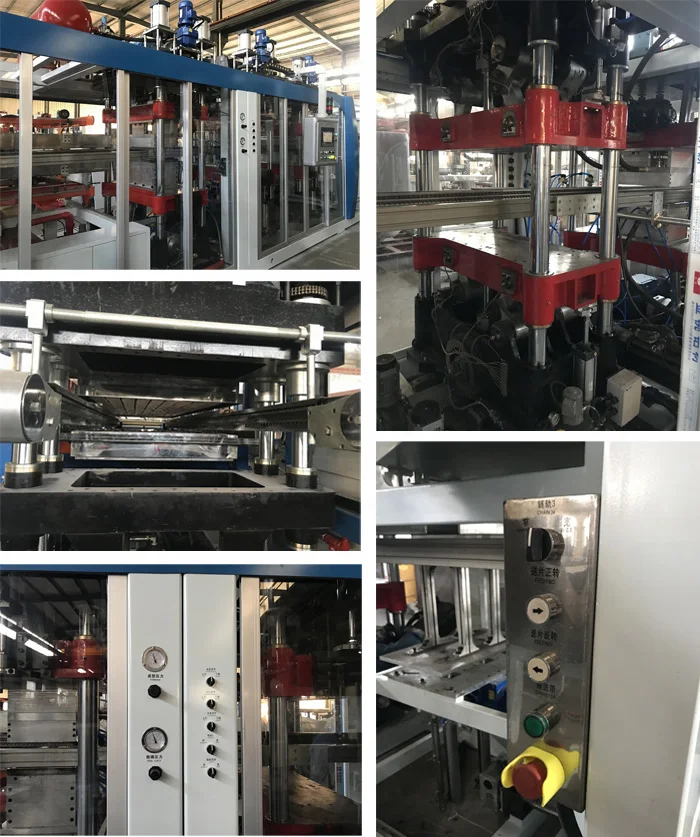

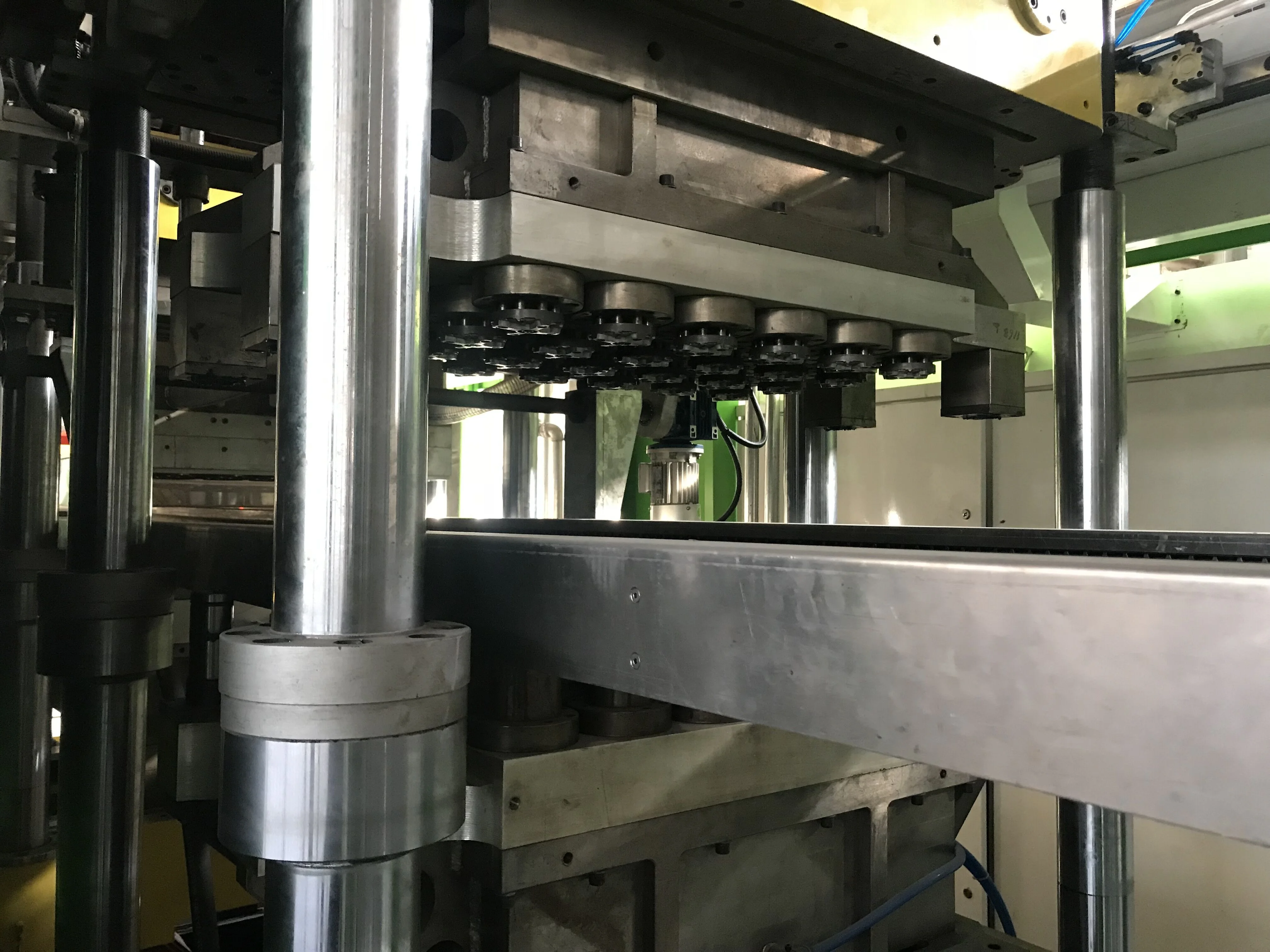

Machine Parts
Layout

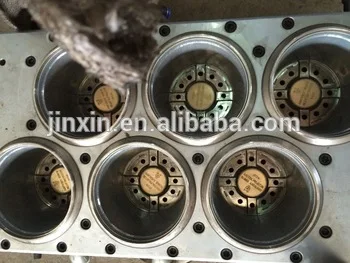

Mould

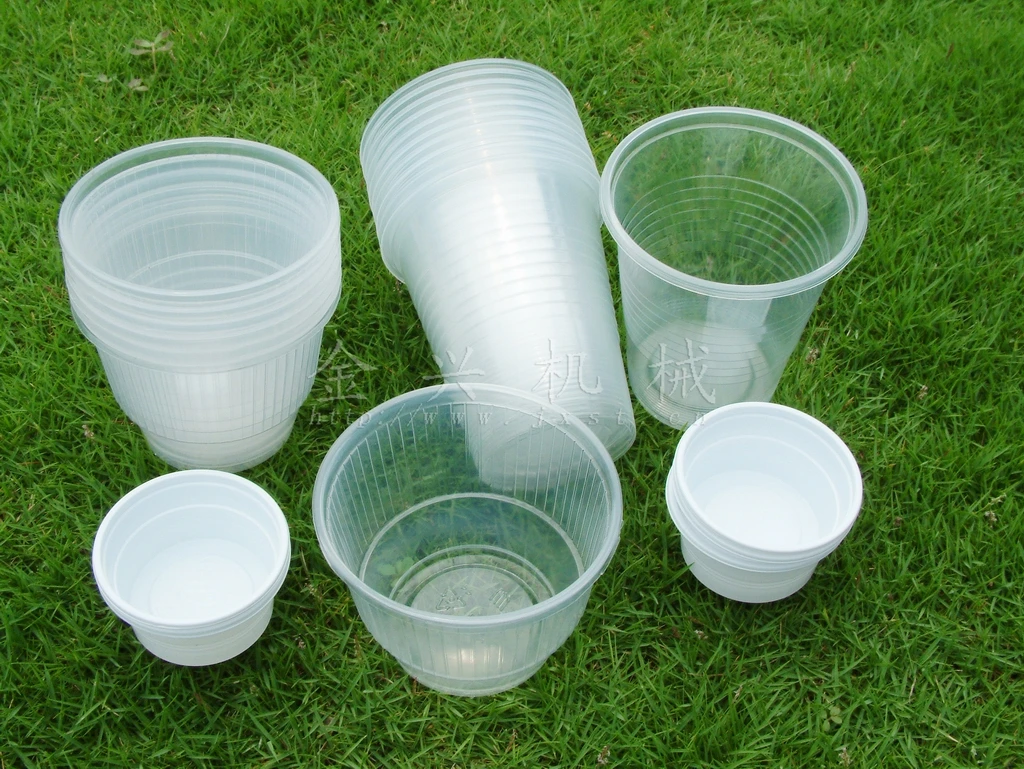

Some Samples

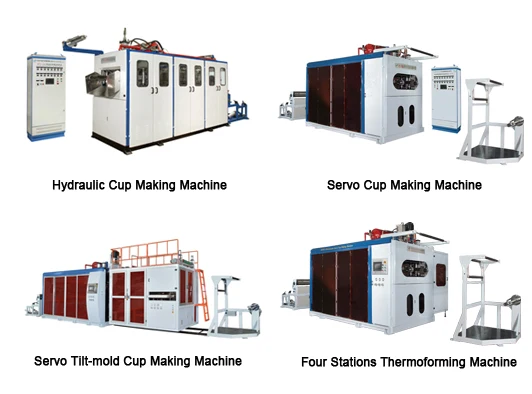

Hot Products
Cup Making Machine
FAQ
1.Q:Are you a factory or trading company? A:We are a factory.
2.Q:What certificate do you have? A:We have ISO and CE certificate.
3.Q:How does your factory do regarding quality control? A:We have a special QC department in charge of products' quality.
4.Q:How long is the warranty period? A:All of your products have one year warranty.
5.Q:What's the main market of your company? A:We have customers all over the world.
6.Q:How much production capacity of your company one year? A:This depends on your needs.
7.Q:Can we visit your machine operation in your factory? A:We have own plastic making company, you can see the machine operation.
8.Q:Where is your factory located? How can we visit there? A:Our factory is located in Shantou City, Guangdong Province, China, about 45 minutes from Guangzhou by air. We offer transportation service.
