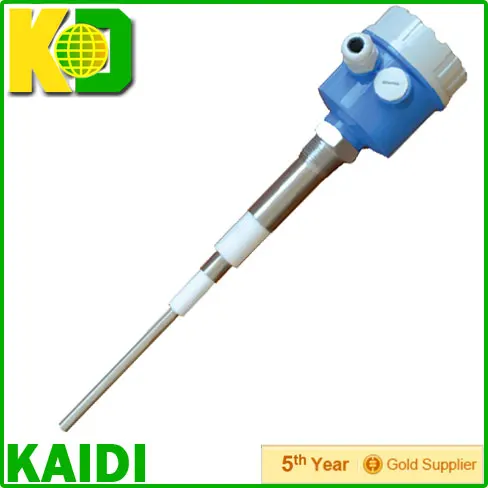

RF capacitance type admittance fuel level switch liquid sensor power solid sensor

Product Overview

Description

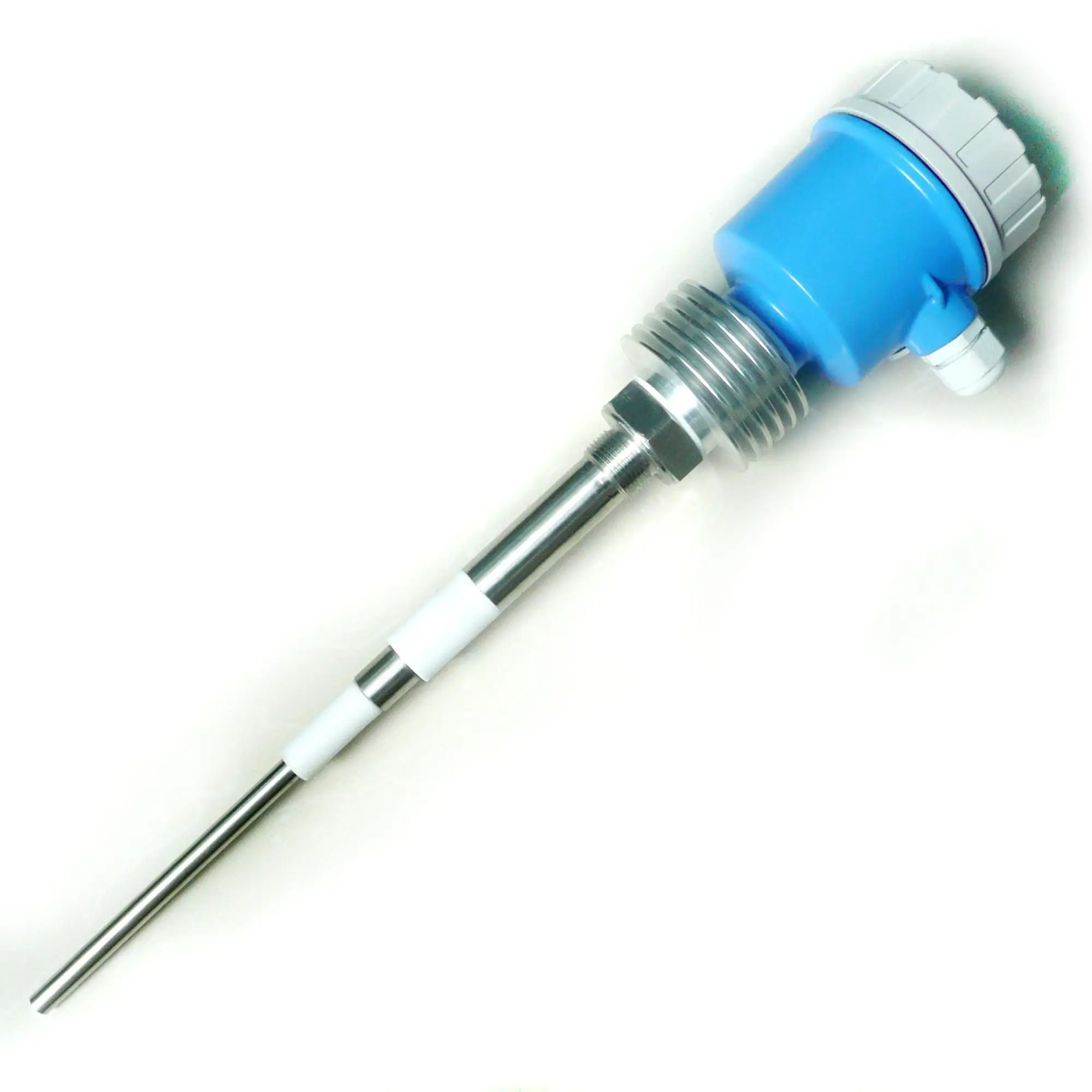

Radio frequency admittance fuel level switch



FEATURES:

• Anti-Viscosity
• Easy Installation
• Stable; Not affected by temperature
• Time delay function from 0-30 seconds
• IP65 housing protection
• 5 Amp output DPDT
• Highest temperature tolerance of 180 C
• High/low failsafe
• Applicable in liquid, syrup, solid, powder, and interface detection
• Alarm testing

1. Ideal for use in both liquids and bulk solids.
2. Rugged construction for the roughest industrial applications. These products perform in high temperature, high pressure, high vibration, dirt and sludge and many other applications requiring sturdy, high-quality design.
3. Solid-state electronic sensing has no moving parts.
4. RF technology ignores significant product build-up on the probe.
5. Simple installation and calibration.
6. The probe length is easily modified.
7. The modular electronics are easily serviced.
8. Explosion-proof housing is standard.
9. Customizable for extreme applications.



Power	220VAC, 50/60Hz / 24VDC, 100mA
Working pressure	230  °C  / 3MPa
Output	DPDT relay (DPDT)
Contact capacity	220VAC, 5A no sense, 3A felt
Response time	Standard: 0.2 seconds
With delay	0.2 ~ 90 sec adjustable
Explosion Proof	Flameproof: d II  BT4 ~ T6 / intrinsically safe: ia  II  CT4 ~ T6
Connection	Flange / thread / support (can be scheduled)
Sensor Material	304SS/TFE
Protection class	IP65
Junction Box Material	Aluminum
