Sell Flour Mill, Gram Flour (Besan) Whole Wheat( Atta Making Plant).

Product Overview

Description



QUALITY MAKES US GOING FURTHER





company introduction video:   //www.youtube.com/watchv=QlwY6xhCZlI&feature=youtu.be

 flour mill ---------  Atta Making Plant



HBA MACHINERY CO.,LTD. is professional supplier of soft wheat mills.quality reach european standard grade, with capacity from 40T/24hrs to 2400t/24hrs. it is  incuding cleaning section, milling section and controllling sceton.



CLEANING SECTION



to make high quality flour, cleaning machiney is important , also it is for better working and safety of milling section machine. each impurity need special cleaning machine to remove.



















































































MILLING SECTION



grinding and milling grain into semolina or fine flour:

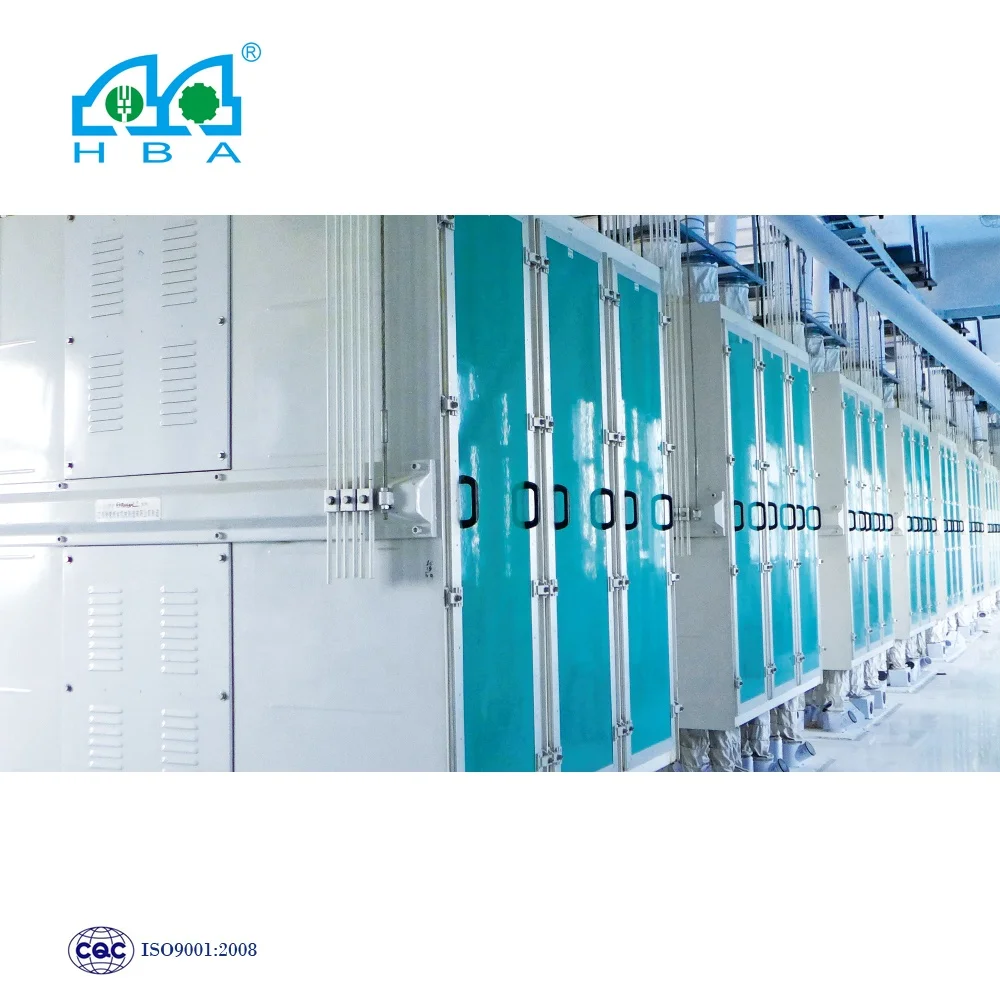

• Roller mills
• manufactured precisely and controlled pneumatic/electric mode. It can make better grinding effect comparing with other ordinary mills.

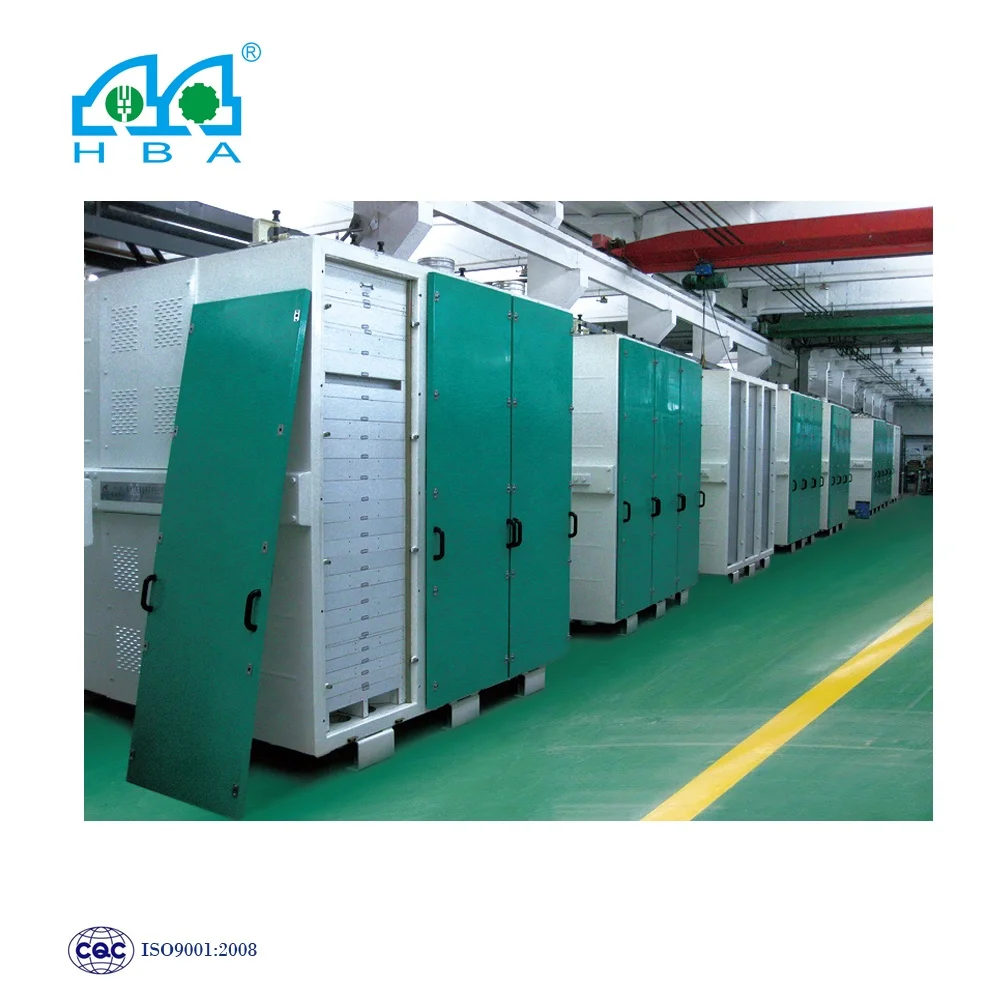

• Plan sifter:
• made by one whole piece top grade steel, high anti-vibrating and sealing .high efficiently separate the flour and bran, also separate large size and small size to ensure flour quality.



PIPE LINES



stable and durable. Never get rusty.

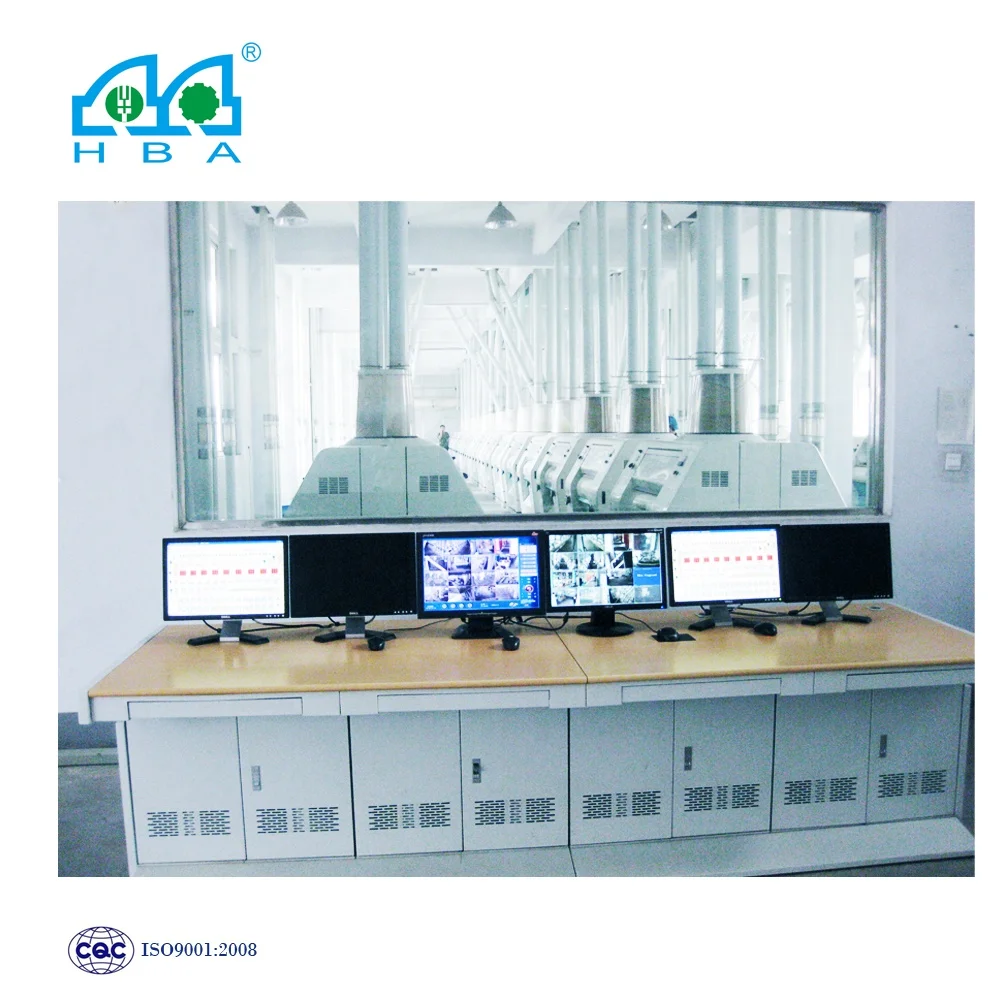

 CONTROLLING SYSTEM



 PLC controlling system



The  launch-stop programs for all mechanic equipments;
Control the operation of milling machines;
Message giving information about the damage to the equipment that helps to avoid possible  breakdown;
Calculation of wheat to be processed;

advance determination of processed production according to the grades or qualities



Technical introduction





Item	Product	Power(kw)	power consumption per ton flour (kw.h)	capctiry(ton of wheat /24h)	Dimesions of the workshop (L*W*H)M
100T	GRADE 1   GRADE 2	308	70-74	100	35*7.5*18.5
120T		420	70-74	120	39*7.5*18.5
140T		520	68-72	140	44*7.5*18.5
150T		540	68-72	150	44*7.5*22.5
160T		580	68-72	160	50*7.5*18.5
200T		690	65-71	200	59*7.5*22.5
220T		740	65-71	220	50*7.5*22.5
300T		920	65-71	300	60*11*27.5
350T		1170	65-70	350	65*11*27.5
500T		1650	65-70	500	55*17*27.5



Main Cleaning Equipment	1).High-efficiency Virbration Sieve 2).Destoner 3).Wheat Scourer 4)Magnetic Separator 5) compurter control dampener
Milling Equipment	1) electrical Roller Mill 2).Plansifter 3)Purifier 4)High Pressure Blower 5)Impact Detacher
Flour extraction rate(%)	Grade 1 flour:72%-75%, Grade 2 flour:73%-78%   design is with flour blending system. it is to satisfy customer's request on types of special purpose flour including bread flour, cake flour , biscuit flour, noodle flour etc.
Spare parts	one year complete set spare parts for free
advantages	1. with advanced technical process and flexible adjustment 2.  Adopt various configuration modes for different choices. There are streamlined design, reasonable layout, and beautiful performance. 3. electrical parts are all famous international brand : SIEMENS, OMRON. Schnaid etc. 4. total automatic, with sate-of- art technology: PLC CONTROLLING SYSTEM 5. using life: more than 25-30years.









1.  In 1~5 months after start of production, we will arrange the related professionals should assist and   instruct the production and operation at the site.





2. The warranty period is 12 months after the date of acceptance.





3. In the warranty period, when receiving the notification (telephone or fax) for service supply requested by the buyer, we will reply within 4 hours, and meanwhile assign experienced technicians to arrive at the site within one week to provide service for the buyer.











CEL: 0086-15333315257





ADD:NO.266 TIANSHAN STREET, SHIJIAZHUANG,HEBEI,CHINA
