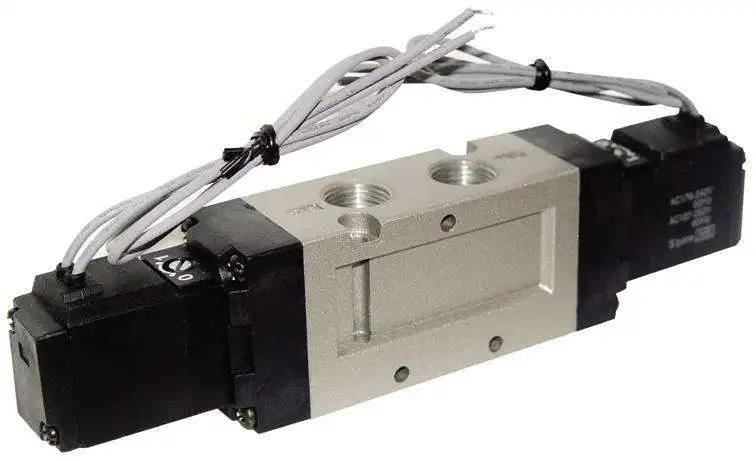

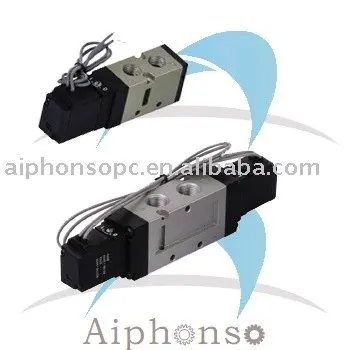

VF series 5/2 way 12V cheap Single Control Cheap Miniature solenoid valve
- Category: >>>
- Supplier: Fenghua Aiphonso Industrial Automation Co. Ltd.
Share on (1625050604):
Product Overview
Description
Product Description
Ordering code
VF | 1 | - | 30 | W | AC110V | |||
VF3 Series | Coil & Position | Order NO. | Wiring Form | Standard Voltage | ||||
VF5 Series | 1.Sigle-head Double-position | VF330 | Blank:Standard Connector | DC12V | ||||
VZ5 Series | 2.Double-head Double-position | VF520 | LD:With Lighting Connector | DC24V | ||||
3.Double-head Three-position Close Type | VZ520 | W:Lead Wire Type | AC24V | |||||
4.Double-head Three-position Exhaust Type | 04:1/2" | AC110V 50HZ/60HZ | ||||||
5.Double-head Three-position Pressure Type | AC220V 50HZ/60HZ | |||||||
AC380V 50HZ/60HZ | ||||||||
Specification
Model | VF3130 VF3230 | VF33(4/5)30 | VF5120 VF5220 | VF53(4/5)50 | VZ5120 VF5220 | VZ53(3/4)50 | |||||
Working Medium | 40 Micron Filtered Air | ||||||||||
Action Type | Inner Guide Type | ||||||||||
Effective Setion Area(mm²) | 16 | 12 | 25 | 18 | 12 | 9 | |||||
CV Value | 0.89 | 0.67 | 1.4 | 1 | 0.67 | 0.5 | |||||
Working Pressure | 0.15~0.8MPa | ||||||||||
Max. Pressure Resistance | 1.2MPa | ||||||||||
Medium Temperature | 5~50℃ | ||||||||||
Highest Action Frequency | 5 Cycle/Sec | ||||||||||
Shortest Excitation Time | 0.05 Second | ||||||||||
Company Profile
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic cylinder,solenoid valves, air source treatment,fittings and so on.
which has more than 100 employees and covers an area of over 4,000 square meters.
which has more than 100 employees and covers an area of over 4,000 square meters.
Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001 Quality System Certification,Certificate of Utility Model Patent and Certificate of Invention Patent.China Yutong Bus Qualified Supplier Certificate.
Our Products are well sold in Southeast Asia,the Middle East and many other regions.
Product packaging
Recommend Products

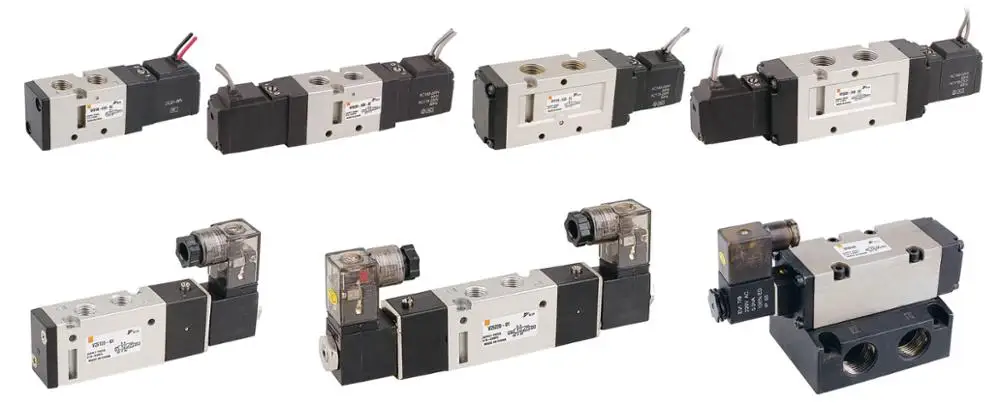

Product Display
FAQ
1. What is the MOQ for your products?
There is no special requirement for standard products.
2. How to place the order?
We accept Alibaba trade online and orders sent by air, sea, express.
3. Why your quotation is different with the price listed in web?
We have different price policy to the buyer with different quantity and demand. you can contact with me directly to get a cheaper price.
4. How many days you can send order after payment?
For standard products, we can send around 2~3 days after payment.
5. Do you accept OEM?
Yes, and we have 12 year of OEM service.
6. What certificates can you offer?
CE, ISO9001,Domestic patent certificates.
7. What products do you make and sell?
Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
There is no special requirement for standard products.
2. How to place the order?
We accept Alibaba trade online and orders sent by air, sea, express.
3. Why your quotation is different with the price listed in web?
We have different price policy to the buyer with different quantity and demand. you can contact with me directly to get a cheaper price.
4. How many days you can send order after payment?
For standard products, we can send around 2~3 days after payment.
5. Do you accept OEM?
Yes, and we have 12 year of OEM service.
6. What certificates can you offer?
CE, ISO9001,Domestic patent certificates.
7. What products do you make and sell?
Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
