esab flux cored welding wire E71T 1C 1mm

Product Overview

Description

71T-1 FLUX CORED WIRE:

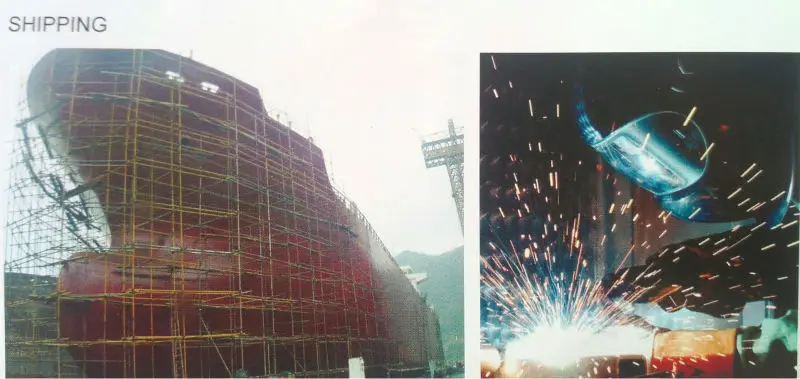

AWS A5.20E71T-1 is a kind of TI type flux cored wire for CO2 welding ,it has high cladding efficiency,good welding technical performance in all-position welding,apply for low carbon steel and 500MPA grade strength steel welding,such as ships,pressure vessels,mechanical equipments and bridges.

1.2mm  E71T-1 CO2 flux cored welding wire AWS A5.20 E71T-1c welding wire



We specialize in producing flux cored wire, our R&D center works closely with the professional experts and professors from different universitis and national research institutes. Our manufacture facility owns the advanced production equipment, up -to-dated inspection/measurement instrument and the perfect evaluation and quality control systems, we have ISO 9001:2000 certificate.We have 18 production lines with the capacity of 50,000tons per year. Our E71T-1 FCW performs very low spattering, high effective vertical welding, very stable arc and fast welding rate. The diffusible hydrogen content in the deposited metal reaches 3.5ml/100g, which significant avoid the cold cracking and porosity. We are the only FCW supplier in China has 3YH5 certification.We are also the biggest and best quality supplier in China for E71T-GS and E71T-11 Self-shielding FCW products.





1. Specification conformance

AWS A5.20 E71T-1 GB/T10045-2001 E501T-1 / JIS Z3313 / YFW C50DR

2.Description

YC-YJ502(Q) is a gas-shielded carbon steel wire for fabrication of mild and low carbon steel, steel-structure construction ,bridge-building and pressure vessel grades. This all position wire provides good welding performance with 100% CO_2. It provides consistent chemistry, steady arc, low spatter and an excellent bead appearance.

3. Shielding gas

100% CO₂

4. Approvals:

ABS, CCS, BV, NK, GL, LR , DNV, KR, RINA ,RS

5. Chemical Composition of deposited metal (%)



Item	C	Mn	Si	P	S	Cr	Ni	Mo	V	Cu
Standard	≤0.18	≤1.75	≤0.90	≤0.03	≤0.03	≤0.20	≤0.50	≤0.30	≤0.08	≤0.35

6.  Mechanical Properties Of Deposited Metal



Item	Yield Point   (MPa)	TensileStrength   (MPa)	Elongation   (%)	Charpy V-notch Impact Toughness
				Test Temp. (°C)	Impact Energy (J)	Average (J)
Standard	≥400	≥480	≥20	-20	≥27



7. Recommended Current (DC+) and Voltage Range

Welding position	Dia.1.2 mm			Dia.1.6 mm
	Current Range	Voltage Range	CO2 Flow	Current Range	Voltage Range	CO2 Flow
Flat	120~320A	16~34V	15~25 L/Min	180~400A	22~42V	15~25 L/Min
Horizontal	120~280A	16~29V	15~25 L/Min	180~400A	22~42V	15~25 L/Min
Overhead	120~240A	16~28V	15~25 L/Min
Vertical Up	120~240A	16~27V	15~25 L/Min	180~260A	23~30V	15~25 L/Min
Vertical Down	120~260A	16~29V	15~25 L/Min	180~260A	23~30V	15~25 L/Min



Procedures may vary with change in position, base metals, filler metals,equipment and other changes.

8. AVAILABLE DIAMETER

0.8MM/ 0.9MM/ 1.0MM/ 1.2MM /1.4MM/ 1.6MM

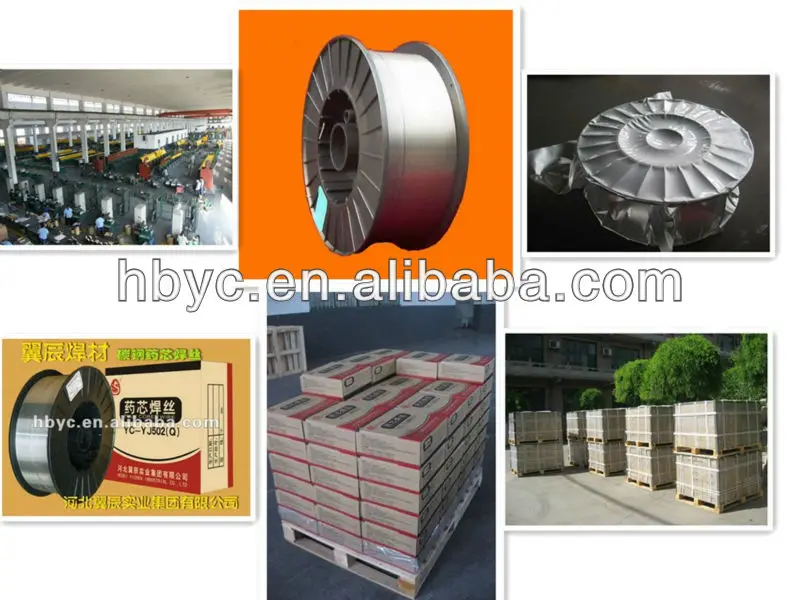

9. PACKAGE

15kgs/spool, 72cartons/pallet, 22pallets/20'container



1, what about the minimum order ?

The minimum order quantity of stainless steel is 5 tons, self-shielding steel is 1 ton.

2,what about your steel reel, I am afraid it will be damaged in transit.

3.Our steel reel using high quality materials, one-time casting molding. To date, there has no damage occurred in transit. You don't have to worry about this.



  we can supply samples for free.
