Product Overview
Description

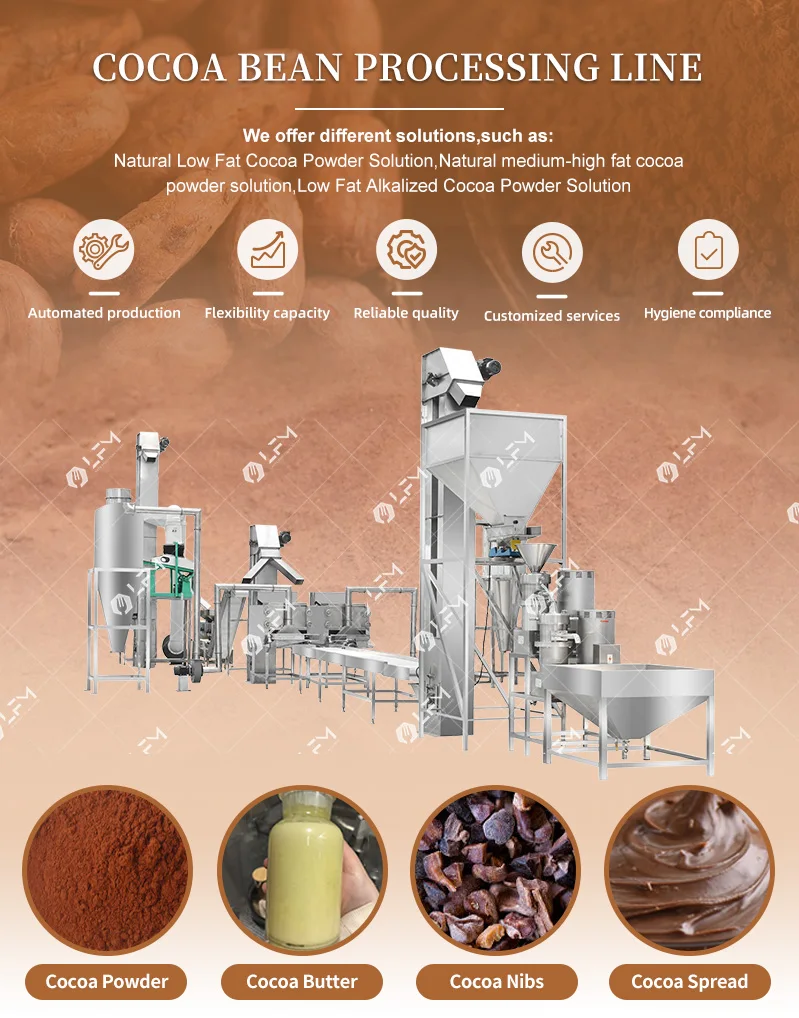

Introduction of Alkalized Cocoa Powder Processing Line :
The cocoa bean processing line mainly includes these following machines: raw material hoist, de-stone machine, metal detector, cocoa bean roasting machine,cooling tunnel, peeling machine, selecting machine, paste grinding machine, powder grinding machine, oil pressing machine and packaging machine.We have prepared different solutions for cocoa powder production lines with production capacities from 100 kg to 2000 kg per hour.
Application Scenario

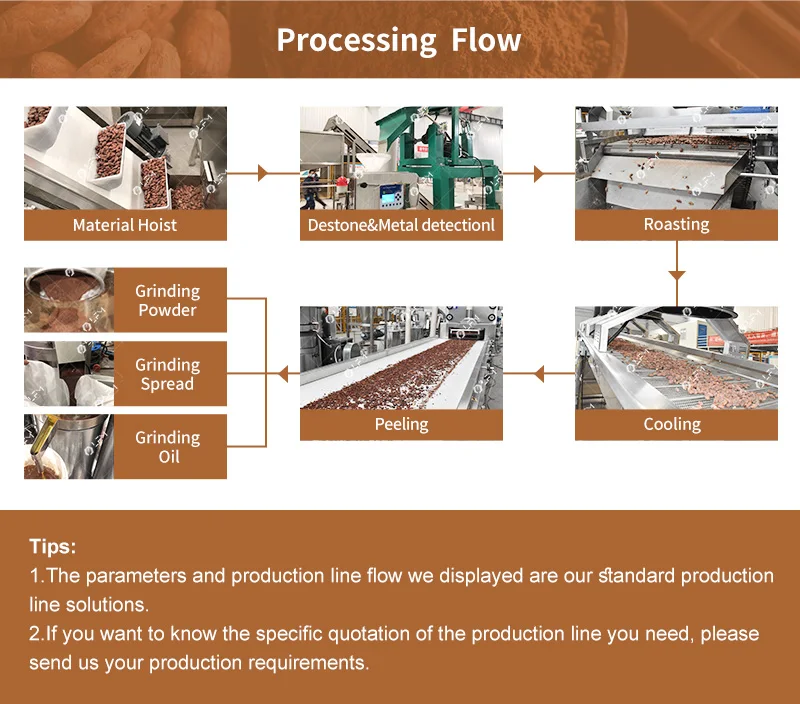

Processing Flow
The cocoa bean processing line comprises several key steps:
1. the cocoa beans are conveyed through a material hoist where they undergo de-stoning and metal detection to remove impurities.
2. they are roasted in a roasting machine and cooled to facilitate peeling, resulting in cocoa nibs. These nibs are then ground in a cocoa spread grinder to obtain cocoa spread.
3. The cocoa spread is poured into a hydraulic press to extract cocoa oil, which solidifies into cocoa butter upon cooling, while the pressed cocoa spread will forms cocoa mass(cocoa cakes).
2. they are roasted in a roasting machine and cooled to facilitate peeling, resulting in cocoa nibs. These nibs are then ground in a cocoa spread grinder to obtain cocoa spread.
3. The cocoa spread is poured into a hydraulic press to extract cocoa oil, which solidifies into cocoa butter upon cooling, while the pressed cocoa spread will forms cocoa mass(cocoa cakes).
4. The cocoa cakes are further processed in a powder grinding machine to produce cocoa powder, which is then packaged for distribution.

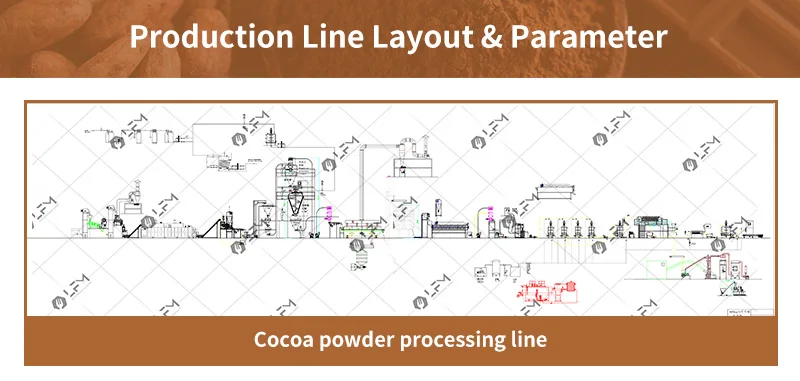

Cocoa Powder Production Line Layout
Product Name | Automatic Alkalized Cocoa Bean Processing Line |
Capacity | 200-2000 kg/h (can be customized according to your needs) |
Raw Material | Cocoa Beans |
Final Product | Cocoa Nibs, Cocoa Spread, Cocoa Oil, Cocoa Butter, Cocoa Powder |
Parameter Tips: 1.The parameters and production line flow we displayed are our standard production line solutions of 300 kg/h natural low fat cocoa powder line . 2.If you want to know the specific quotation of the production line you need, please send us your production requirements. 3.For more information, please call or consult customer service. | ||||||||
No. | Machine Name | Power(kw) | Dimension (mm) | Quantity | ||||
1 | Continuous roasting machine | 125 | 8500*1800*2600 | 1 | ||||
2 | Cocoa bean peeling machine | 3 | 2000*800*2200 | 1 | ||||
3 | Cocoa liquor grinding machine | 22*2 | 1250*550*1100 | 2 | ||||
4 | Oil pressing machine | 2.2 | 1100*1100*1500 | 7 | ||||
5 | Baffle lifter | 0.55 | 2300*700*2100 | 1 | ||||
6 | Cocoa powder packing machine | 2.2 | 1200*1350*2300 | 2 | ||||
7 | Cocoa powder crushing machine | 11 | 1350*700*1700 | 1 | ||||
8 | Cocoa powder packing machine | 2.2 | 1200*1350*2300 | 2 | ||||

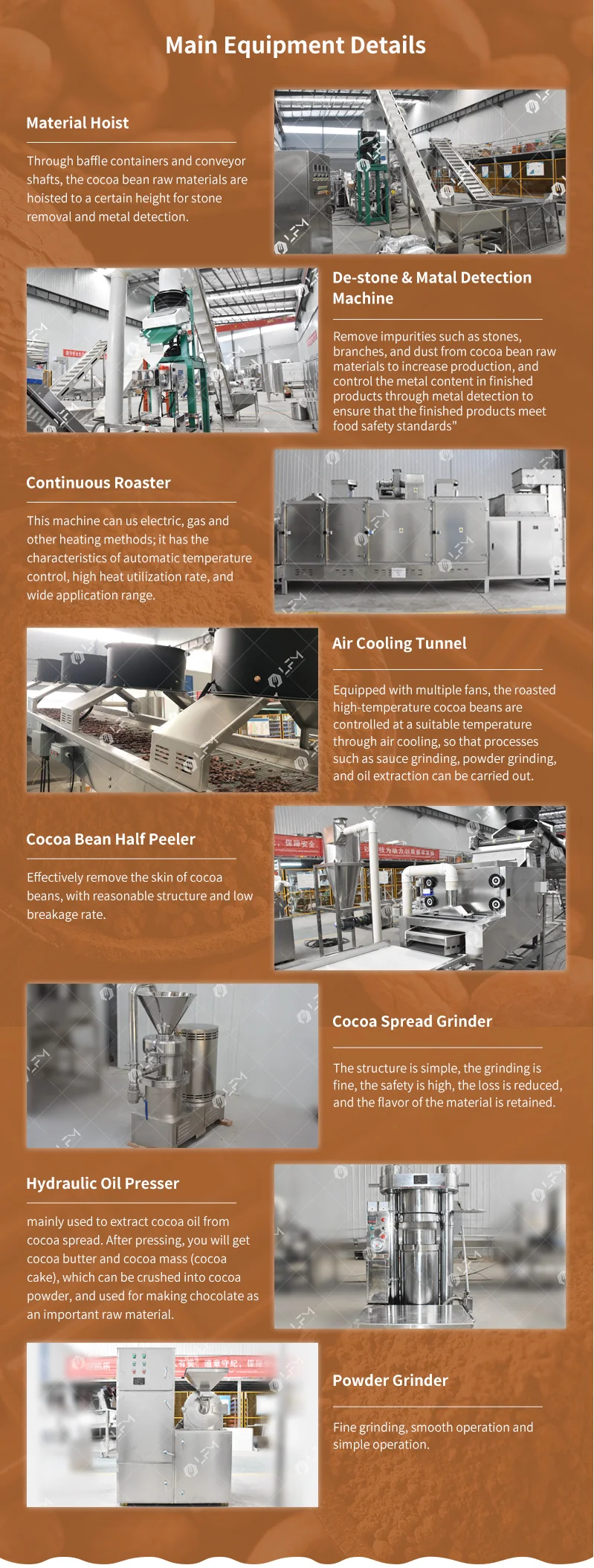

Production Line Equipment Introduction
Material Hoist
Through baffle containers and conveyor shafts, the cocoa bean raw materials are hoisted to a certain height for stone removal and metal detection.
De-stone & Metal Detection
Machine
Machine
Remove impurities such as stones, branches, and dust from cocoa bean raw materials to increase production, and control the metal content in finished products through metal detection to ensure that the finished products meet food safety standards.
Continuous Roaster
This machine can us electric, gas and other heating methods; it has the characteristics of automatic temperature control, high heat utilization rate, and wide application range.
Air Cooling Tunnel
Equipped with multiple fans, the roasted high-temperature cocoa beans are controlled at a suitable temperature through air cooling, so that processes such as sauce grinding, powder grinding, and oil extraction can be carried out.
Cocoa Bean Half Peeler
Effectively remove the skin of cocoa beans, with reasonable structure and low breakage rate.
Cocoa Spread Grinder
The structure is simple, the grinding is fine, the safety is high, the loss is reduced, and the flavor of the material is retained.
Hydraulic Oil Presser
Mainly used to extract cocoa oil from cocoa spread. After pressing, you will get cocoa butter and cocoa mass (cocoa cake), which can be crushed into cocoa powder, and used for making chocolate as an important raw material.
Powder Grinder
Fine grinding, smooth operation and simple operation.

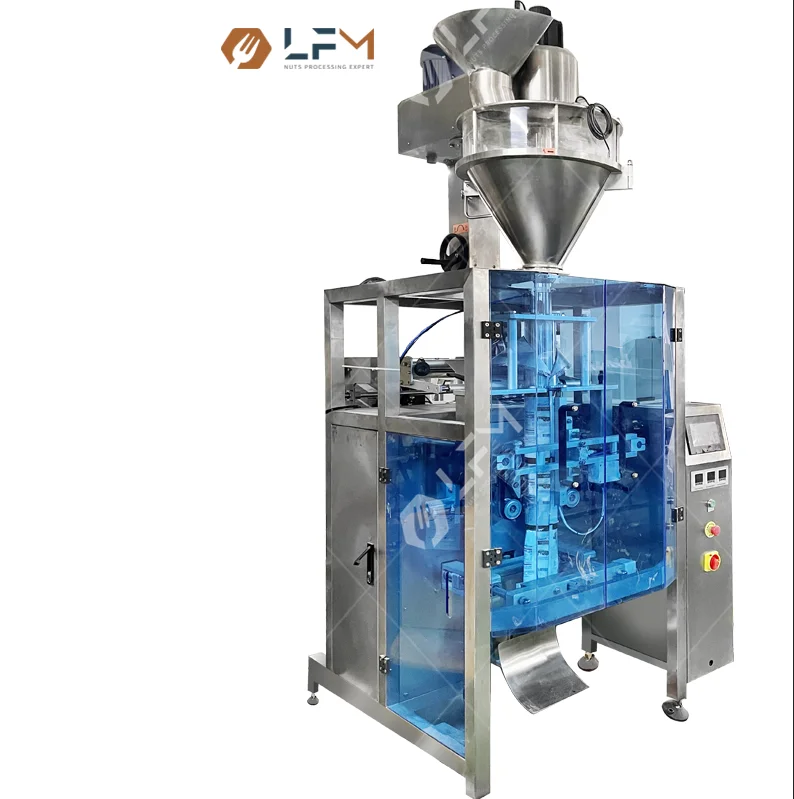

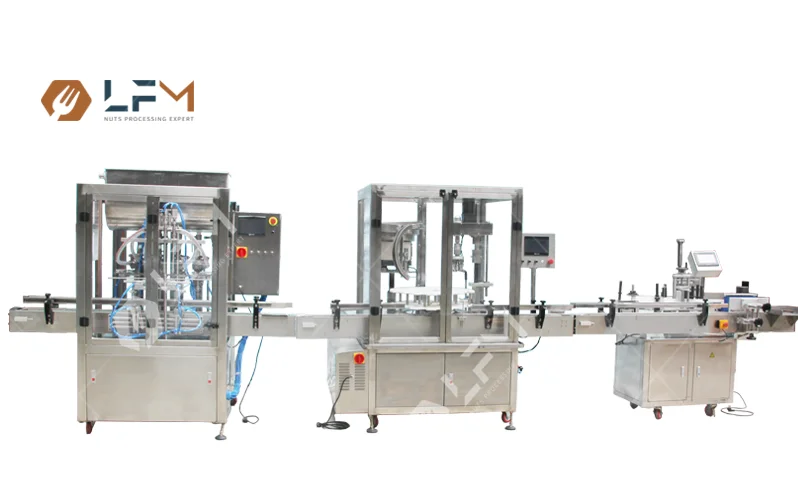

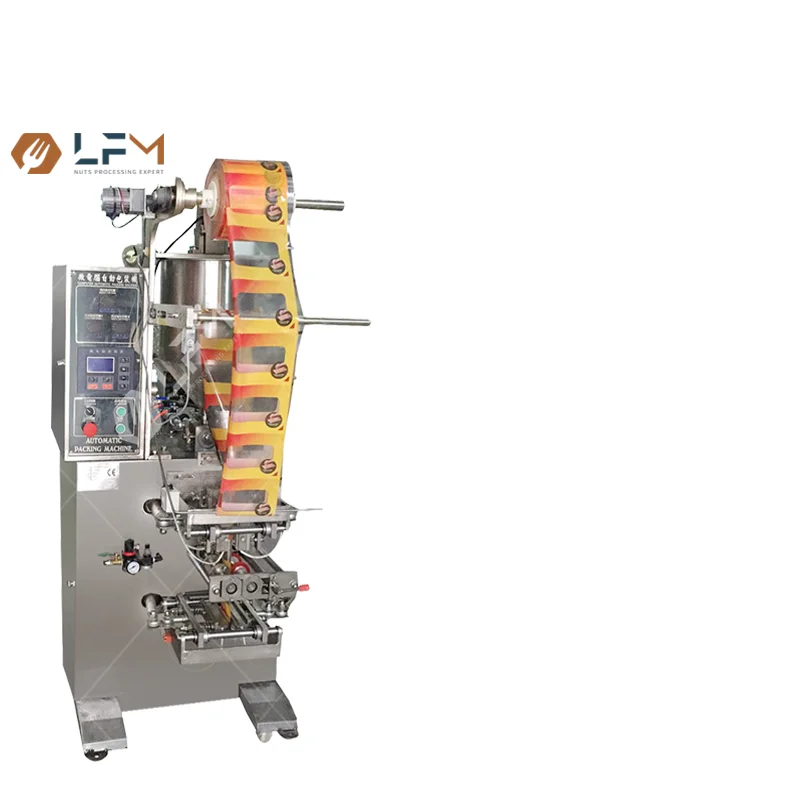

We also provide filling and packing production line
Detailed equipment parameters will be displayed in the quotation.
Related Products

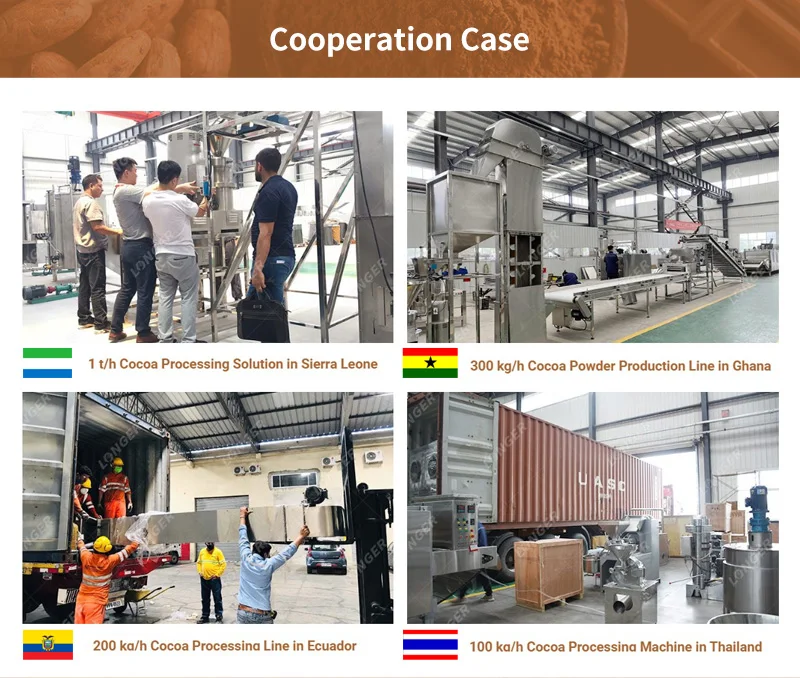

Cooperation Case

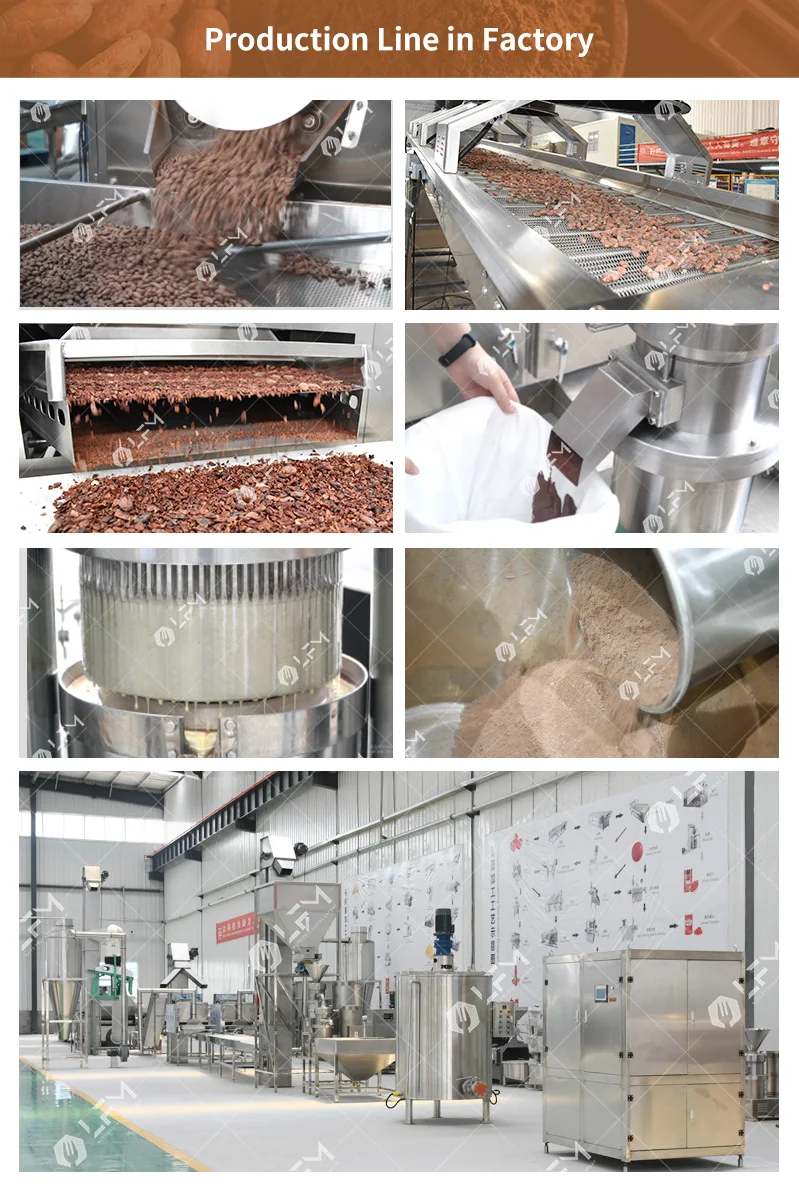

Production Line in Factory
Company Profile
LFM(Longer Nuts Machinery) is an independent brand of GELGOOG, born in 2010 in China, is a trusted nut processing solution provider, LFM mainly focuses on nut roasting, grinding sauce, frying, shelling and other processing scenarios, to provide competitive, safe and reliable digital production solutions for the global nut processing industry users. LFM's products have served more than 2,000 customers in more than 50 countries, including some international companies, such as Unilever, Cargill, Mengniu Dairy etc. With high-quality products and services, LFM has won wide acclaim from customers.
FAQ
Q1: What is your machine guarantee?
A1: Usually the guarantee period is for 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied.
Q2:What's the machine voltage or power of your machine?
A2:Usually the voltage in our country is 220V,50HZ, single phase, or 380V, 50HZ, 3 phase. If you have special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q3:How to install the machine for us?
A3:We can instruct the installation by vedio, email or picture, and for large project, we can also arrange our technical workers to help you to install the machine in your country .
Q4: If we have problems when using your machine, what should we do?
A4: If you have any problem, just contact us, we will help you to solve it, and if necesary, we will arrange our engineers to help you in your country.
Q5: What about the shipping methods?
A5: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost.
Q6: What about the payment methods?
A6: We accept T/T, L/C for a big amount, and for small amount, you can pay by Western Union, Moneygram, or Alibaba Trade Assurance.
Q7: How much does it cost to ship to my country?
A7: It depends on seasons. Shipping cost is different in different seasons. You can consult us all the time.
Q8: What’s your delivery time?
A8: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machine itself, if you place order with us, and need to customize the machine as your requirement, the producing time is longer.
