7 ФТ косилка диска

Product Overview

Description



1.Easy operation linkaged with tractor



 2.matched with 25--75hp tractor



3. cutting width from 1670mm to 3200mm



4. our factory can also customized per you request.





Main specification:



SPECIFICATIONS	FR1300	DRM1700	DRM2150	DRM2550
Suited to:	18-50hp Tractors	35-80hp Tractors	40-85hp Tractors	45-90hp
3-Point Linkage	Cat. I OR II	Cat. I OR II	Cat. I OR II	Cat. I OR II
Length	2080mm	2533mm	2950mm	3270mm
Width	1180mm	1180mm	1280mm	1280mm
Height	780mm	780mm	780mm	780mm
Weight	280kgs	370kgs	400kgs	450kgs
Working Width	1300mm	1700mm	2150mm	2550mm
Number of Disk	2ps	4ps	5ps	6ps
Working speed	4-10km/h	4-10km/h	4-10km/h	4-10km/h

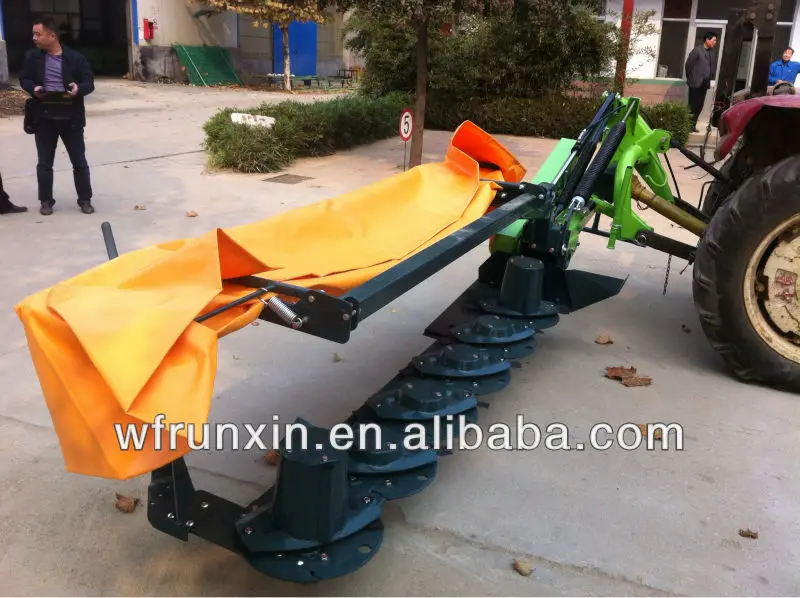

    This machine is disc hay cutter, can be used to harvest the pasture,herbage,such as alfalfa,ryegrass,oat grass and so on., with high efficiency, are more suitable for cutting more taller crop. The cutter arbor stalled with the spiral hand shank, easily to go up and down, use two springs to hang, can adapt to the situation of the ground which is concave-convex, and doesn’t destroy the grass ground.

The machine also with safe installations, when working, the mowing plate can moving back when meet the barrier, can protect the machine







 Please email me to get more pictures, videos and quotation.
