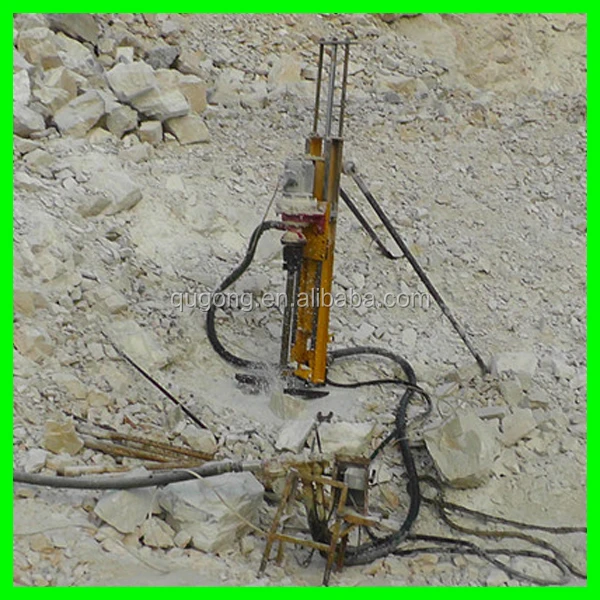

Rock drill machine KQY90 Hydraulic & Pneumatic wagon drill

Product Overview

Description

Wagon Drill



Specification:

1.Dia.of hole :80-130mm

2.Deep of hole :   ≥ 25  mm

3.Pneumatic and  hydraulic system

4.S1125 diesel engine



 Rock drill machine  KQY90 Wagon Drill



1.High performance-all air driven down the hole drill



2.Simple structure and single dynamic



3.Adapt to any geological feature



4.Easy operating and move



5.Good noise reduction effect, reduce the pollut ion





Rock drill machine  KQY90 Wagon drill



  1.Features of Rock drill machine  KQY90 Wagon Drill



1. The Ultimate combination of performance and economy.We can export all Kaishan DTH system .Kaishan DTH system delivers the highest-possible drilling performance at low running cost.Kaishan DTH used in varity heavy industry.



2. It is used to drill blasting holes like small to medium mining porjects,national defense projects , irrigation projects,road construction and ect. Our down the hole drill is edeal equipment for down -hole blasting .



3. Split type hudraulic power pack is the product that gains national patent. The power section and operation section are separate,therefore,when the drill works ,it is only  need the move the operation panel to realize multi-sopt work, which would lower the labor intensity and make the working life whole machine longer.





2.Advantages of  Rock drill machine  KQY90 Wagon Drill



A----Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.



B----In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.



C----Centralized control mechanism,easy to operate.



D----Unique dual muffler,muffler effect, reducing environmental pollution.





3.Application of  Rock drill machine  KQY90 Wagon Drill



It is widely used in small and medium-sized mines,defense engineering,water conservancy,irrigation projects,road constrtction, blast hole drilling operations in Rock engineering, which is ideal machine to acheve hirarchial extraction and  medium deep-hole blasting.





 4.Details of Rock drill machinery   KQY90 Wagon Drill



ITEM	KSZ100 pneumatic	KQY90 hydraulic &pneumatic
DIA.of hole	80-130mm	80-130mm
Drilling depth	≥20	≥20
Rotating speed	0-93rpm	0-62rpm
Working pressure	5-7bar	5-7bar
Air consumption	≥12m3/min	≥12m3/min
Hammer	QCZ90	QCZ90
Rod	60*1000	60*1000
Bit	90(76-100)	90(76-100) Engine power :11kw(15hp)
Compressor	LGCY-12/10 CVF-13/7	LGCY-7.5/7 CVFY-7/7
ITEM	KQD100(120)  Electric&Pneumatic	KQD70  Electric&Pneumatic
DIA.of hole	80-130mm	80-130mm
Drilling depth	≥20	≥20
Rotating speed	0-62(84)rpm	0-62rpm
Working pressure	5-7bar	5-7bar
Air consumption	≥6m3/min	≥12m3/min
Hammer	QCZ90	QCZ90
Rod	60*1000	60*1000
Bit	90(76-100)	90(76-100)
Motor power	4 (5)kw	3kw
Compressor	LGCY-7.5/7 CVFY-7/7	LGCY-7.5/7 CVFY-7/7



5.Pictures of Rock drill machine KQY90 wagon drill





Main Accessories of Rock drill machinery  KQY90 wagon drill





 1. Air Compressor For  KQY90 wagon drill









2.DTH Hammer for  KQY90  wagon drill







3.Drill Bits For KQY90 Wagon drill





4.Control Station For KQY90 wagon drill





5.Air Hose of  KQY90 wagon drill
