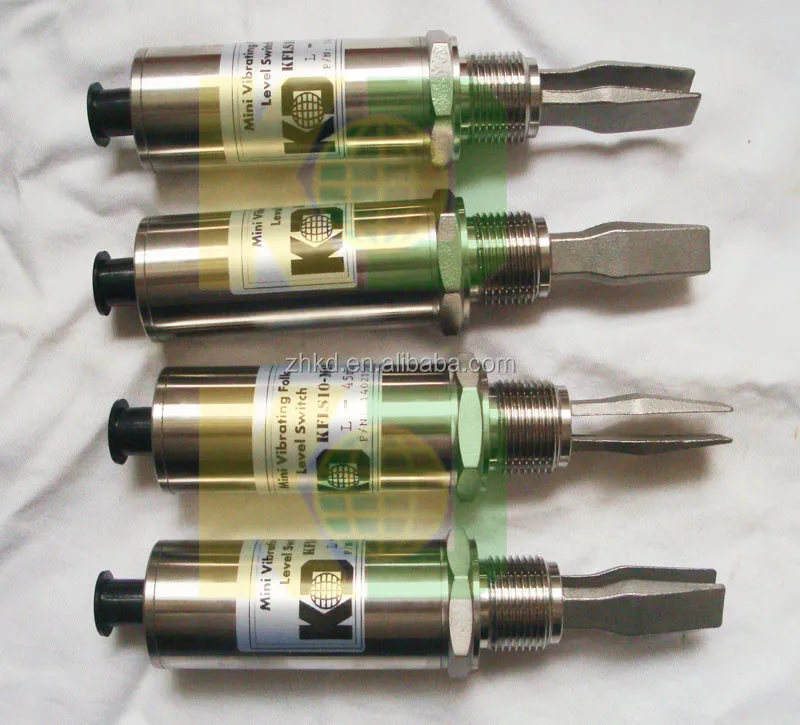

Tuning fork liquid level switch level sensor vibrating water level detect

Product Overview

Description

Tuning fork luquid level switch level sensor vibrating water level



Specifications



Technical data:

Power supply:  AC 220V 50Hz or DC 24V

Output:  SPDT. or PNP.NPN.

Temp:  fork -30°C~150°C, the meter -30°C~70°C

Pressure: <2Mpa

Power: <1W

Density: >0.6g/cm³

Action point:  Dip vertically 25mm into water

Vibrating time.~3secs.response time.~1 sec

Output: 1a1b.AC 220V/3A,DC 30V/3A

Backlash: ~3mm Delay: 1.50S

Connection:  Customized

Cable:  M12X1.5. OD.6.8mm.

Material: Aluminum Alloy/SUS304.SUS316L

Weather Proof:  IP65

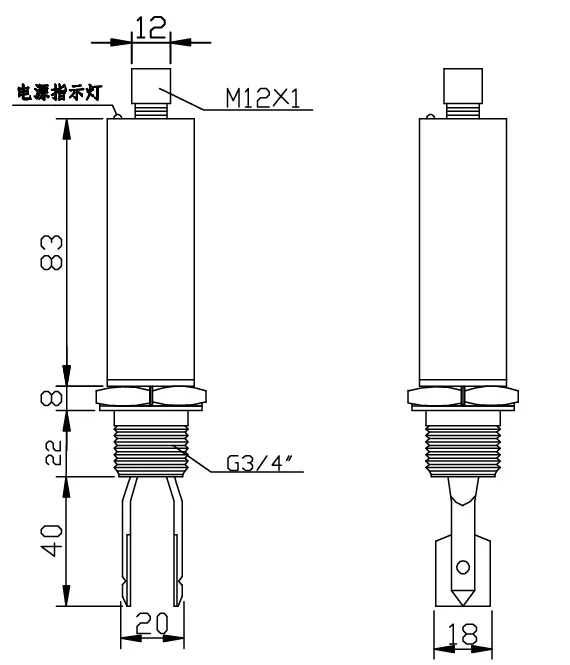

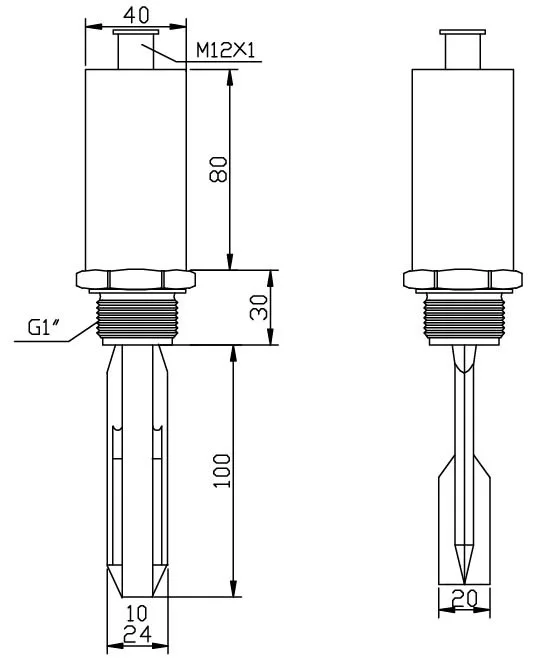

Drawing:
