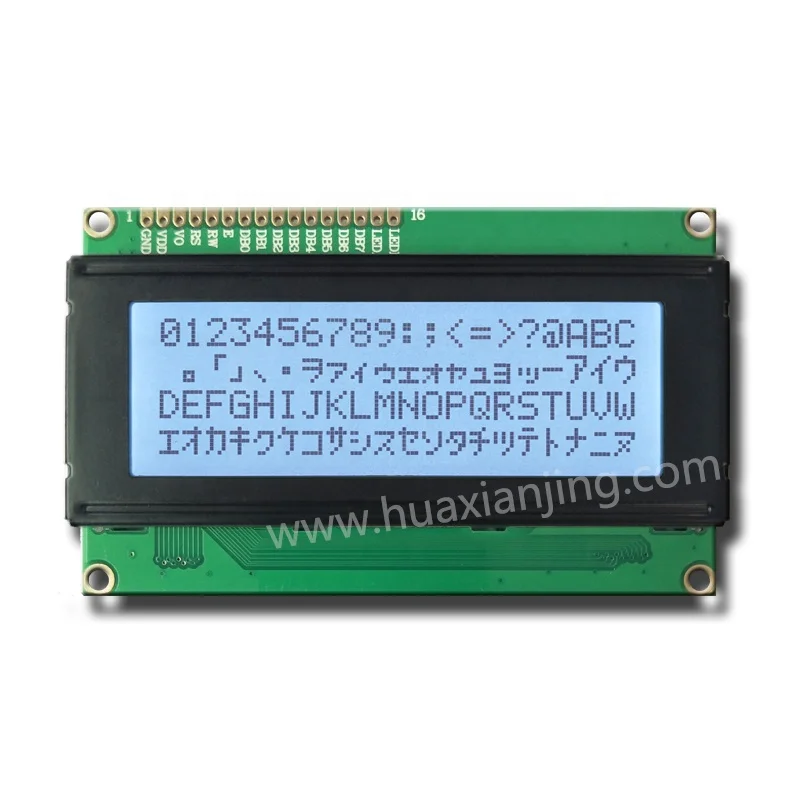

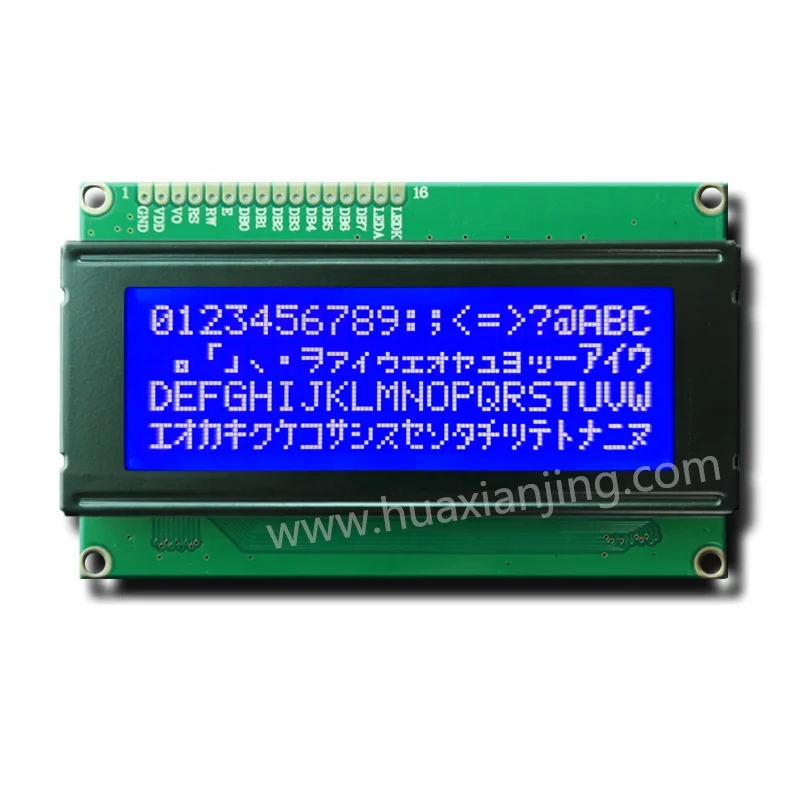

20x4 Character LCD Display

Item

Standard Value

Display Type

20characters ´ 4 lines

LCD Type

STN,NEGATIVE(Y-G),TRANSMISSIVE

Driver Condition

LCD Module : 1/16Duty , 1/5Bias

Viewing Direction

6 O’clock

Backlight Type

SIDE WHITE

Interface

8-bit MPU interface

Driver IC

                       SPLC780D

Item

Standard Value

Unit

Outline Dimension

98(L) * 60(W) * Max 13.2(T)

mm

Viewing Area

77(L) * 25.2( W)

mm

Dot size

0.56(W) ´ 0.56(H)

mm

Dot pitch

0.6(W) ´ 0.6 (H)

mm

Character size

4.76(W) ´ 2.96(H)

mm

Item

Symbol

Condition

Min.

Max.

Unit

System Power Supply Voltage

VDD

-

-0.3

5.5

V

LCD Driver Supply Voltage

VLCD

-

VDD-12

VDD-0.3

V

Input Voltage

V_IN

-

-0.3

VDD + 0.3

V

Operating Temperature

T_OP

-

-20

70

°C

Storage Temperature

T_ST

-

-30

80

°C

Storage Humidity

H_D

Ta < 40 °C

20

90

%RH

Serial

Model

Out. Dimensions (mm)

V.A. (mm)

Driver IC

2004

HSM2004A/B

98.0*60.0*13.2

77.0*25.2

SPLC780C

HSM2004C

118*43*13.2

77.0*25.2

SPLC780C
