NN PP 200 Rubber Conveyor Belt
- Category: >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (1629045486):
Product Overview
Description
NN PP 200 rubber conveyor belt
Product Description
1.The belt has the characteristics of low elongation in warp and good troughability in weft, go od water resistance, good wet strength, suitable for medium, long-distance and heavy-load transportation of materials

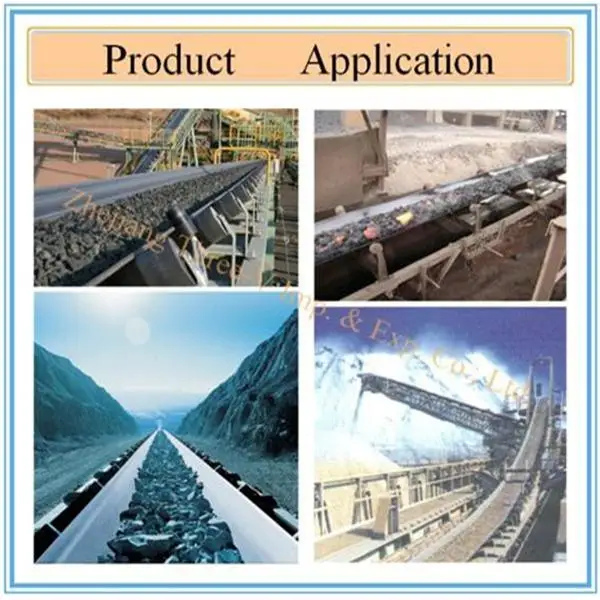

2.Suitable for Medium, Long distance and Heavy-load transportation of materials.
Specification Availability

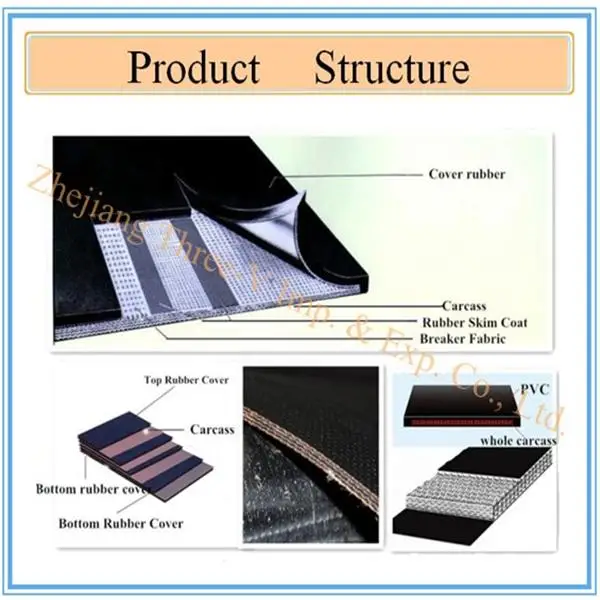

Carcass | Fabric structure | Type | Plies | Thickness of cover | Belt width(mm) | ||
Warp | Weft | Top(mm) | Bottom(mm) | ||||
EP NN | Polyester Nylon-66 | Nylon-66 | EP80/NN80 | 2-6 | 3.0-18.0 | 1.5-10.0 | 3500-2500 |
EP100/NN100 | |||||||
EP125/NN120 | |||||||
EP150/NN150 | |||||||
EP200/NN200 | |||||||
EP250/NN250 | |||||||
EP300/NN300 | |||||||
Rubber Cover Grade & Standard No:
Type | Rubber Cover Type | Tensile strength at break(N/ mm2 ) | Elongation at break% | Abrasion mm3 |
Abrasion Resistant | RCB-AR-M | 24 | 450 | 120 |
RCB-AR-Y | 20 | 400 | 150 | |
RCB-AR-W | 18 | 400 | 90 | |
RCB-AR-N18 | 18 | 450 | 200 | |
RCB-AR-N | 17 | 400 | 200 | |
RCB-AR-A | 17 | 400 | 70 | |
RCB-AR-Z | 15 | 400 | 250 | |
RCB-AR-Ⅱ | 14 | 350 | 150 | |
RCB-AR-L | 10 | 350 | 300 | |
Oil Resistant | RCB-FOR | 12 | 300 | 300 |
RCB-MOR | 15 | 450 | 250 | |
RCB-LOR | 17 | 450 | 200 | |
Heat Resistant | RCB-HR-T1-100°C | 17 | 450 | 200 |
RCB-HR-T2-125°C | 15 | 400 | 250 | |
RCB-HR-T3-150°C | 13 | 350 | 250 | |
RCB-HR-T4-180°C | 11 | 350 | 280 | |
RCB-HR-T5-300°C | 10 | 350 | 300 | |
FR/AR/AS Resistant | RCB-ARAS | 18 | 450 | 200 |
RCB-FRAS | 14 | 400 | 250 | |
RCB-FR | 12 | 350 | 300 | |
Cold Resistant | RCB-CR-T1-30°C | 17 | 350 | 300 |
RCB-CR-T2-50°C | 14 | 300 | 300 | |
Chemical Resistant | RCB-ANTI-ACID | 14 | 400 | 250 |
RCB-ANTI-ALKALI | 14 | 400 | 250 | |
Food | RCB-FDA | 15 | 450 | 300 |
Fire Resistant | RCB-FR-PVG | 15 | 350 | 200 |
RCB-FR-PVC | 13 | 300 | 200 |
Company Information
Having specialized in mechanical conveyor systems products for more than 20 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Imp&Exp Company,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
