Product Overview
Description
Description

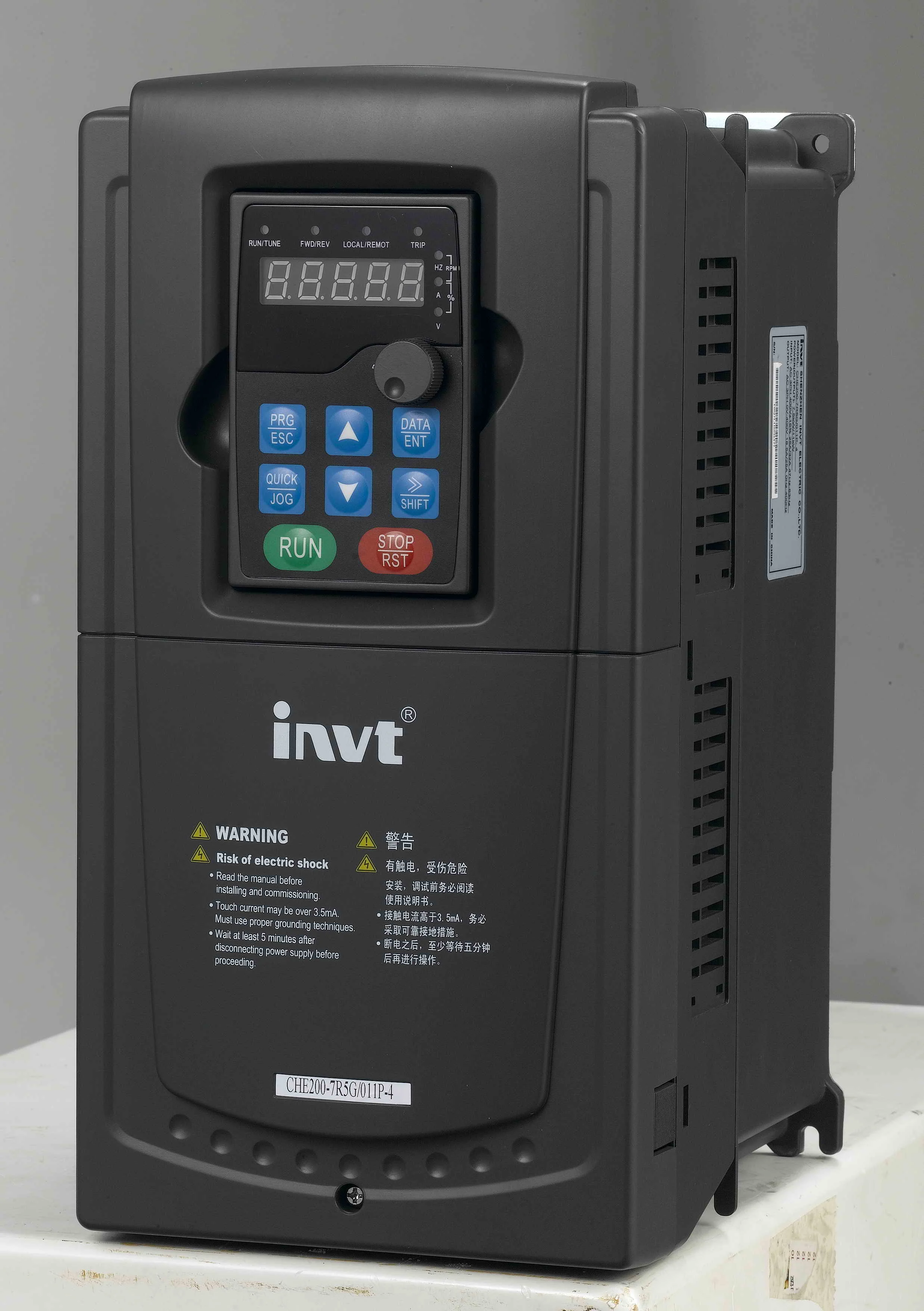

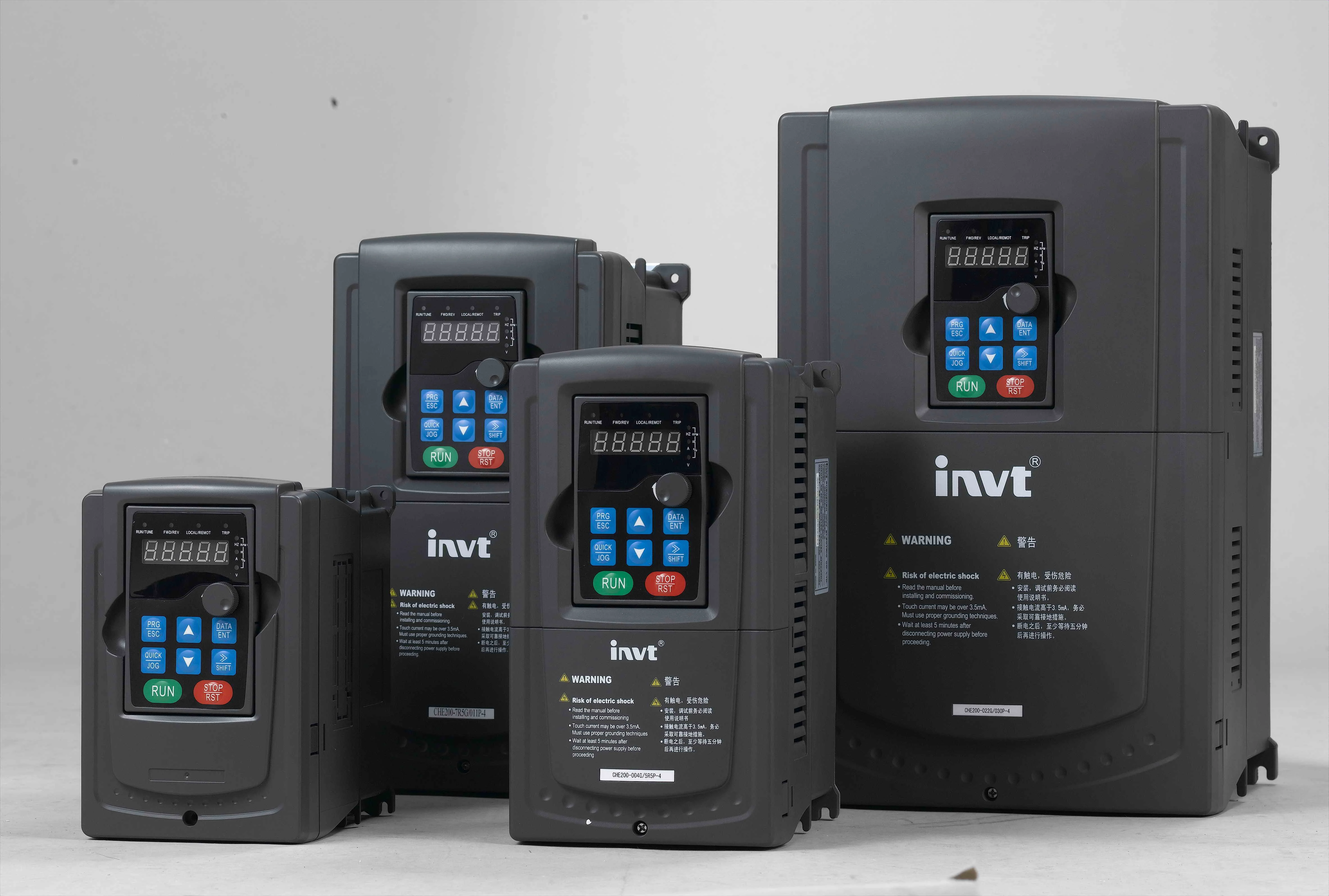

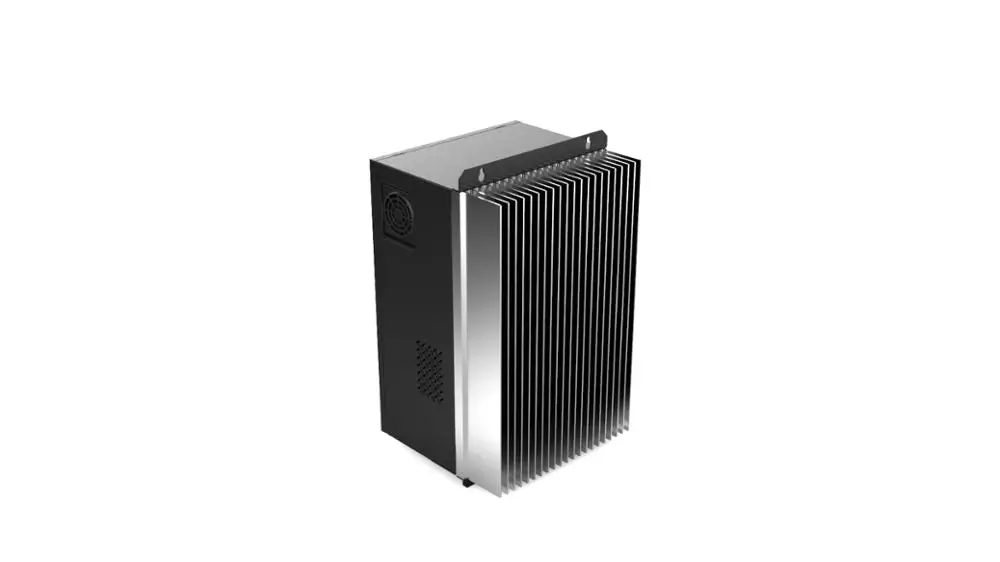

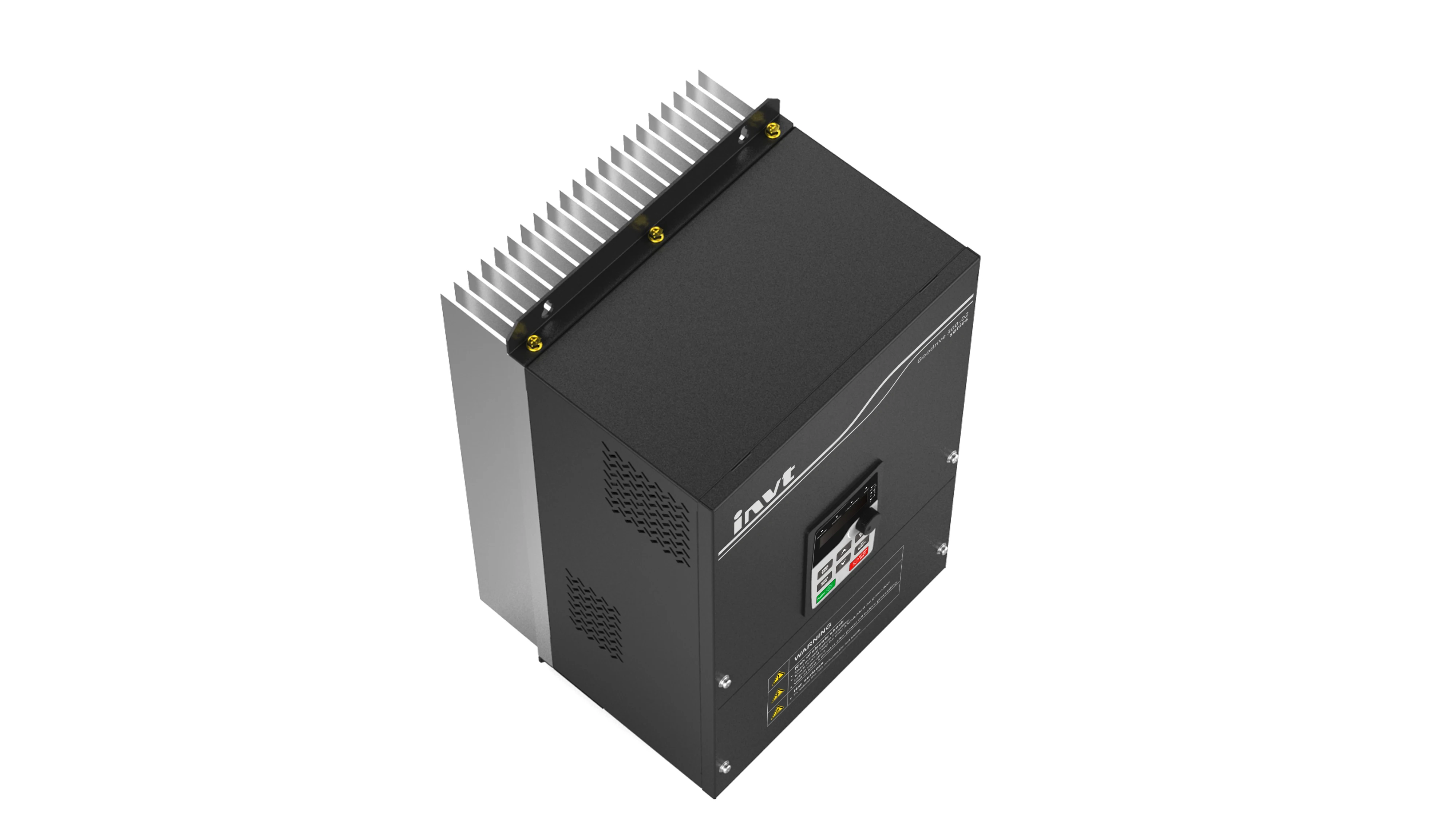

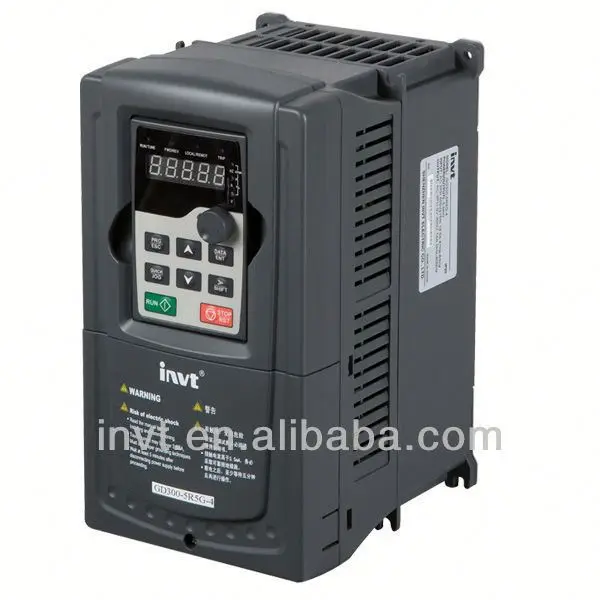

Goodrive300 series AC variable frequency drives are high performance open loop vector drives for controlling asynchronous AC induction motors and permanent magnet synchronous motors, Applying the most advanced non-velocity sensor vector control technology which keeps pace with the leading international technology and DSP control system, our products enhances its reliability to meet the optimized functions, more flexible application and more stable performance.Features
Compatible with the open-loop vector control of synchronous motors and asynchronous motors;
Three-phase modulation with more stable and quieter motor control;
Multiple functions:built-inC3 filter,compatible with wall,flange and floor installation;
Various communication:useful PC monitoring software,standard Modbus communications,optional Profibus and Ethernet communication.
Specifications
Function | Specification | |
Input | Input Voltage(V) | AC 3PH 220V(-15%)∼240V(+10%) AC 3PH 380V(-15%)∼440V(+10%) AC 3PH 520V(-15%)∼690V(+10%) |
Input Frequency(Hz) | 47~63Hz | |
Output | Output Voltage(V) | 0~input voltage |
Output Frequency(Hz) | 0~400Hz | |
Technical Control Feature | Control Mode | V/F, sensorless vector control |
Motor Type | Asynchronous motor and permanent magnet synchronous motor | |
Speed-adjusting Ratio | Asynchronous motor 1:200(SVC)synchronous motor 1:20(SVC) | |
Speed Control Accuracy | ±0.2%(sensorless vector control) | |
Speed Fluctuation | ±0.3%(sensorless vector control) | |
Torque Response | <20ms(sensorless vector control) | |
Torque Control Accuracy | 10%(sensorless vector control) | |
Starting Torque | Asynchronous motor:0.25Hz/150%(sensorless vector control) | |
Overload Capability | 150% of rated current: 1 minute | |
Running Control Feature | Frequency Setting | Digital setting, analog setting, pulse frequency setting, multi-step speed running setting, simple PLC setting, PID setting, MODBUS communication setting, PROFIBUS communication setting. |
Auto-adjustment of the voltage | Keep a stable voltage automatically when the grid voltage fluctuates | |
Fault Protection | Provide over 30 fault protection functions, overcurrent, overvoltage, undervoltage, overheating, phase loss and overload, etc. | |
Speed Tracking Function | The rotating motor can be started smoothly | |
Applications
 | Permanent Magnet Synchronous MotorScrew oil pumps, water pumps, compressors, hoisting, chemical fabric devices, plastic machinery, wood processing machinery and machine tools and so on. |

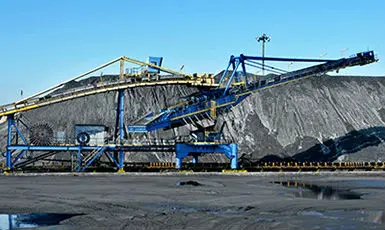

MineBelt conveyor, hoisting machines air compressors, crushers, ball mills, centrifugal dewaterers and so on. |  |

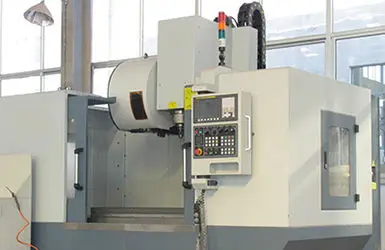

 | Machines ToolsLathes, wood processing machinery, drilling machines, grinding machines, milling machines and air compressors and so on. |

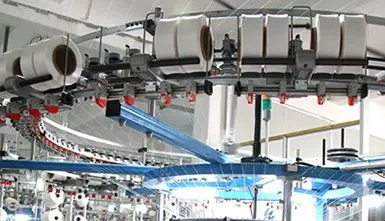

TextilesCarding machines, roving machines, winders, warping machines knitting machines, warp knitting machines and so on. |  |

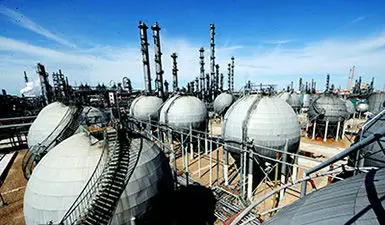

 | OilOil pumps, water injection pumps, compressors and so on. |

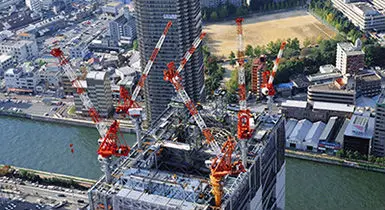

Other MachineriesHoisting, chemical, industrial, metal processing, EPS and constructive machines and so on. |  |
