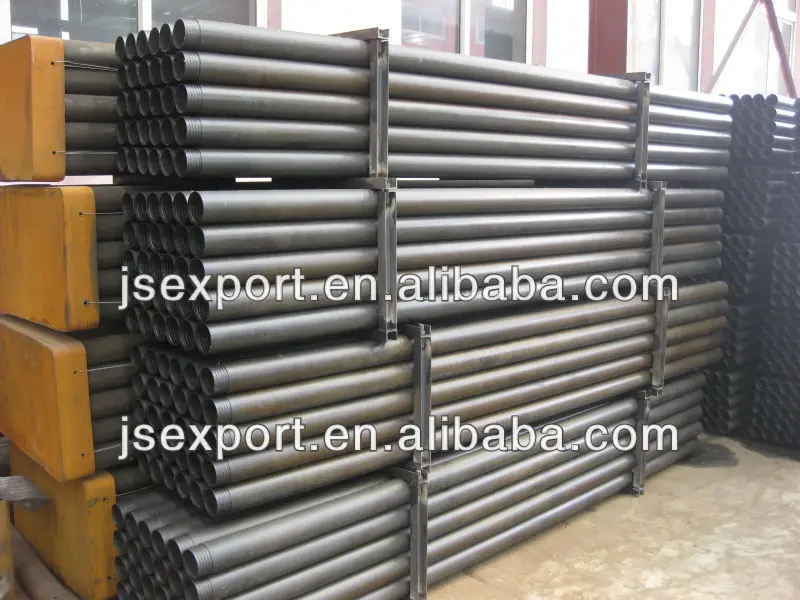

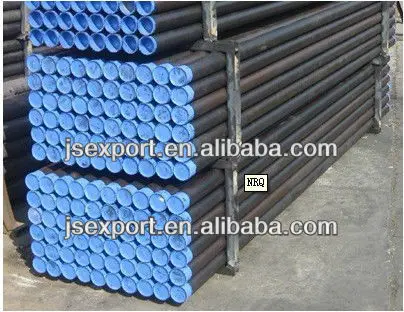

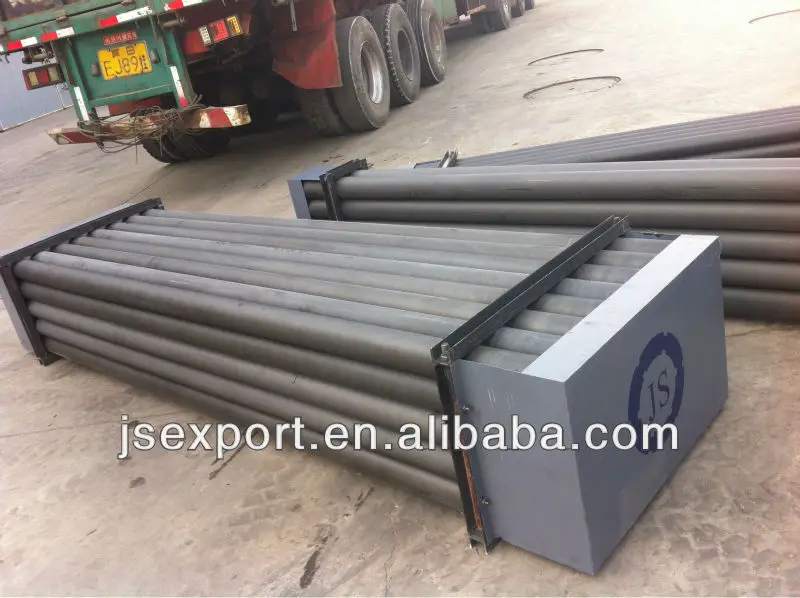

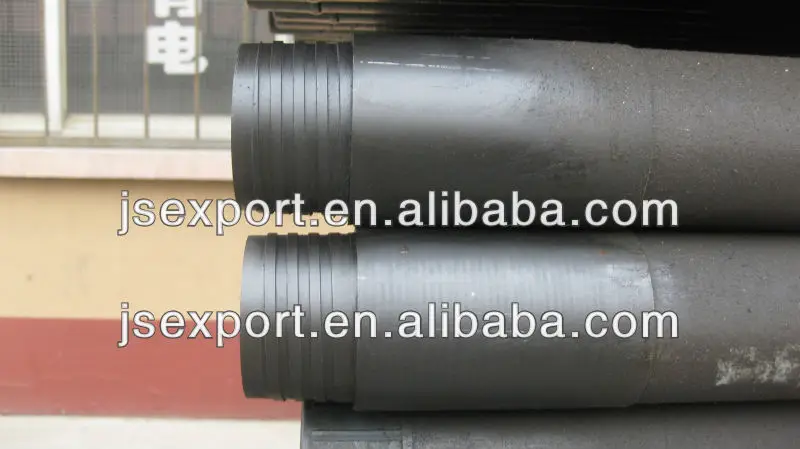

ATW AGM BTW BGM thin wall wireline drill rod
- Category: >>>
- Supplier: Jinshi Drilltech Co. Ltd.
Share on (1629326548):
Product Overview
Description
specifications
| SIZE | INNER DIAMETER (mm) | OUTER DIAMETER (mm) |
| ATW / AGM | 36.8 | 44.5 |
| BTW / BGM | 48.8 | 56.5 |
Raw materials:
Tangshan Jinshi only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

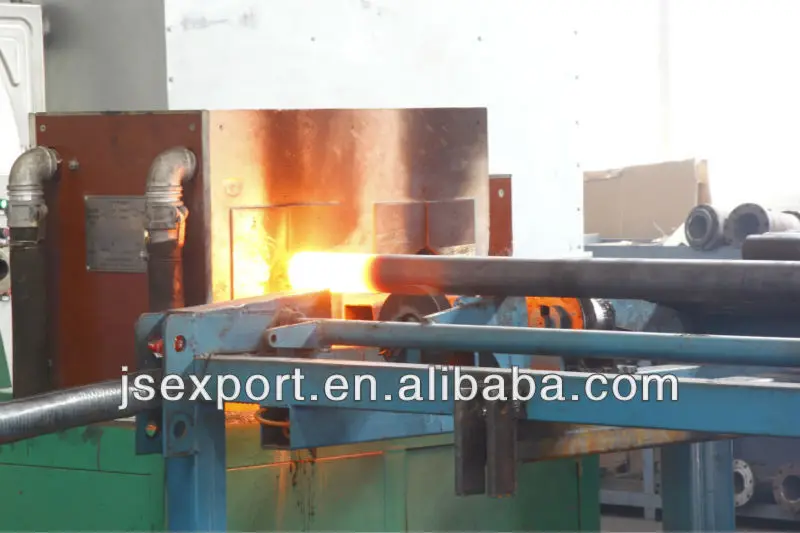

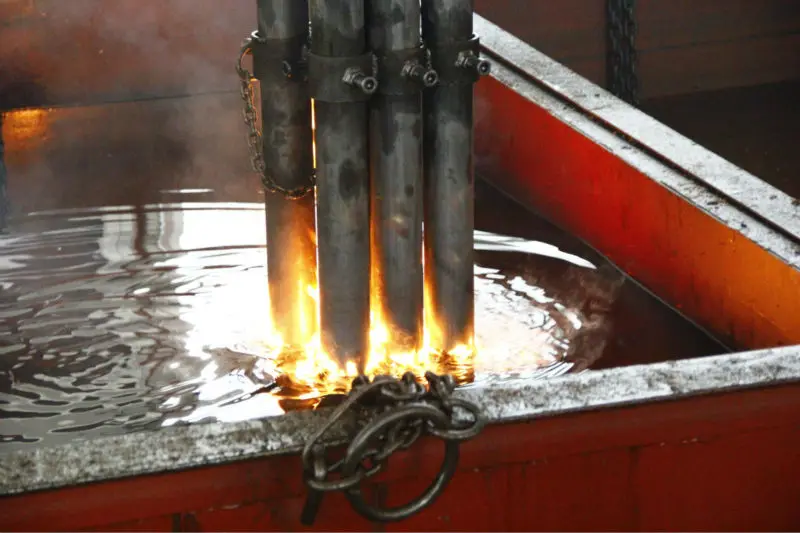

Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
specifications
| SIZE | INNER DIAMETER (mm) | OUTER DIAMETER (mm) |
| ATW / AGM | 36.8 | 44.5 |
| BTW / BGM | 48.8 | 56.5 |
Raw materials:
Tangshan Jinshi only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Product Description

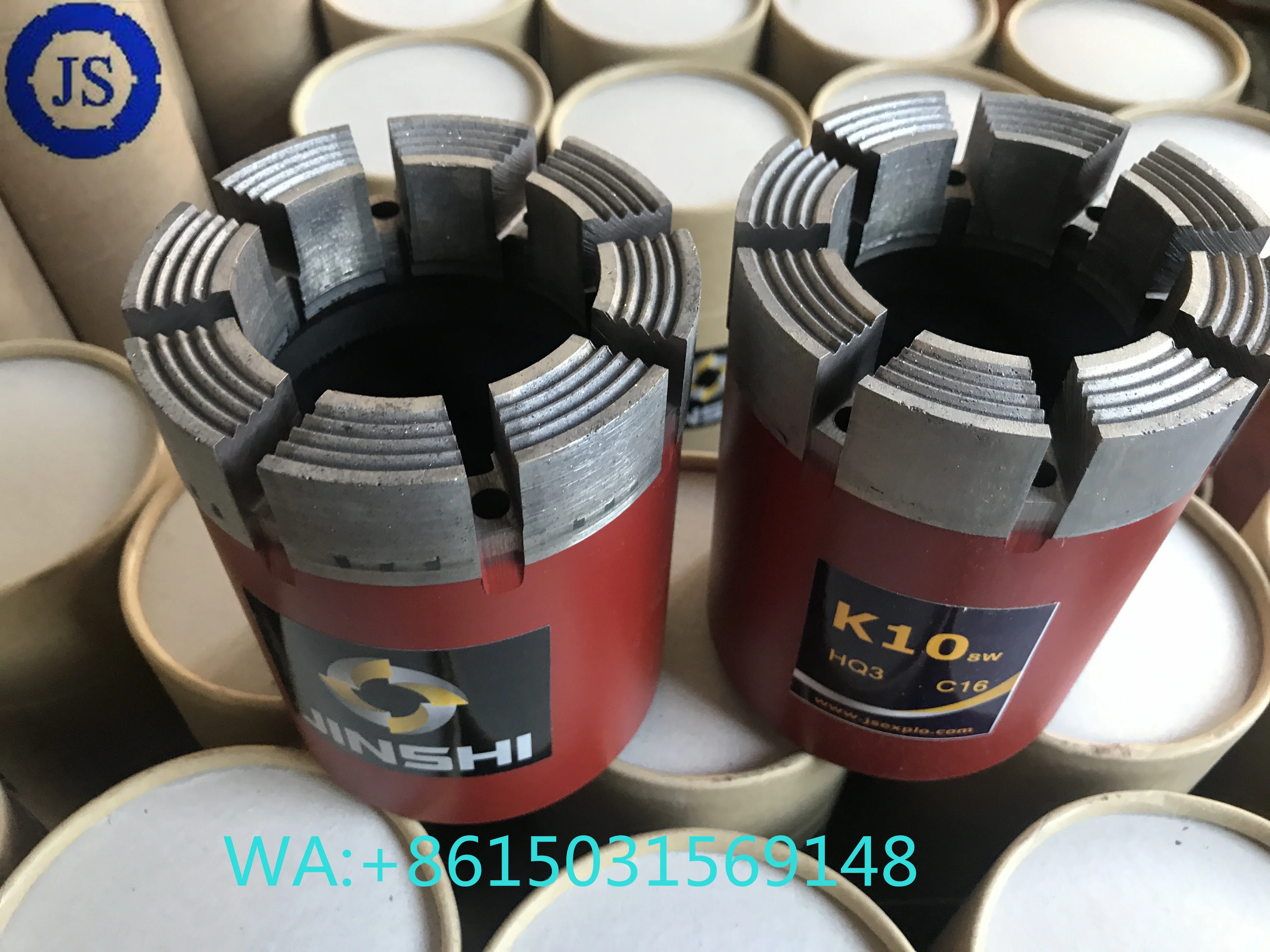

JS performance of IMP.bit is determinded by conbination of diamond and matrix, Jinshi use special matrix and provide optimal performance:
matrix have 5 different crown height: 6,9,12,16,25mm
| description | crown height |
| C6 | 6mm |
| C9 | 9mm |
| C12 | 12mm |
| C16 | 16mm |
| C25 | 25mm |
profile is as below:

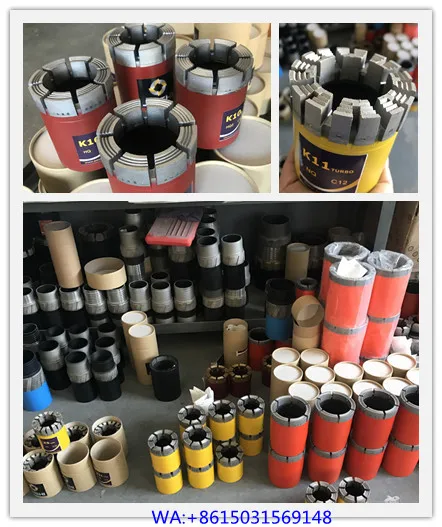

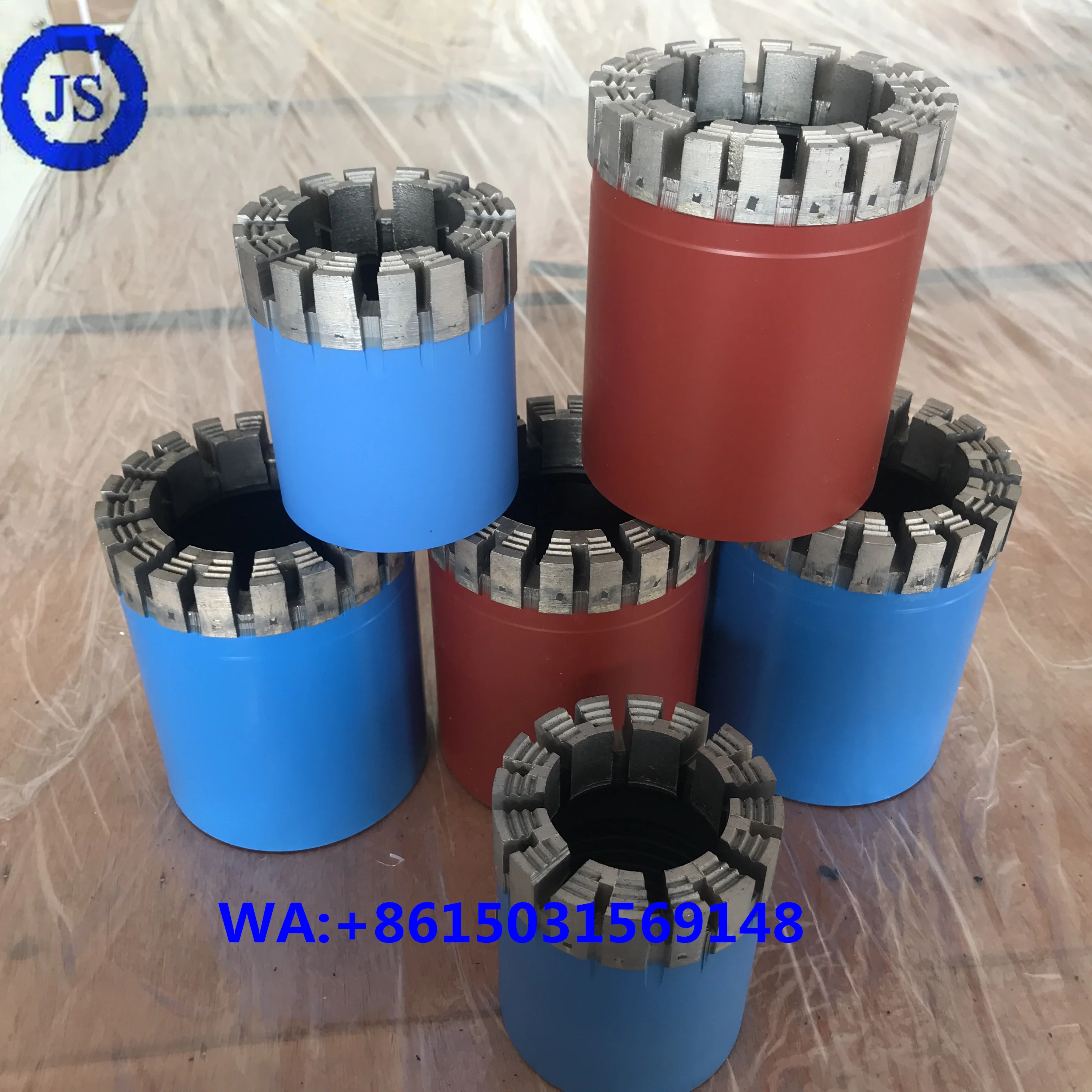

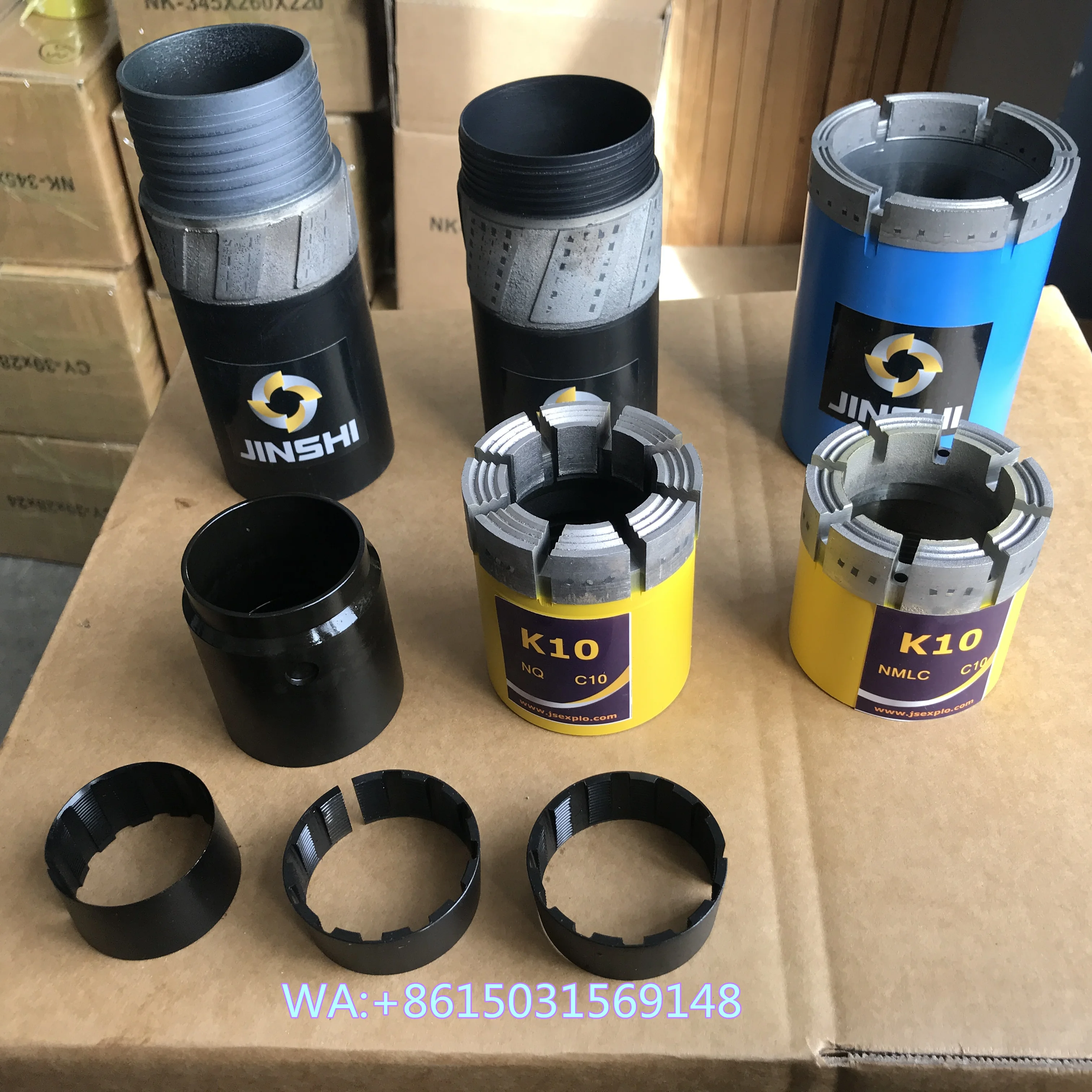

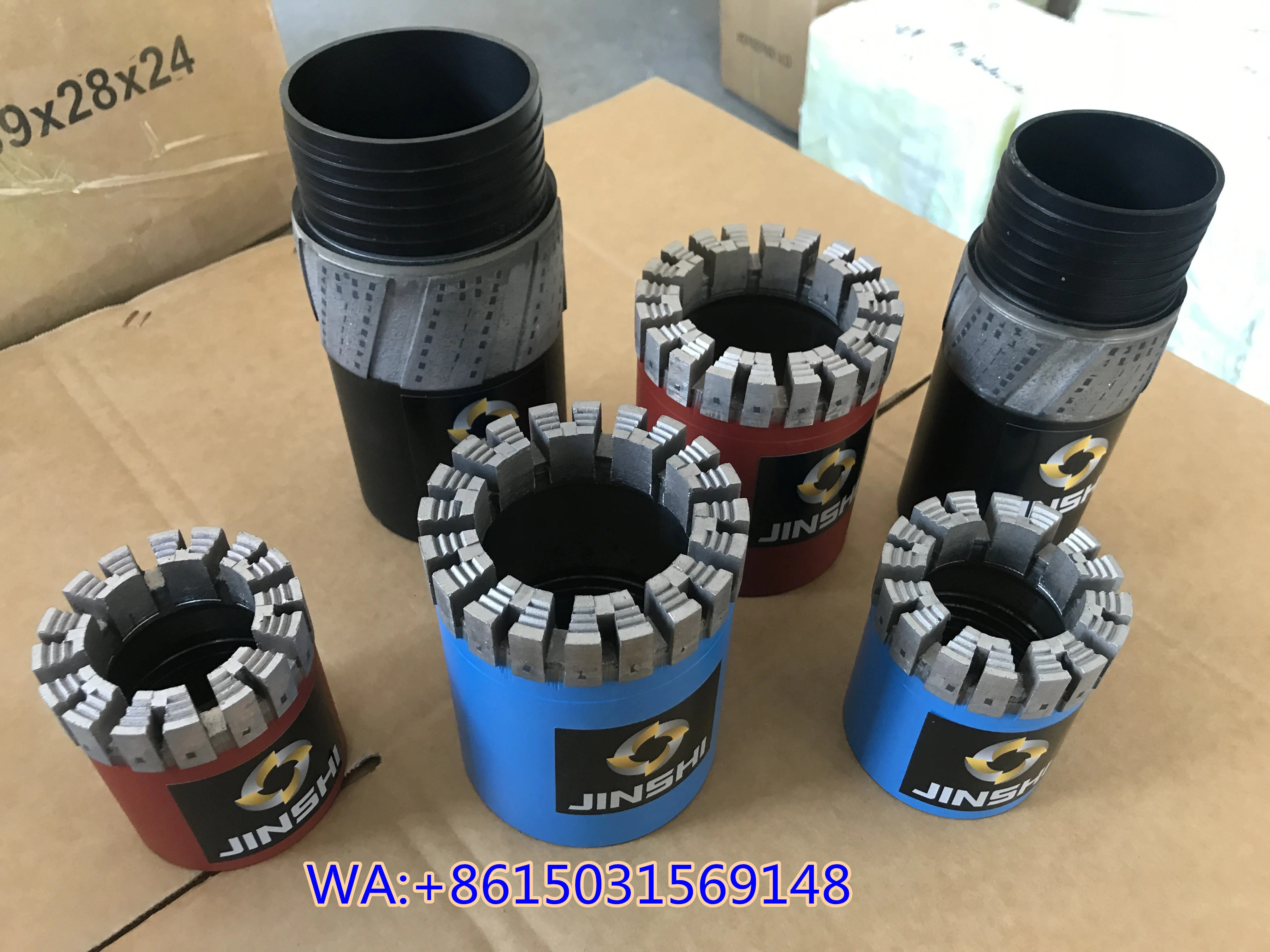

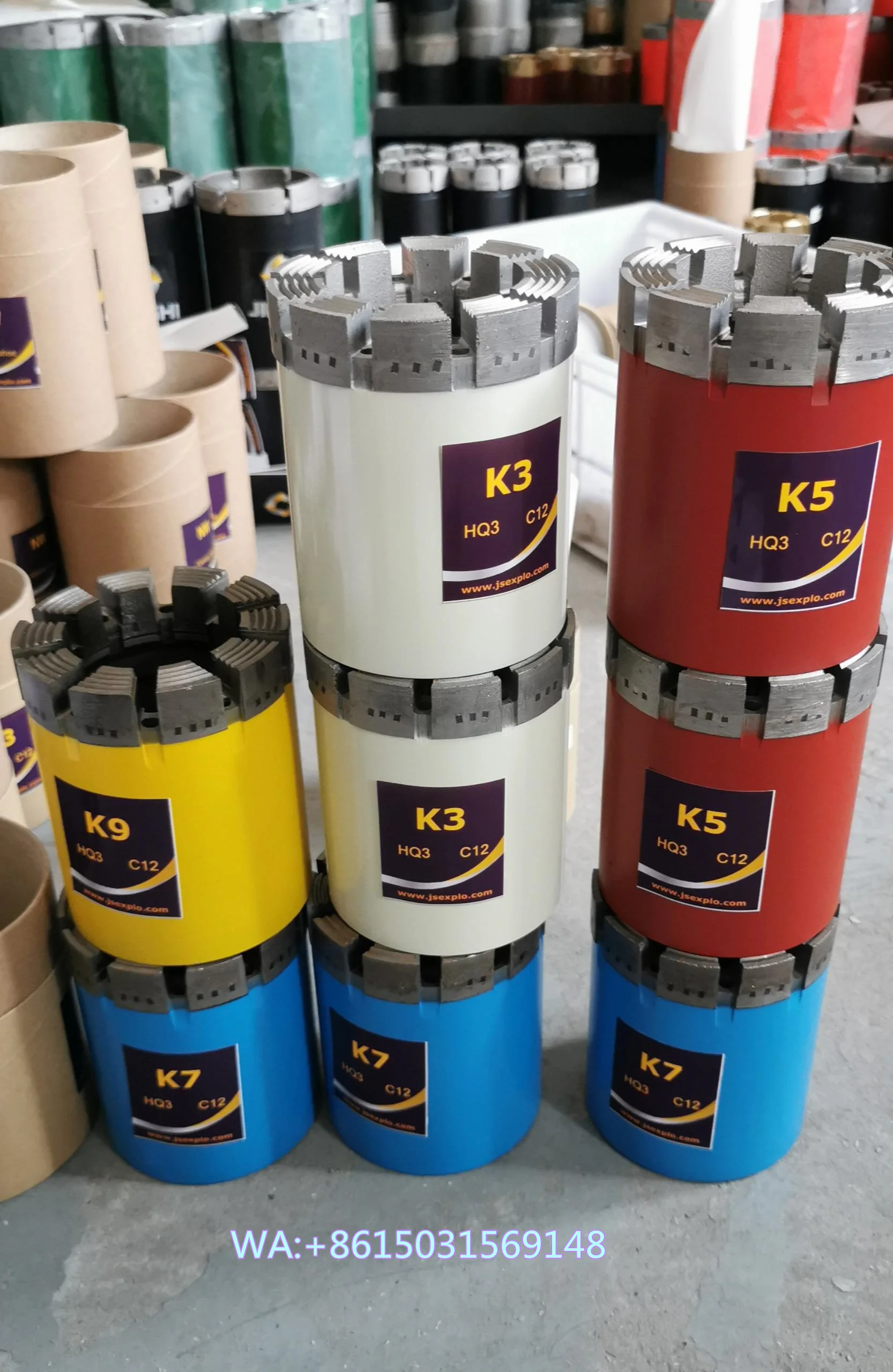

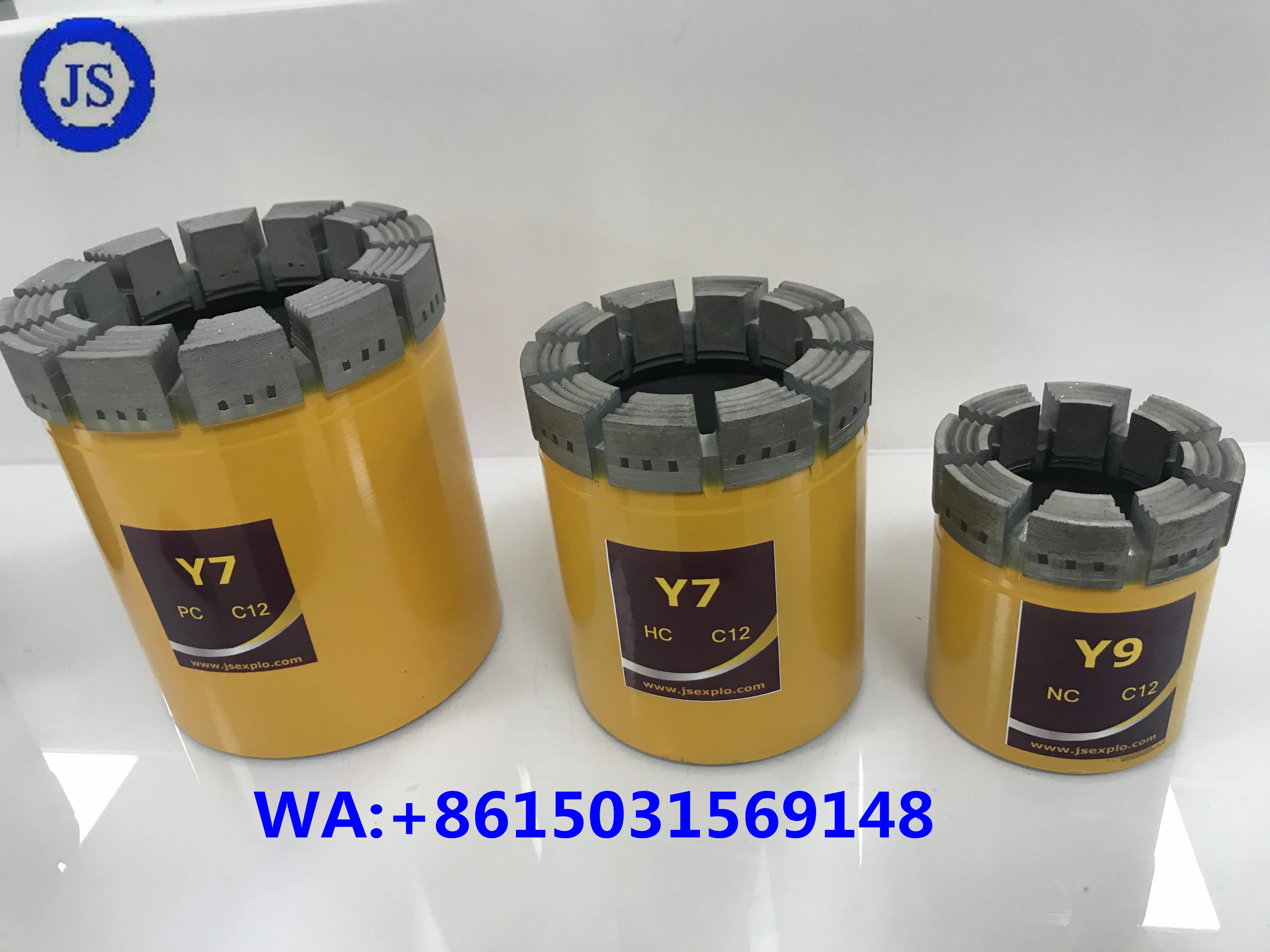

our diamond core bits specification :

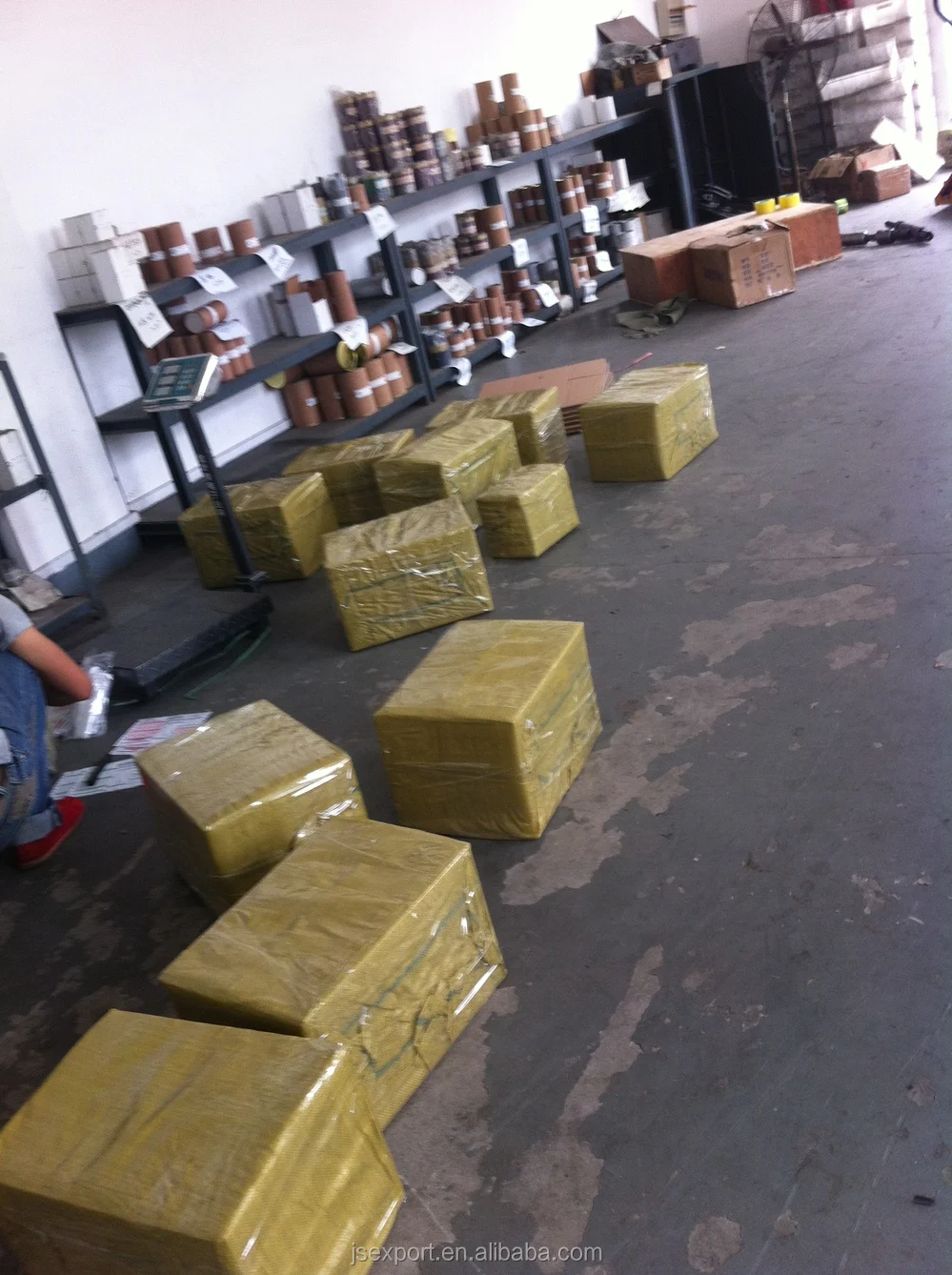

Packaging & Shipping
5-7 working days after we get the payment!

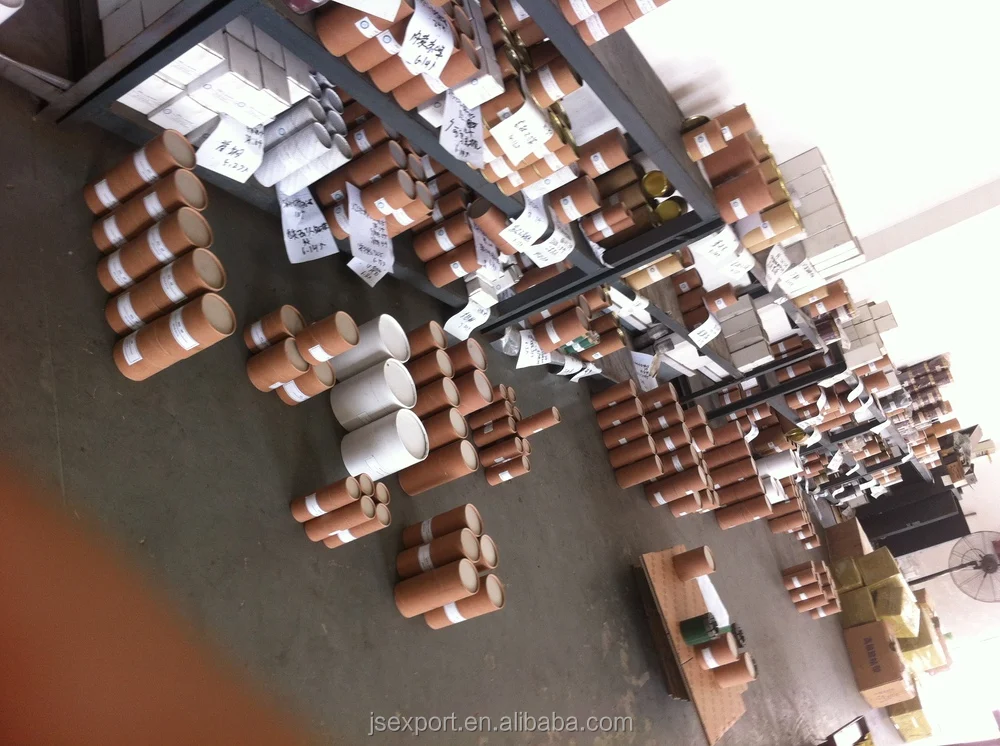

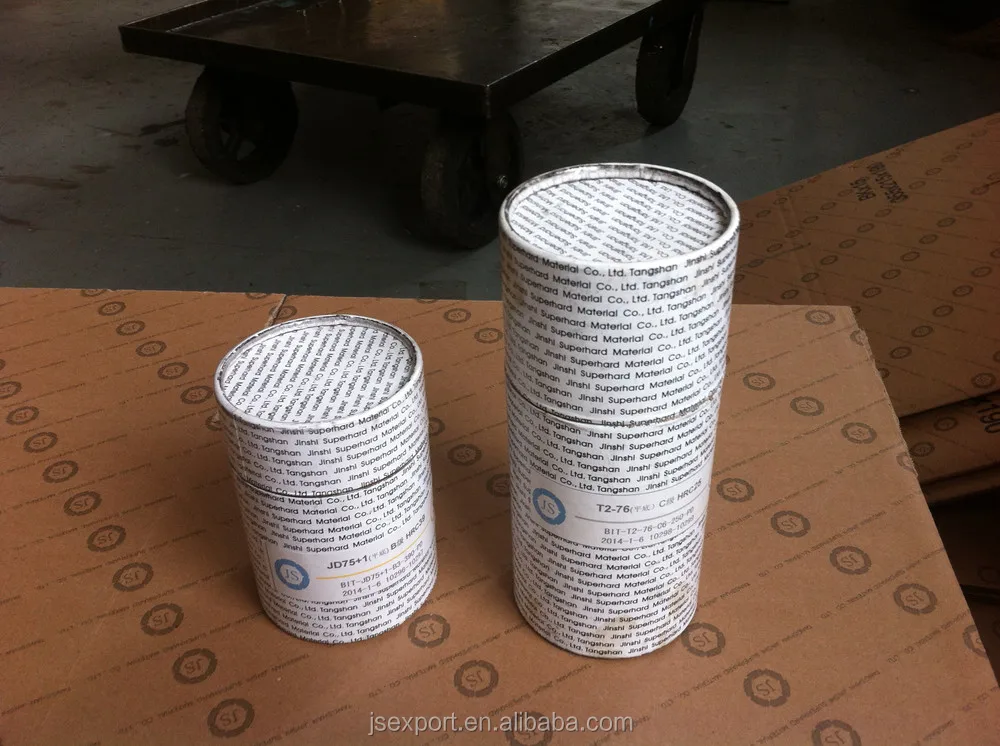

each diamond bit will put in one cylinder box, then the cylinder boxes will packed by the carton box
Company Information
JS is the largest supplier of drill consumables in China, It is expert in innovation,manufacture, sales and professinal service for diamond core drilling consumables.
JS aims at becoming the world leading expertise in damond core drilling consumables
JS main products are diamond products, coring system, rods &casing, drill accessories.
