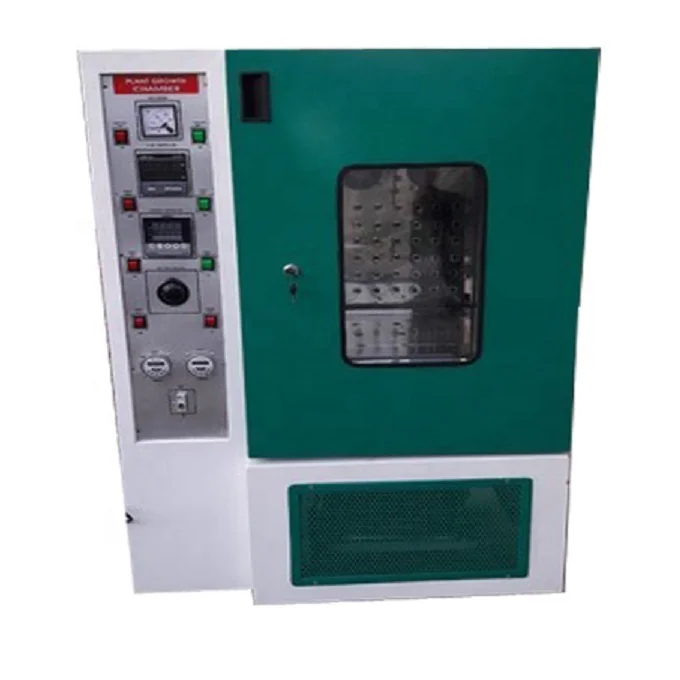

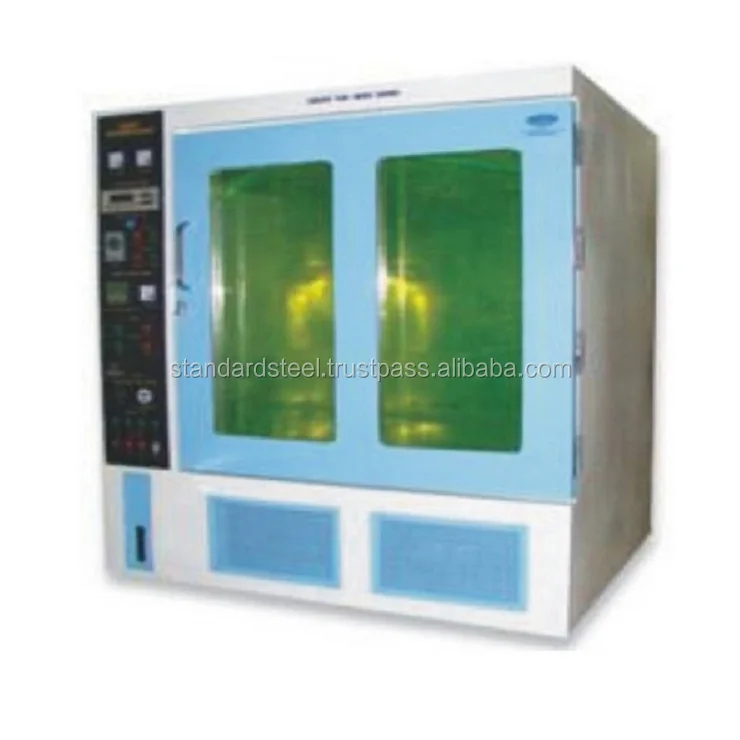

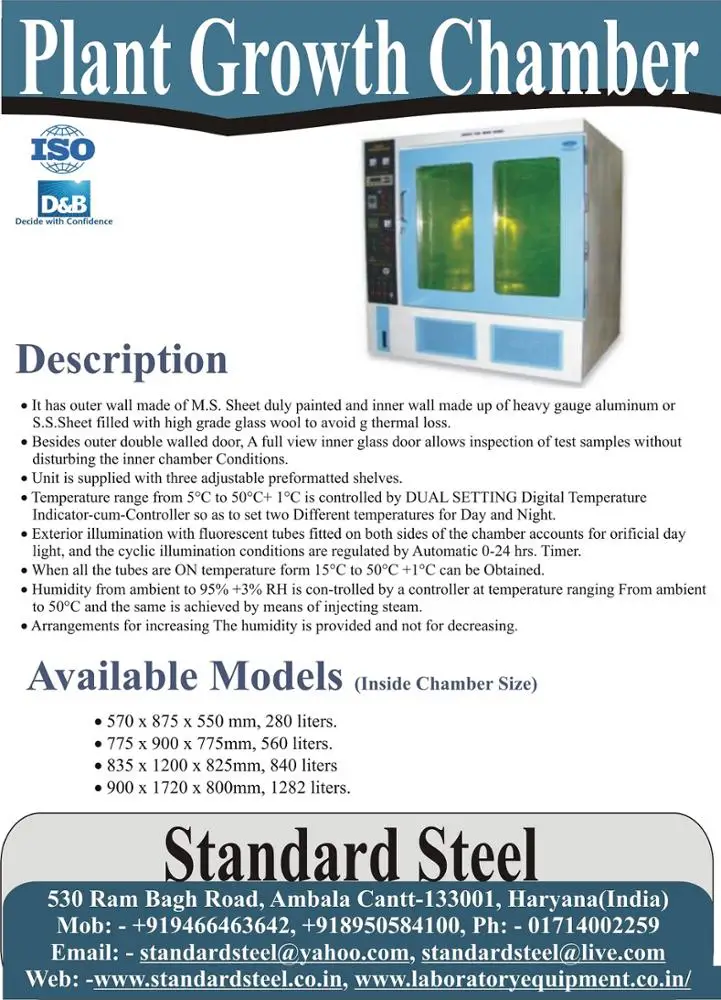

Plant Growth Chamber

 Plant Growth Chmaber

• It has outer wall made of M.S. Sheet duly painted and inner wall made up of heavy gauge aluminum or S.S. Sheet filled with high grade glass wool to avoid g thermal loss.
• Besides outer double walled door, A full view inner glass door allows inspection of test samples without disturbing the inner chamber Conditions.
• Unit is supplied with three adjustable preformatted shelves.
• Temperature range from 5°C to 50°C+ 1°C is controlled by DUAL SETTING Digital Temperature Indicator-cum-Controller so as to set two Different temperatures for Day and Night.
• Exterior illumination with fluorescent tubes fitted on both sides of the chamber accounts for orificial day light, and the cyclic illumination conditions are regulated by Automatic 0-24 hrs. Timer.
• When all the tubes are ON temperature form 15°C to 50°C +1°C can be Obtained.
• Humidity from ambient to 95% +3% RH is con-trolled by a controller at temperature ranging From ambient to 50°C and the same is achieved by means of injecting steam.
• Arrangements for increasing The humidity is provided and not for decreasing.

Available Sizes

• 570 x 875 x 550 mm, 280 liters.
• 775 x 900 x 775mm, 560 liters.
• 835 x 1200 x 825mm, 840 liters
• 900 x 1720 x 800mm, 1282 liters.
