Nade Optical Instrument Portable Measuring Monocular Microscope XC Series microscope price
- Category: >>>
- Supplier: Zhejiang Nade Scientific Instrument Co. Ltd.
Share on (1630770972):
Product Overview
Description
Product Description

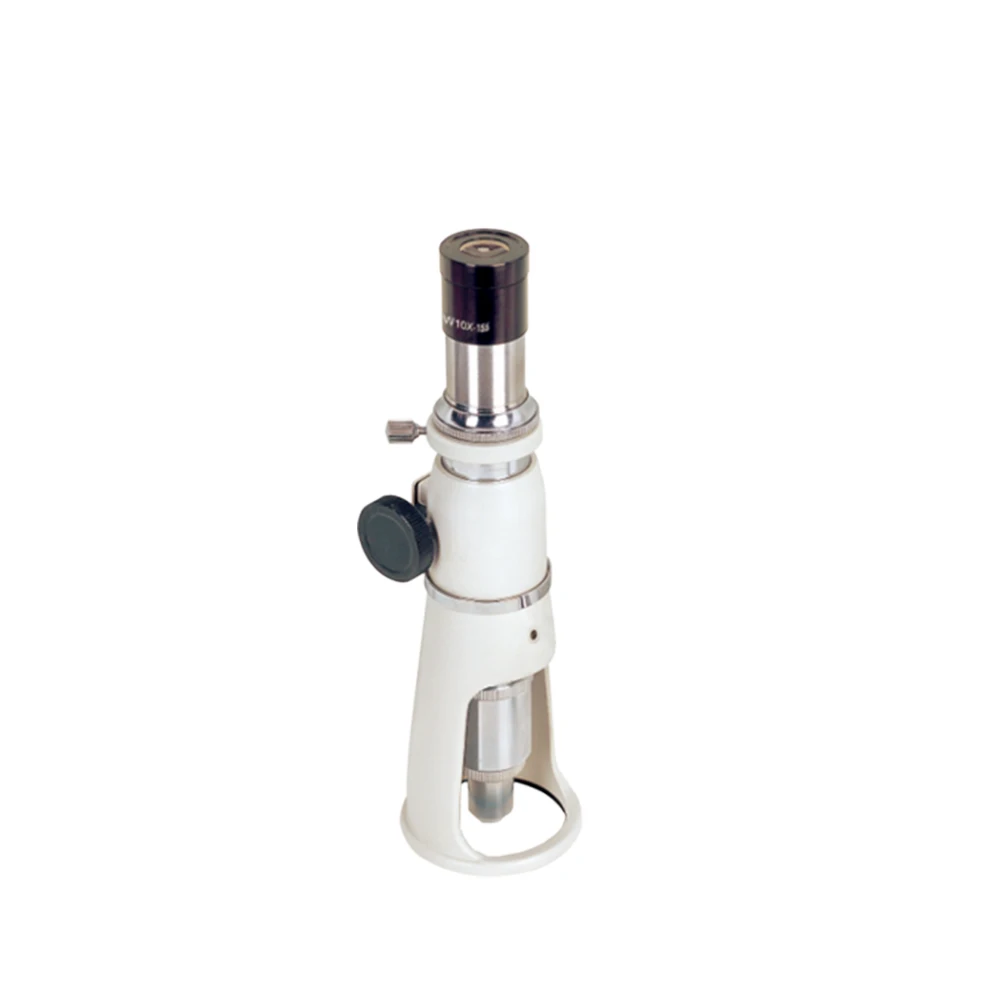

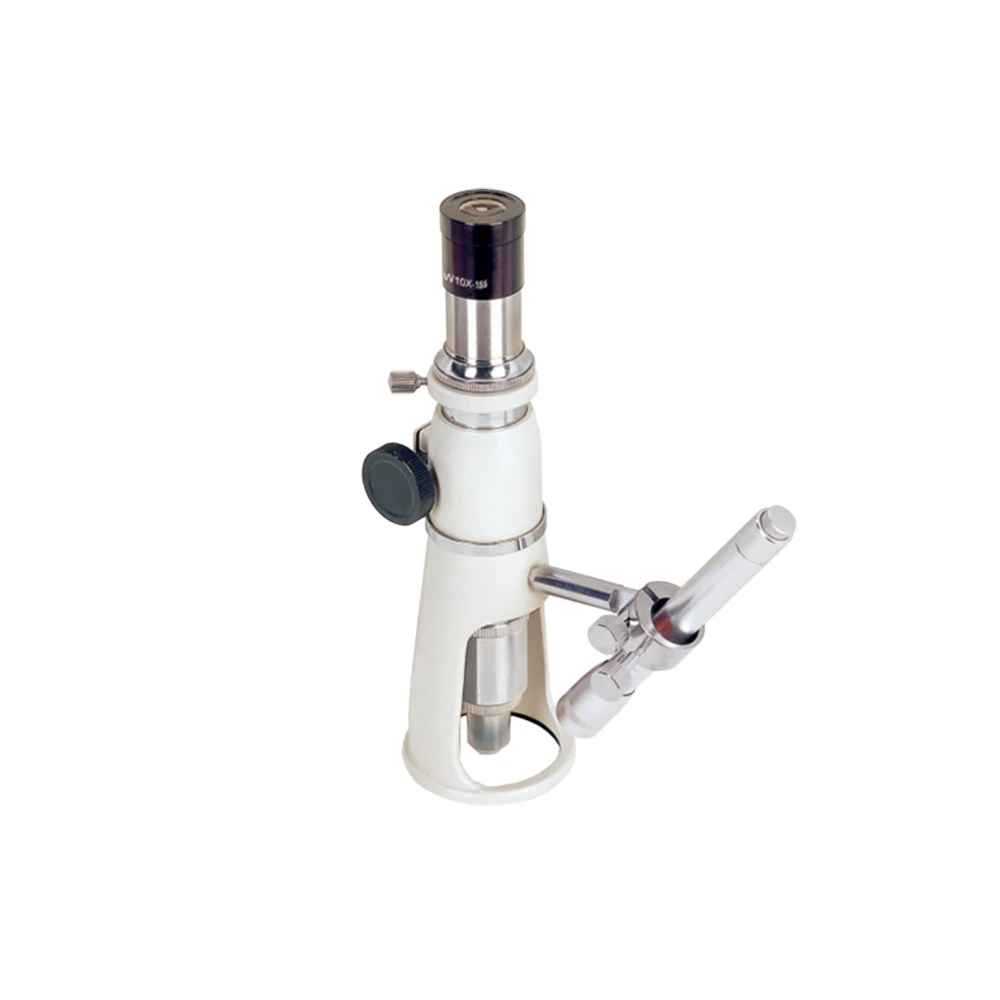

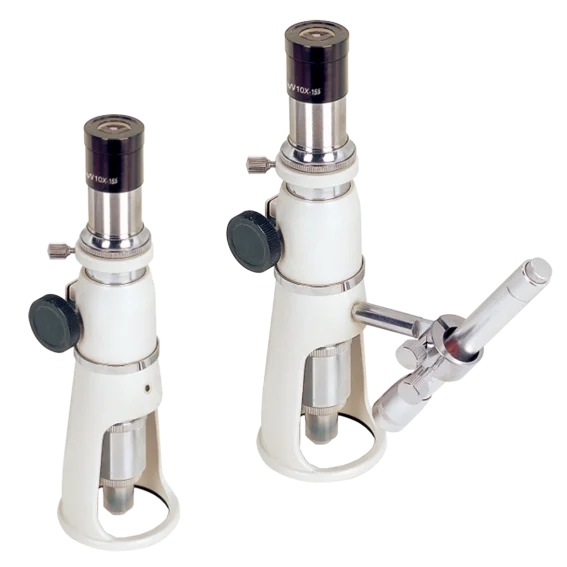

The portable measuring microscope isused for measuring or viewing purposes in production or laboratory. It is particularlysuitable for spot examination of machinery Industry, paper making, print and textileetc. The product features small size, light weight, nice design and easy operation It is also suitable to be used by students.
Specification
XC-100L | XC-50L | XC-40L | XC-20L | |
Total Magnification | 100× | 50× | 40× | 20× |
Mechanical Tube Length | 160mm | |||
Eyepiece | 10× | |||
Objective | 10× | 5× | 4× | 2× |
Numerical Aperture | 0.25 | 0.12 | 0.1 | 0.05 |
Diameter of Viewing field in Eyepiece | Φ18mm | |||
Reticule of Eyepiece | 0.1mm | |||
Minimum Readable Division | 0.01mm | 0.02mm | 0.025mm | 0.05mm |
Working Distance | 6.93mm | 17.6mm | 18mm | 17.2mm |
Focus Range | 30mm | |||
Diameter of Bearing Plane | Φ63mm | |||
Height of Microscope | 210mm | |||
Mass of Microscope | 650g | |||
Illumination | Pen light, No.2 battery | |||
