Product Overview

Description

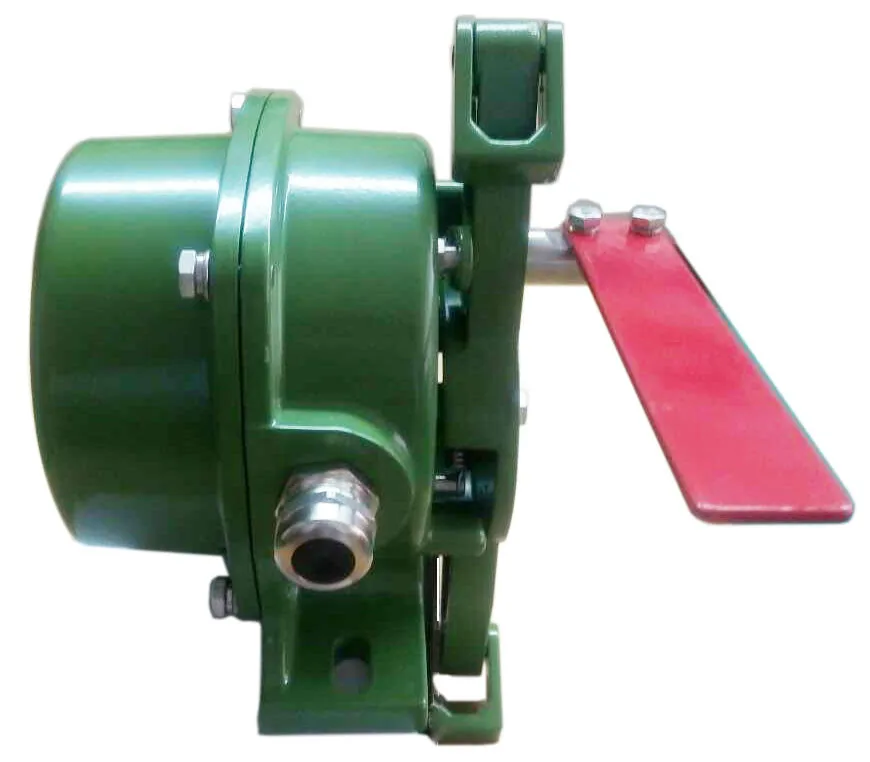

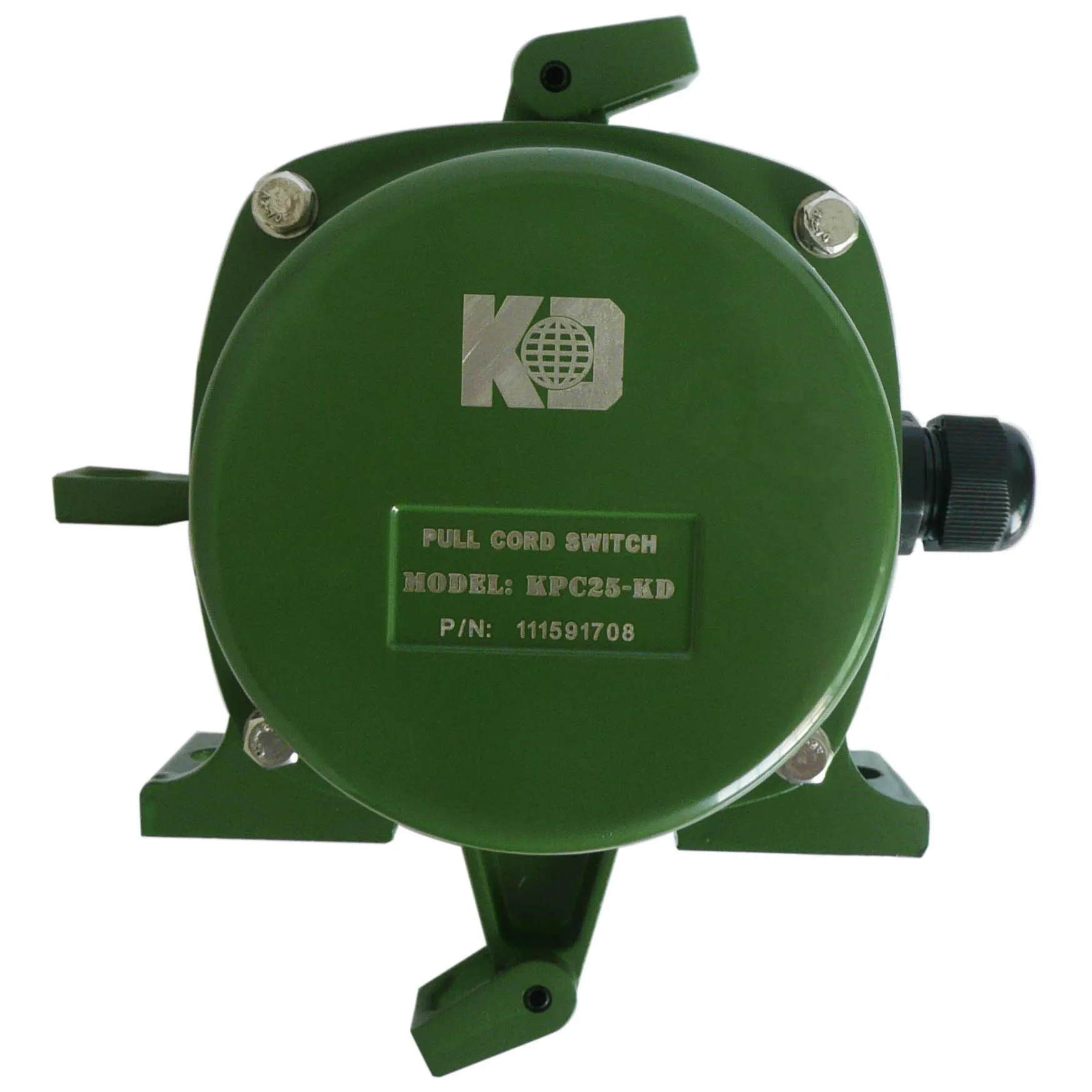

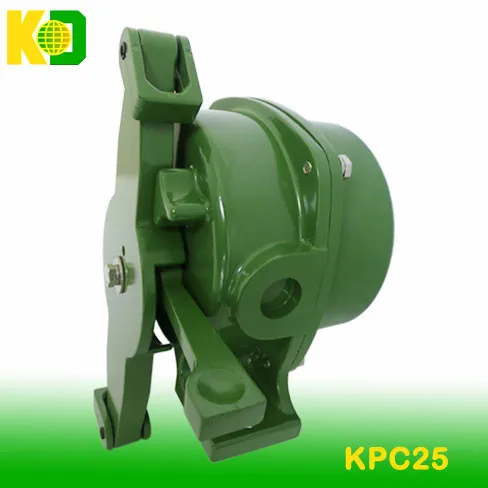

Belt conveyor safety switch



Belt conveyor protection switch (Pull Cord switch) are conveyor safety accessories designed to interlock with conveyor shut down systems in the event of maintenance or emergency. The heavy duty rugged design makes them suitable for most industrial applications, requiring long-term reliable equipment.





Specifications:



Switch working angle	20°
Limit point	60°
Actuating Force	49N (5kgf)
Number of contacts	1a1b
Contact capacity	AC:90-380V 15A
Reset mode	Manual
Ambient temperature	-25 °C ~ +60°C
Relative humidity	less than 85%

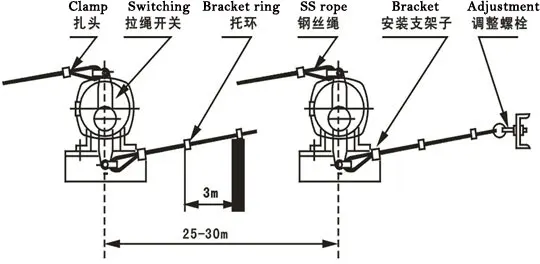

Drawings:

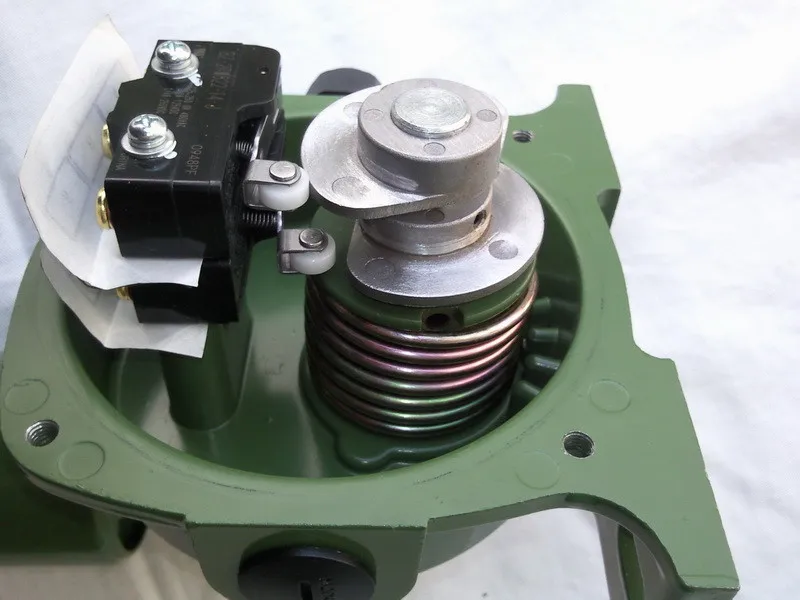

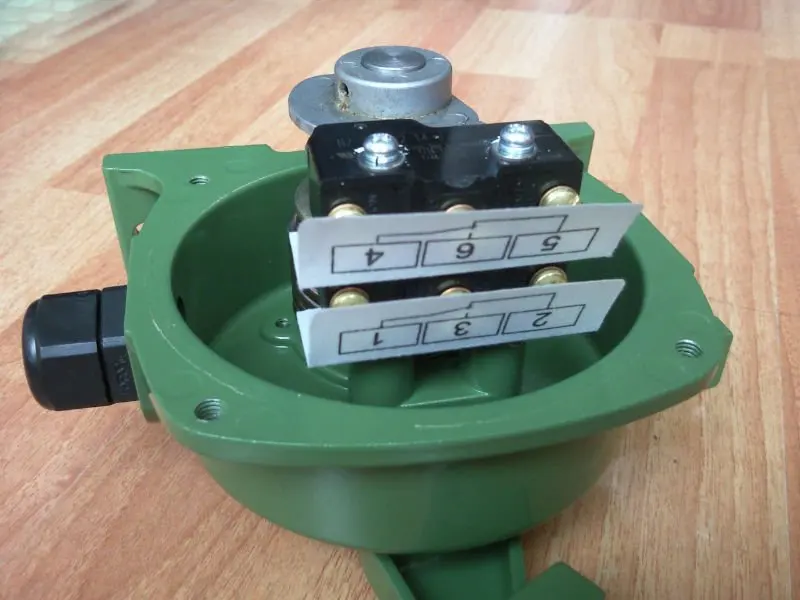

Inside structures:





Manfacturing facilities:
