Вакуумный санитарный насос dongfeng 4x2, 6 8 м3

Product Overview

Description

  6 to 8m3 dongfeng 4x2 vacuum sanitary sewage pump truck



A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.



Specification of   6-8m3 dongfeng 4x2 vacuum sanitary sewer truck:



Item		unit	parameter
Vehicle model			CLW5160GXWD4 Sewage Sucktion Truck
Chassis model			DFL1160BX4
Overall dimensions		mm	7970×2490×3380
	Fact cubage	L	10000
	Mass in working order	kg	Approx8805
	Body internal dimensions	mm	TBD
	Wheel base		4500,4200
	Rear Overhang		1430/2040
Engine		Model	ISDe185 40
		Displacment/horsepower	6700mL/180HP
		Type	6cylinder ,direct Inject , line , turbcharege
Tire specification		10.00-20,10.00R20,9.00-20,9.00R20	Traction system	4×2
Equipment		1,Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment 2,Time for full suction<5min 3,tank rear cover can be opened by air and dump ,

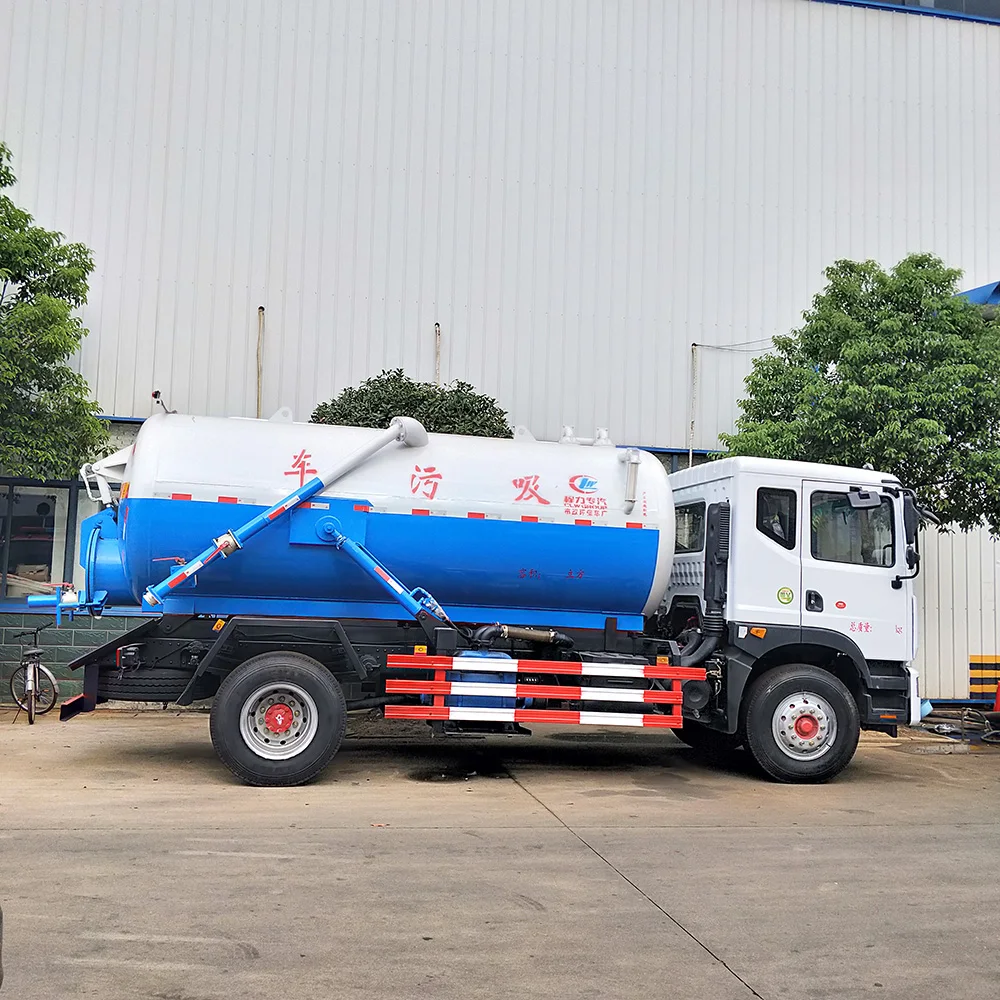

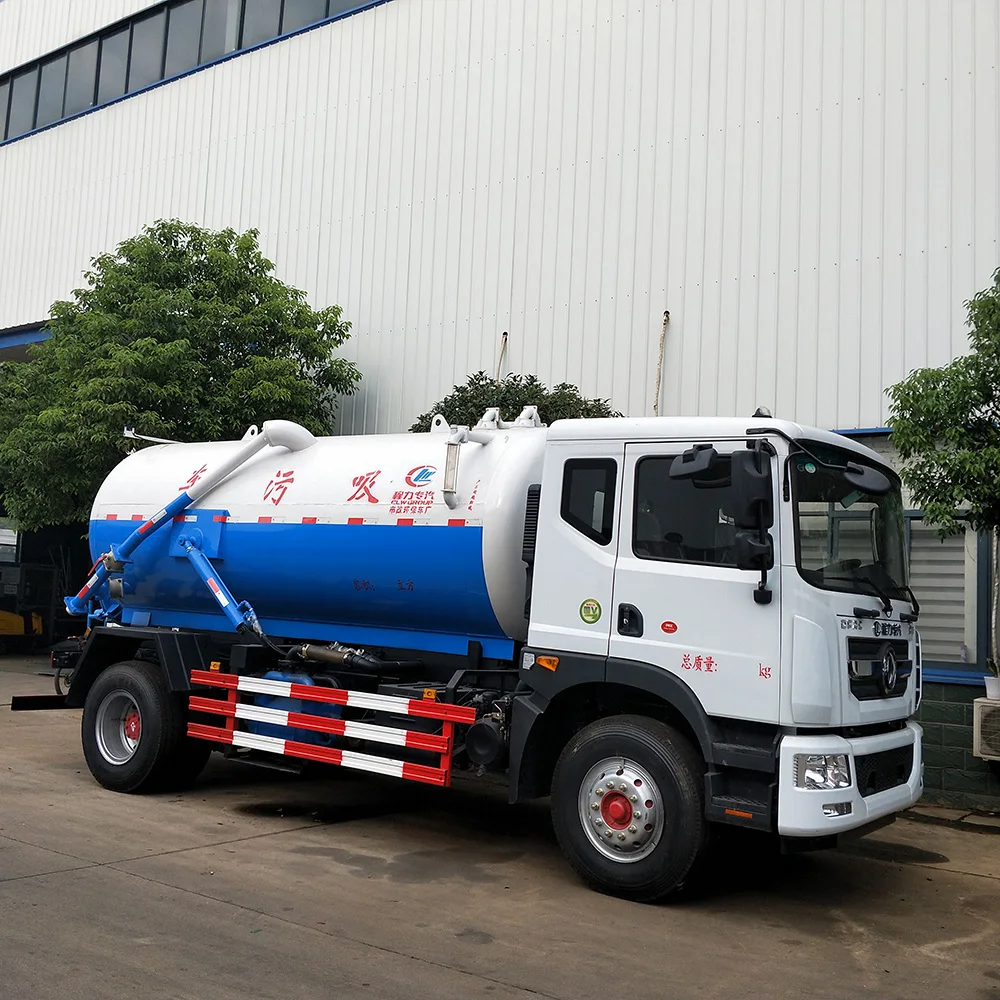

PIC of truck:













Packing :nude Surface spray wax

Shipping: with R-R ship or bulk ship



Photo for reference:







The vacuum truck cubage from 2000L-16000L



The drive type with 4*2,4*4,6*4,6*6,8*4,or semitrailer you can choose left hand drive



Many truck chassis for you choice,such as Dongfeng,FAW,North Benz,Foton,NISSAN,Hino,

HOWO,SINOTRUK,JAC,,etc.





Our gurantee period is 12months or 8000KM which comes first .







so if you have such requirements ,please contact me
