Cheaper cctv video camera power supply ( Only six models) DC 12V 1A 2A
- Category: >>>
- Supplier: Chaozhou Xiangqiao District Lirong Electronics Factory
Share on (1631444874):
Product Overview
Description

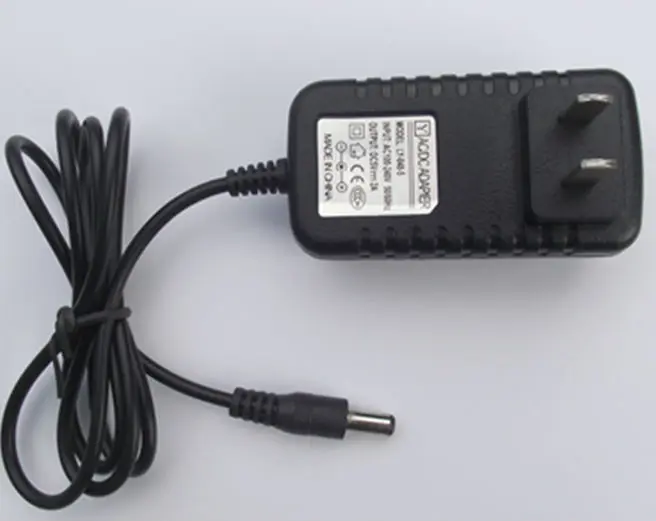

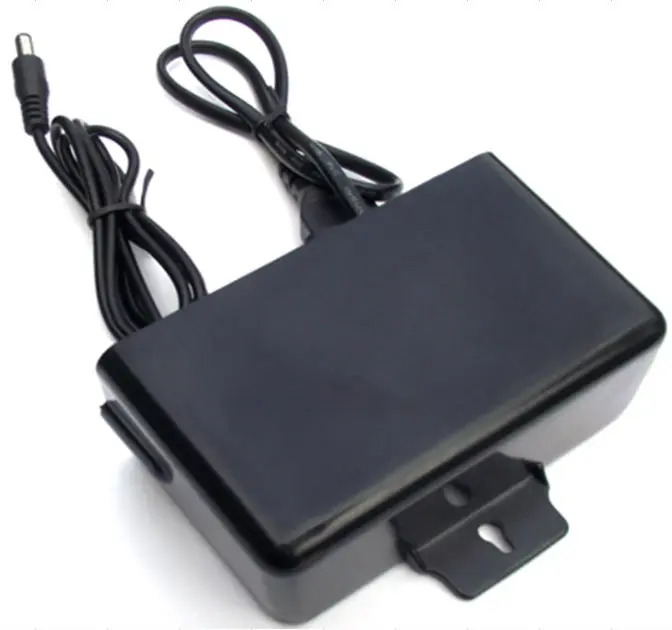

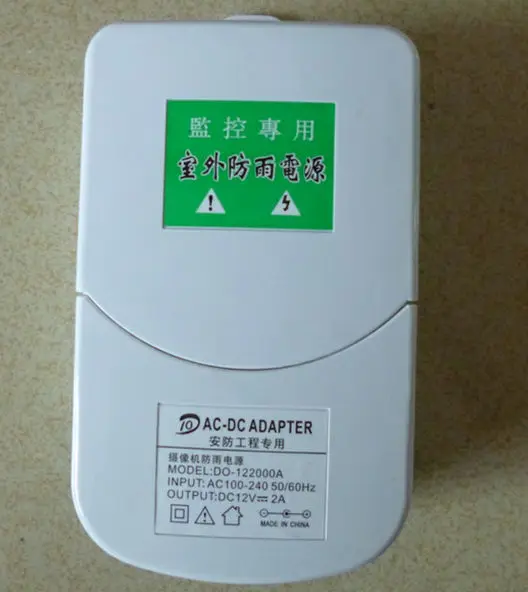

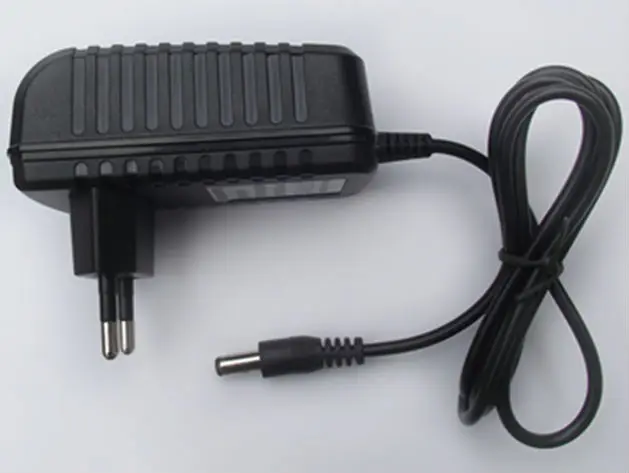

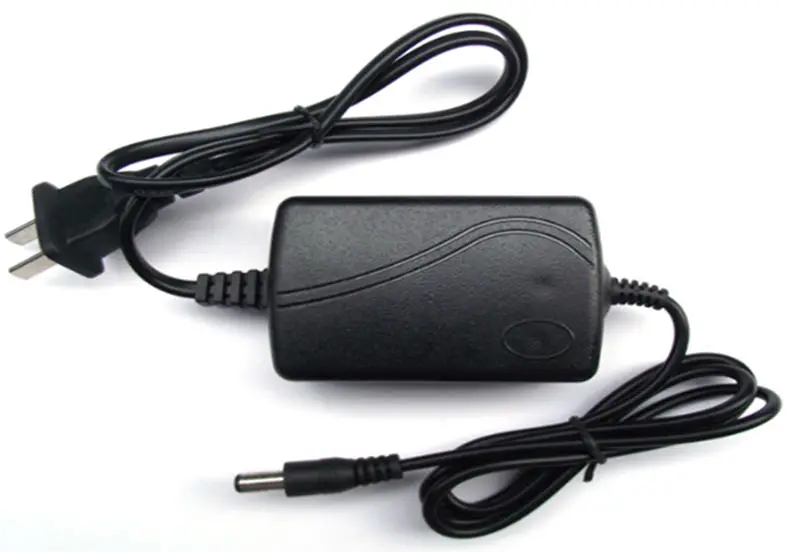

DC 12V 1A 1.5A 2A power adapter
1.Power Adapter,AC/DC Adapter
2.Output:12v 1A, 12W
3.Input:110V/240V 50-60Hz
4. Power Value Depletion : ±15%
5. EU Plug/America Plug
6. High quality transformer ,coil and capacitance
7. Output stability, strong anti-grid fluctuations.
8.Application:Mornitor, laptop,LED, Digital products ,Toy,CCTV
FEATURE | |
High efficiency >85% | |
Lowripple & noise | |
100% burn-in under high ambient temperature(60°C) | |
MTBF: 35,000 hours | |
100% Hi-pot tested | |
Turn on delay time ( <=3S ) | |
Hold-up time ( >=6mS ) | |
Rise time ( <60mS ) | |
AC leakage current ( <=0.25mA ) | |
ELECTRICAL REQUIREMENTS | |
INPUT SPECIFICATIONS | |
Input voltage range | 110Vac to 240Vac |
Frequency range | 50Hz to 60Hz |
Input current | <1.2A |
OUTPUT SPECIFICATIONS | |
Output power -- 12W | (+12V,1.0A) |
Output Voltage Ripple | +12V/(main)<=150mV p-p |
Output Voltage Setting | +12Vac |
PROTECTION REQUIREMENTS | |
Over current protection | <7A |
Overshoot | 10% |
Over voltage protection | Yes |
Short circuit protection | Yes |
Over power protection | Yes |
Fuse protection | Yes |
ESD, surge protection | Yes |
Mechanical requirements | |
ENVIRONMENTAL REQUIREMENT | |
Operating temperature | 0°C to +40°C |
Storage temperature | -20°C to +85°C |
Operating Humidity | 5% to 90% |
Storage Humidity | 5% to 95% |
JR-07C1A/1.5A
JR-14C2A
JR- R-01C 1A / 1.5A / 2A.
JR-15C 1A /1.5A / 2A .
JR-18C 1A / 1.5A
JR-08C 2A
• We accept payment via TT in advance(paypal and western union are welcomed).
• Payment must be made within 3 days after your bidding.
• TOTAL AMOUNT DUE includes the final auction price plus S&H(Shipping and Handling).
• The delivery time is strarting from we confirm the payment.
• In case of delay the delivery,so hope you charge it as soon as possible .
• Exact lead time is based on your amounts and fact. so you'd better show me your exact
qty,not uncertain .
• Some delivery time as follow:
Qty | Delivery Time(working days) |
less than 1k | 1-2 |
1k-3k | 2-4 |
3k-5k | 4-7 |
5k-10k | 6-10 |
10K-20k | 9-15 |
* the Data is a reference for buyer, Specific Situation will be given to you after asking me. | |
Remark | |
1.MOQ you can find in Products Attributes. | |
2.Please read all the information before you take a order. | |
