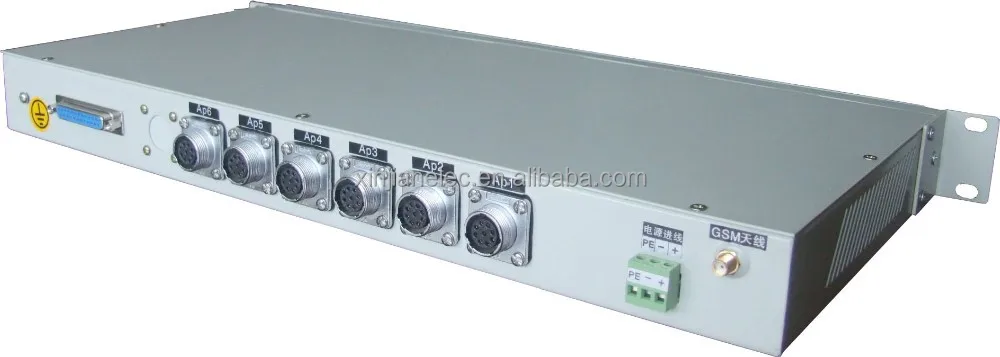

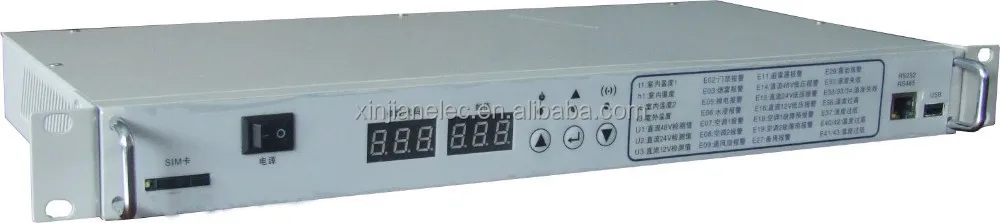

XJK DS2B remote monitoring for wimax base station

Product Overview

Description

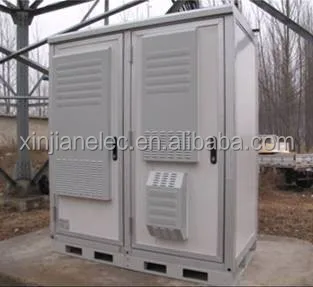

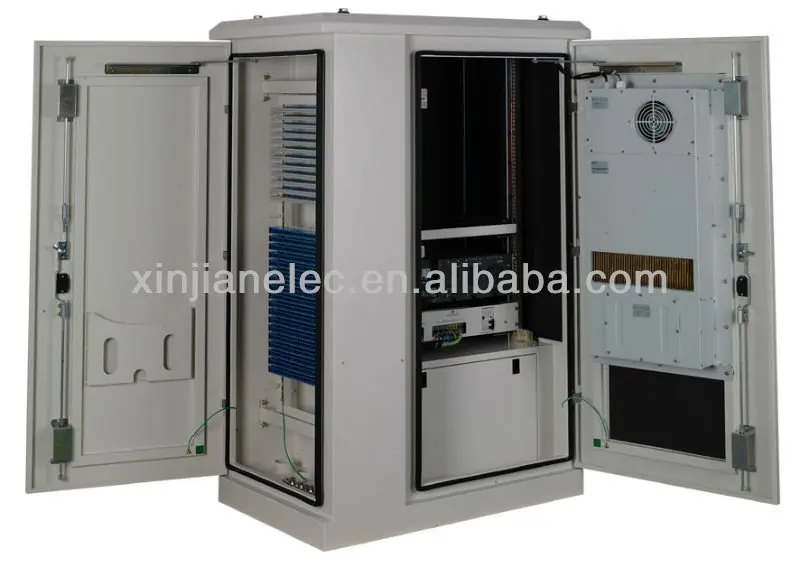

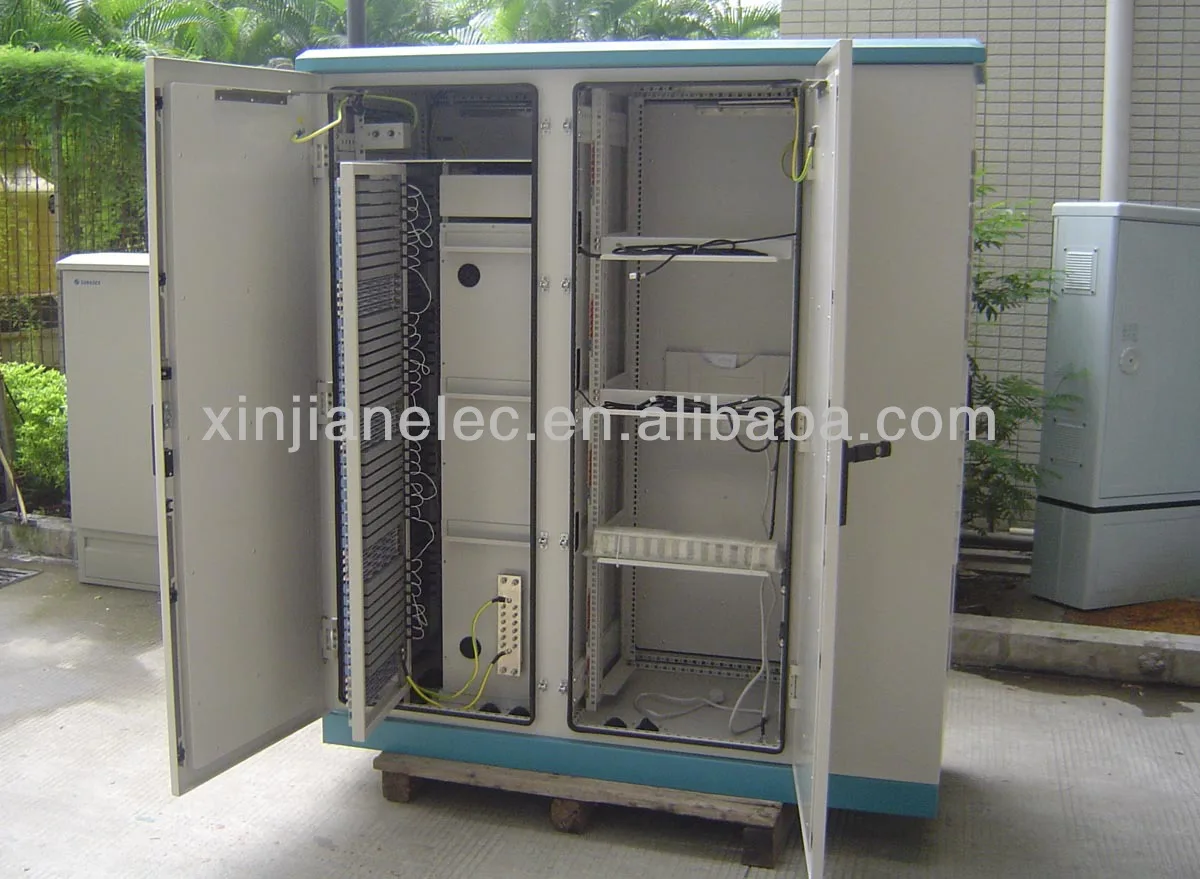

It’s our new product, designed for outdoor cabinet/ emergency communication car. Use 1U standard case, easy installation. It can monitor temperature / humidity / fire / intrusion/ DC voltage/ vibration / flood (waterleakage).

We are much experienced in research surveillance system for unmanned mobile shelter.



1. monitor environment condition, includes temperature x 3, humidity x 1, DC voltage x3 (DC 48V/ DC24V/ DC12V), intrusion x 1 (magnetic contacts), flood x 1, vibration x1, smog fire x1.
2. program: input/ output signal type/ alarm important grade and threshold value of each senser are all can be programmable.
3. communication: can upload alarm information / history recordings/ remote control via Ethernet@RJ45.
4. SMS: sent urgent alarm information to maintenance person phone via GSM, answer inquiry SMS.
5. alarm signal output: supply 8 relays to output alarm signal.
6. real time logging: sample and log environment condition and alarm information on interval time.
7. temperature control function: control the work of heater/ fan/ air-conditioner based on environment condition (optional)



1. rating voltage: DC48V/DC24V
2. display: LED
3. output relay: 8 channels
4. temperature detect range: -40 ~ 70°C
5. humidity detect range:5% ~ 95%
6. box size (mm): 482.6 (width) x 43.6 (height) x 168 (depth).

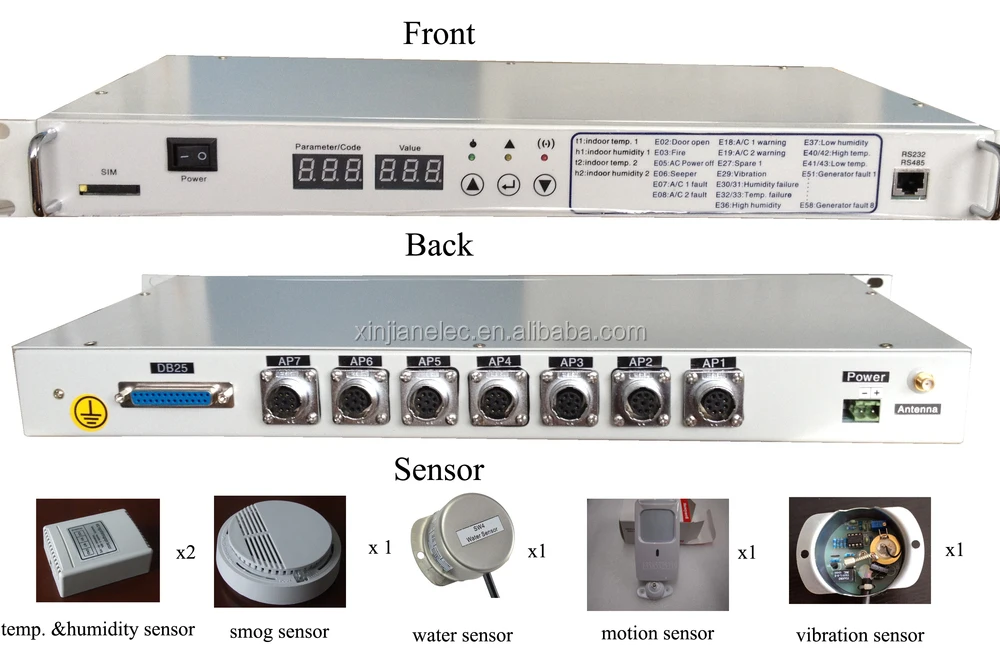

Sensor:

Type	Name	Number
103AT	temperature sensor	2
WS3	hygrothermograph sensor	1
SS-168P	smog sensor	1
HO-03	intrusion sensor	1
SW4	immersion sensor	1
ZD1	Vibration sensor	1
