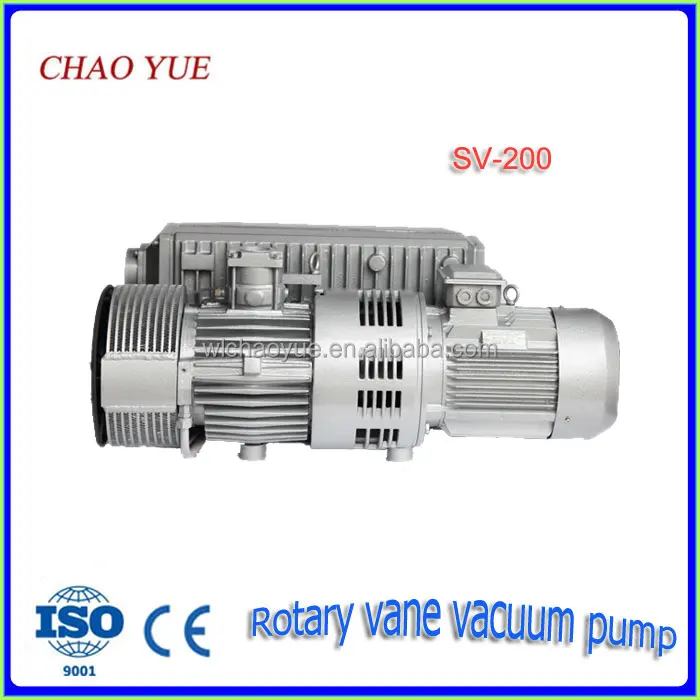

SV200 Single Stage Rotary Vane Vacuum Pumps

Product Overview

Description

Technical Data

Model

Pump speed (m3/h)

Ultimate vacuum (Pa)

Motor Power (KW)

Inlet Diam (inch)

Rotary speed (rpm)

Oil Capacity (L)

G.W  (kg)

Noise dB (A)

Dimensions (mm)

50HZ

60HZ

50HZ

60HZ

50HZ

60HZ

SV-200

200

240

50

5.5

5.5

G2

1440

1728

4.5

159

76

825*520*410





Single Stage Rotary Vane Vacuum Pumps

Introduction:

The single stage rotary vane vacuum pumps are used extensively in the vacuum packing or the other industrial field.

We are cooperated with the partners to ensure the quality and reality of our products.
good characteristic
1:High utmost vacuum rate,it can be less than 0.5mbar
2:High deflating speed
3:Low noise while working, lower than 67db
4:Strong capacity in deflating the vapor
5:Protecting eveironment;an oil fog clearer is set in the vacuum pump,and no oil fog in the exhaust air.
6:Compact structure,scientific and reasonable design,and it is easy to install in the industry system Application Range of Single-stage Rotary Vane Vacuum Pump

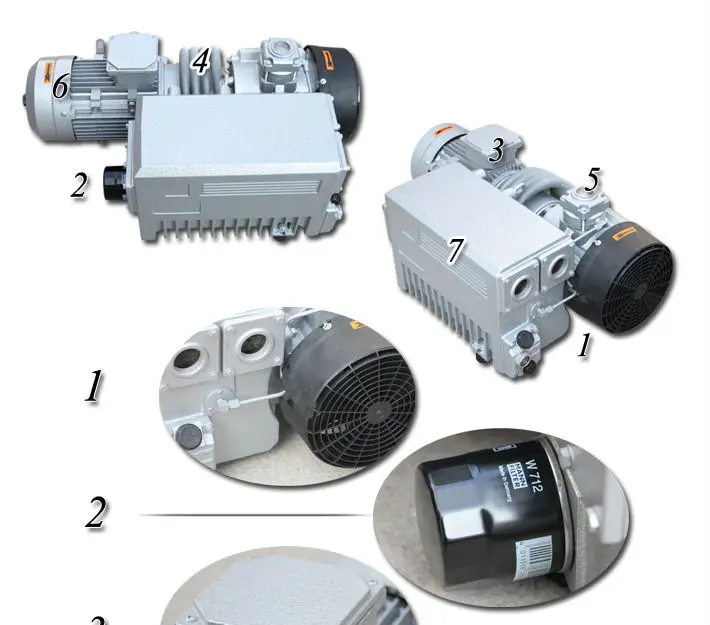

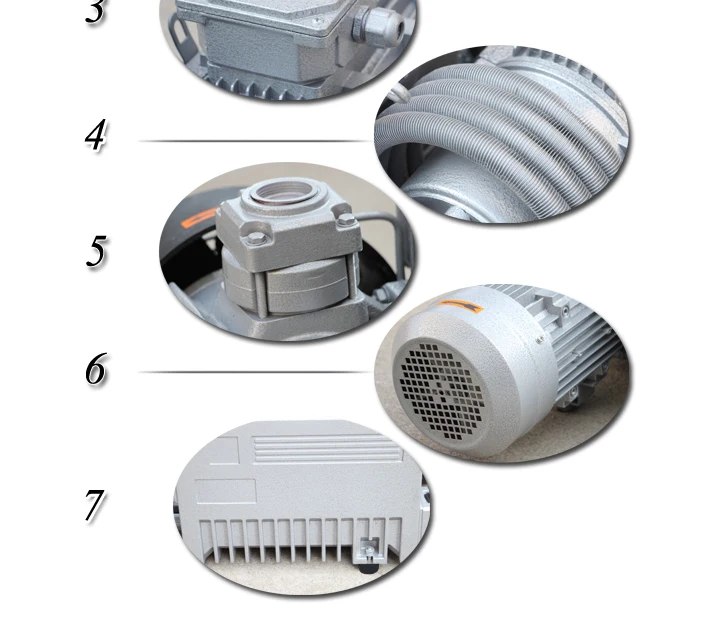

Detial Features Description:

1:It  can continuous work under the condition of the inlet pressure to atmospheric pressure

2: Strong ability to eliminate water vapor

3:Compact structure, small size, save a space

4: It can be used with all kinds of accessories, and thus meet the needs of various applications

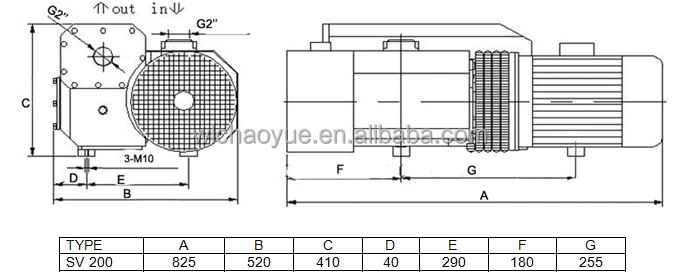

The following is drawing SV



Principle of Operation:

The rotary vane vacuum pump works on the rotating vane principle.

A circular rotor(s) is positioned centrically on the shaft of the vacuum pump.

The shaft of the vacuum pump is driven by the drive motor shaft by means of a flexible coupling.



The rotor (s) is rotates in an also circular, fixed cylinder (t),the centreline of which is offset from the centreline

of the rotor such that the rotor and the inner wall of the cylinder almost touch along a line.





In order to avoid the suction of solids, the vacuum pump is equipped with a screen in the suction connection
