HC8610 Automatic Truck Tire Changer without Turn Table
- Category: >>>
- Supplier: Hauvrex (hangzhou) Automotive Equipment Co. Ltd.
Share on (1633953534):
Product Overview
Description
Related Products
Product Description
Automatic Tilt Column Tyre Changer without Turntable, with Tire Lifter and Dual Helper Arms | ||
Tyre Changer model | HC8610 | |
Outer Clamping Range | 12"~28" | |
Inner Clamping Range | 10"~24" | |
Max. Wheel Diameter | 1150mm | |
Max. Wheel Width | 3"~15" | |
Beadbreaking Force | 2700kg | |

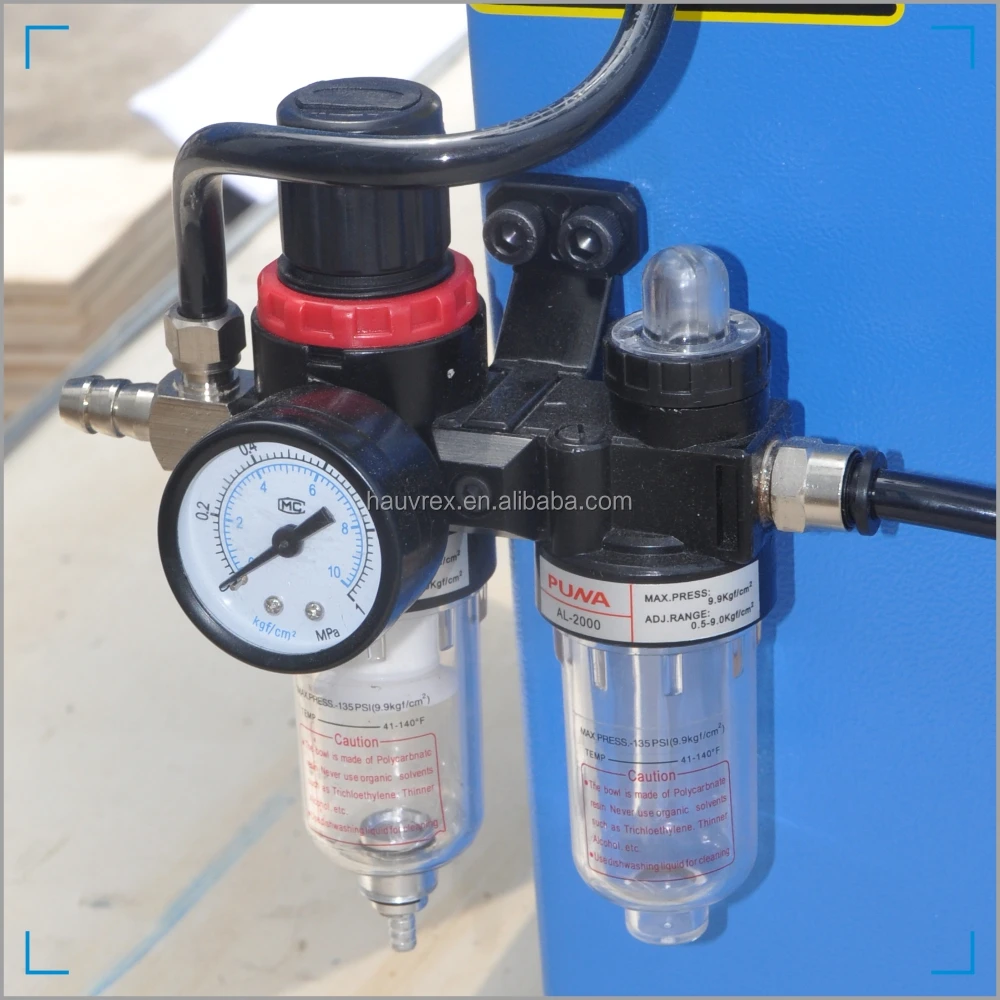

Operating Pressure | 8~10 bar | |
Power Supply | 220V/50Hz/1Ph, 1.5kW 380V/50Hz/3Ph, 1.0kW | |
Technical Features
HC8610 | Automatic Tire Changer
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking .
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.

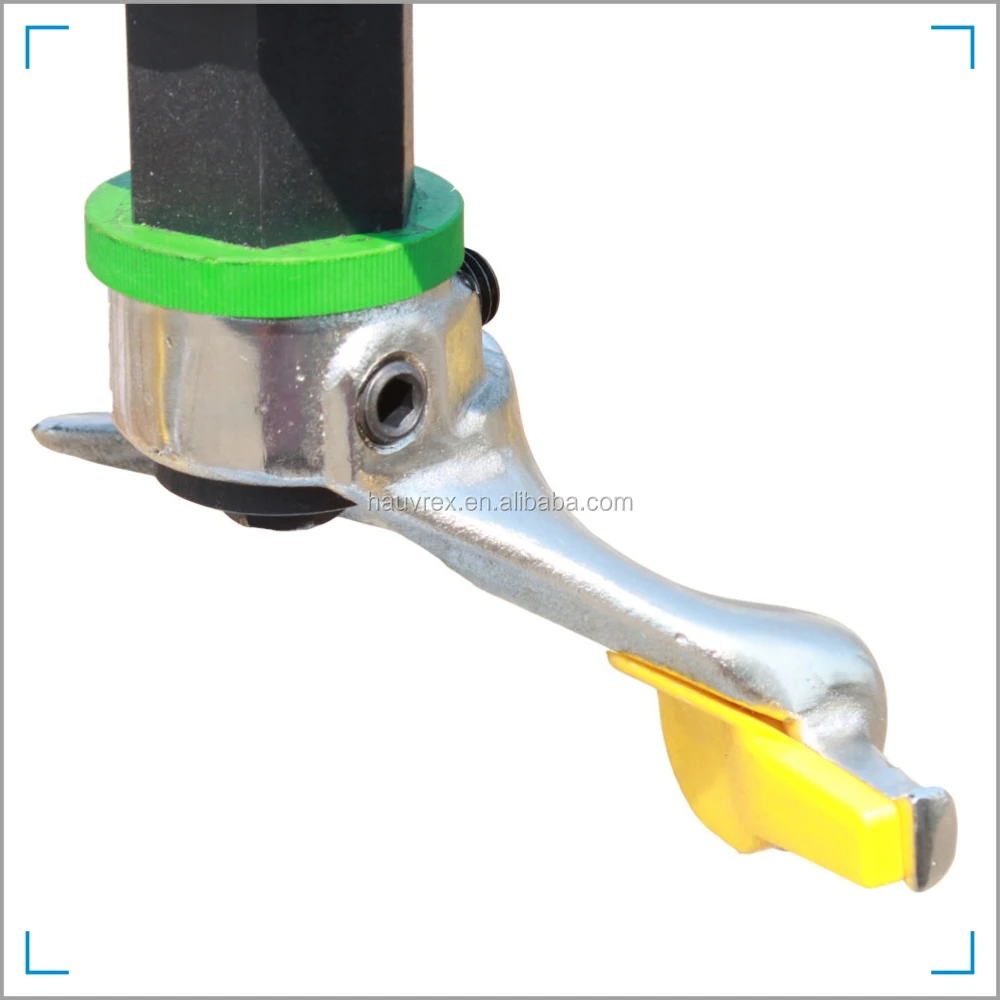

♦ Tool head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.

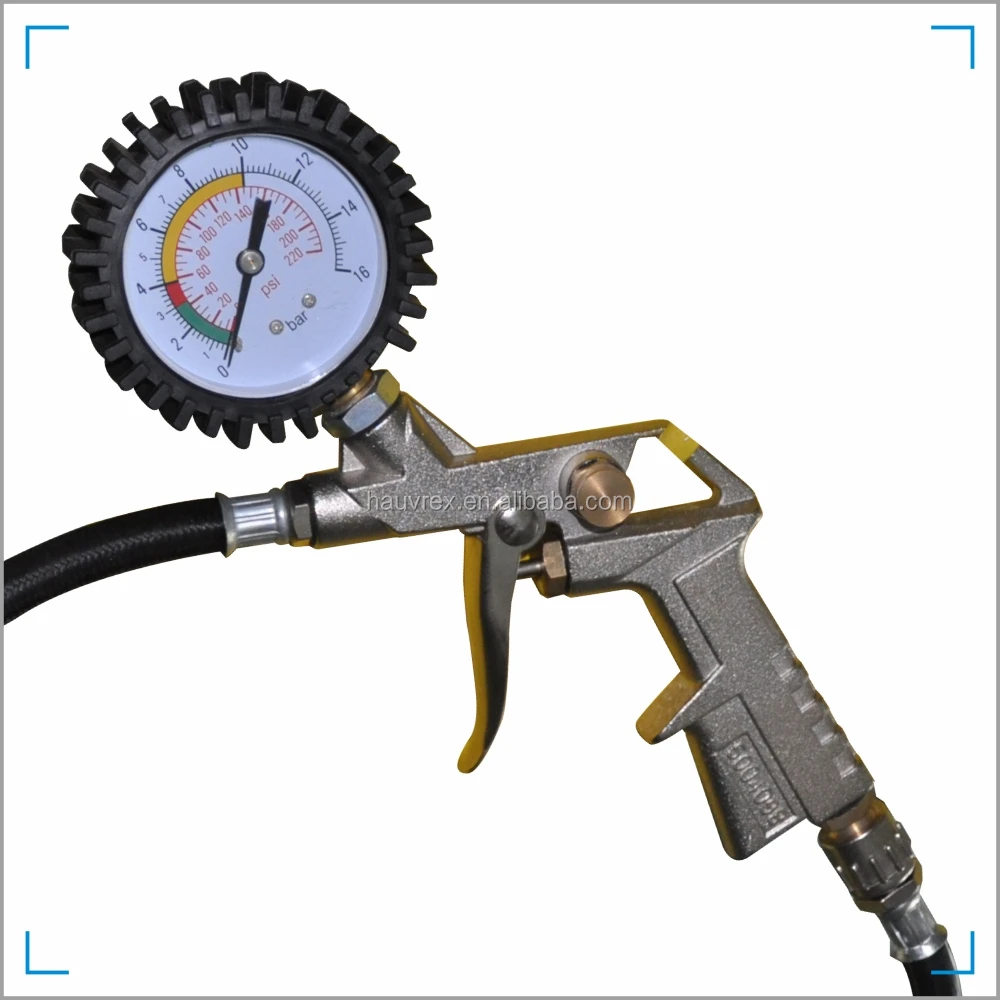

♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
♦ Integrated wheel lift reduces fatigue and the chance for injury presented by handling heavy tires and rims.
PX30 left helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.

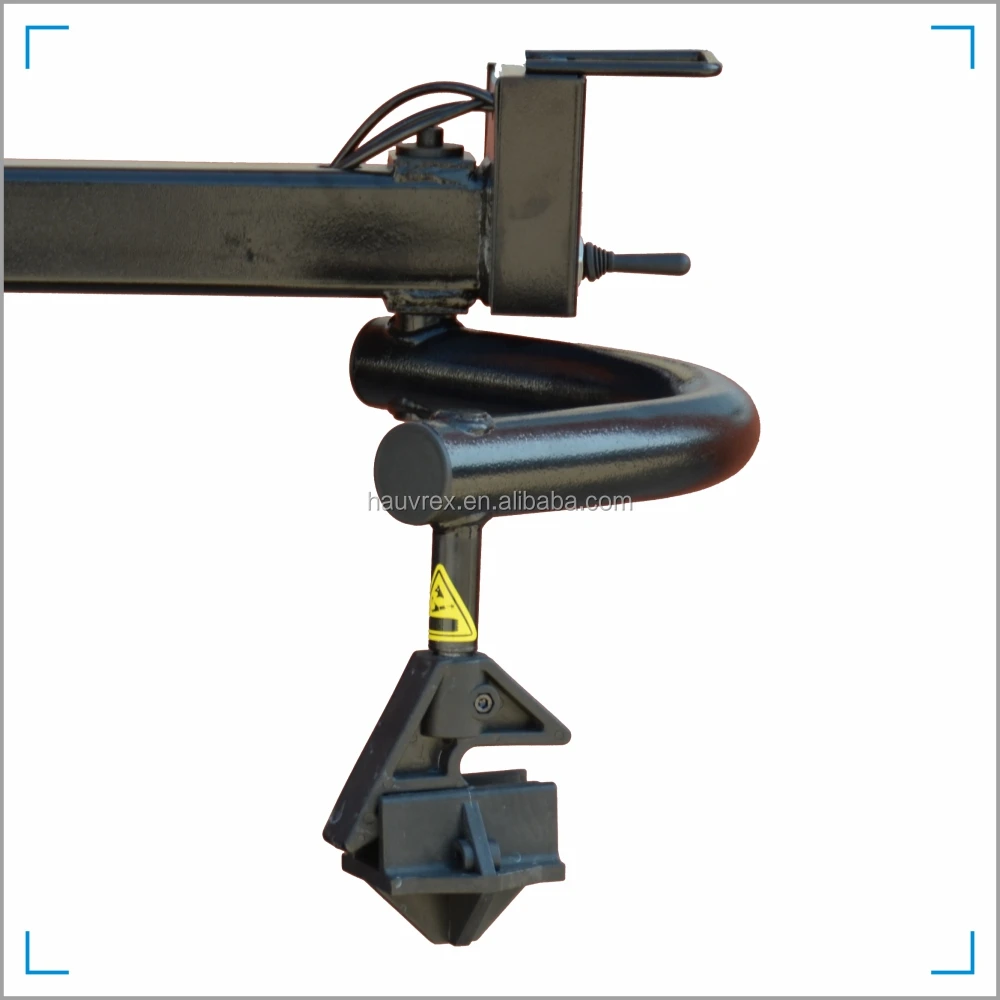

DP70 right helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual bead roller system.
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking .
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
♦ Integrated wheel lift reduces fatigue and the chance for injury presented by handling heavy tires and rims.
PX30 left helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
DP70 right helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual bead roller system.
Details Images
Standard Accessories
Packing & Delivery
Buyer Reviews
Company Information
Hauvrex is dedicated to providing professional garage equipment and tools with high performance-price ratio. Established in 2009, Hauvrex is a supplier and manufacturer of professional garage equipment and tools. Our products range covers car lifts, tyre changers, wheel balancers and wheel aligners, etc. Hauvrex adopts advanced management system and has strong technical power as well.
We hope to become your earnest business partner and warmly welcome your esteemed presence!
We hope to become your earnest business partner and warmly welcome your esteemed presence!
Certifications
FAQ
1.What are the main products of HAUVREX ？
1)car lifts(1 post lift, 2 post lift, 4 post lift, scissor lift, etc)
2)tire changer(car tire changer, truck tire changer, semi-automatic tyre changer, full-automatic tyre changer)
3)wheel balancer(car wheel balancer, truck wheel balancer, semi-automatic wheel balancer, full-automatic wheel balancer)
4)Wheel alignment(commercial ccd Wheel alignment, car wheel alignment, 3D wheel alignment, truck wheel alignment)
2.How is the quality of your products?
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
3. What services do you have?
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
4. Do you have a warranty?
Yes. We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.
1)car lifts(1 post lift, 2 post lift, 4 post lift, scissor lift, etc)
2)tire changer(car tire changer, truck tire changer, semi-automatic tyre changer, full-automatic tyre changer)
3)wheel balancer(car wheel balancer, truck wheel balancer, semi-automatic wheel balancer, full-automatic wheel balancer)
4)Wheel alignment(commercial ccd Wheel alignment, car wheel alignment, 3D wheel alignment, truck wheel alignment)
2.How is the quality of your products?
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
3. What services do you have?
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
4. Do you have a warranty?
Yes. We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.
