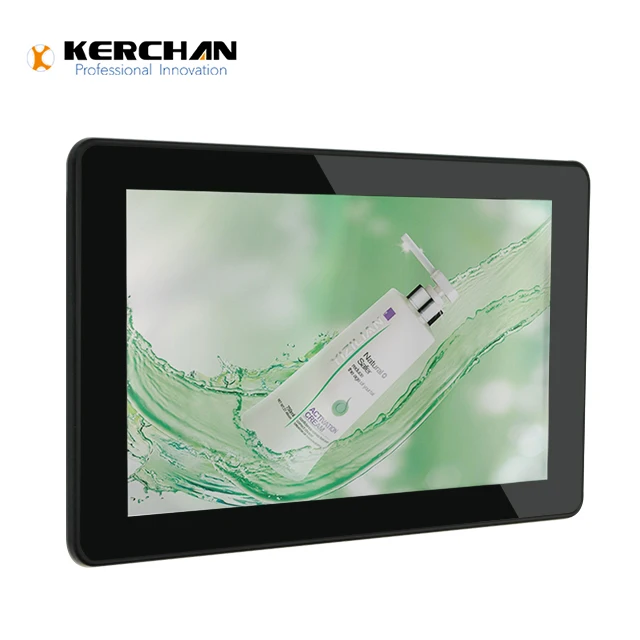

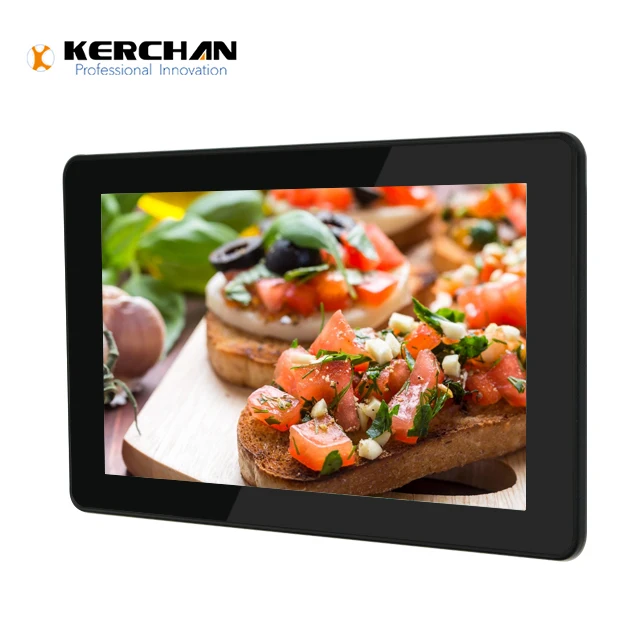

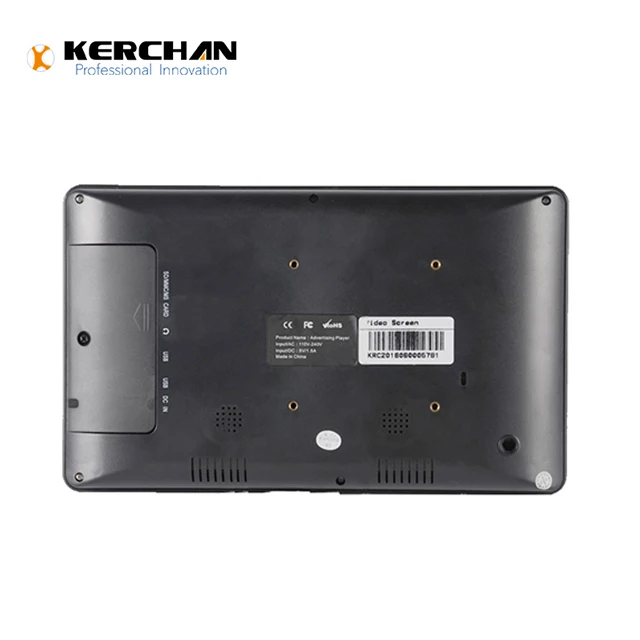

10 inch Small lcd advertising player with Composite Video Input

Product Overview

Description





10 inch Small lcd advertising player with Composite Video Input



This video monitor is one indoor used screen, it will auto play videos or photos in a loop when power on and controled by motion sensor. It is usually using in the supermarket,retail shop,Fair,Salon etc. Or combined different display together for promotion and advertising.









Model No.: SAD1010N





Main Funtion:







1. Auto Copy: Automatically copy the file from SD to Memory, USB to Memory or USB to SD
2. Play from Memory card(SD/MMC/MS),USB host or inbuilt memory(optional)
3. Automatically Play Files ( pictures and videos mixed ) after Power-On
4. Auto Repeat: Display all media files in a loop automatically
5. Motion Sensor:
               1). Power on/off automactically with or without detecting the moving body;
          or 2). Mute or Enable sound without or with detecting the moving body;
               3). The interval time for motion sensor can be setup via Setting Menu;
6. Support Multiple File Format: JPG, WMA, MP3, MPEG 1/2/4, Divx, Xvid, AVI

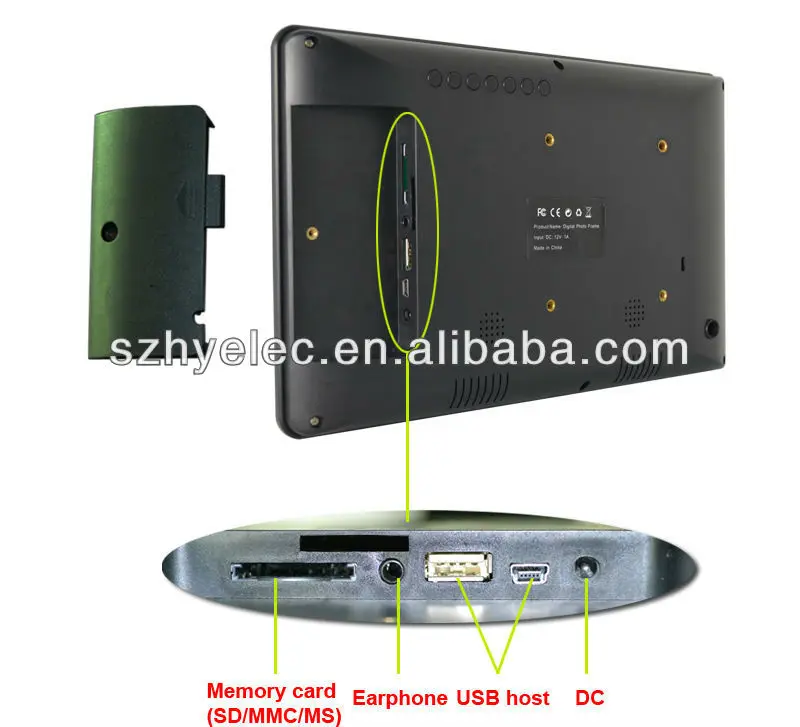

7. Support SD/MMC/MS memory Card, and USB Host, with Slots cover to protect the
   Cards
8. Timer Function: Auto Power On / Power Off at pre-set time
9. Power consumption: 500ma when it's playing, 5ma when it's standby mode







Specification :







Panel Data
Panel Size		10"
Display Ratio		16:9
Resolution		1024x600
Color		16.7M
Pixel Pitch (mm)		0.2175(H) x 0.2088(V)
Brightness (nits)		250cd/m2
Contrast		300:1
View Angle		80/80/80/80
Response Time		16ms
Life (hrs)		25000
Specification
Material		Plastic case + Anti-scratch Acrylic Panel
Installation		VESA Standard Wall Mount
Unit Size		272*166*24.5mm
Image Resolution		5000 x 5000p Max
Video Resolution		720 x 480p Max
Internal Memory		Don't Support
Speaker		2 x 1W ( at the side )
Remote Controller		IR Remote Controller
Menu Language		English, Germany, French, Spanish, Russian and Others
Power Supply		100-240V AC / 5V DC, 1.5A
Power Consumption		No more than 6W
Working temperature		0oC~50oC
Storage temperature		-20oC~60oC
Working humidity		85%
Packing		10pc/ctn, 34.5*44.5*46.5 cm, N.W.: 12.2kg, G.W.: 17.8kg
Standard Color		Black
Optional Function
Without Motion Sensor





Our small video monitor support external battery solution also. Welcome to inquiry us for more details.

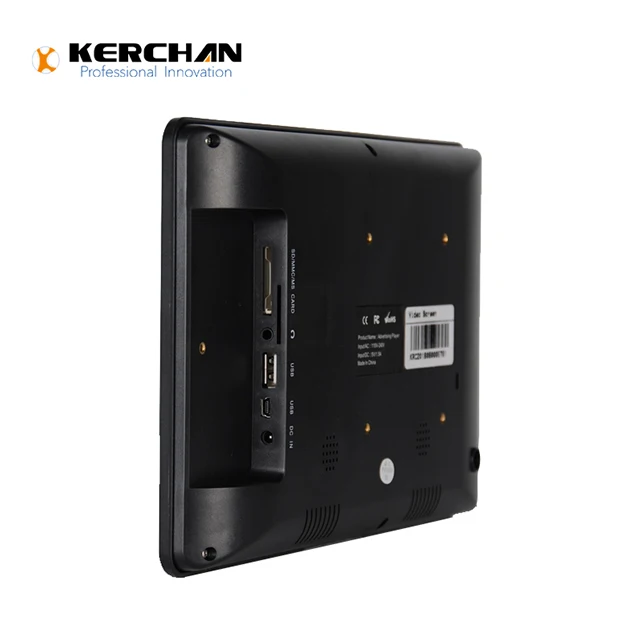

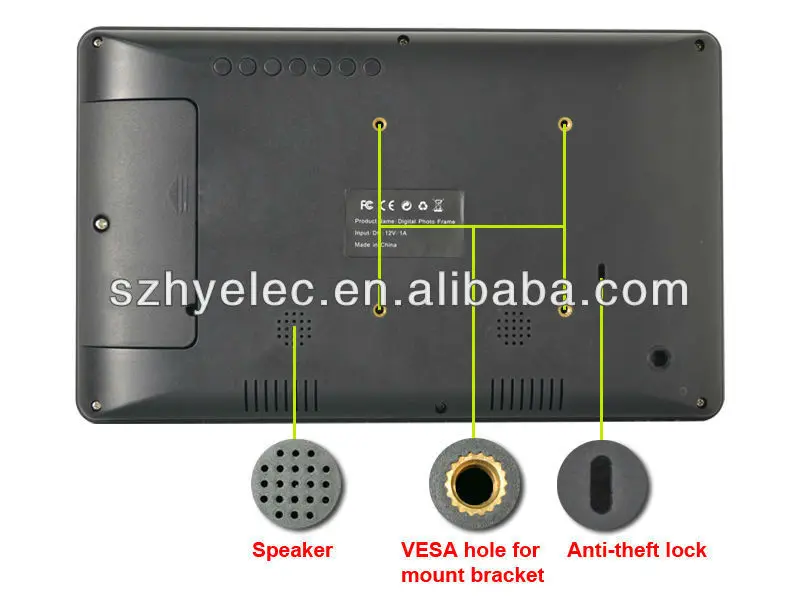

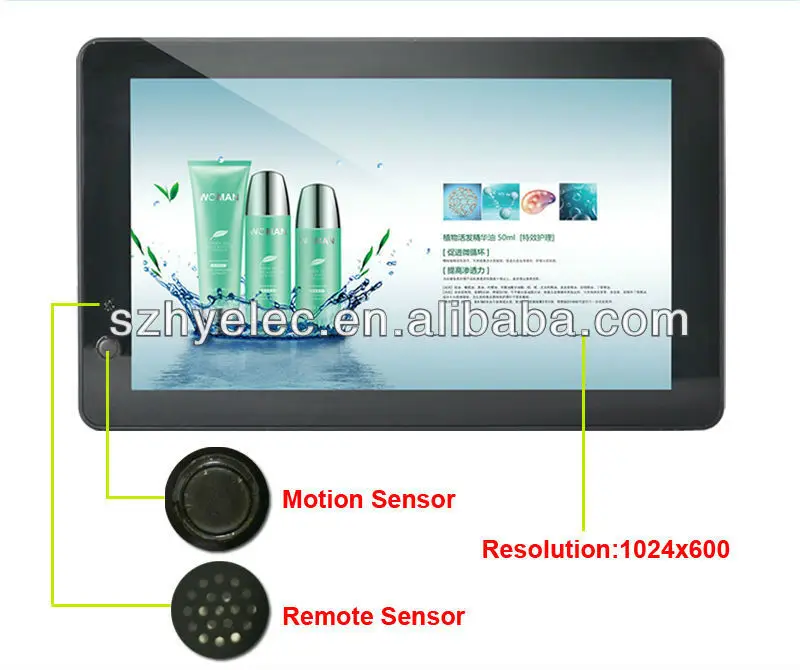

Others Photos for Details of Video Monitor

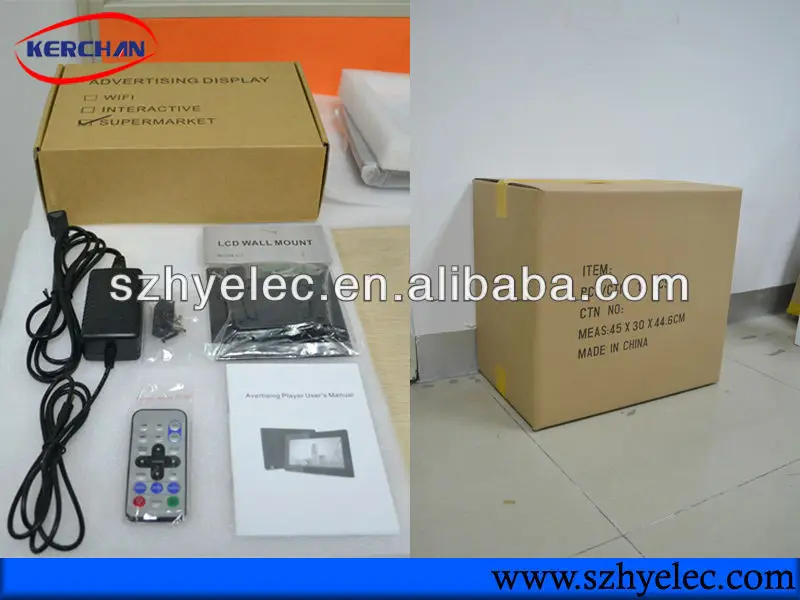

 Packing:

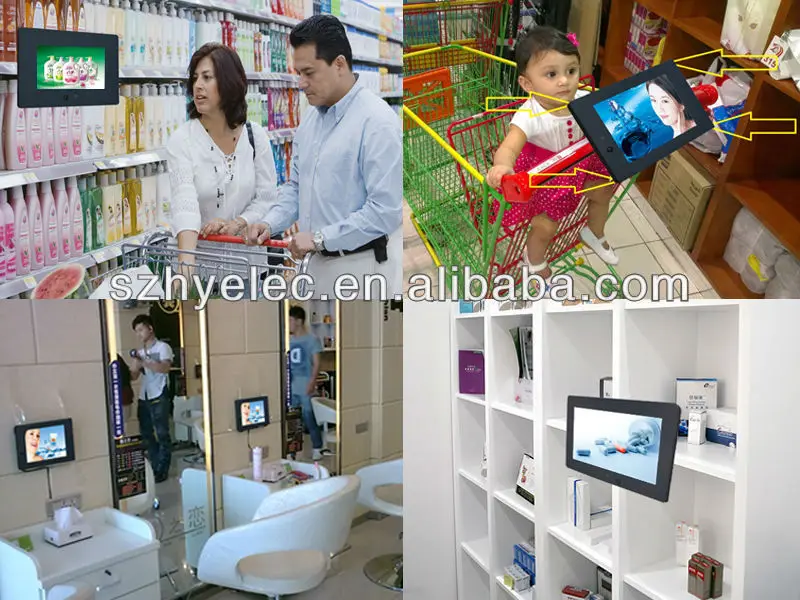

   Application:
