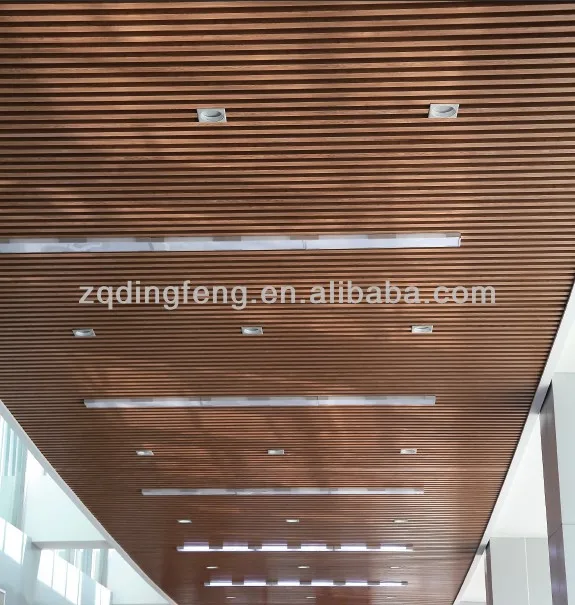

Wood color aluminium strip ceiling for outdoor, PVDF coated
- Category: >>>
- Supplier: Zhaoqing Dingfeng Building Materials Co. Ltd.
Share on (1636454338):
Product Overview
Description
Product Description
 | 1) Surface smoothness and easy cleaning 5)Function: Acoustical, Fireproof, Waterproof, Washable, Light reflec |
| Type | Ceiling Tiles |
| Thickness | 0.20 to 1.20mm |
| Width | 20 to 100mm |
| Height | 30 to 300mm |
| Max length | <6000mm |
| Surface treatment | PVDF roller coating |
| Certificates | SGS, BV, ISO |
| Warranty | 15 years |
| OEM/ODM | yes |
| Item | Test Item | Standard | National standard | DF Test Result |
| 1 | Color Difference | ECCA T3 | Δ E≤ 2.0 | Δ E≤ 1.5 |
| 2 | Gloss Difference | ECCA T2 | ≤ 10 | ≤ 5 |
| 3 | Coating Thickness | ECCA T1 | Two layers Min 23um | ≥ 24um |
| Three layers Min 30um | ≥ 33um | |||
| 4 | Pencil Hardness | ASTM D3363 | ≥ HB | HB |
| 5 | T-bend | ASTM D4145 | ≤ 2T | ≤ 2T |
| 6 | Adhesion | ASTM D3359 | Grade 0 | Grade 0 |
| 7 | Impact | ASTM D2794 | ≥ 50 kg/cm | ≥ 50 kg/cm |
| 8 | Boiling water Resistance | GB/T17748 | 2h No Change | 4h No Change |
| 9 | Solvent Resistance | ASTM D2248 | 200 times paints remaining | 500 times no break |
| 10 | Acidity Resistance | ASTM D1308 | 5%HCL 24hrs no change | No change |
| 11 | Alkali Resistance | ASTM D1308 | 5%NaOH 24hrs no change color Δ E≤ 2.0 | No change |
| 12 | Nitric acid Resistance | AAMA620 | Δ E≤ 5.0 | Δ E≤ 5.0 |
| 13 | Oil Resistance | ASTM D1308 | 20# oil 24hrs no change | No change |
| 14 | Salt Spray Resistance | ASTM B117 | 4000hrs≤ Grade 1 | No change |
| 15 | Abrasion resistance | ASTM D968 | ≥ 5L/um | ≥ 5L/um |
| 16 | Dirt Resistance | GB/T9780 | ≤ 5% | < 5% |
| 17 | Color retaining | GB/T16259 | 4000 hrsΔ E≤ 4.0 | 4000 hrsΔ E≤ 3.0 |
| 18 | Gloss weaken Level | GB/T16259 | 4000 hrs ≤ Grade 2 | 4000 hrs ≤ Grade 2 |
Company Information
Packaging & Shipping
FAQ
Q1: Do you have them in stock?
A1: no. All the goods will be produced according to your order.
Q2: What is the time of delivery?
A2: it usually takes 15-20 days to produce an order. However, for different orders or different times, the exact delivery time may vary.
Q3: Can I mix different colors or specifications in one container?
A3: yes, different colors or specifications can be mixed in one container, but the quantity of each color or specification cannot be less than the moq.
Q4: How well is your factory doing in quality control?
A4: quality comes first. "Management for efficiency, quality and survival" is our purpose. Every product is carefully tested before being packed and shipped.
Q5: Will you deliver on order? How can I believe you?
A5: yes, we will. "Integrity, mutual benefit and win-win" is our business philosophy. If you have any questions, welcome to our factory.
