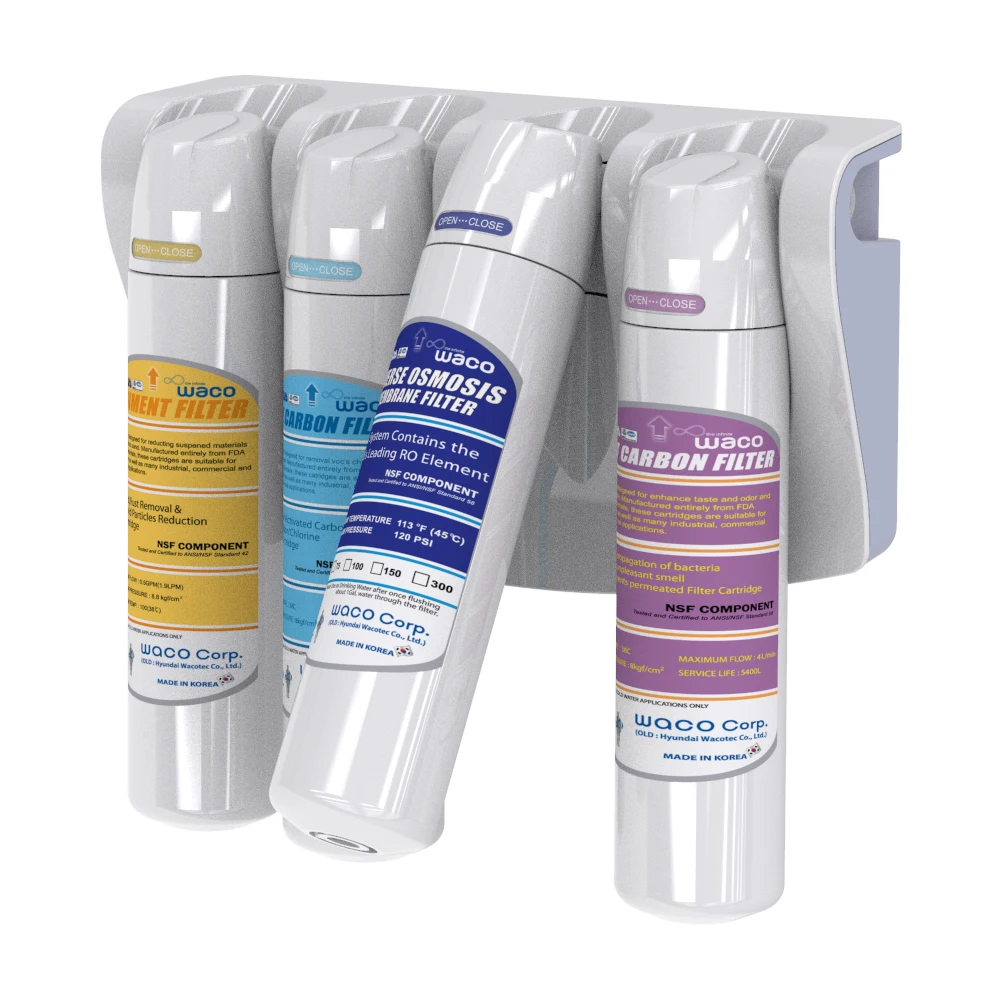

Undersink Water Purifier Quick Change Filter System
- Category: >>>
- Supplier: WACO Corp.
Share on (163754778):
Product Overview
Description
Quick Change Ultimate Inline Water Filter
* QUICK AND SOFT FILTER CHANGE
- Model :HQ7 Series RO System / UF System - Application : DIRT / RUST, TASTE / ODOR, CHLORINE, VIRUS, BACTERIA, E-COLI
* Patented Product
* No tools, No Water Spillage
* Easy Filter Replacement
4 STAGE :
* RO TYPE : Sediment Filter + Pre Carbon Filter + RO membrane Filter + Post Carbon Filter * UF TYPE : Sediment Filter + Pre Carbon Filter + UF membrane Filter + Post Carbon Filter
3 STAGE
* RO TYPE : Sediment Filter + RO membrane Filter + Post Carbon Filter * UF TYPE : Sediment Filter + UF membrane Filter + Post Carbon Filter
3 STAGE(HQ7 3FMU)
* Improving filtering performance by the Multi-Plus Composite filter!
2 STAGE
* Available to combine filter system on customer demand.
1 STAGE
* Available to combine filter system on customer demand.

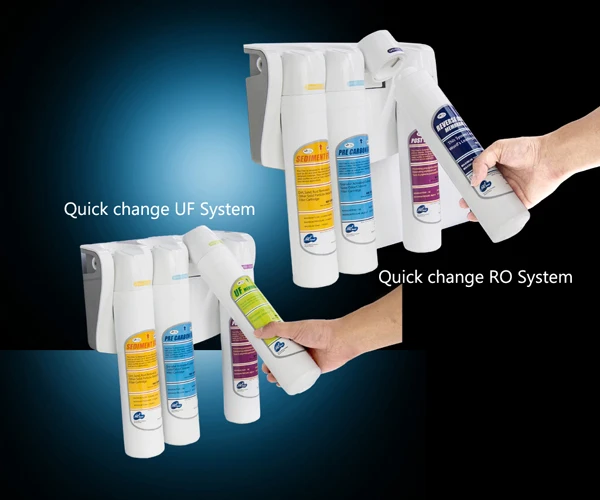

1. Features of HQ7 Series RO System / UF System
1) Quick and soft filter change - Twist and unique lock design
2) Ball valve is builtin filter head - Minimized water drop when replace filters
3) No need electrical power - HQ7 is designed without pressure pump
4) Attractive Design - Space saving Design
2. Specification of HQ7 Series
* Working Pressure : RO( 40~125psi ), UF(30~60psi)
* Maximum Temperature : RO(100F, 38C), UF(100F, 38C)
* Hydrostatic burst pressure : RO(Min. 600psi), UF(Min. 600psi)
* Impulse Test : RO(0~150 psi for 100,000 cycles), UF(0~150 psi for 100,000 cycles)
* Hydrostatic pressure : RO(360 psi (2,482kPa) for 15 minutes), UF(360 psi (2,482kPa) for 15 minutes)
* Inlet/Outlet Size : RO(1/4' TUBING), UF(1/4' TUBING)
3. Filters Specification of HQ7 Series
[STAGE 1] SEDIMENT Filter
Operation Conditions - Flow rate : 0.5GPM(1.9LPM) - Pressure : 30 ~ 125PSI(2~8.8kgf/cm ) - Temperature : 34 F ~ 100 F(1~38 C) - Function : mechanical reduction - Flushing : 5 minutes - Service life : 6 Month
[STAGE 2&4] Pre carbon Filter(4 stage) & Post Carbon Filter
Operation Conditions - Flow rate : 0.5GPM(1.9LPM) - Pressure : 30~125 PSI(2~8.8kgf/cm ) - Temperature : 34 F ~ 100 F(1~38 C) - Function : chemical reduction - Flushing : 5 minutes - Service life : 6 Month
[STAGE 3]
TYPE : RO Membrane Filter
Operation Conditions - Flow rate : 50GPD or 75GPD - Pressure : 40 ~ 125 PSI(2.8~8.78kgf/cm ) - Temperature : 34 ~ 100 F(1 ~ 38 C) - Function : RO membranes - Flushing : 30 minutes - Check valve is built in RO membrane filter and flow restrictor is added
TYPE : UF Membrane Filter
- Reduction : Bacteria, More than 99.9% for Escherichia coli & staphylococcus aureus. (Certified by Korea Environment & Water Works Institute)
- Capacity : 2,500 Gallon (9,400 Liter) - Micron Rating : 0.05~0.01 micron
- UF Membrane media is made in Korea - Service life : 1 Year

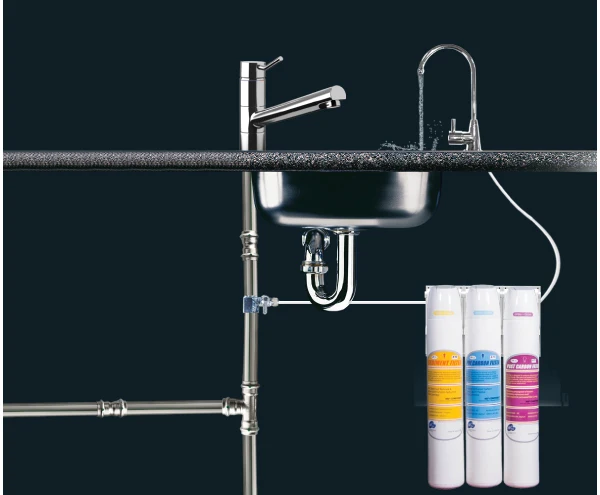

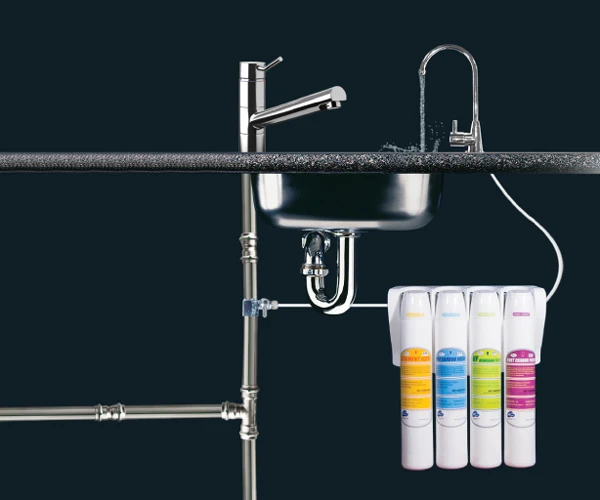

4. Diagram of HQ7 Series (4 STAGE)

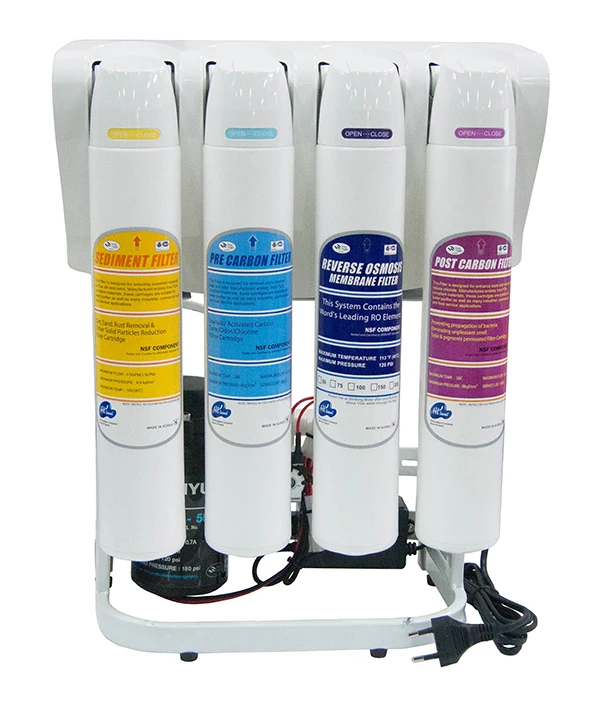

5. HQ7 4FR-ST with RO Booster pump.(option)
It is necessary to use RO booster pump for the stable water pressure if the raw water pressure is low.

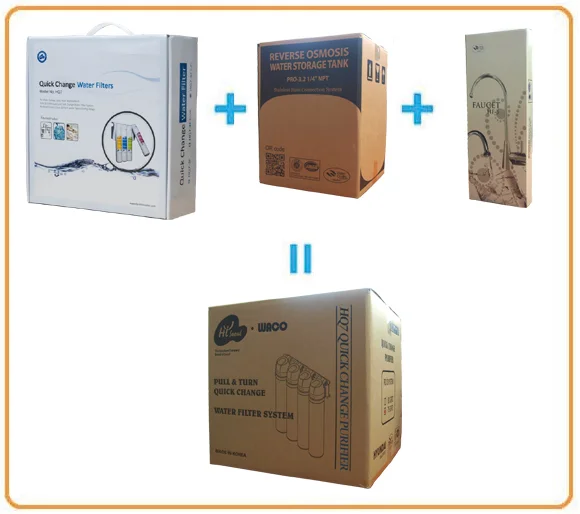

6. HQ7 Package System
